Elkay LVRCDWSPRO-FLP4-UV | Pro Filtration VR Bottle Filling Station...

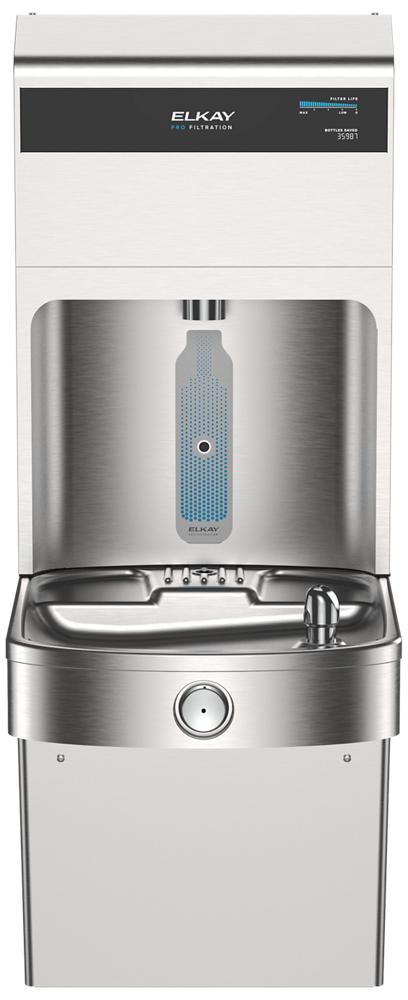

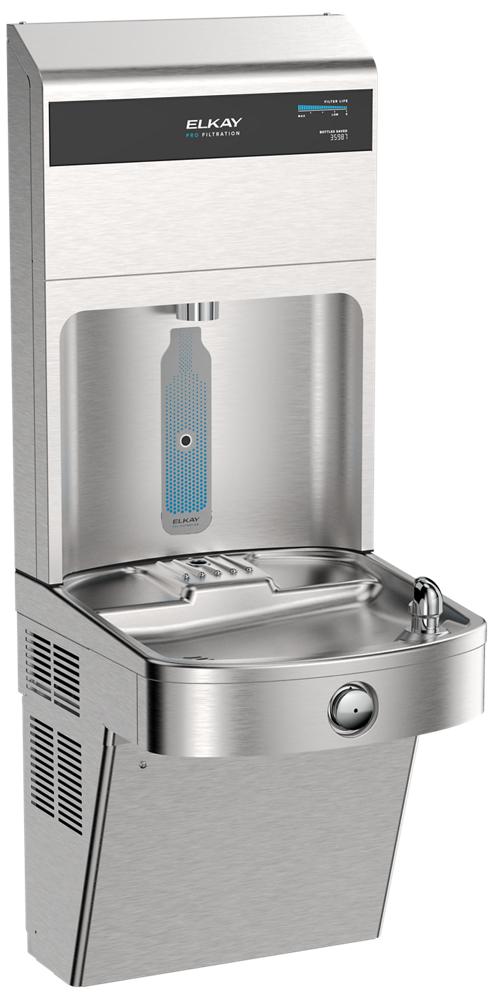

The Elkay LVRCDWSPRO-FLP4-UV Series is a wall-mount bottle filling station and water fountain with Total PFAS filtration and built-in UVC-LED purification.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Chlorine, Taste & Odor
- Filter Capacity: 4,000 Gal. (FLP4 Total PFAS Filter) + Built-in UVC-LED
- Refrigeration: Non-refrigerated, refers to LVRC8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Advanced Total PFAS Filtration: The Elkay LVRCDWSPRO-FLP4-UV Series includes the FLP4 filter certified to NSF/ANSI 42, 53 & 401, reducing Total PFAS, lead, microplastics, cysts, and chlorine taste & odor for cleaner, safer drinking water.
- Built-in UVC-LED Purification: Equipped with a UVC-LED at the dispense point, the Elkay LVRCDWSPRO-FLP4-UV Series adds an extra layer of protection against microbial contaminants at the point of use.
- Cloud-Connected Smart Monitoring: Via plumbSMART Gateway, facility managers can remotely track filter status, flush the unit, and monitor bottles saved — keeping maintenance proactive and reducing downtime.
- Top-Mount Quick Filter Change: Filters are accessible from the top of the unit, allowing fast, easy replacements with minimal system disruption — ideal for busy, high-traffic environments.
FAQ
Q: What contaminants does the Elkay LVRCDWSPRO-FLP4-UV Series filter remove?
A: The included FLP4 filter is certified to NSF/ANSI 42, 53 & 401 and reduces Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, chlorine, and taste & odor. The built-in UVC-LED provides additional purification at the dispense point.
Q: Is a special gateway required for the smart connected features?
A: Yes. The cloud-connected features — including remote filter status tracking, unit flushing, and bottle-savings monitoring — require a plumbSMART Gateway and Account, sold separately (ZGW-LORA-W1-LTE).
Q: How is this unit installed and where can it be used?
A: The Elkay LVRCDWSPRO-FLP4-UV Series is designed for wall-mount (on wall) installation and is intended for indoor use only, serving one station. It requires a 115V/60Hz electrical connection.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

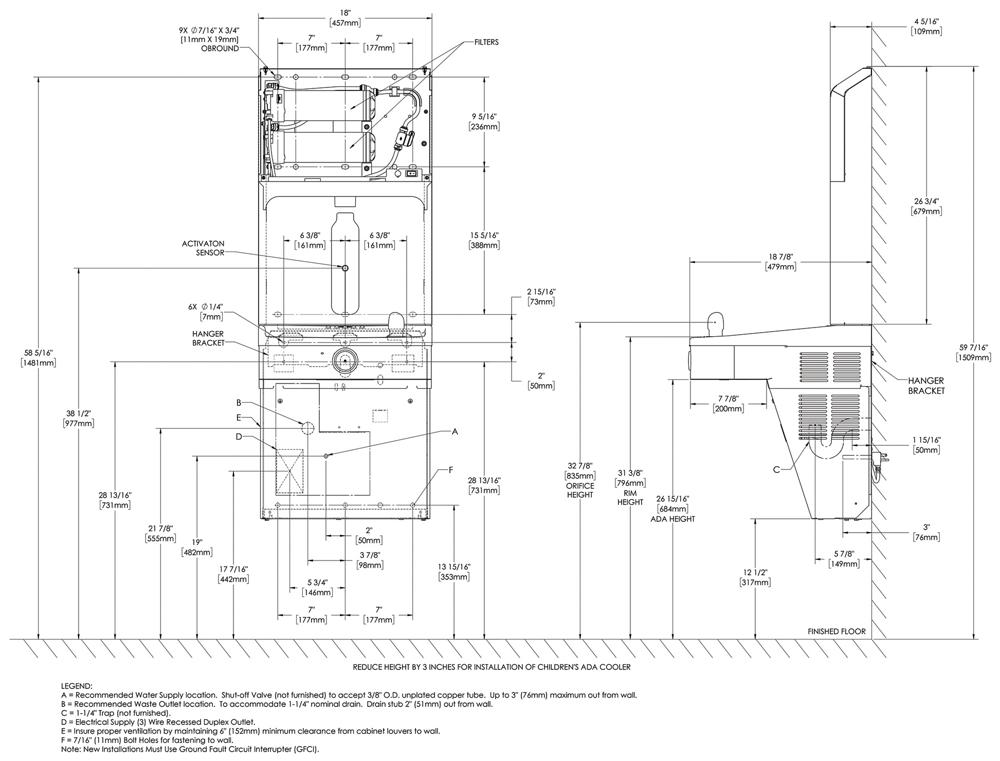

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
