Elkay LVRC8WSPRO-FLP4-UV | VR Bottle Filling Station & Cooler S...

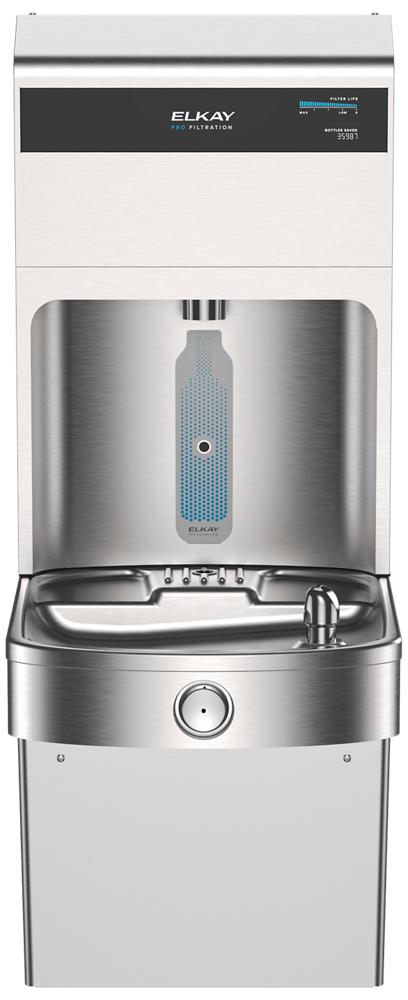

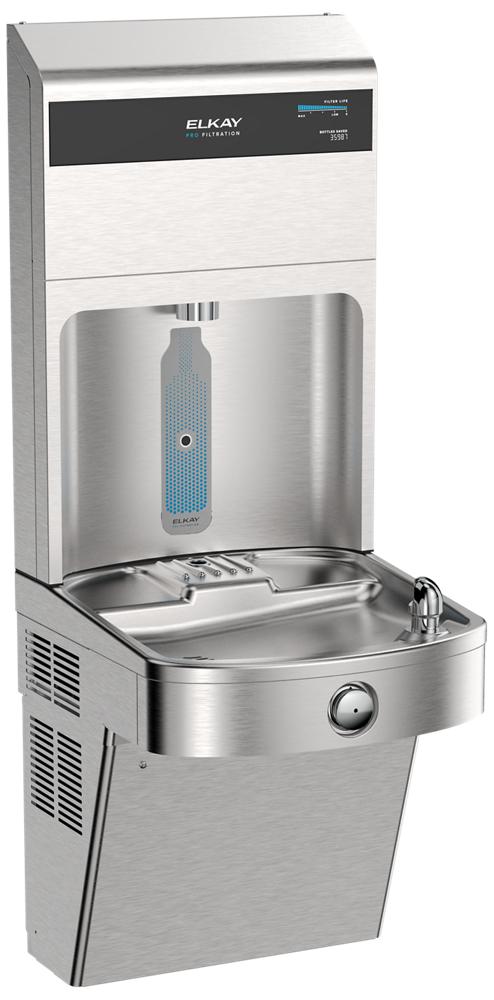

The Elkay LVRC8WSPRO-FLP4-UV is a vandal-resistant bottle filling station and water cooler with Total PFAS filtration and built-in UVC-LED protection.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Asbestos, Turbidity, Particulate Class 1, Chlorine, Taste & Odor

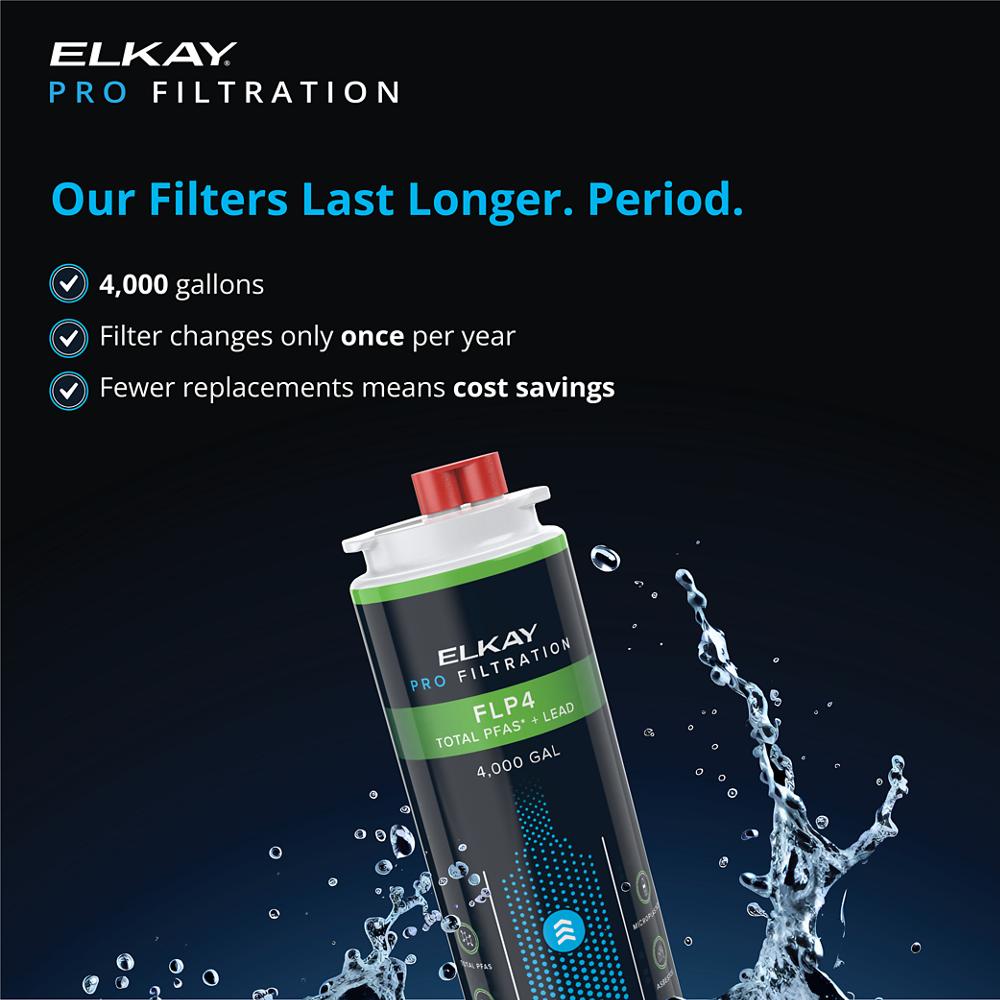

- Filter Capacity: 4,000 Gal. (FLP4 Total PFAS Filter Included)
- Refrigeration: Water Cooler Included
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Advanced Total PFAS Protection: The LVRC8WSPRO-FLP4-UV includes the FLP4 filter, certified to NSF/ANSI 42, 53 & 401, reducing Total PFAS, lead, microplastics, cysts, and more — delivering a comprehensive layer of water safety beyond standard filtration.
- Built-In UVC-LED Disinfection: A UVC-LED at the dispense point adds an extra layer of water safety by targeting harmful microorganisms directly at the point of use, complementing the filtration system for enhanced protection.
- Smart Cloud Connectivity via plumbSMART: The LVRC8WSPRO-FLP4-UV connects to Elkay's plumbSMART platform (Gateway and Account required), enabling remote filter monitoring, automatic flush, maintenance alerts, and real-time sustainability tracking — all from a centralized dashboard.
- Easy Top-Access Filter Replacement: Filters are accessible from the top of the unit, allowing fast changeouts with minimal disruption to operations — reducing downtime and simplifying routine maintenance in busy environments.
FAQ
Q: What contaminants does the included FLP4 filter remove?
A: The FLP4 filter is certified to NSF/ANSI 42, 53 & 401 and reduces Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, asbestos, turbidity, particulate class 1, chlorine, taste, and odor.
Q: Is cloud connectivity included out of the box with the LVRC8WSPRO-FLP4-UV?
A: The unit is cloud-ready via Elkay's plumbSMART system; however, a plumbSMART Gateway and Account are required separately to enable remote monitoring and management features.
Q: Can the filtration option be upgraded or changed on this unit?
A: Yes, the LVRC8WSPRO-FLP4-UV supports multiple filtration configurations. Compatible options include ultra-capacity filters (FL10), sediment prefilters (FSR5), and dual-filter setups — allowing flexibility based on water quality needs and traffic volume.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

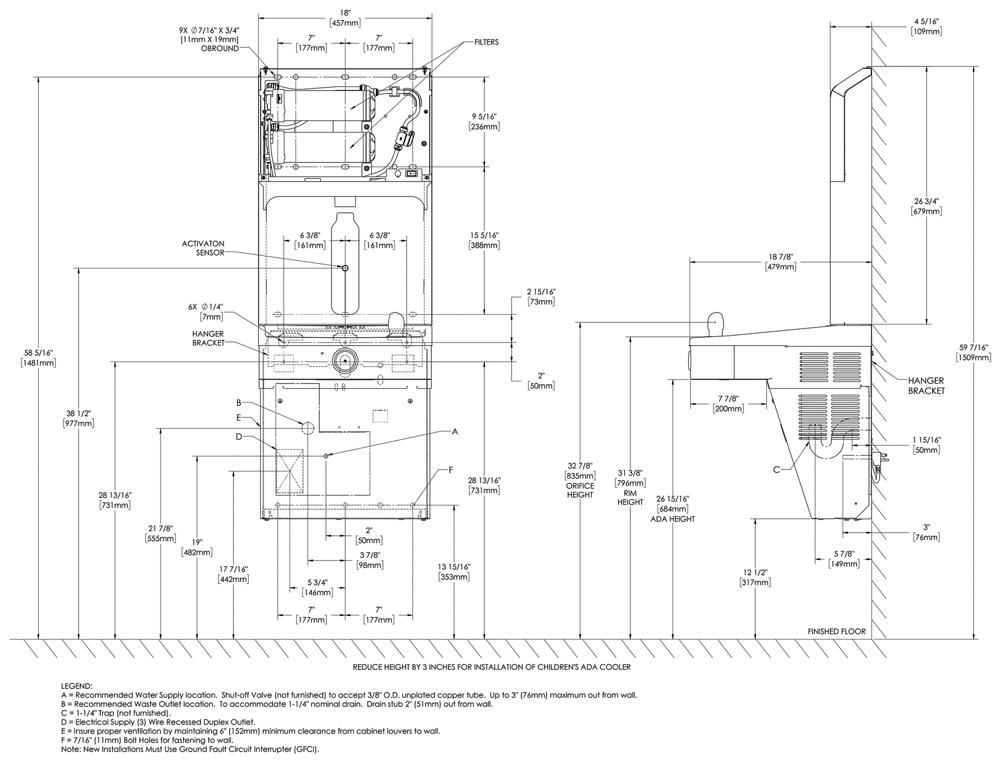

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
