Elkay LVRC8WSPRO-FLP4-FSR5 | Pro Filtration VR Bottle Filling Stati...

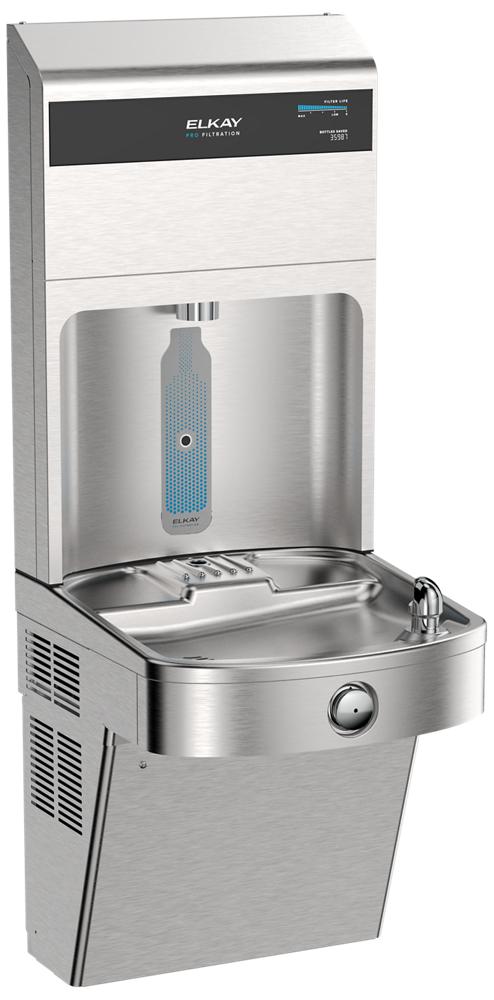

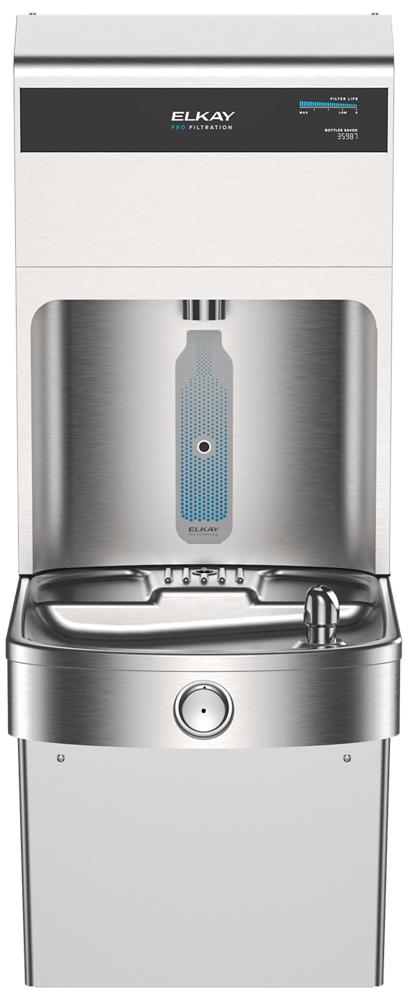

The Elkay LVRC8WSPRO-FLP4-FSR5 is a wall-mount bottle filling station and water cooler with Total PFAS filtration, smart connectivity, and vandal-resistant stainless steel construction.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Chlorine Taste & Odor, Cysts, Asbestos, Turbidity, Particulate Class 1
- Filter Capacity: 4,000 Gal. (FLP4) + FSR5 Stage 1 Sediment Prefilter
- Refrigeration: Water Cooler Included
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Total PFAS & Multi-Contaminant Filtration: The LVRC8WSPRO-FLP4-FSR5 includes an FLP4 filter certified to NSF/ANSI 42, 53 & 401 to reduce Total PFAS, lead, microplastics, and more — delivering cleaner, safer drinking water in demanding environments.
- Cloud-Connected Smart Monitoring: Equipped with plumbSMART technology, the LVRC8WSPRO-FLP4-FSR5 allows facility managers to remotely track filter status, flush the unit, and monitor bottles saved — reducing maintenance surprises and supporting sustainability goals.
- Quick Top-Access Filter Replacement: Filters can be changed in seconds from the top of the unit, minimizing system disruption and keeping downtime to a minimum in high-traffic locations.
- Vandal-Resistant Stainless Steel Build: Engineered for durability in busy public spaces, the LVRC8WSPRO-FLP4-FSR5 features a stainless steel alcove, tempered glass display cover, and vandal-resistant bubbler for long-lasting performance.
FAQ
Q: Does this unit require a separate gateway for the smart connected features to work?
A: Yes. The plumbSMART cloud connectivity features require a plumbSMART Gateway and Account (sold separately, SKU: ZGW-LORA-W1-LTE) to remotely track filter status, flush the unit, and monitor bottles saved.
Q: What contaminants does the FLP4 filter reduce in the LVRC8WSPRO-FLP4-FSR5?
A: The FLP4 filter is certified to NSF/ANSI 42, 53 & 401 and reduces Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, chlorine taste & odor, cysts, asbestos, turbidity, and particulate class 1 contaminants.
Q: What is the warranty coverage for this unit?
A: The refrigeration system carries a 5-Year Limited Warranty. Electrical components and the water system are warranted for 12 months from the date of installation. Warranty applies to drinking water applications only.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

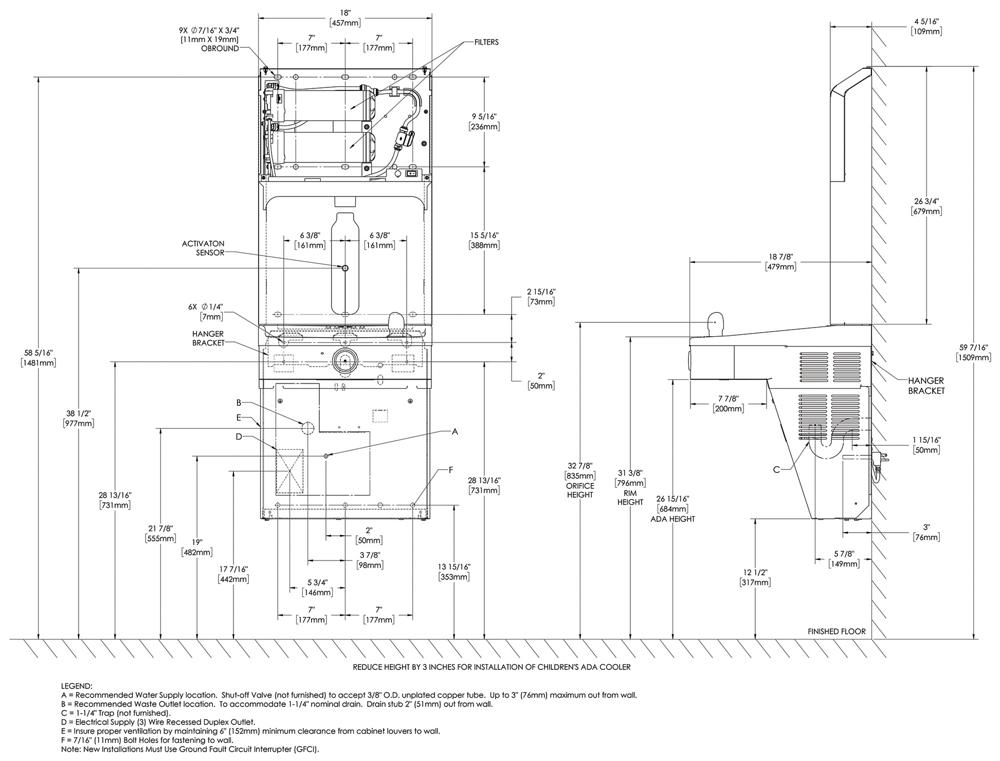

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
