Elkay LK4409BF | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated
Elkay LK4409BF | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4409BF | Wall-mount Bottle Filling Station | Filterless, No...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

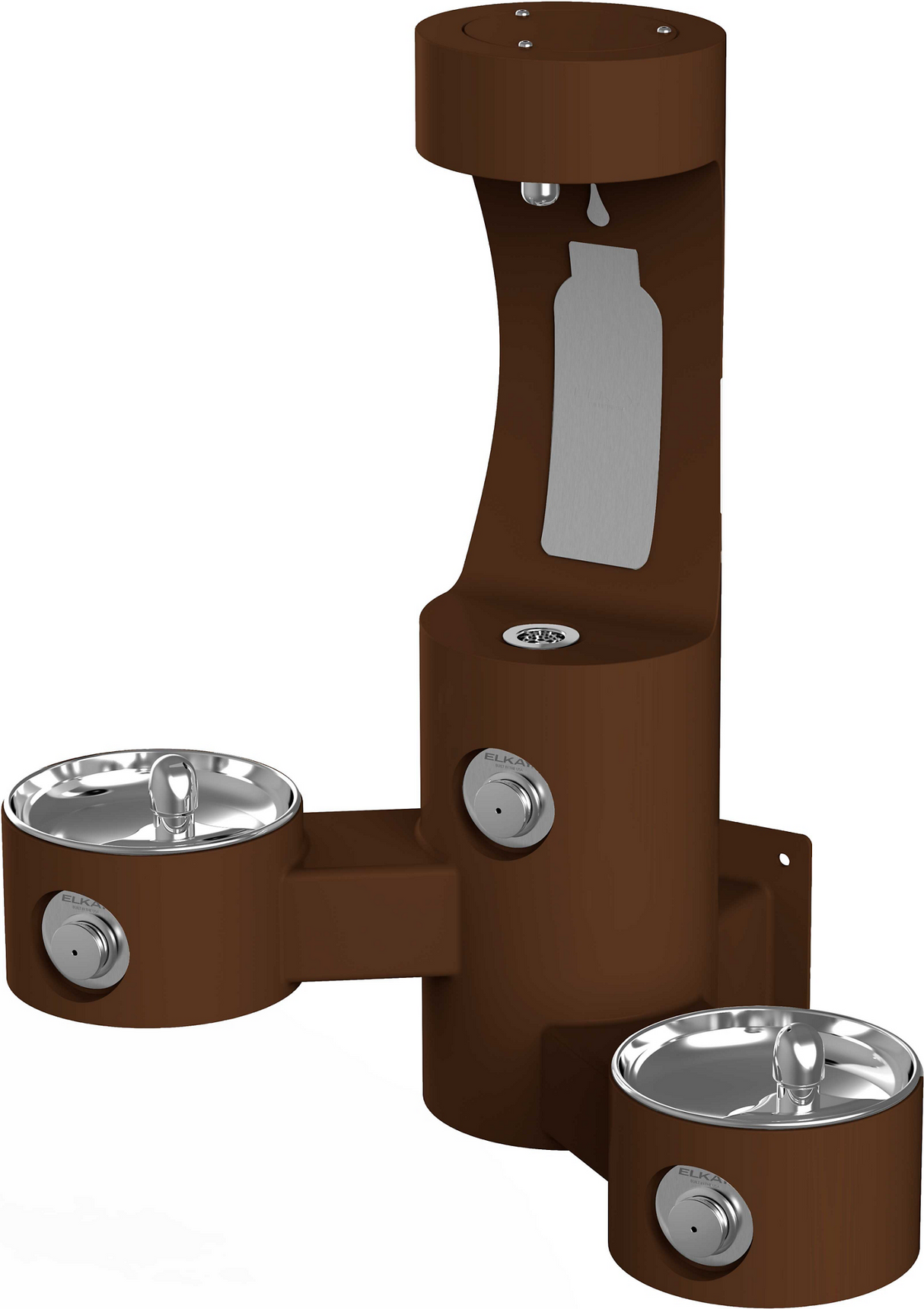

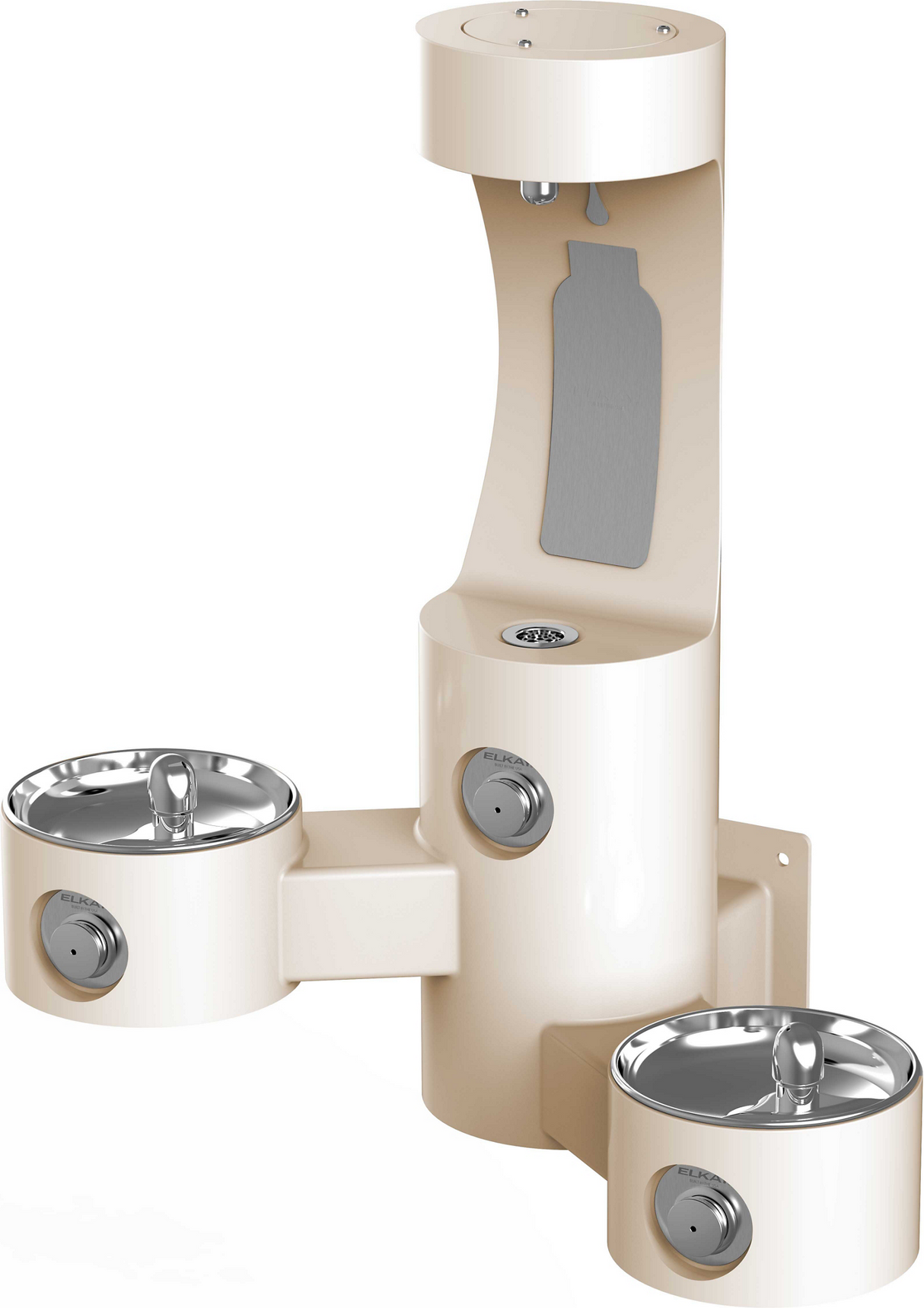

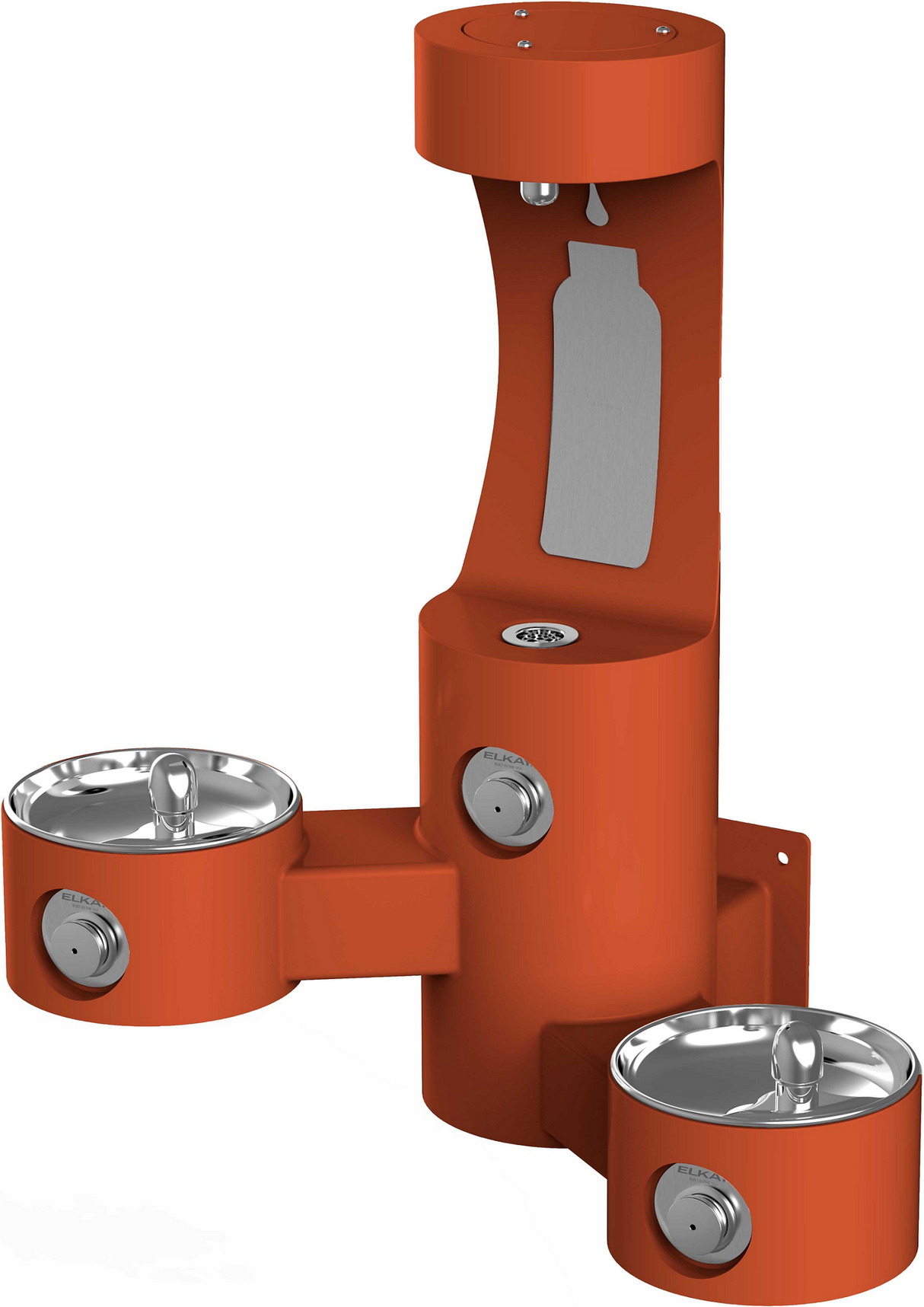

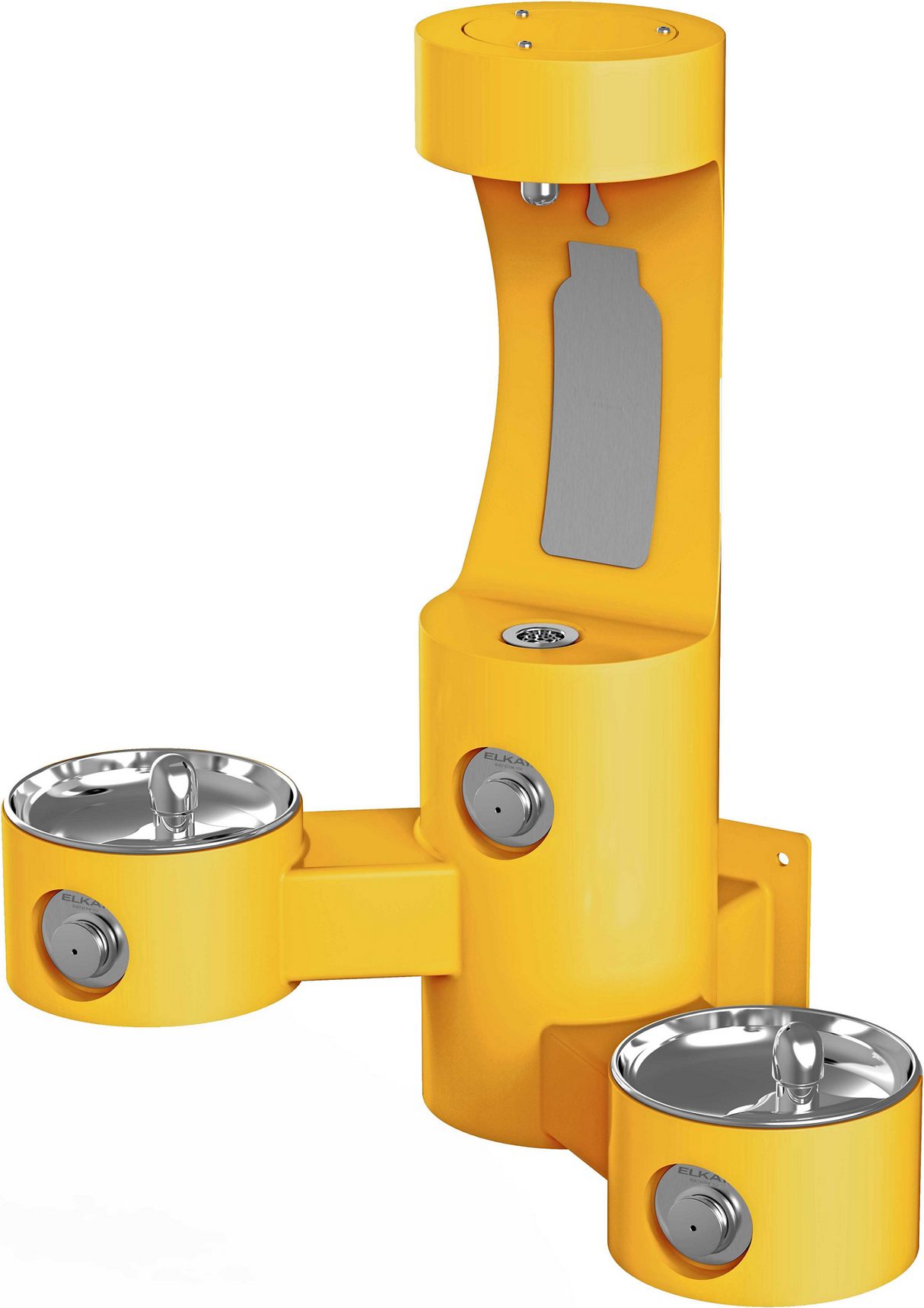

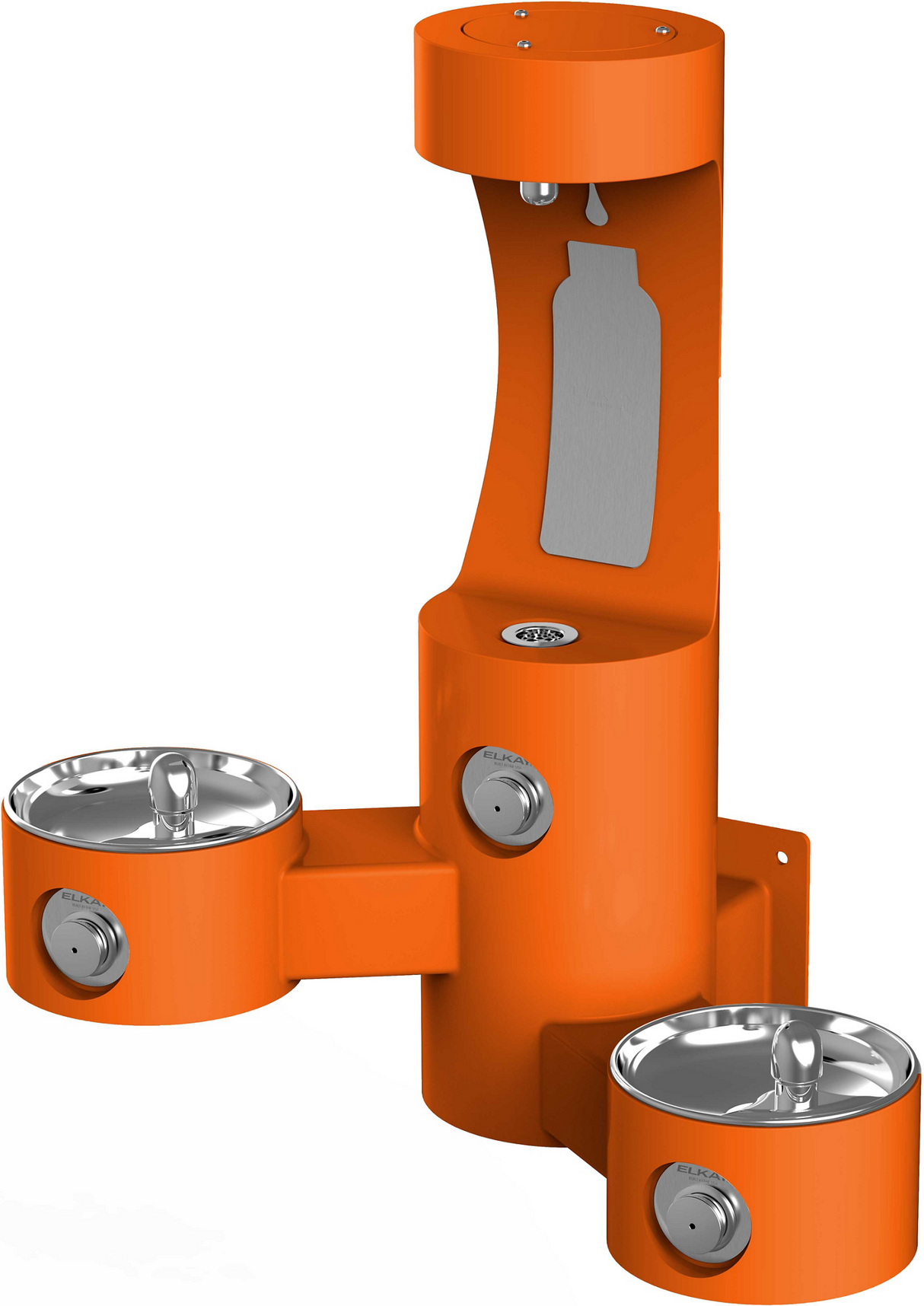

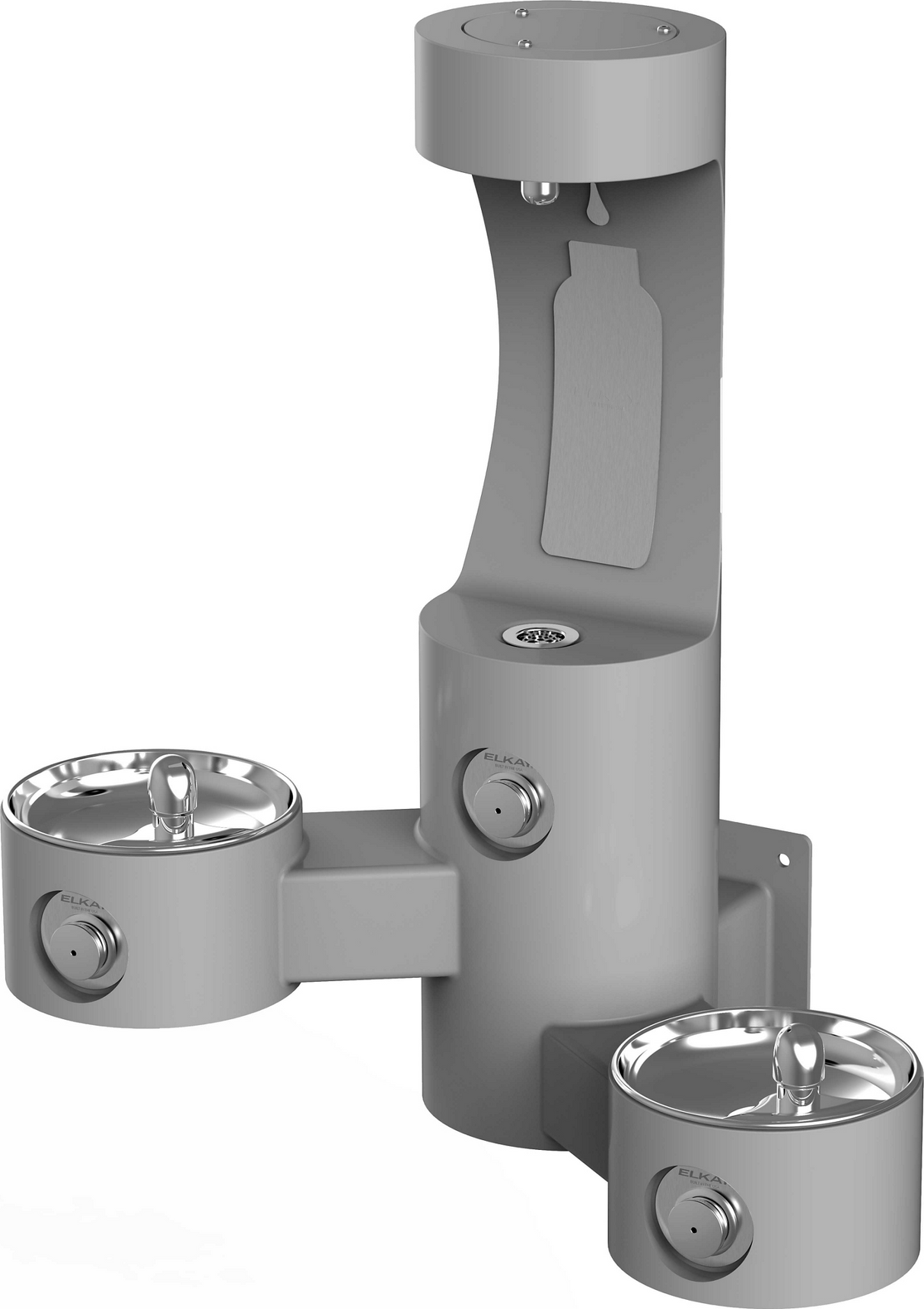

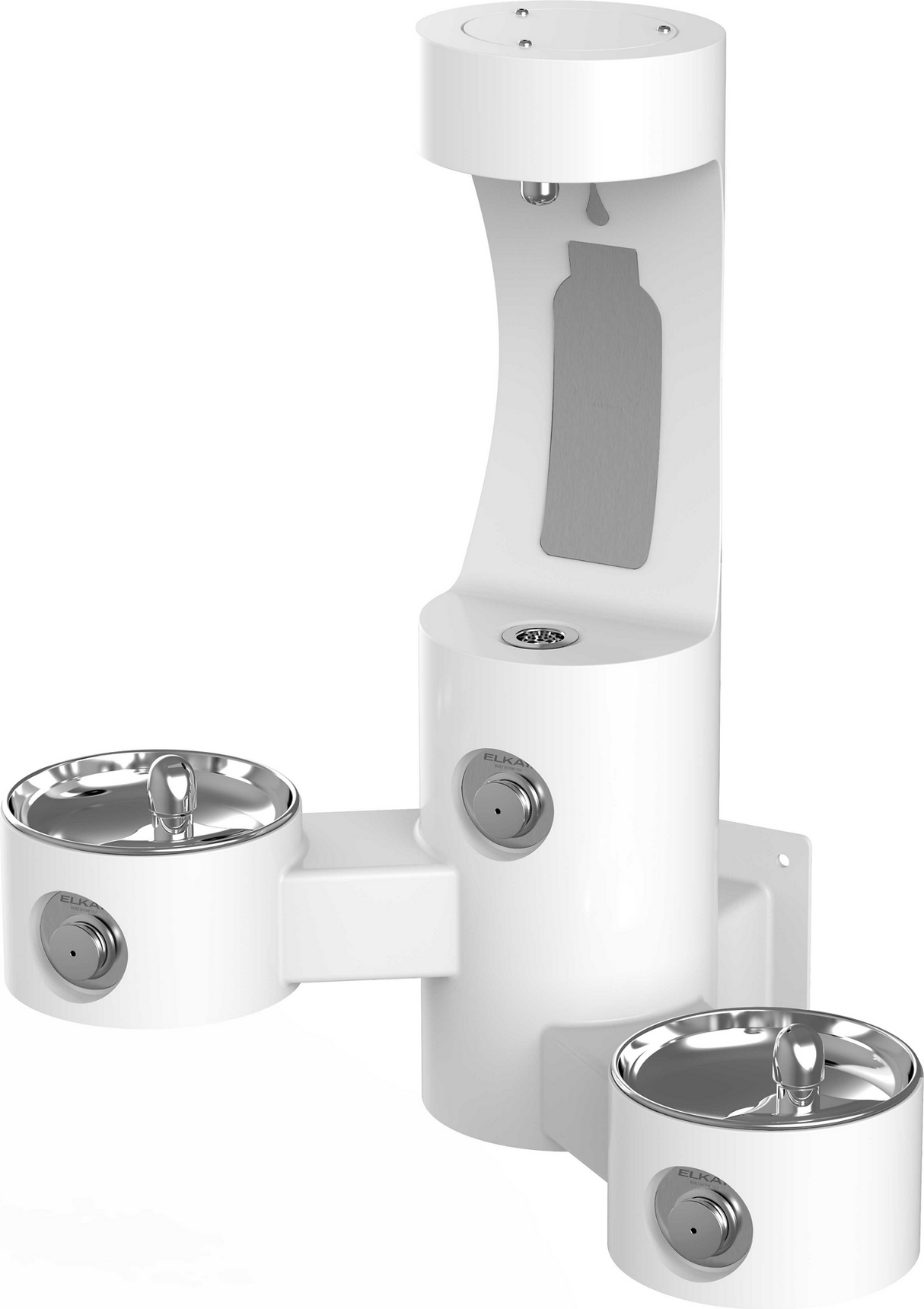

The Elkay LK4409BF is a robust, outdoor ezH2O® Bottle Filling Station with a bi-level fountain, designed for wall-mount installation. This non-filtered, non-refrigerated unit combines durability, accessibility, and eco-friendliness, making it an ideal solution for high-traffic outdoor areas where reliable access to drinking water is essential.
Key Specifications:
- Construction: Heavy-duty, vandal-resistant 300 Series Stainless Steel for maximum durability in outdoor settings.
- Capacity: Serves 3 stations - 1 bottle filling station and 2 drinking fountains (1 upper, 1 lower).
- Activation: Mechanical button for reliable operation without electricity.
- Dimensions: 21-1/4" L x 32-7/8" W x 38-7/16" H, suitable for wall-mount installation.
- Weight: Approximately 203 lbs shipping weight, ensuring stability and durability.
Features & Benefits:
- Outdoor-Ready: Specifically designed to withstand various weather conditions, ensuring year-round functionality.
- ADA Compliant: Bi-level design ensures accessibility for users of all abilities, promoting inclusivity in public spaces.
- Laminar Flow: Provides a clean, splash-free fill, enhancing user experience and maintaining cleanliness.
- Eco-Friendly: Encourages the use of reusable water bottles, contributing to the reduction of plastic waste.
- Color Options: Available in Black, Blue, Evergreen, and Gray to match various outdoor aesthetics.
What's Included:
- Elkay LK4409BF Outdoor Bottle Filling Station with Bi-Level Fountain
- Vandal-resistant bubbler
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 10-15 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler, Freeze Resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit. If this is desired, we will need to create a custom order.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: Outdoor Bottle Fillers do not come with chillers because of the risk presented from outdoor elements, especially in the cold. However, if installed with proper shelter and temperature, a remote chiller can be hooked up to the Bottle Filler, which can especially be beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Bottle Filling Stations are very durable. They are made with heavy-duty steel with a textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
Detailed Features & Benefits

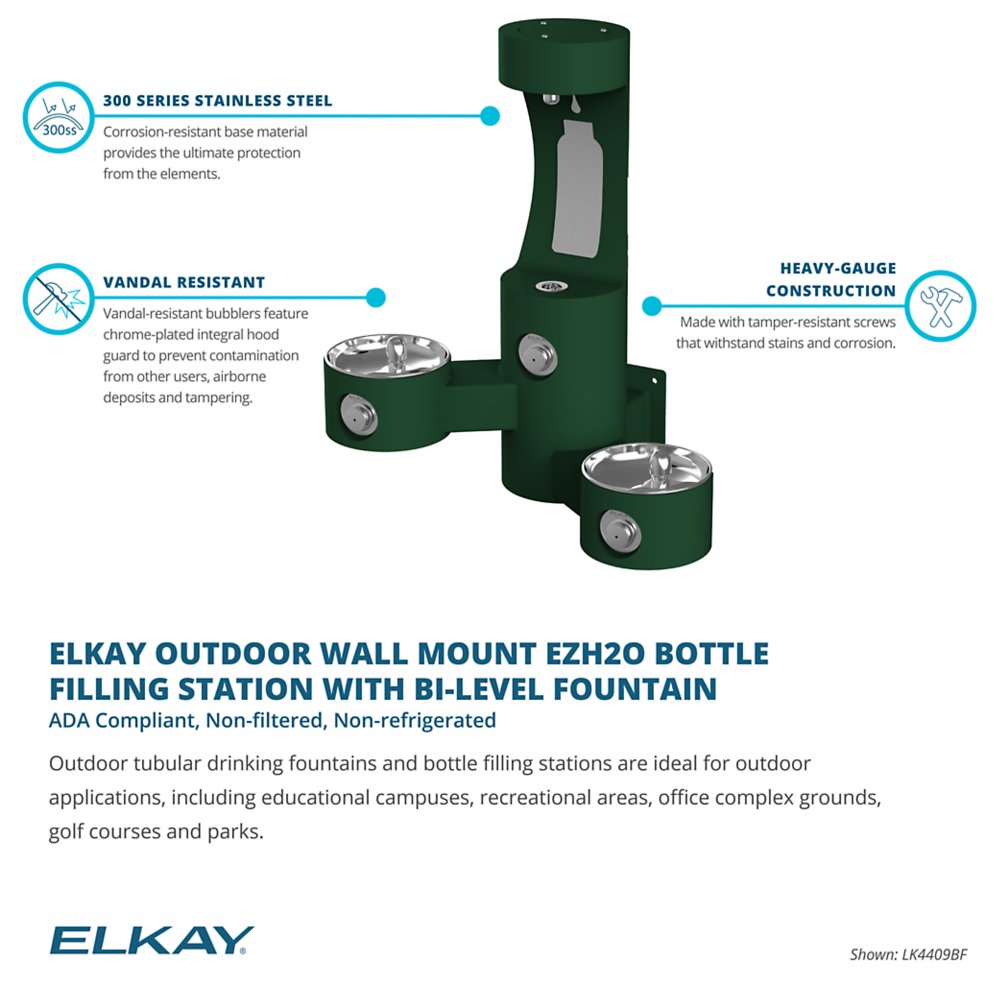

Vandal-Resistant Design: The LK4409BF's construction using 300 Series Stainless Steel isn't just about durability – it's a statement of resilience in public spaces. This material choice ensures the unit can withstand potential vandalism, harsh weather conditions, and frequent use without compromising its functionality or appearance. The mechanical button activation further enhances its robustness, eliminating vulnerabilities associated with electronic components. This thoughtful design translates to lower maintenance costs and longer service life, making it an excellent investment for municipalities, educational institutions, and private organizations looking to provide sustainable hydration solutions in outdoor settings.
Versatile Tri-Level Design: The LK4409BF's unique configuration with a bottle filling station and bi-level fountain offers unparalleled versatility. This design caters to users of all ages and abilities, making it ideal for diverse public spaces. The upper fountain serves adults and taller individuals, while the lower fountain is perfect for children, wheelchair users, or those who prefer a lower drinking height. The bottle filling station encourages the use of reusable water bottles, promoting sustainability. This tri-level approach ensures that the unit can serve a wide range of users efficiently, reducing wait times and improving overall user satisfaction in high-traffic areas.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
