Elkay LK4408BF | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated
Elkay LK4408BF | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4408BF | Wall-mount Bottle Filling Station | Filterless, No...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

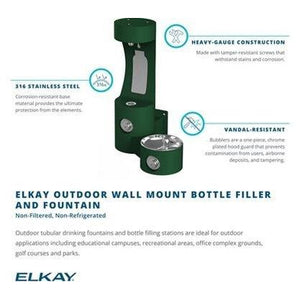

The Elkay LK4408BF is a cutting-edge Outdoor ezH2O® Bottle Filling Station with a Single Fountain, designed to revolutionize hydration in outdoor spaces. This non-filtered, non-refrigerated wall-mounted unit combines durability, functionality, and style, making it the perfect solution for parks, campuses, and other outdoor environments where reliable access to clean drinking water is essential.
Key Specifications:
- Robust Construction: Features heavy-duty, vandal-resistant 300 Series Stainless Steel construction, ensuring longevity in demanding outdoor settings.
- Dual Functionality: Incorporates both a bottle filling station and a single fountain, catering to various user preferences and needs.
- Mechanical Activation: Utilizes a mechanical button for activation, ensuring reliable operation without the need for electrical power.
- Customizable Aesthetics: Available in four stylish colors - Black, Blue, Evergreen, and Gray - to complement any outdoor environment.
Features & Benefits:
- Laminar Flow Technology: Provides a clean, splash-free fill for bottles, enhancing user experience and minimizing mess.
- Weather-Resistant Design: Engineered to withstand various outdoor conditions, ensuring year-round functionality with proper winterization.
- Eco-Friendly Solution: Encourages the use of reusable water bottles, significantly reducing plastic waste in outdoor spaces.
- ADA Compliant: When installed according to guidelines, it meets ADA & ICC A117.1 accessibility requirements, ensuring inclusivity for all users.
What's Included:
- Elkay LK4408BF Outdoor ezH2O® Bottle Filling Station with Single Fountain
- Vandal-resistant bubbler
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 10-15 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler, Freeze Resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit. If this is desired, we will need to create a custom order.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: Outdoor Bottle Fillers do not come with chillers because of the risk presented from outdoor elements, especially in the cold. However, if installed with proper shelter and temperature, a remote chiller can be hooked up to the Bottle Filler, which can especially be beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Bottle Filling Stations are very durable. They are made with heavy-duty steel with a textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
Detailed Features & Benefits
Vandal-Resistant Design: We understand the challenges of maintaining outdoor equipment, which is why we've gone the extra mile with the LK4408BF. Its heavy-duty, 300 Series Stainless Steel construction isn't just about durability – it's about creating a reliable hydration solution that stands up to the toughest conditions. The vandal-resistant features, including the sturdy bubbler and mechanical activation button, ensure that your investment continues to serve your community, even in high-traffic or unsupervised areas. This rugged design translates to lower maintenance costs and longer service life, providing you with peace of mind and your users with consistent access to clean drinking water.
Dual-Function Versatility: The LK4408BF isn't just a water fountain – it's a hydration hub! By combining a bottle filling station with a traditional drinking fountain, we've created a solution that caters to everyone's preferences. The bottle filling feature encourages the use of reusable water bottles, supporting sustainability efforts and reducing plastic waste. At the same time, the traditional fountain option ensures that quick sips are always available. This dual functionality maximizes the unit's utility, making it an excellent choice for diverse outdoor spaces where different user needs must be met efficiently.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
