Elkay LZWSM8K | In-wall Bottle Filler | Filtered, Refrigerated, Han...
In-Stock. Order before 3pm EST for same day shipping.
The Elkay LZWSM8K is an ezH2O® In-Wall Bottle Filling Station with Mounting Frame, designed for indoor applications. This filtered and refrigerated stainless steel unit offers a high-capacity, hands-free solution for providing chilled, clean drinking water. With its advanced features like antimicrobial components, Green Ticker™, and visual filter monitor, it stands out as a sustainable and user-friendly option for various indoor environments.
Key Specifications:
- Chilling Capacity: 8.0 GPH (gallons per hour) of 50°F drinking water, based on 80°F inlet water and 90°F ambient temperature
- Refrigeration: Hermetically sealed refrigeration system using R-134a refrigerant for efficient cooling
- Filtration: Uses the Elkay 51300C WaterSentry® Plus filter, 3,000-gallon capacity
- Dimensions: 19-3/4" L × 3-1/2" W × 40-13/16" H, suitable for in-wall installation
- Power Requirements: 115V/60Hz, with a rated wattage of 370W
- Flow Rate: 1.1 GPM fill rate with laminar flow for clean, splash-free operation
Features & Benefits:
- Hands-Free Operation: Electronic bottle filler sensor activation for improved hygiene and convenience
- Green Ticker™: Displays the number of 20 oz. plastic water bottles saved from waste, promoting environmental awareness
- Visual Filter Monitor: LED indicator shows when filter replacement is necessary, ensuring consistent water quality
- Antimicrobial Protection: Key plastic components are manufactured with silver ion antimicrobial agents for cleaner surfaces
- Real Drain System: Eliminates standing water, improving hygiene and reducing maintenance needs
What's Included:
- LZWSM8K In-Wall Bottle Filling Station unit
- Mounting frame for in-wall installation
- Water filter (51300C WaterSentry® Plus)
- Installation instructions and user manual
FAQ
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Does this model come with a Mounting Frame?
A: Yes, this model comes with an MFWS100 In-wall Carrier Mounting Frame.
Q: What is the difference between the LZWS8K and the LZWSM8K?
A: LZWS8K does not come with Mounting Frame. The LZWSM8K DOES come with a Mounting Frame.
Q: Which replacement filter does this model use?
A: The LZWSM8K uses the Elkay 51300C WaterSentry® Plus filter (3,000-gallon capacity). Replace the filter every 6–12 months, or sooner if the LED status indicator turns red.
Detailed Features & Benefits

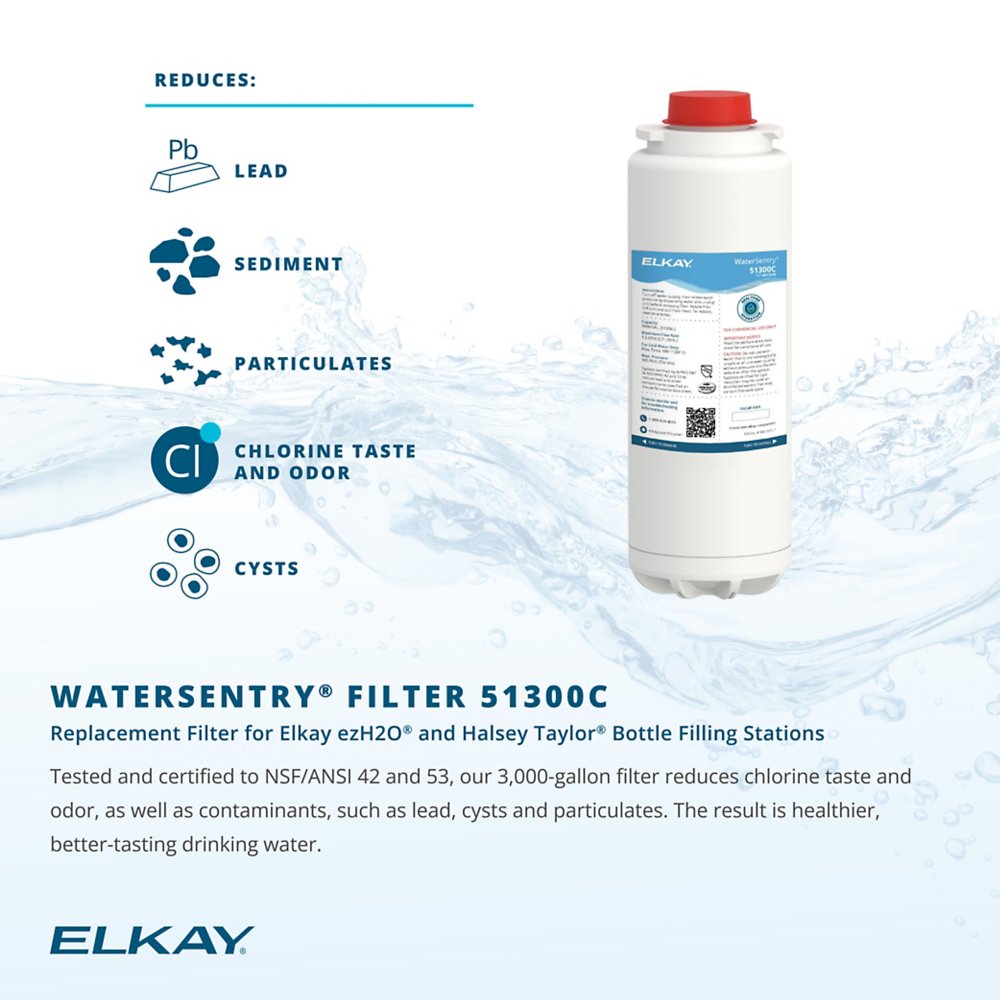

Advanced Filtration System: Certified to NSF 42 and 53, the 51300C filter reduces lead, chlorine, particulates, and improves taste and odor. The visual filter monitor alerts users when replacement is needed.
Green Ticker™ Technology: Displays the number of 20 oz. plastic bottles saved from waste. Encourages sustainability and reusable bottle use.
Efficient Cooling: Hermetically sealed refrigeration system with R-134a refrigerant provides consistent chilled water. Factory-preset thermostat ensures reliable operation.
Durable Construction: Stainless steel body resists wear and tampering. ADA compliant design ensures accessibility for all users.
Hygienic Design: Real Drain System eliminates standing water. Antimicrobial components help maintain cleaner surfaces.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
