Elkay EZWSM8K | In-wall Bottle Filler | Filterless, Refrigerated, H...

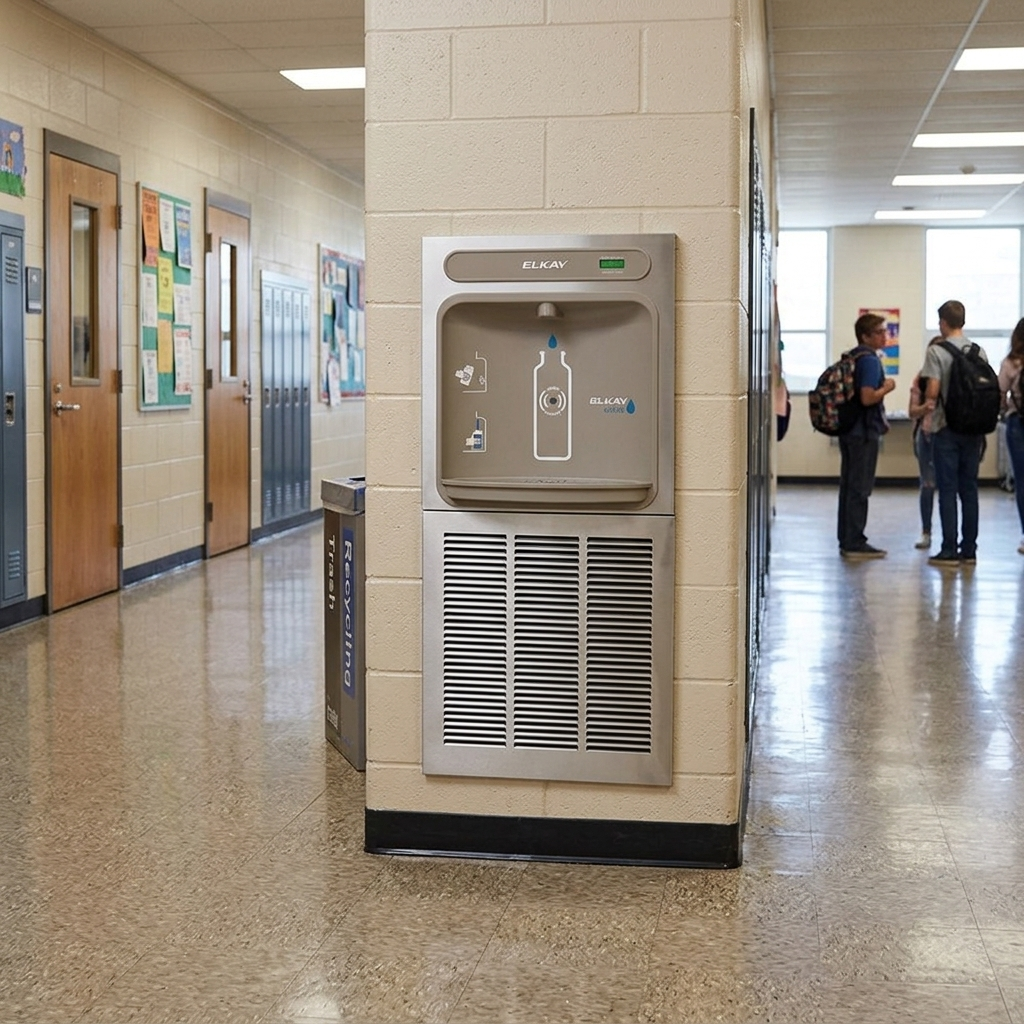

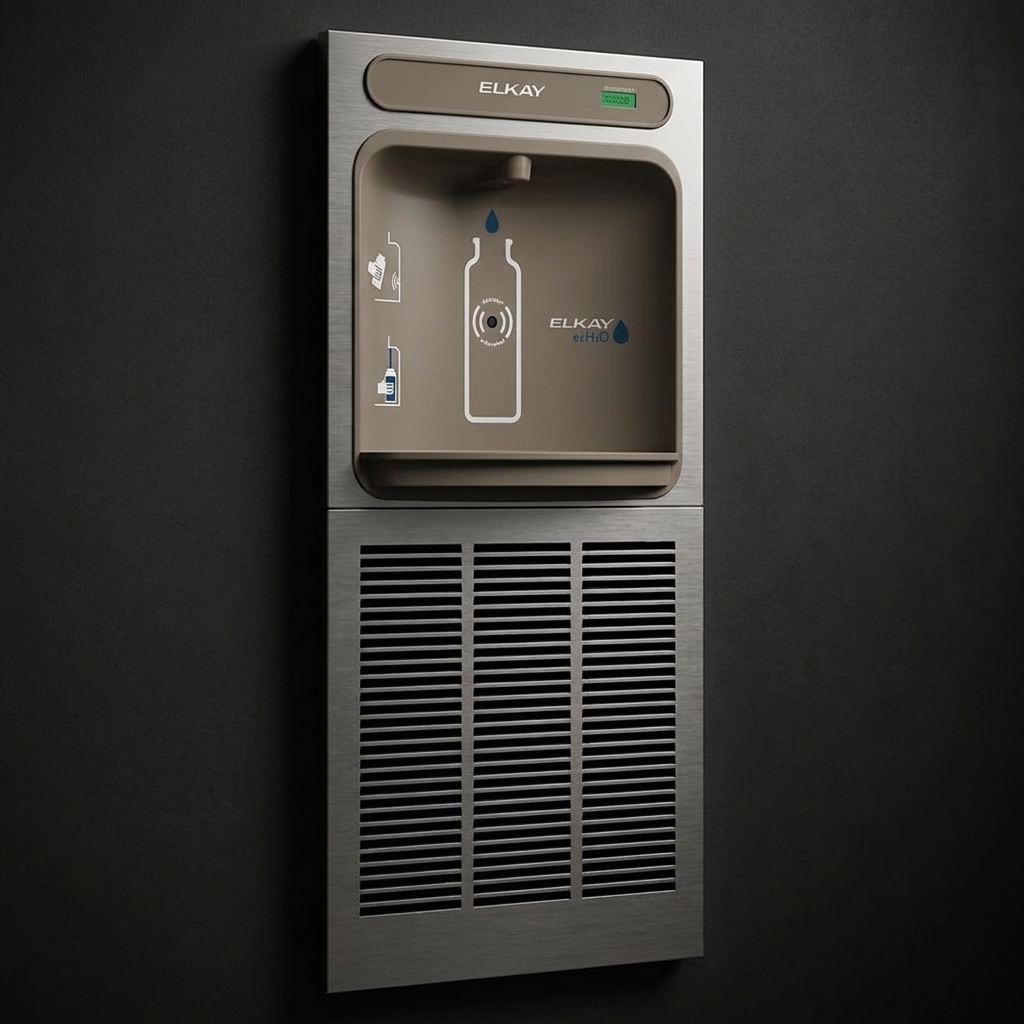

The Elkay EZWSM8K ezH2O® In-Wall Bottle Filling Station with Mounting Frame is a refrigerated, non-filtered hydration solution designed for recessed wall installation. Featuring hands-free sensor activation, chilled water delivery, antimicrobial protection, laminar flow, and a real drain system, it is ideal for schools, offices, healthcare facilities, and other indoor commercial environments.
Key Specifications:
| Design | In-Wall Bottle Filling Station with Mounting Frame and Chiller Package, Serving 1 Station |
| Finish | Stainless Steel |
| Filtration | Non-Filtered. For filtered performance, choose the LZWSM8K. Also compatible with EWF3000 Universal Filtration Kit. |
| Refrigeration | 8.0 GPH Chilling Capacity. Delivers 50°F drinking water under standard test conditions. |
| Stations Served | 1 Station |

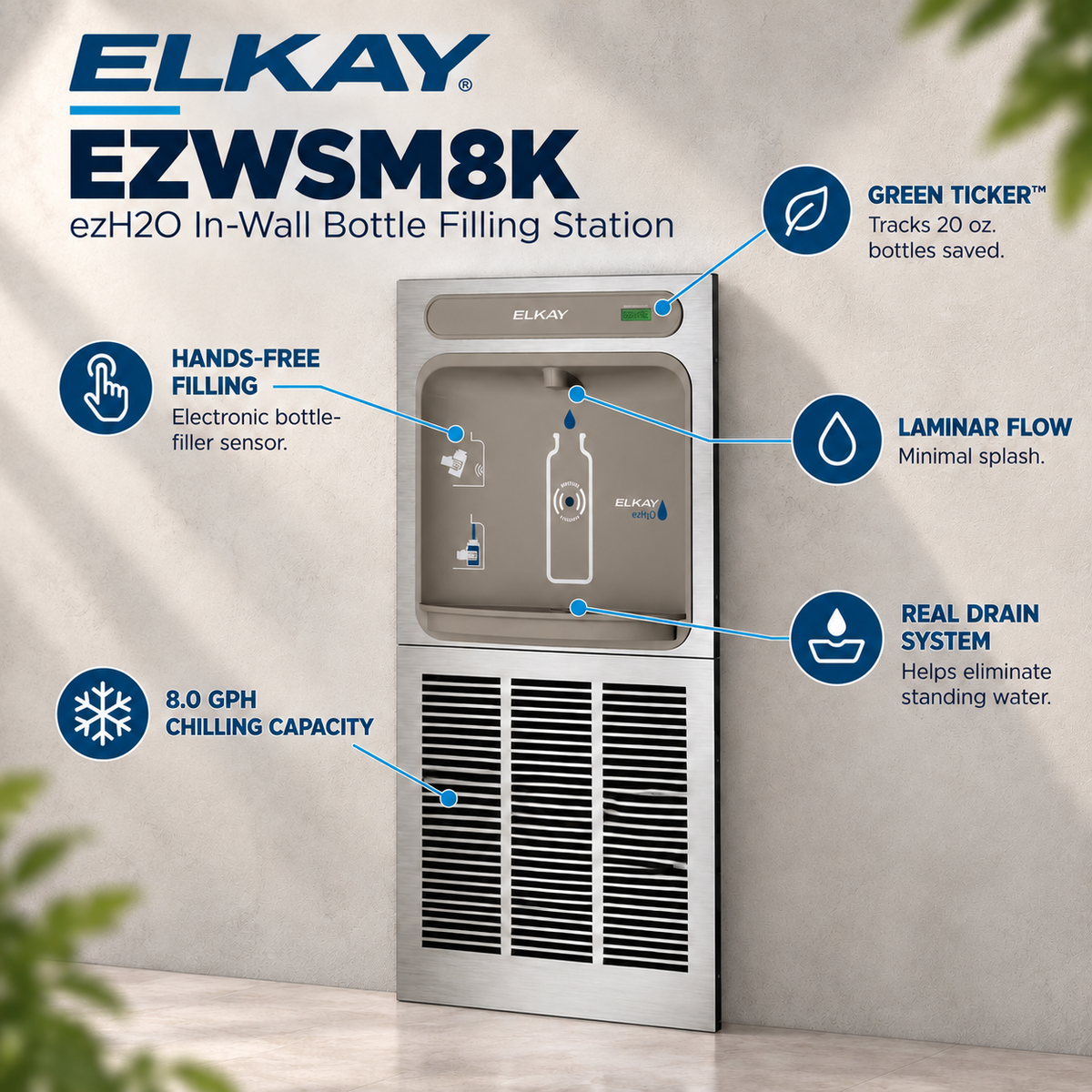

Features & Benefits:
- Hands-Free Operation: Electronic sensor activation delivers hygienic bottle filling with minimal touch points.
- Green Ticker™: Tracks the number of disposable plastic bottles saved from waste.
- Laminar Flow: Provides a clean fill with minimal splashing.
- Antimicrobial Protection: Key plastic components help resist stains and odors for cleaner surfaces.
- Real Drain System: Eliminates standing water to help maintain a cleaner filling area.
What's Included:
- EZWSM8C Bottle Filling Station
- MFWS100 Mounting Frame
- ECH8 Chiller
- Installation Instructions
- Ships in Multiple Boxes
FAQ
Q: Does the EZWSM8K include filtration?
A: No. The EZWSM8K is a non-filtered model. For filtered performance, choose the LZWSM8K Filtered Version.
Q: Does the EZWSM8K dispense chilled water?
A: Yes. The integrated chiller delivers up to 8.0 gallons per hour of chilled drinking water under standard operating conditions.
Q: Is the EZWSM8K ADA compliant?
A: Yes. When installed according to ADA and ICC A117.1 requirements, the unit complies with accessibility standards.
Q: Can the EZWSM8K be installed outdoors?
A: No. Elkay specifies this model for indoor applications only.
Q: What accessories are available for the EZWSM8K?
A: Facilities requiring filtration may add the EWF3000 Universal Filtration Kit.
Q: What warranty coverage is included?
A: Elkay provides a 5-Year Limited Warranty on the refrigeration system. Electrical components and the water system are covered by a 12-month warranty from the date of installation.
Q: What makes the EZWSM8K a good solution for high-traffic facilities?
A: Its recessed in-wall design reduces fixture projection while the hands-free bottle filler, chilled water delivery, and bottle counter help support hydration needs in schools, offices, and public buildings.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EZWSM8K is an in‑wall, filterless bottle filling station designed to provide a space‑saving hydration solution in commercial environments. Featuring hands‑free sensor activation and a fully recessed design, it delivers convenient bottle filling while maintaining hallway clearance and a clean architectural appearance.
Key Installation Requirements:
- In‑wall installation with adequate structural framing support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Wall cavity must meet recessed mounting requirements
- Drain connection required for proper operation
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers ambient water only
- Always depressurize water line before servicing
- Verify wall cavity dimensions before beginning installation
- Ensure sensor activation area remains unobstructed
- Inspect all plumbing and electrical connections before placing unit into service
Basic Installation Overview:
- Prepare wall opening and install required framing support
- Secure the mounting frame within the wall cavity
- Connect the cold water supply line and flush plumbing thoroughly
- Install the bottle filling station assembly into the recessed frame
- Connect drain and electrical service connections
- Pressurize the water system and inspect for leaks
- Test sensor activation and water flow performance
- Install finish trim panels and complete final inspection
For complete specifications and installation guidelines, download the official EZWSM8K Spec Sheet and the Installation Manual.
