Elkay EZWS-ERPB8-RF | In-wall Retrofit Bottle Filling Station | Filterless, Refrigerated, For use with SwirlFlo fountains, Stainless Steel
Elkay EZWS-ERPB8-RF | In-wall Retrofit Bottle Filling Station | Filterless, Refrigerated, For use with SwirlFlo fountains, Stainless Steel is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
🚚✨ Free Shipping in the Continental U.S.
All Products. No Minimums.
Estimated Shipping Times:
Important Note on Delivery Times
All shipping estimates provided are approximate only. While we always strive to meet or exceed your delivery expectations, we cannot guarantee the exact delivery times listed.
For time-sensitive orders, please contact us directly so we can provide a more accurate lead time estimate based on your specific requirements.
Same Day Shipping
All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM EST will ship the following business day.
Water Filters, Hand Dryers, & Indoor Bottle Fillers are our most popular in stock items.
Outdoor Tubular Drinking Fountains
Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.
Ice Machines
In stock units ship within 48 hours. Other units normally ship in 2-4 weeks.
Other
Orders that ship directly from a manufacturer normally have a firm shipping estimate but those dates are subject to change due to manufacturer production, inventory or shipping. We do our best to estimate ship dates but orders shipping directly from the manufacturer can have unexpected delays. We will confirm tracking information when orders ship directly from a manufacturer but may not have updates or estimates beyond the original estimate. Once your order is placed with the manufacturer, it may not be able to be cancelled even if it hasn't shipped yet.
Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity. Or to inquire about an existing order.
Special Case Shipping Rates
Please note that shipping rates are subject to change at any time. We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order. Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!
Key Terms & Conditions
Exceptions may apply to islands and other remote territories.
All orders shipped by the carrier of our choice.
Elkay EZWS-ERPB8-RF | In-wall Retrofit Bottle Filling Station | Fi...

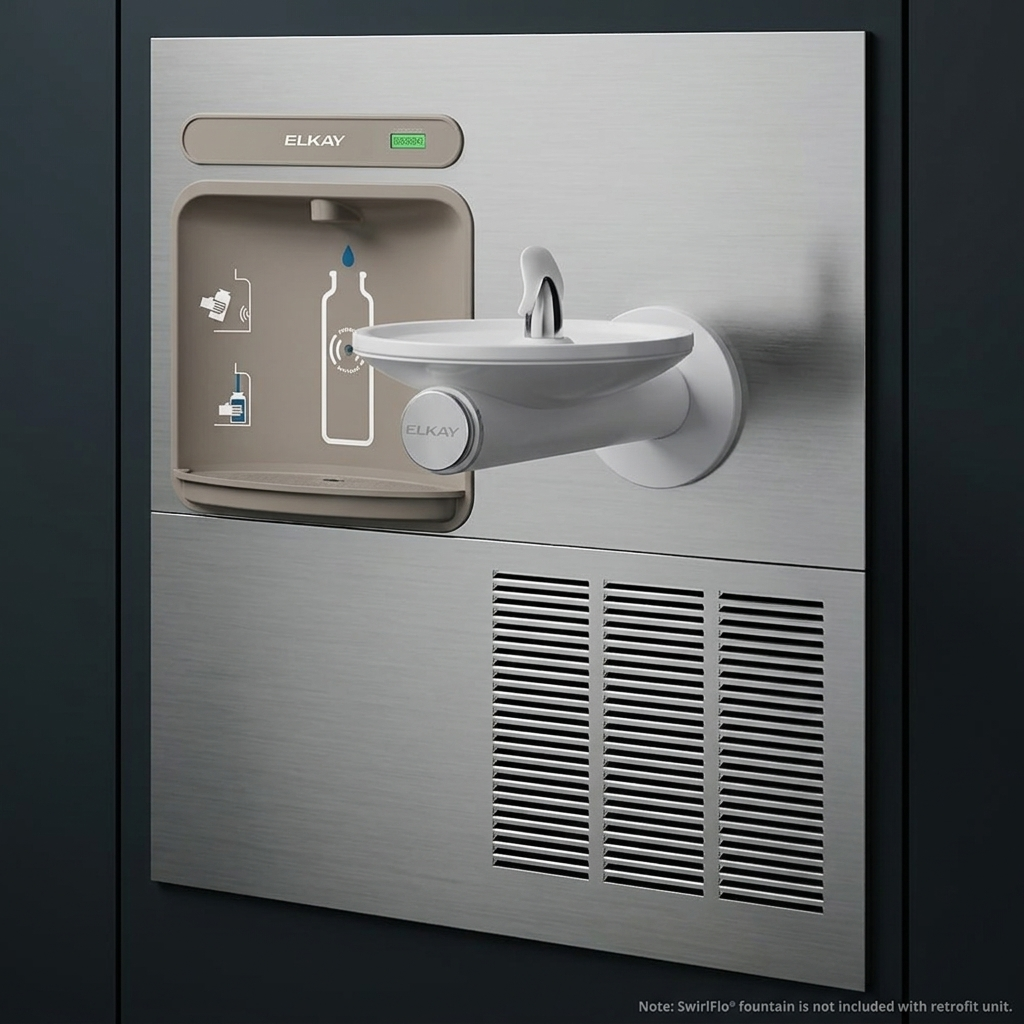

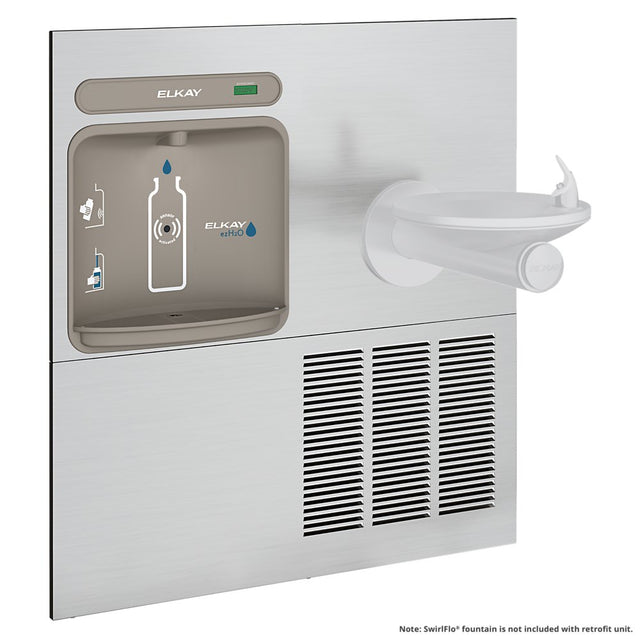

The Elkay EZWS-ERPB8-RF is an ezH2O® Retrofit Bottle Filling Station designed to integrate seamlessly with existing SwirlFlo® Fountains. This non-filtered, refrigerated stainless steel unit combines touchless bottle filling technology with traditional fountain functionality, offering a cost-effective upgrade for sustainable hydration.
We advise that NON-CHILLED fountains less than 10 years old are suitable for a retrofit. We advise that CHILLED fountains less than 5 years are suitable for a retrofit. Not sure how old your model is? We can find out for you. Email support@bottlefillingstations.com with your existing fountain’s serial #, which you can find at the bottom of your fountain. Please note existing fountain(s) must have been installed per spec.

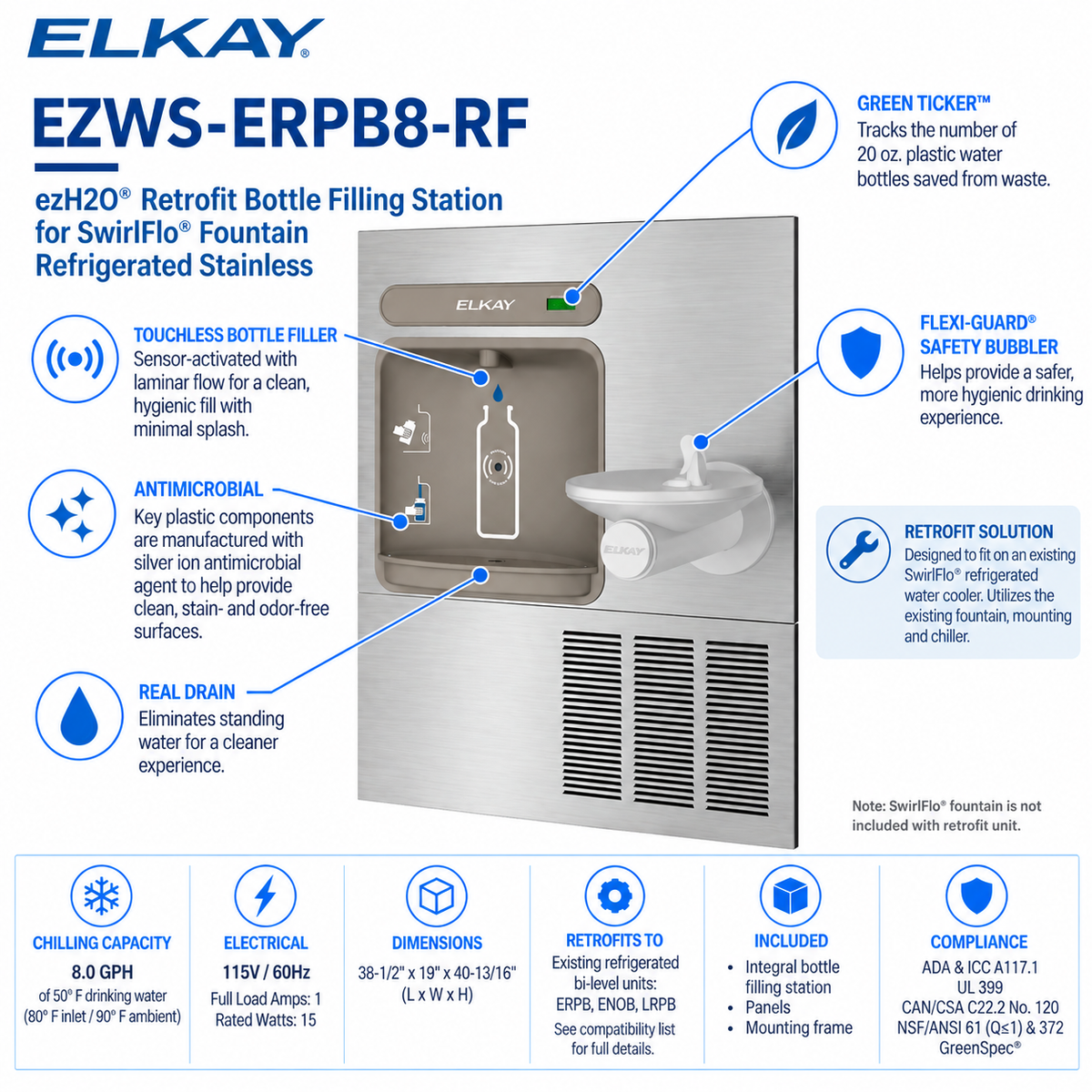

Key Specifications:
| Design | Retrofit bottle filling station with integrated SwirlFlo® fountain compatibility |
| Finish | Stainless Steel with antimicrobial properties on key plastic components |
| Filtration | Non-filtered standard; compatible with EWF3000 Filter Kit. For filtered option, see LZWS-ERPB8-RF. |
| Refrigeration | 8.0 GPH chilling capacity at 50°F; 115V/60Hz, 15W |
| Stations Served | 2 ( 1 bottle filler + 1 fountain ) |
Features & Benefits:
- Retrofit Design: Utilizes existing fountain, mounting frame, and chiller for cost-effective installation
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste
- Hands-Free Operation: Touchless sensor activation for bottle filling enhances hygiene
- Laminar Flow: Provides a clean, splash-free fill
- Real Drain System: Eliminates standing water for improved sanitation
What's Included:
- Integral Bottle Filling Station
- Panels
- Mounting Frame
Comparison of Elkay Retrofit Models:
| Feature | EZWS-ERPB8-RF (This Model) | EZWSRK |
|---|---|---|
| Design | SwirlFlo® retrofit with refrigerated cooler | EZ style retrofit kit without refrigeration |
| Finish | Stainless Steel | Stainless Steel |
| Filtration | Non-filtered; compatible with EWF3000; filtered option available (LZWS-ERPB8-RF) | Non-filtered; filtered option available (LZWSRK) |
| Refrigeration | 8.0 GPH refrigerated | Uses existing fountain chiller (if applicable) |
| Stations Served | 2 | 1 |
| Best For | Upgrading SwirlFlo® fountains with refrigerated bottle filling | Cost-effective retrofit for EZ style fountains |

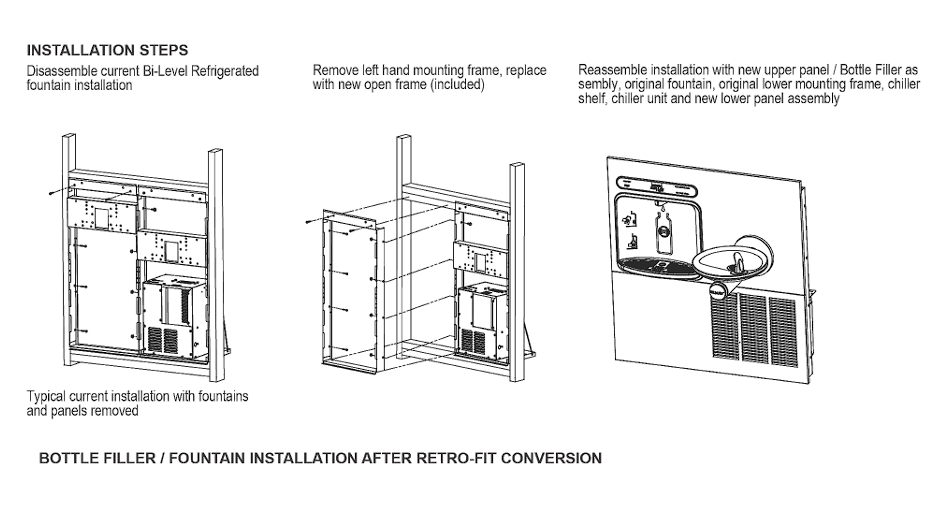

How to Install Elkay EZWS-ERPB8-RF:
- Turn off electrical power and water supply to the existing fountain.
- Remove current fountain panels and left-hand mounting frame.
- Install new mounting frame and secure with all fastener holes.
- Mount the retrofit bottle filler and connect to existing chiller outlet.
- Attach panels, connect water supply, and check for leaks.
- Plug in electrical supply and verify bottle filler sensor activation.
- Confirm proper water dispensing and reinstall lower panel.
FAQ
Q: How Long Does It Take To Install The Elkay EZWS-ERPB8-RF?
A: Depending on mounting, electrical access, and drainage, installation typically takes 2–5 hours.
Q: Does The Elkay EZWS-ERPB8-RF Come With A Chiller?
A: No. It utilizes the compressor from your existing SwirlFlo® fountain.
Q: Where Is The Filter Status And Bottle Counter Button Located On The Elkay EZWS-ERPB8-RF?
A: If properly installed, the programming button is located in the pushbar of the existing fountain.
Q: What Accessories Are Available For The Elkay EZWS-ERPB8-RF?
A: Compatible accessories include the LKAPR1 SwirlFlo Cane Apron (Gray) and the ACCESS12X38-5 Stainless Steel Access Panel for bi-level architectural fountains.
Q: Is The Elkay EZWS-ERPB8-RF Compatible With Filtered Options?
A: Yes. While the EZWS-ERPB8-RF is non-filtered, it can be paired with the EWF3000 Filter Kit or upgraded to the filtered LZWS-ERPB8-RF model.
Q: What Is The Warranty Coverage For The Elkay EZWS-ERPB8-RF?
A: The refrigeration system carries a 5-year limited warranty, while electrical components and the water system are covered for 12 months from installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EZWS‑ERPB8‑RF is a retrofit, filterless bottle filling station designed to upgrade existing Elkay ERPB8 coolers. It provides hands‑free sensor activation, ADA compliance, and a quick way to add bottle filling functionality without replacing the entire unit.
Key Installation Requirements:
- Compatible with Elkay ERPB8 cooler models
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for cooler basin
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless — delivers chilled water only
- Always depressurize water line before servicing
- Ensure sensor lenses are unobstructed for accurate activation
- Secure retrofit kit firmly to cooler structure to resist vandalism
Basic Installation Overview:
- Shut off water supply and depressurize system
- Remove cooler top panel and prepare mounting area
- Position retrofit bottle filler assembly onto ERPB8 cooler
- Connect water supply tubing and drain line per routing diagram
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Reinstall cover plates and tighten mounting screws
For complete specifications and installation guidelines, download the official EZWS‑ERPB8‑RF Spec Sheet and the Installation Manual.
