Elkay EZVRSM-EDFPVM217D1LK | VR Bi-Level Mechanical Bottle Filler | Stainless Steel
Elkay EZVRSM-EDFPVM217D1LK | VR Bi-Level Mechanical Bottle Filler | Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
Contact us at support@bottlefillingstations.com with any questions.
Elkay EZVRSM-EDFPVM217D1LK | VR Bi-Level Mechanical Bottle Filler |...

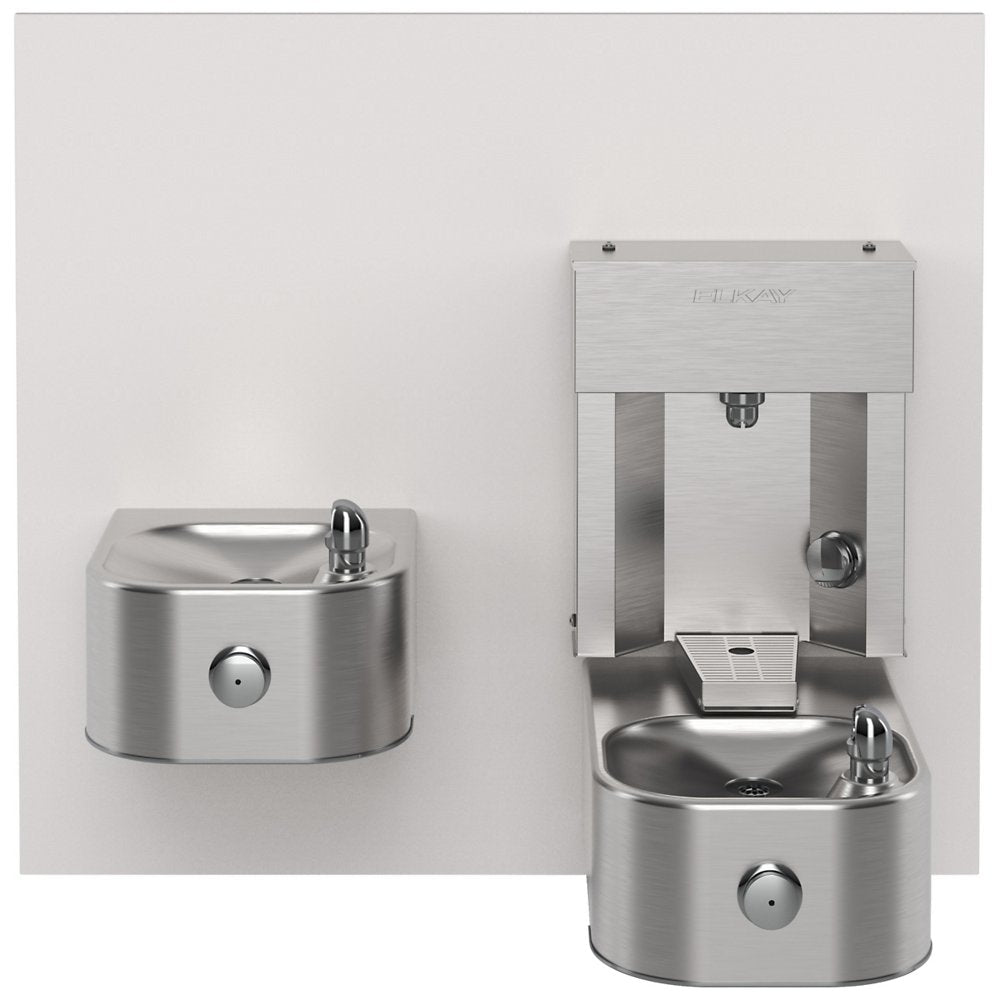

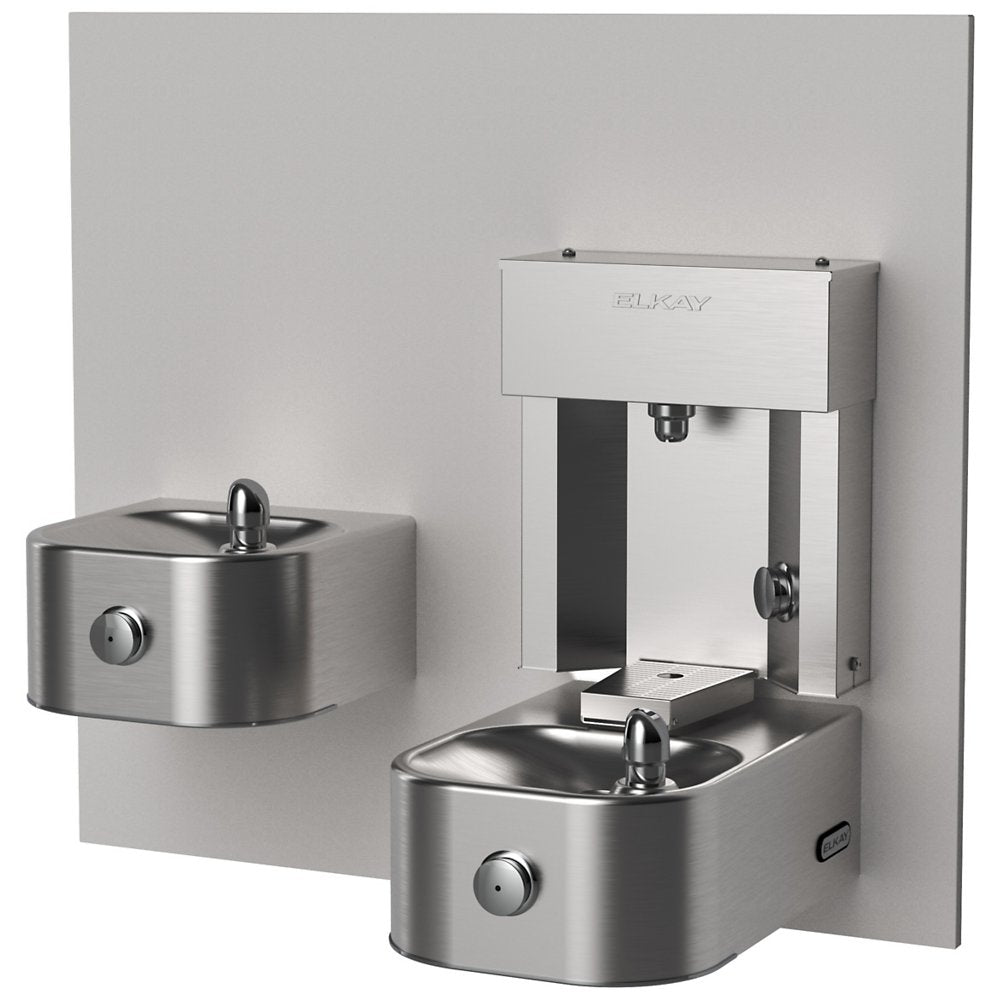

The Elkay EZVRSM-EDFPVM217D1LK Series combines a vandal-resistant mechanical bottle filling station with a bi-level fountain in a durable stainless steel design.
Key Specifications:
- Mounting Type: Wall Mount
- Stations: 2 (Bi-Level)
- Material: Stainless Steel
- Power: No Electrical Required
Features & Benefits:
- Vandal-Resistant Design: Push-button mechanical activation ensures durability in high-traffic areas while continuing to operate during power outages.
- Space-Saving Solution: Combines bottle filler and bi-level fountain in one unit, eliminating the need for separate installations or additional drains.
- Laminar Flow Technology: Provides clean, splash-free bottle filling with consistent water stream for quick, efficient hydration.
- Indoor/Outdoor Versatility: Rated for both indoor and outdoor installations with stainless steel construction for long-lasting performance.
FAQ
Q: Does the Elkay EZVRSM-EDFPVM217D1LK require electricity to operate?
A: No, this model features mechanical push-button activation for both the bottle filler and fountain, requiring no electrical connection and ensuring continuous operation even during power disruptions.
Q: What access is needed for installation of this unit?
A: The unit includes an in-wall mounting frame and can be installed with front or rear access. For installations without rear access, an optional Access Panel (ACCESS12X38-5) is recommended for easier maintenance.
Q: Can this bottle filling station be used outdoors?
A: Yes, the EZVRSM-EDFPVM217D1LK is rated for both indoor and outdoor use. When installed in non-temperature controlled environments, proper winterization and protection from extreme temperatures is required to prevent damage.
Detailed Features & Benefits
Mechanical Activation System: The Elkay EZVRSM-EDFPVM217D1LK utilizes mechanical push-button activation for both the bottle filler and water fountain, eliminating dependency on electrical power. This makes the unit ideal for locations prone to power outages or remote outdoor installations where electrical connections are impractical. The vandal-resistant buttons are designed to withstand heavy use in schools, parks, and public facilities while maintaining reliable performance.
Integrated Bi-Level Design: This model features a consolidated space-saving design with a surface-mount bottle filler that drains directly into the lower fountain basin, eliminating the need for additional plumbing or separate drain lines. The bi-level configuration serves two stations simultaneously, accommodating users of different heights and abilities while meeting accessibility requirements. The Soft Sides fountain design provides a streamlined aesthetic with easy-to-clean surfaces.
Vandal-Resistant Construction: Built with commercial-grade stainless steel and vandal-resistant components throughout, the EZVRSM-EDFPVM217D1LK is engineered for high-traffic public environments. Chrome-plated integral hood guards on the bubblers prevent contamination and tampering, while the robust mechanical buttons resist damage from abuse. The laminar flow bottle filler provides a consistent fill with minimal splash, reducing water waste and keeping surrounding areas dry.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
