Elkay EZSTL8WSVRSK | Bi-Level Versatile Wall-mounted Bottle Filling...

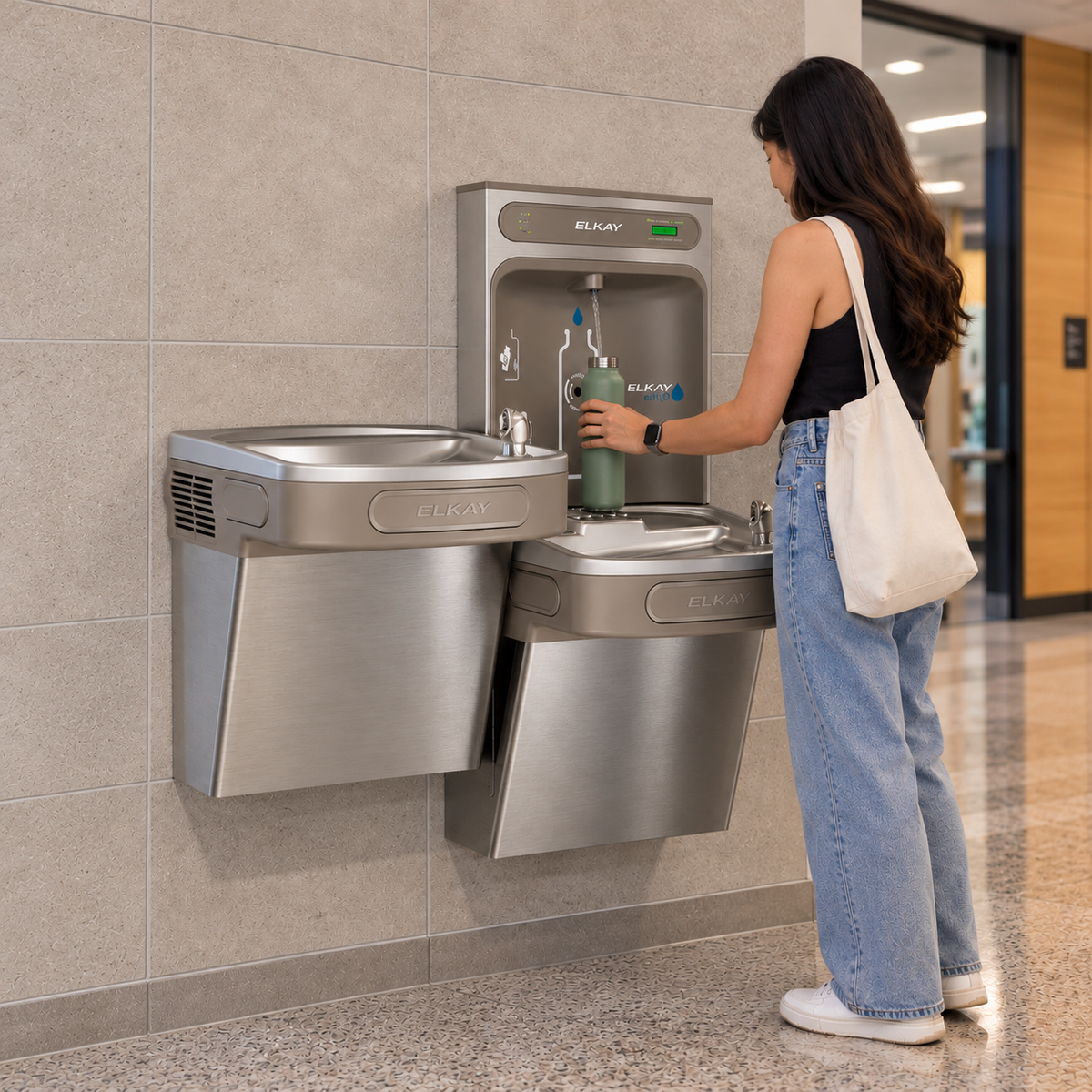

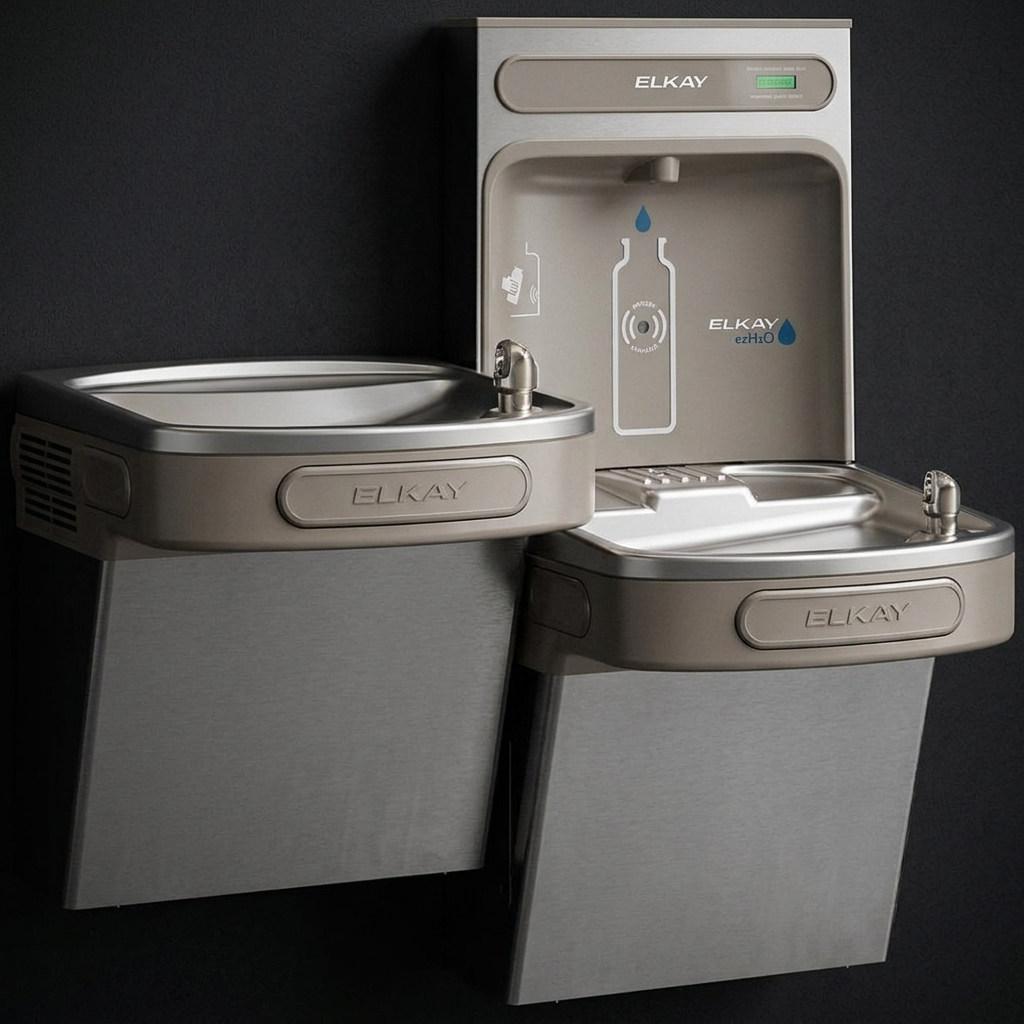

The Elkay EZSTL8WSVRSK ezH2O® Bottle Filling Station combines a vandal-resistant refrigerated bi-level drinking fountain with a hands-free bottle filler in a durable stainless steel finish. Designed for indoor installations, this ADA-compliant hydration station provides chilled drinking water, touchless bottle filling, and vandal-resistant durability for schools, transportation facilities, recreation centers, and other high-traffic public environments.
Key Specifications:
| Design | Bi-Level ADA Vandal-Resistant Cooler with ezH2O® Bottle Filling Station |
| Finish | Stainless Steel |
| Filtration | Non-Filtered (Compatible with Optional EWF3000 Universal Filtration Kit). For filtered option, choose the LZSTL8WSVRSK. |
| Refrigeration | 8.0 GPH Chilling Capacity |
| Stations Served | Bi-level (2 fountains + 1 bottle filler) |

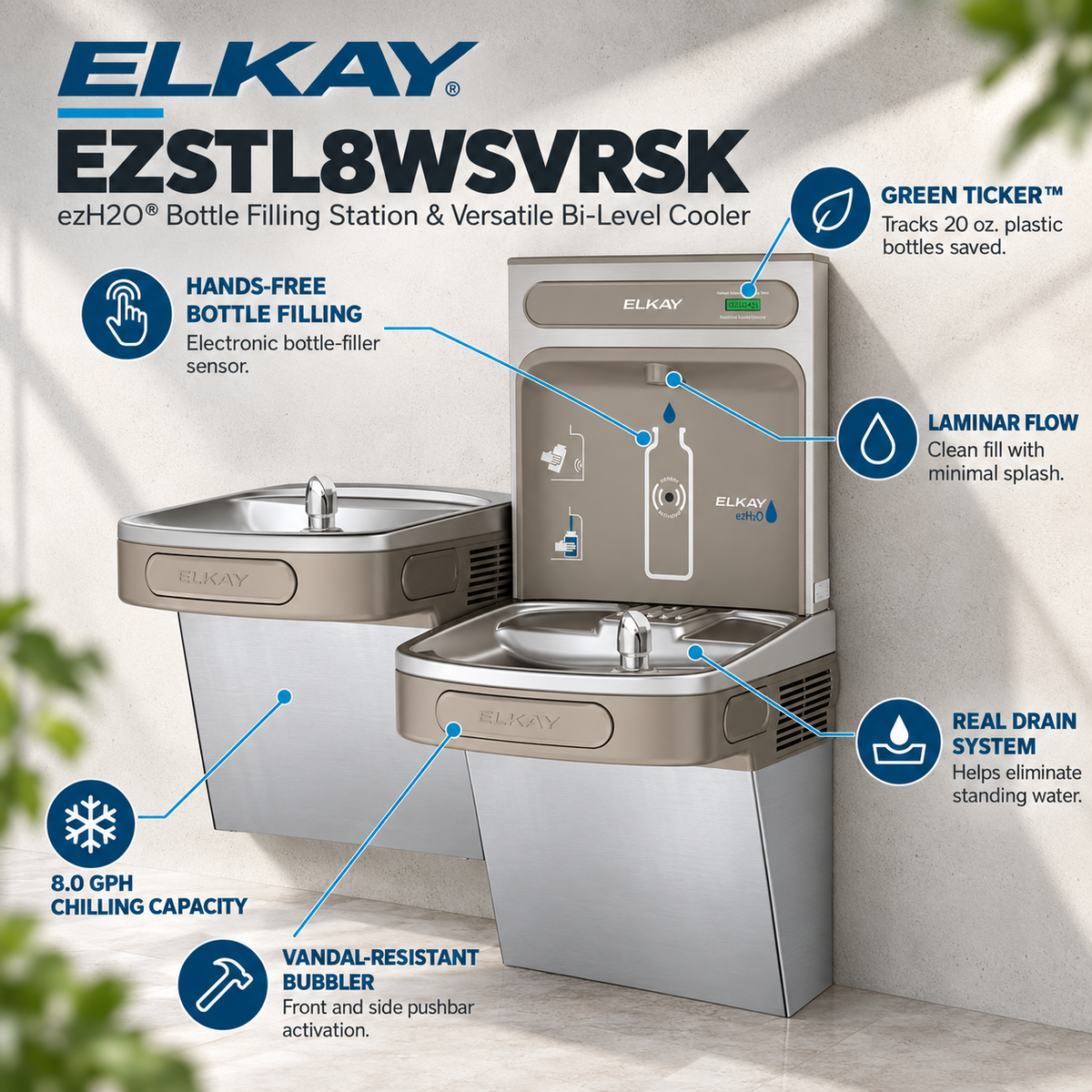

Features & Benefits:
- Hands-Free Bottle Filling: Electronic sensor activation provides touchless bottle filling for improved hygiene and convenience.

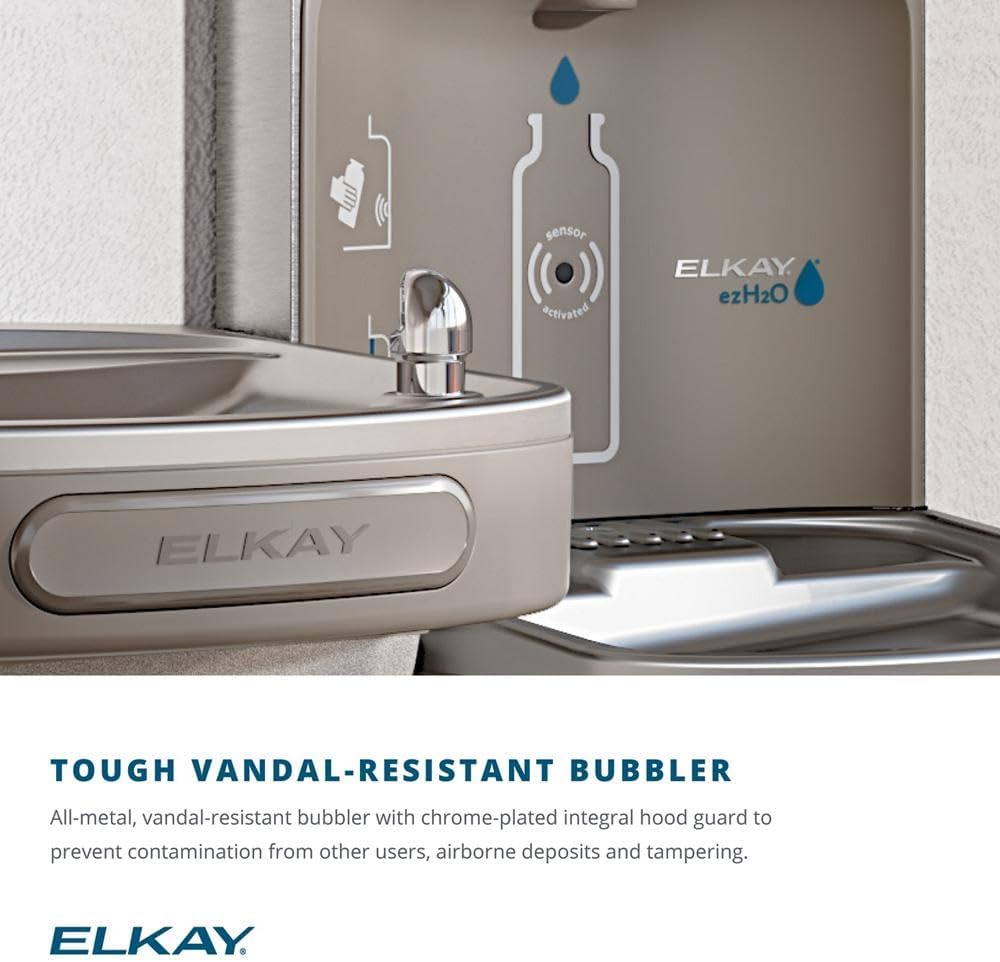

- Vandal-Resistant Construction: Heavy-duty stainless steel construction and vandal-resistant bubbler help withstand demanding public-use environments.
- Green Ticker™: Tracks the number of disposable plastic bottles diverted from landfills through refill use.
- Laminar Flow Technology: Delivers a clean stream with minimal splash during bottle filling.
- Real Drain System: Eliminates standing water to help maintain a cleaner basin area.
What's Included:
- EZSTL8WSVRSC Refrigerated Bi-Level Vandal-Resistant Water Cooler
- EZWSR ezH2O® Bottle Filling Station
- Factory-Installed Refrigeration System
- Vandal-Resistant Bubbler
- Installation Instructions
- Ships in Multiple Boxes
FAQ
Q: Does the Elkay EZSTL8WSVRSK Include Water Filtration?
A: No. This is a non-filtered model. Facilities requiring filtration should consider the LZSTL8WSVRSK filtered version or add the optional EWF3000 Universal Filtration Kit.
Q: Is the Elkay EZSTL8WSVRSK Refrigerated?
A: Yes. The unit delivers 8.0 gallons per hour of chilled 50°F drinking water under standard ASHRAE test conditions.
Q: Is the Elkay EZSTL8WSVRSK ADA Compliant?
A: Yes. The bi-level configuration complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: Can the Elkay EZSTL8WSVRSK Be Installed Outdoors?
A: No. The EZSTL8WSVRSK is designed for indoor installations only.
Q: What Accessories Are Available for the Elkay EZSTL8WSVRSK?
A: Compatible accessories include the MLP200 In-Wall Carrier for additional structural support and the LKAPREZL Cane Apron for enhanced accessibility.
Q: What Type of Bottle Filling Activation Does the EZSTL8WSVRSK Use?
A: The bottle filler uses electronic sensor activation, while the vandal-resistant drinking fountains utilize electronic front and side pushbar activation.
Q: How Many Users Can the Elkay EZSTL8WSVRSK Serve?
A: The bi-level fountain and bottle filler configuration provides two hydration stations for simultaneous use.
Q: What Warranty Coverage Is Included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

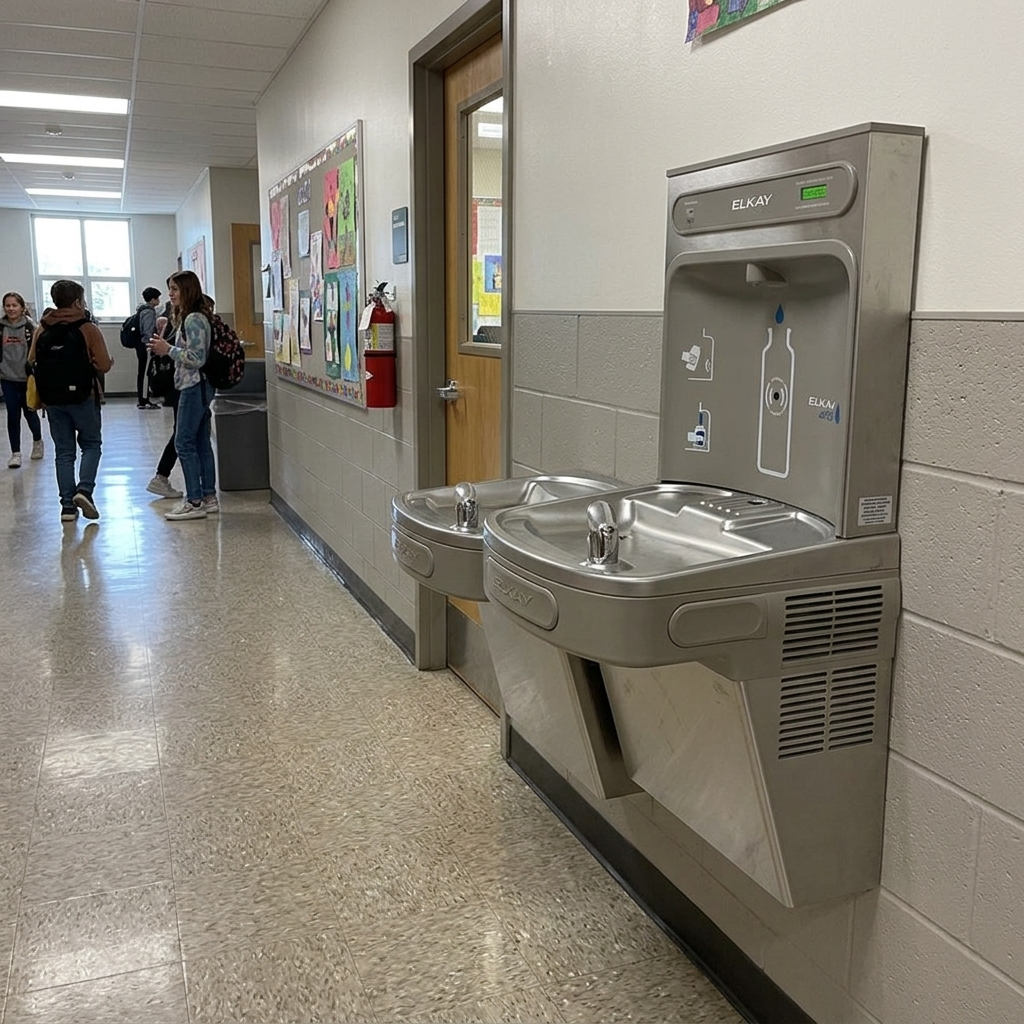

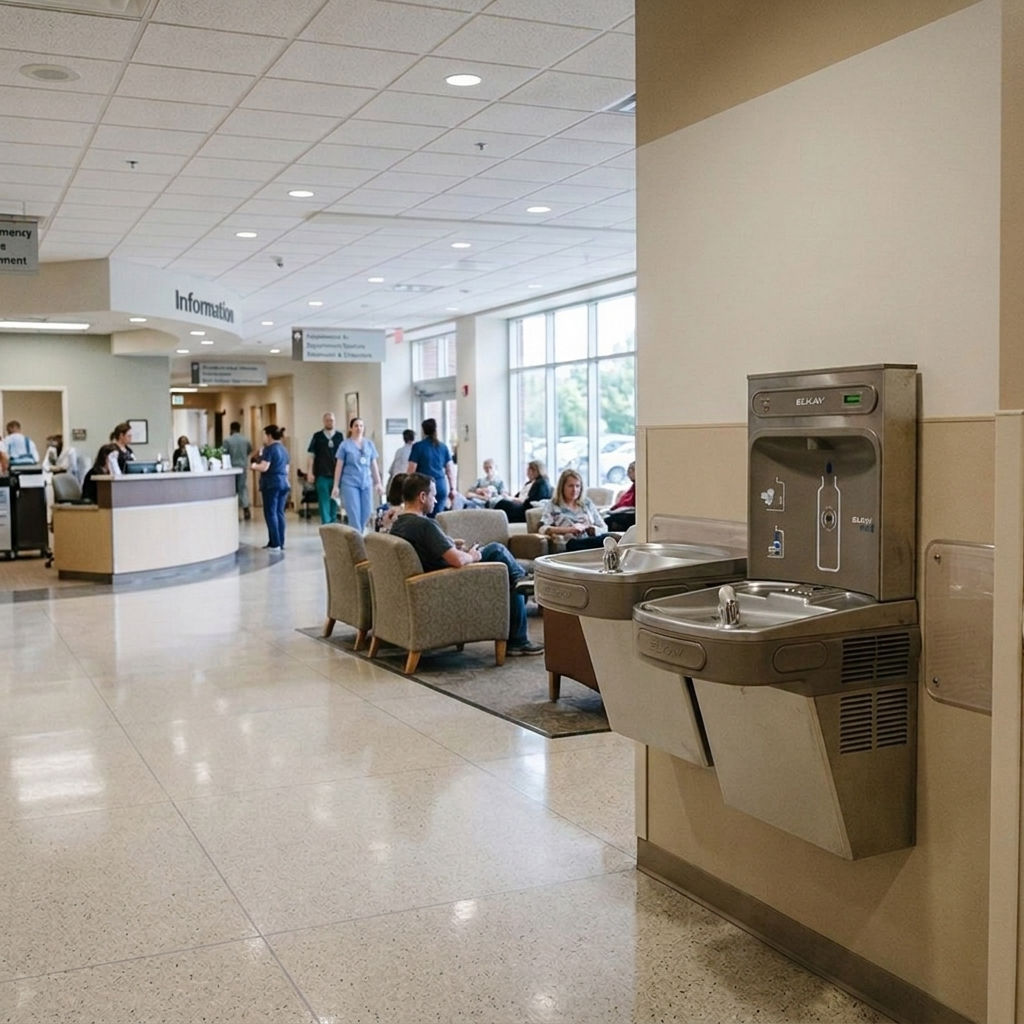

The Elkay EZSTL8WSVRSK is a bi‑level, filterless bottle filling station with integrated coolers and vandal‑resistant features. Designed for schools, transportation facilities, recreation centers, and other high‑traffic public spaces, it provides touchless bottle filling and chilled drinking water while minimizing maintenance requirements.

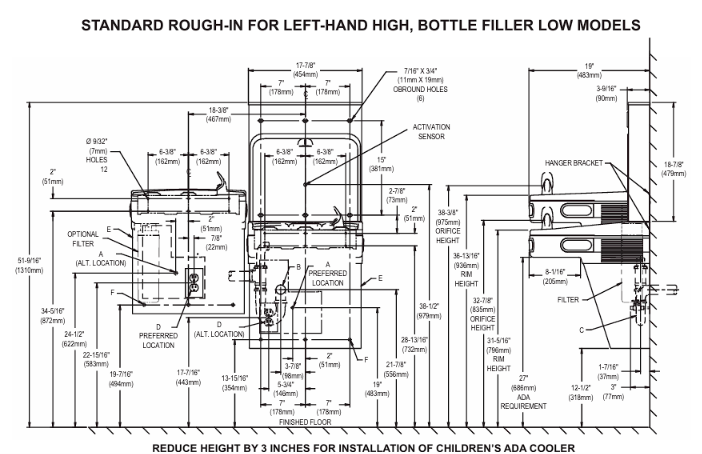

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Provide adequate clearance for refrigeration service and maintenance
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers chilled water only
- Always depressurize water line before servicing
- Ensure sensor area remains unobstructed for reliable bottle filler activation
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to maintain vandal‑resistant performance
Basic Installation Overview:
- Install the in‑wall carrier securely to support the fountain and bottle filler assembly
- Connect the cold water supply line and flush plumbing thoroughly
- Connect drain lines from both fountain basins to the building drainage system
- Mount the cooler and bottle filler assembly to the carrier
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Test bottle filler sensor activation and water flow performance
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official EZSTL8WSVRSK Spec Sheet and the Installation Manual.
