Elkay EZSTL8C | EZ Versatile Bi-Level Refrigerated Water Cooler | 8...

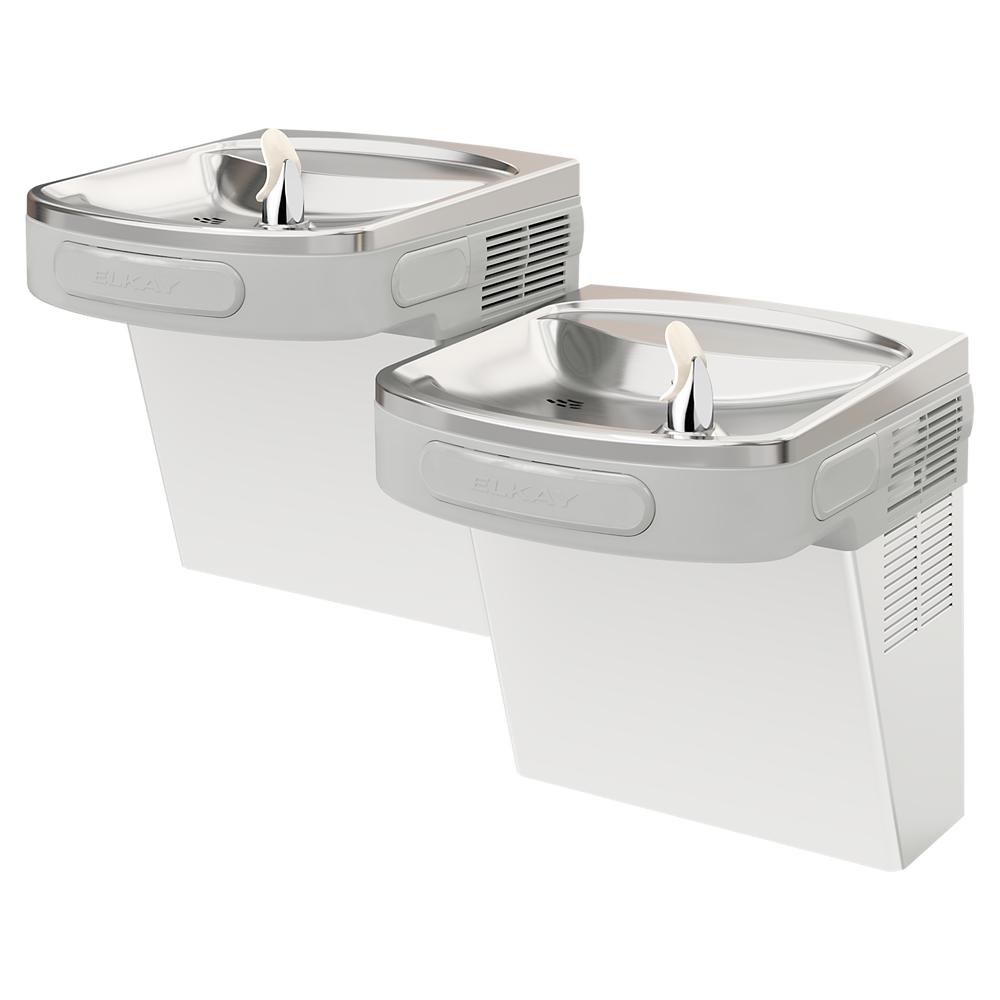

The Elkay EZSTL8C EZ Versatile Bi-Level Water Cooler delivers 8.0 GPH of chilled water to two stations with Flexi-Guard safety bubblers.
Key Specifications:

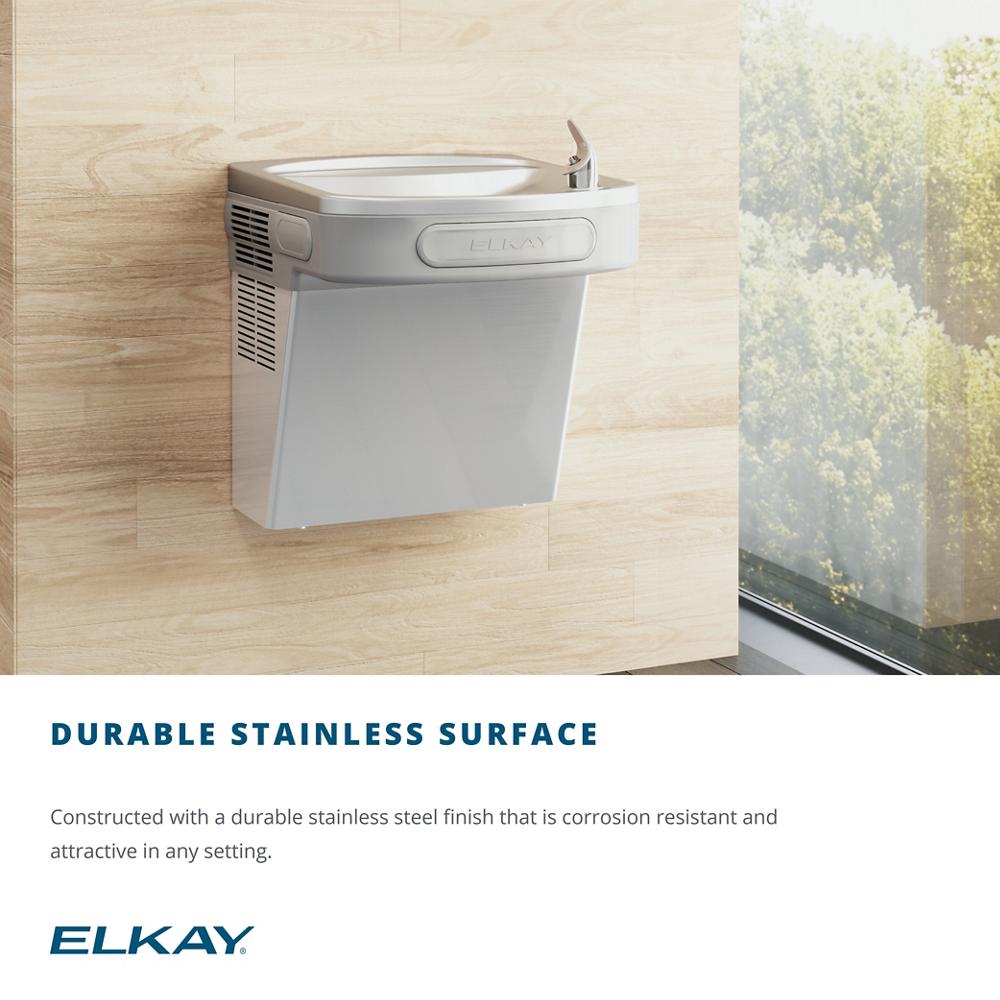

| Finish | Stainless Steel (EZSTL8SC) or Light Gray Granite (EZSTL8LC) |
| Filtration | Non-Filtered. Optional Elkay EWF172 Can be Added for Filtered Option |
| Refrigeration | 8.0 GPH Water Chiller Included (50°F water at 80°F inlet and 90°F ambient) |
| Power | 115V/60Hz, 5 Full Load Amps, 370 Rated Watts |
| Bubbler & Stations | Flexi-Guard Safety Bubbler, Serves 2 Stations |
Why Choose the Elkay EZSTL8C?

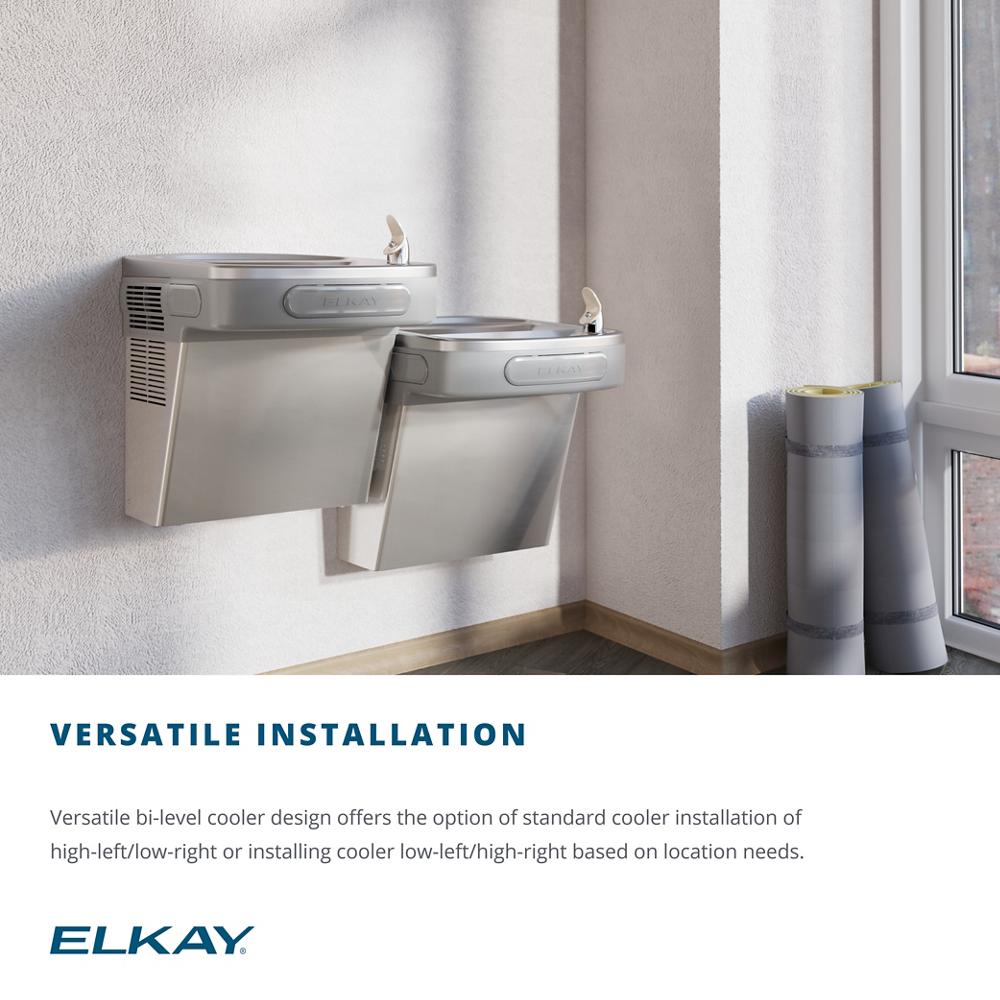

- Bi-Level Dual Access: Two stations at different heights let more users drink comfortably from a single wall-mounted unit.

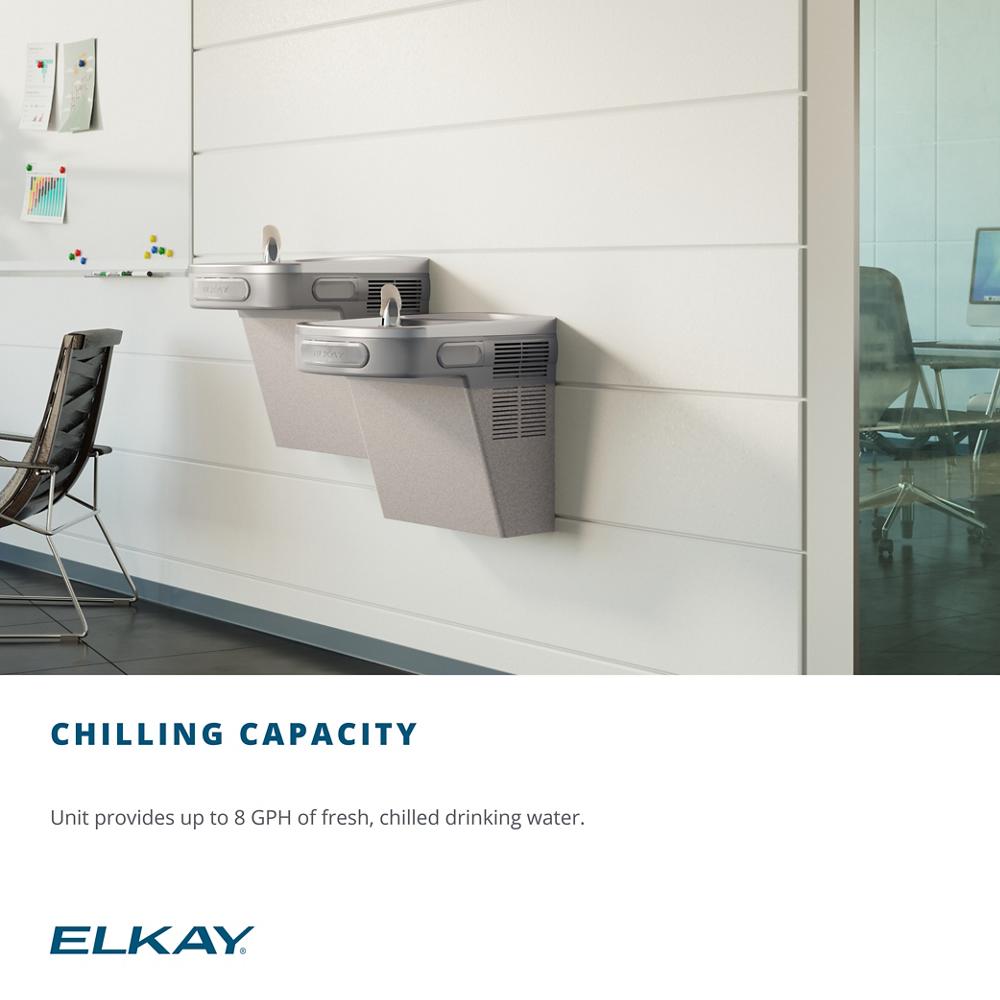

- Reliable Chilled Water: A fan-cooled system with a hermetically-sealed compressor and R-134a refrigerant supplies 8.0 GPH of 50°F drinking water.

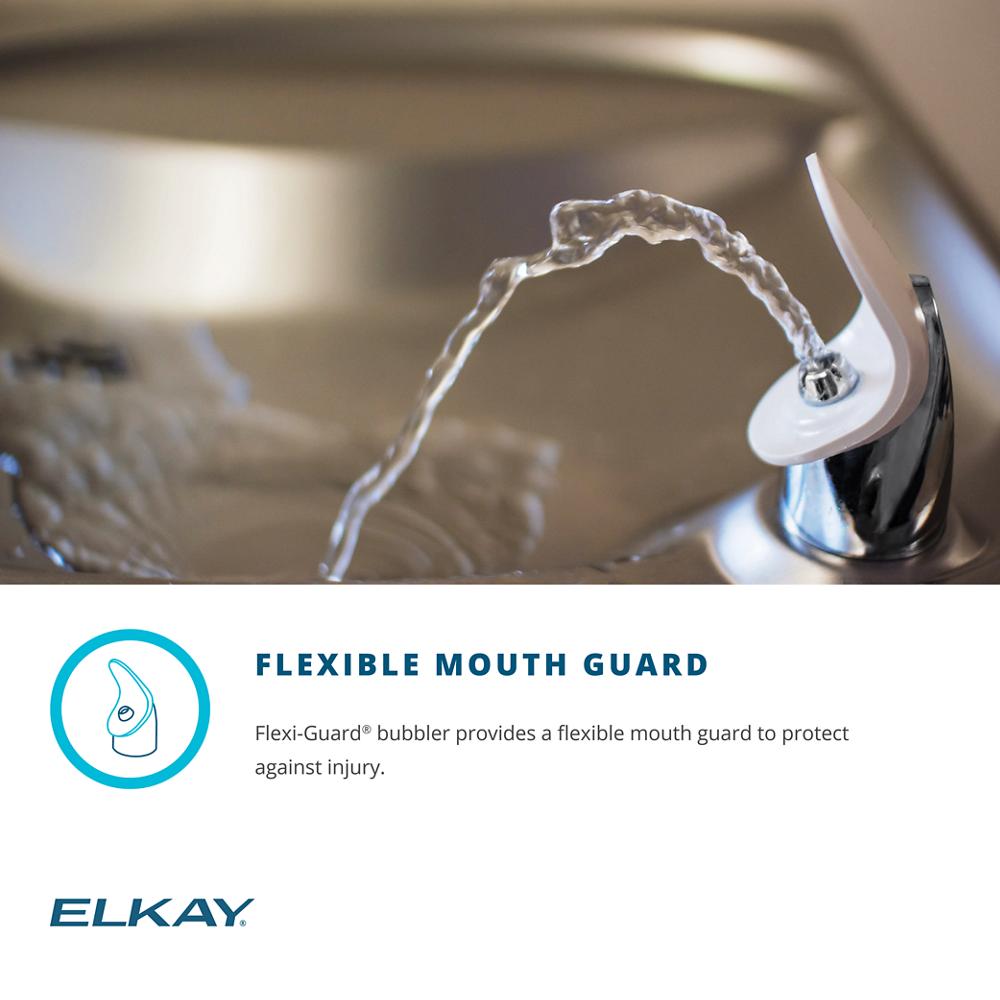

- Safer, Easier Drinking: The Flexi-Guard safety bubbler and electronic front pushbar activation make the unit simple and comfortable to use.

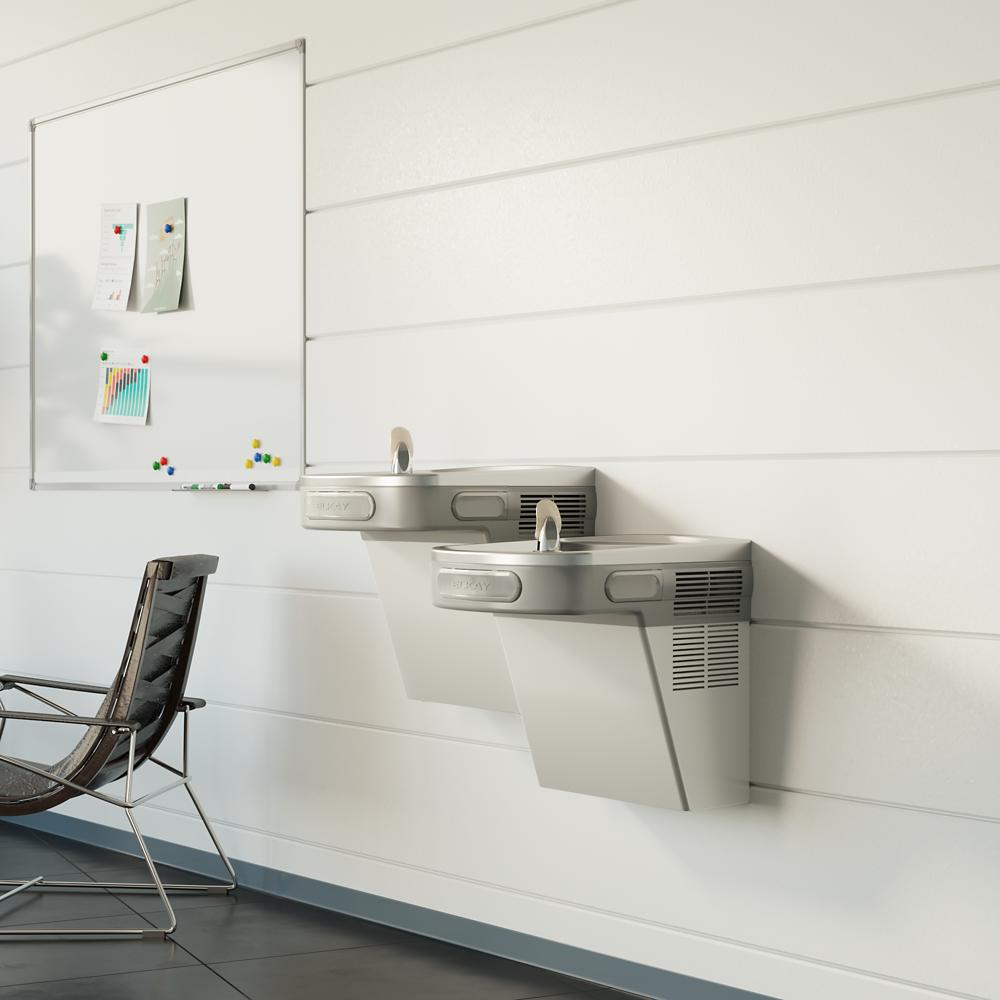

- Space-Saving Installation: The wall-mount design keeps floors clear for indoor use in schools, offices, and public buildings.
FAQ
Q: Does this water cooler include a filter?
A: No, it is a non-filtered unit. The optional EWF172 Universal Filtration Kit (1500-gallon) can be added if filtration is needed.
Q: Can both bubblers be used at the same time?
A: Simultaneous use may not be possible depending on supply pressure. A minimum of 65 psi is recommended for refrigerated installations where both bubblers will run at once.
Q: What does the installation require?
A: The cooler mounts on the wall for indoor use. It needs a dielectric coupling on the water supply, a plastic drain trap, GFCI-protected power, and at least 6" of clearance from the cabinet louvers to the wall for ventilation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

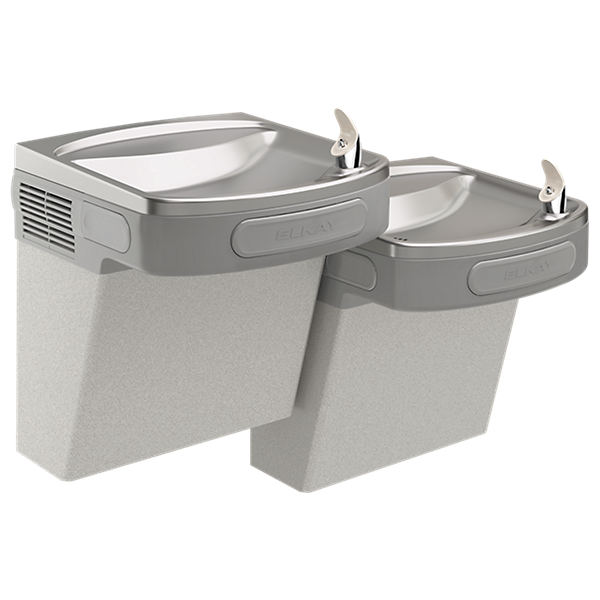

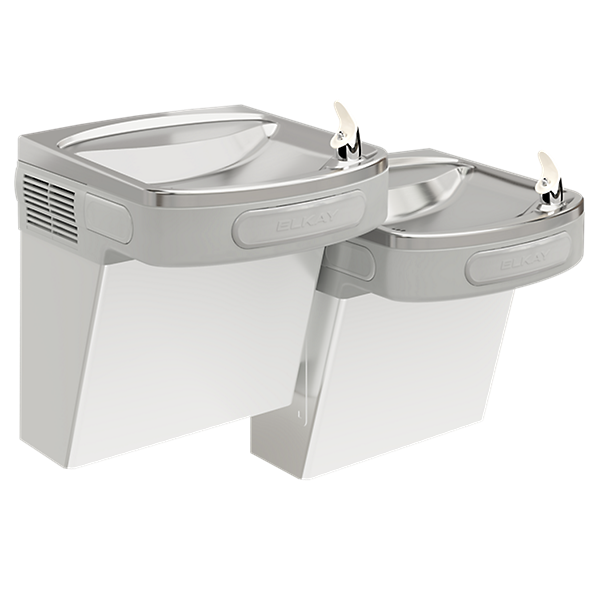

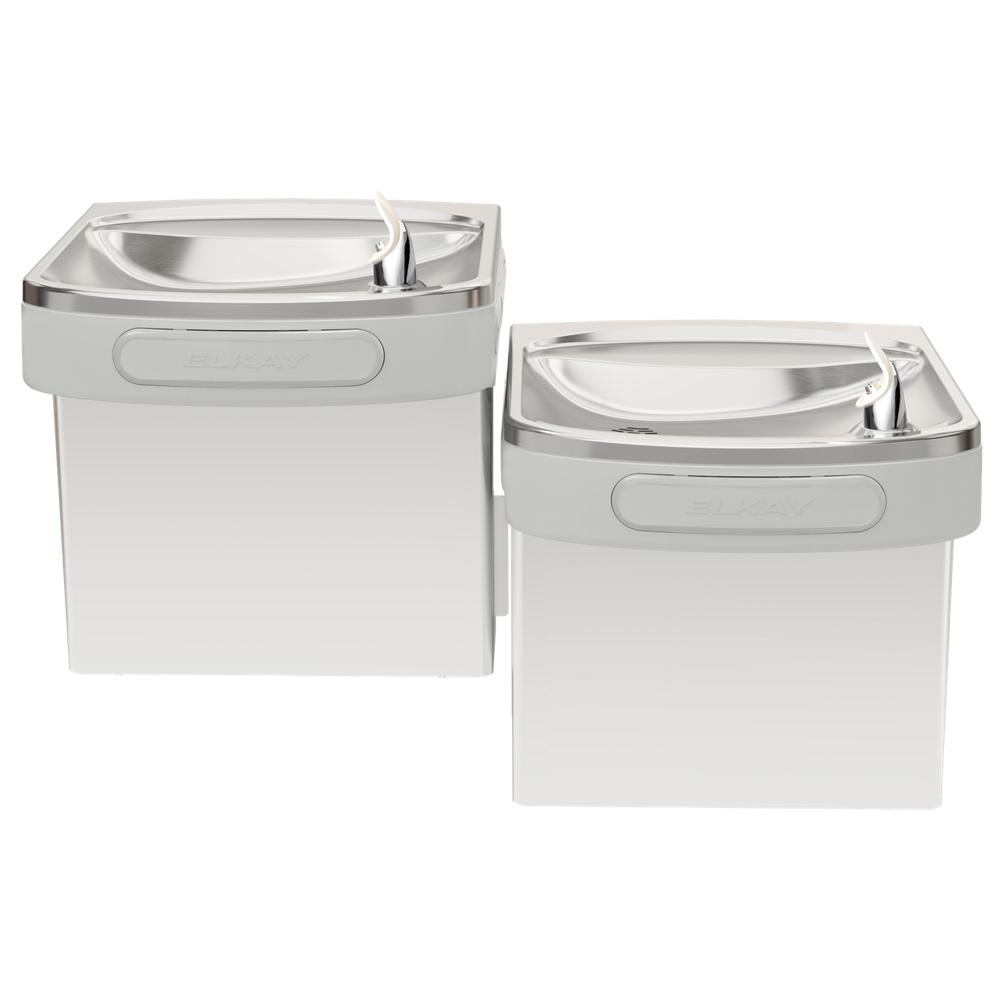

The Elkay EZSTL8C is a wall-mounted, refrigerated bi-level drinking fountain. It is also available in Stainless Steel (EZSTL8SC) and Light Gray Granite (EZSTL8LC).
Before You Begin
- Tools: Drill, wall-appropriate fasteners, screwdriver, level, and a 1-1/2" trap (not included).
- Plumbing: Provide a 3/8" O.D. unplated copper water supply with shutoff valve, extending no more than 3" from the wall, and a 1-1/2" nominal drain stub extending 2" from the wall.
- Electrical and ventilation: Provide a recessed 3-wire duplex outlet with GFCI protection for new installations. Maintain at least 6" clearance between cabinet louvers and the wall.
- Wall support: Secure the hanger bracket through all six 1/4" mounting holes. Use a fixture support carrier if the wall cannot provide adequate support.
- Reference: Consult the owner's manual for mounting heights and detailed instructions.
Step-by-Step Installation Guide
- Prepare the bracket: Remove the hanger bracket from the cooler and mount it at the height specified in the owner's manual. Secure all six mounting holes.
- Mount the cooler: Hang the unit on the bracket, ensuring it engages correctly with the rear slots.
- Connect plumbing: Remove the lower front panel. Connect the water inlet to the 3/8" supply and attach the waste line to the trap using the slip nut and gasket. Adjust the drain tube if needed according to the manual.
- Check for leaks: Turn on the water supply and inspect all connections. Correct any leaks before proceeding.
- Restore power and adjust: Plug in the unit; electrical power is required for water to flow. Check the stream, factory-set for 35 PSI. Adjust the screw in the right knee clearance area clockwise to raise the stream or counterclockwise to lower it. Aim for the basin approximately 6-1/2" from the bubbler. If water continues flowing after the compressor cycle ends, turn the cold control 1/4 turn counterclockwise.
- Reassemble: Reinstall the lower front panel, ensuring the metal wrapper fits inside the upper shroud, and secure it with the four screws.
