Elkay EZSDL | Wall-mount EZ-style Drinking Fountain | Filterless, N...

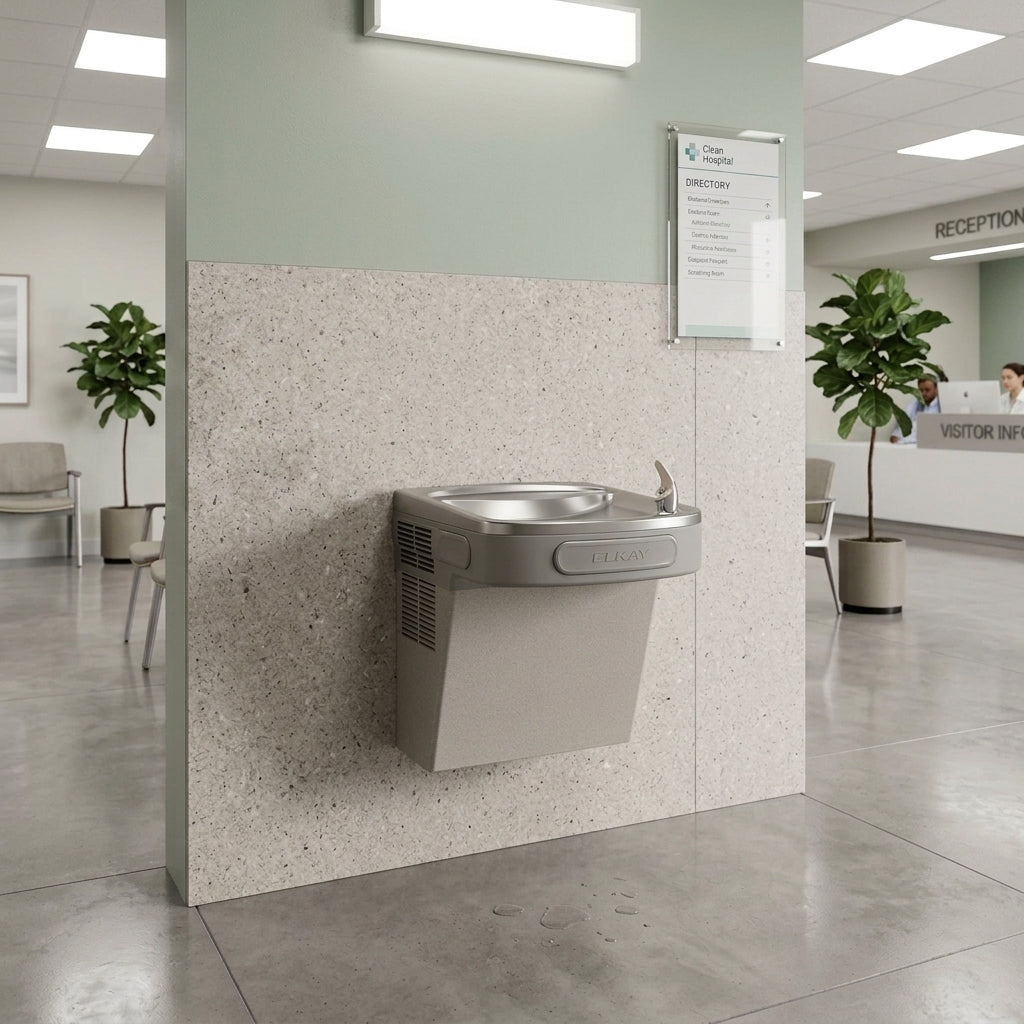

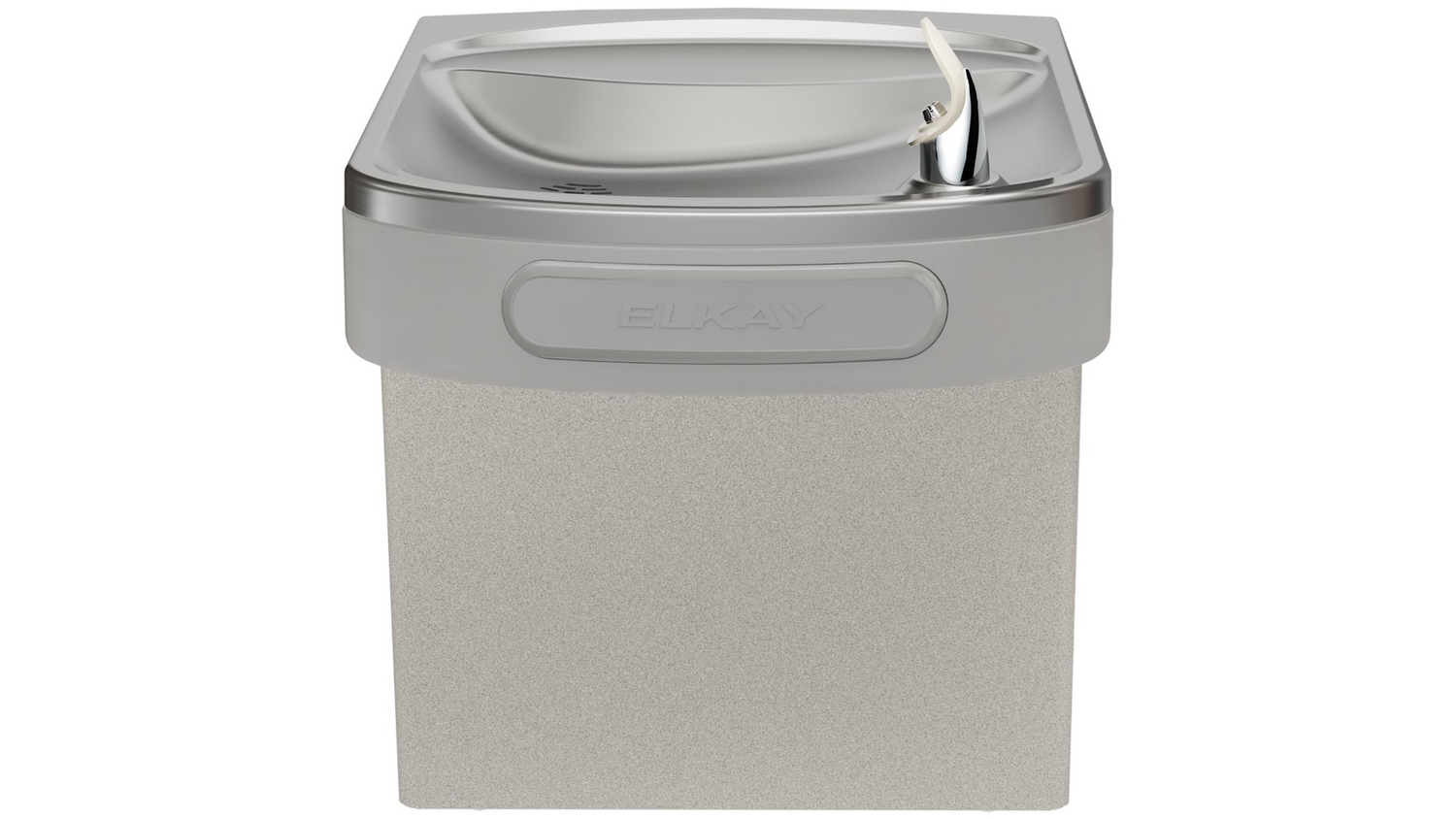

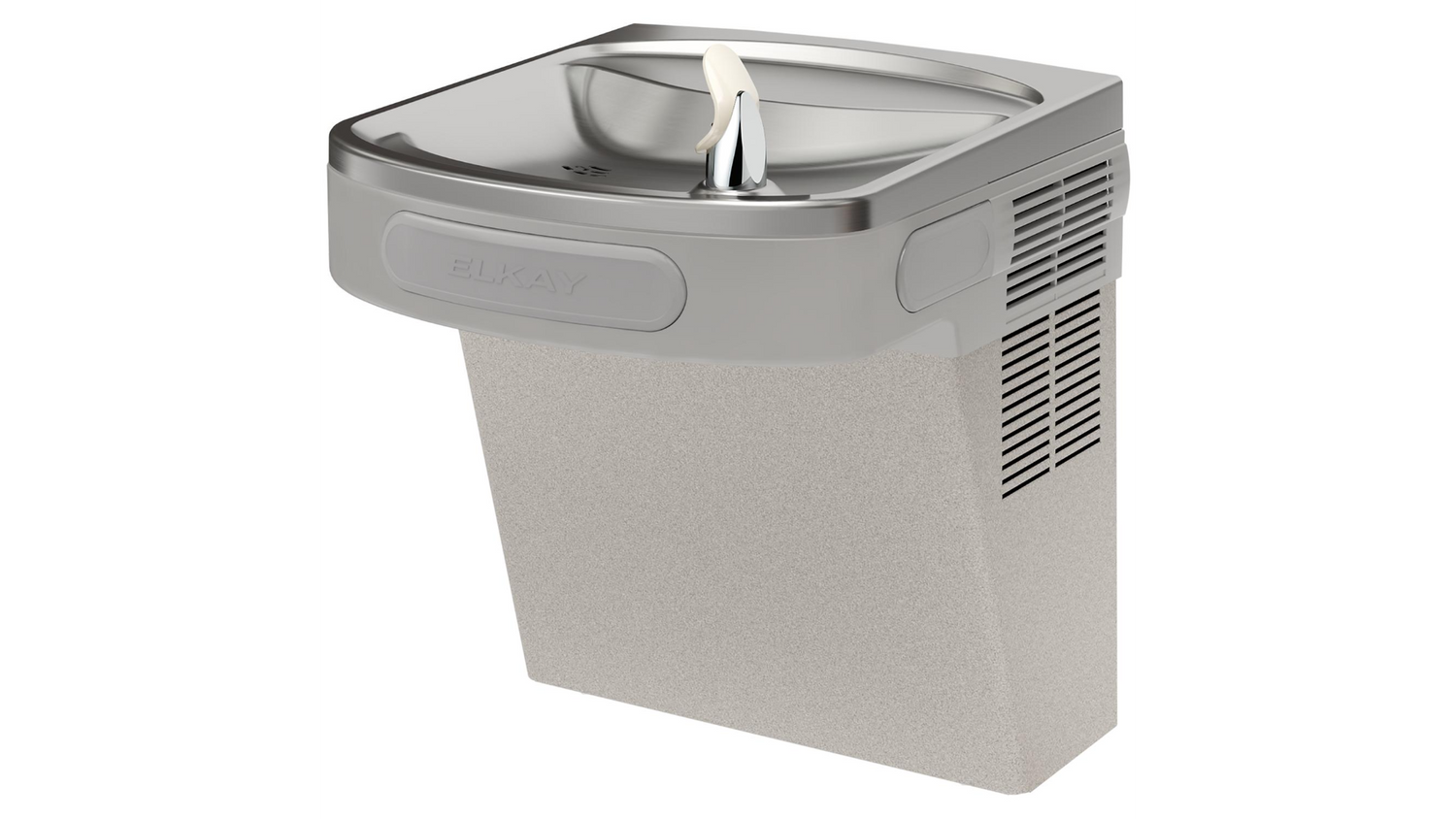

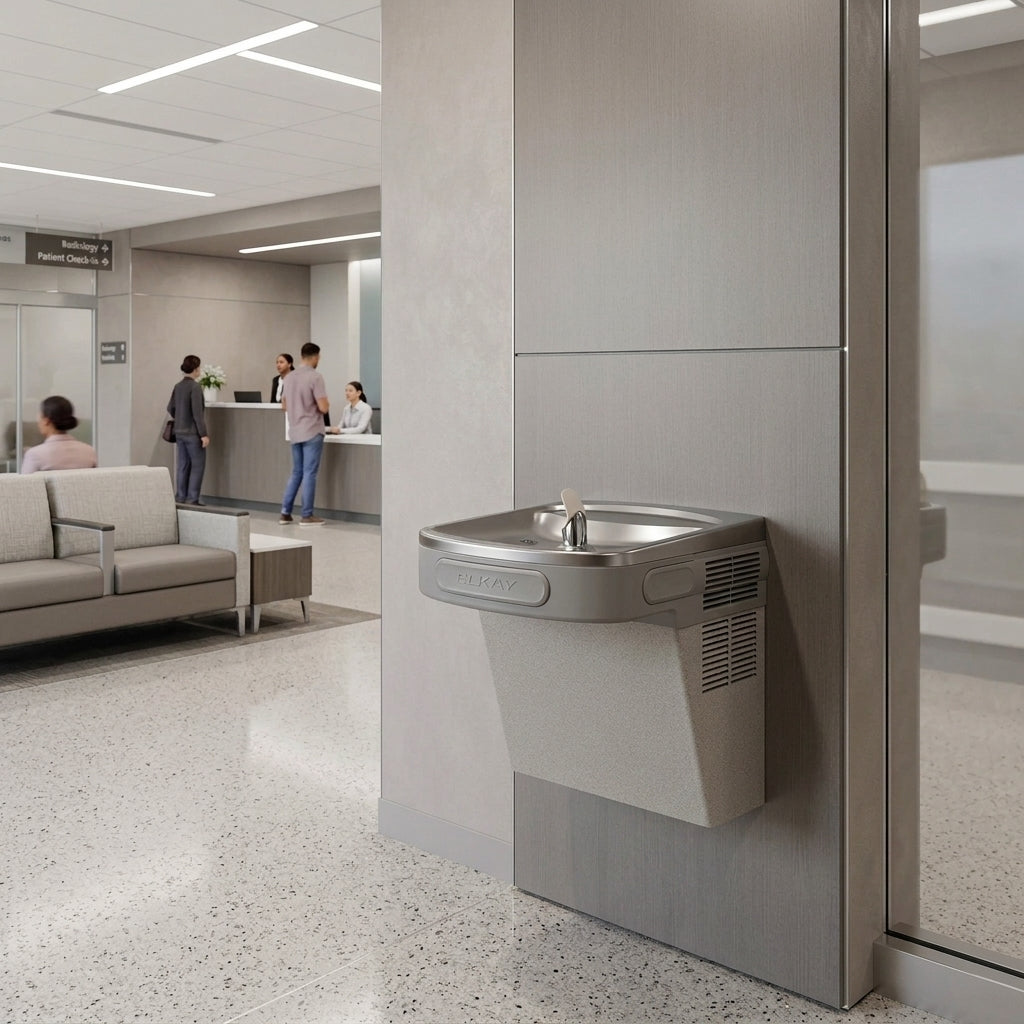

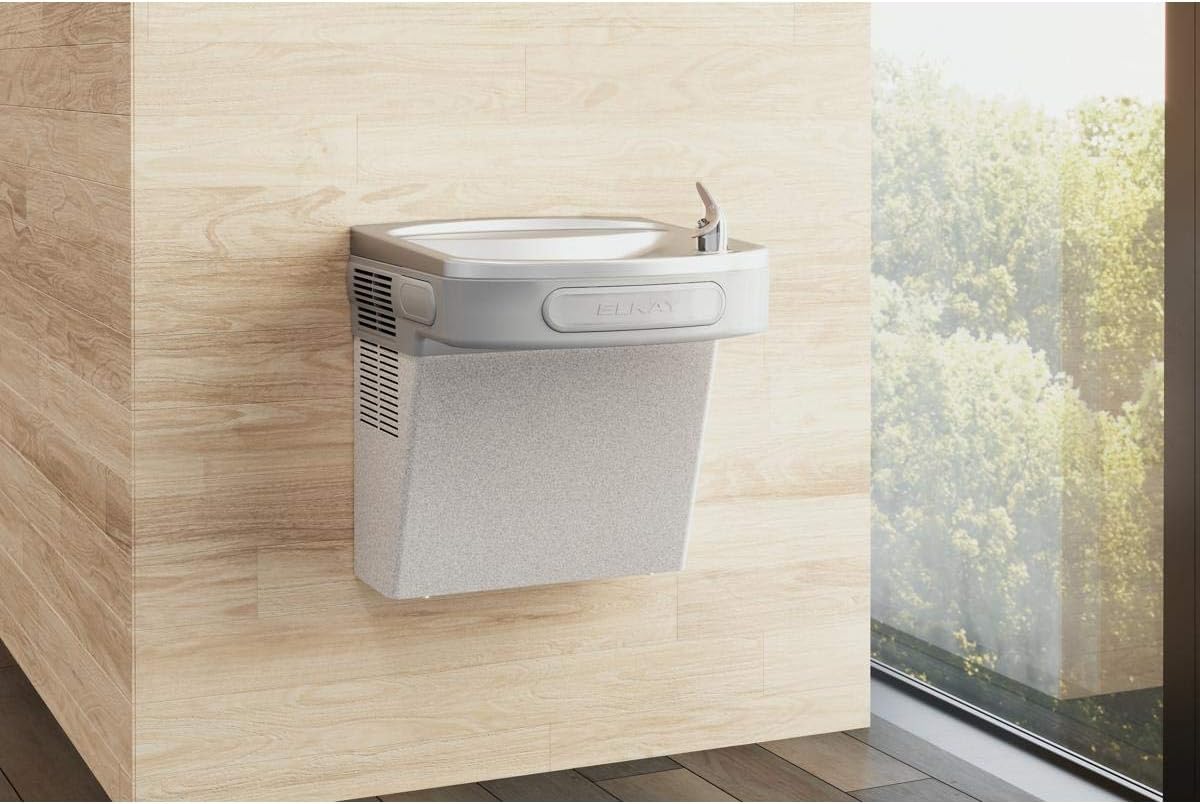

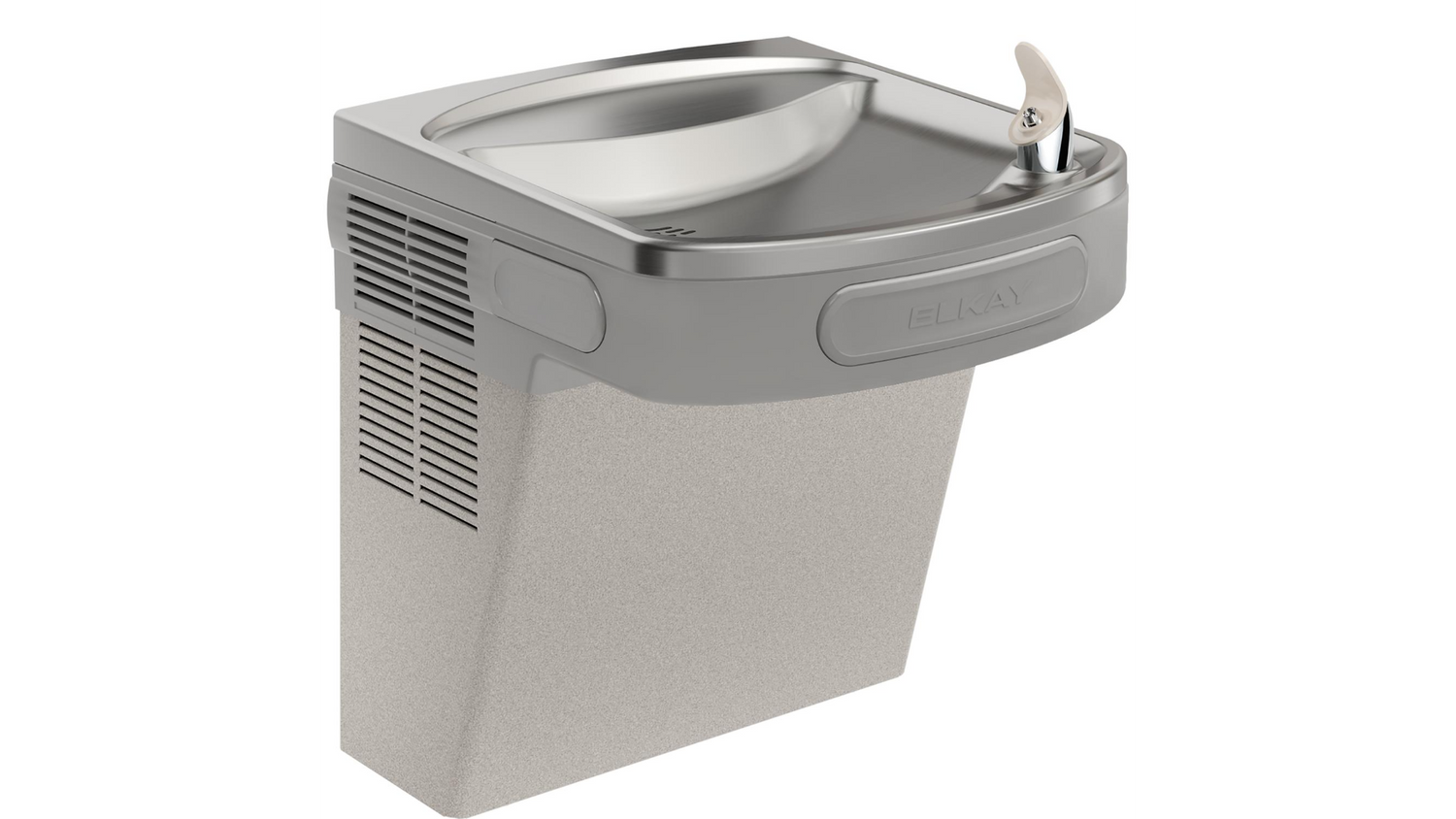

The Elkay EZSDL is a wall mount ADA cooler in Light Gray Granite, non‑filtered and non‑refrigerated. Designed for indoor use, it provides dependable hydration with electronic pushbar activation and Flexi‑Guard® Safety Bubbler protection.
Key Specifications:
| Design | Wall mount ADA cooler with electronic front pushbar activation |
| Finish | Light Gray Granite |
| Filtration | Non‑filtered model. For filtered option, choose the LZSDL. Also compatible with EWF172 universal filtration kit. |
| Refrigeration | Non‑refrigerated. For refrigerated option, choose the EZS8L. |
| Stations Served | 1 |
Features & Benefits:
- Electronic Activation: Front pushbar ensures easy, hands‑free operation.
- Flexi‑Guard® Safety Bubbler: Provides added protection against injury and improves user safety.
- ADA Compliant: Meets ADA and ICC A117.1 accessibility standards when installed correctly.
- Durable Construction: Light Gray Granite finish resists wear in high‑traffic indoor environments.
- Compact Design: Ideal for single‑station hydration in schools, offices, and public facilities.
What's Included:
- Elkay EZSDL ADA cooler
- Flexi‑Guard® Safety Bubbler
- Mounting hardware
Comparison of ADA Coolers:
| Feature | EZSDL | EFA8L1Z | LNTEM8K |
|---|---|---|---|
| Finish | Light Gray Granite | Stainless Steel | Stainless Steel |
| Filtration | Non‑filtered (filtered option: LZSDL) | Non‑filtered | Non‑filtered |
| Best For | Indoor environments such as schools, offices, and healthcare facilities needing compact ADA hydration | Basic indoor public areas like hallways, waiting rooms, and small offices | High‑traffic indoor environments such as airports, universities, and large commercial buildings requiring refrigerated dual‑station service |
| Features | Electronic pushbar, Flexi‑Guard® Safety Bubbler | Simple mechanical activation, free standing drinking fountain | Refrigerated cooling, dual stations |
How to Install the EZSDL:
- Prepare the mounting location by ensuring wall support and ADA clearance requirements.
- Attach the hanger bracket securely to the wall using all designated bolt holes.
- Hang the cooler unit onto the bracket, making sure it locks into place properly.
- Connect the water supply line using a dielectric coupling and attach the drain trap with the provided gasket and slip nut.
- Connect electrical supply to a dedicated GFCI outlet, then flush the system and check for leaks.
How to Maintain the EZSDL:
- Inspect the bubbler stream height regularly and adjust using the front panel screw if flow is too high or low.
- Clean the exterior surfaces with mild soap and water; avoid abrasive cleaners to protect the finish.
- Check the drain trap and tubing for clogs or leaks, tightening connections as needed.
- Test electrical activation periodically to ensure the electronic pushbar and solenoid valve are functioning properly.
- Verify ADA compliance after installation and maintenance to ensure accessibility standards are met.
FAQ
Q: What Applications Is the EZSDL Designed For?

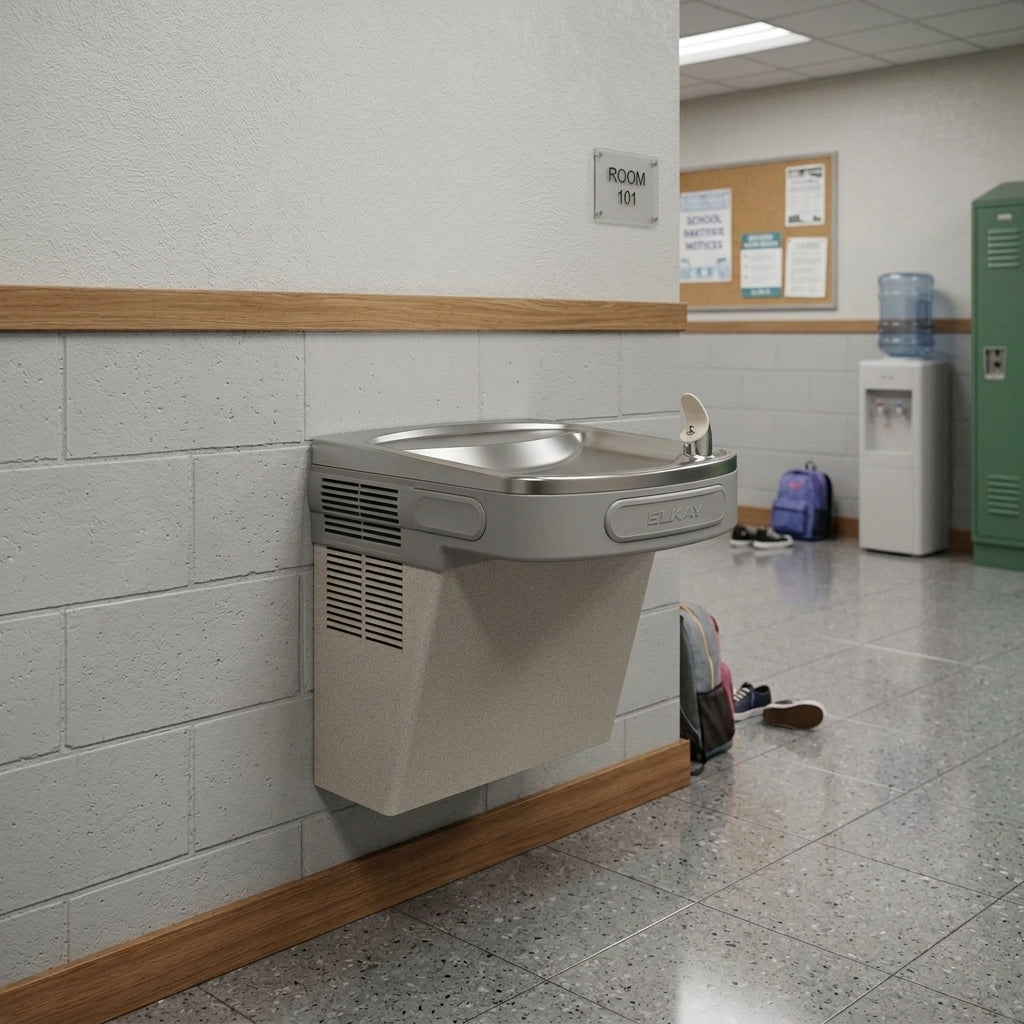

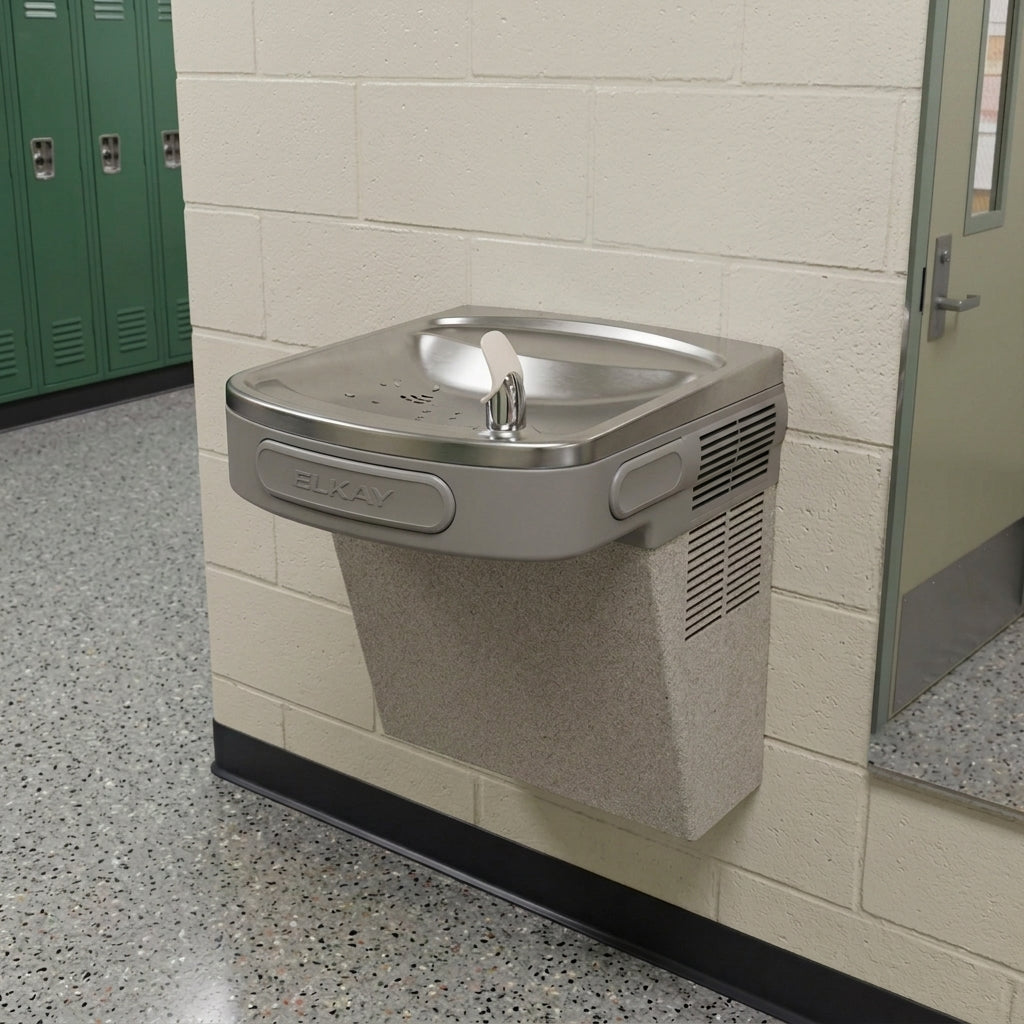

A: The EZSDL is ideal for schools, offices, and public facilities requiring ADA‑compliant, single‑station hydration without refrigeration.
Q: What Water Pressure Is Required for the EZSDL?
A: The EZSDL operates on 20–105 psi supply line pressure for proper flow.
Q: Is the EZSDL ADA Compliant?
A: Yes. The EZSDL meets ADA and ICC A117.1 accessibility standards when installed according to guidelines.
Q: What Warranty Coverage Is Provided With the EZSDL?
A: Electrical components and the water system are covered for 12 months from installation.
Q: Can Accessories Be Added to the EZSDL?
A: Yes. Compatible accessories include the EWF172 universal filtration kit, MLP100 in‑wall carrier, LKAPREZL cane apron, and 97446C vandal‑resistant bubbler kit.
Q: How Does the EZSDL Differ From the LZSDL?
A: The EZSDL is a non‑filtered model, while the LZSDL includes integrated filtration for treated water.
Q: What Are the Dimensions of the EZSDL?

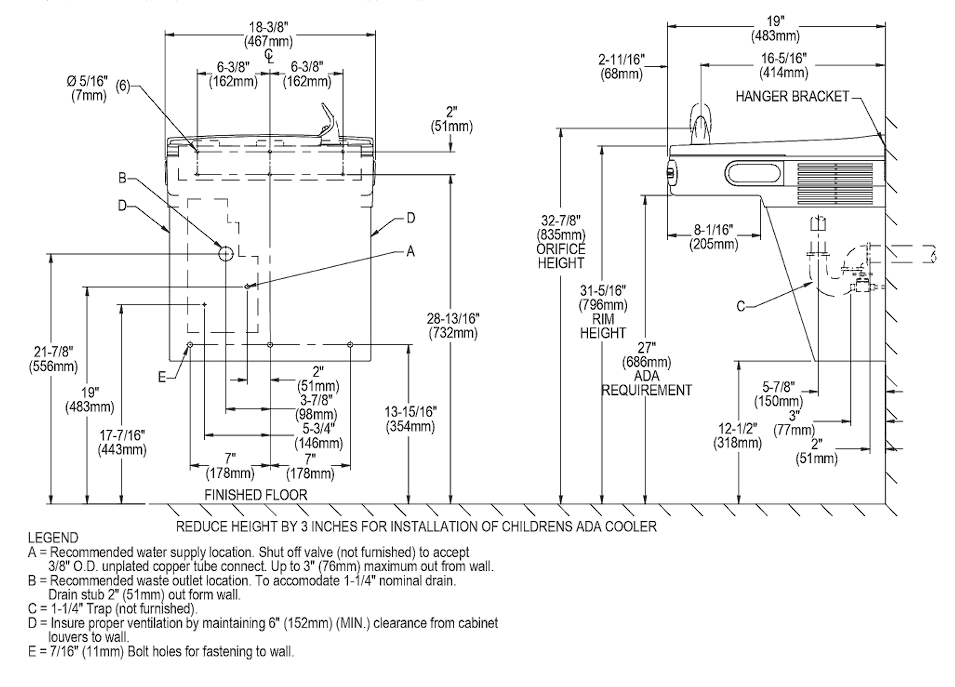

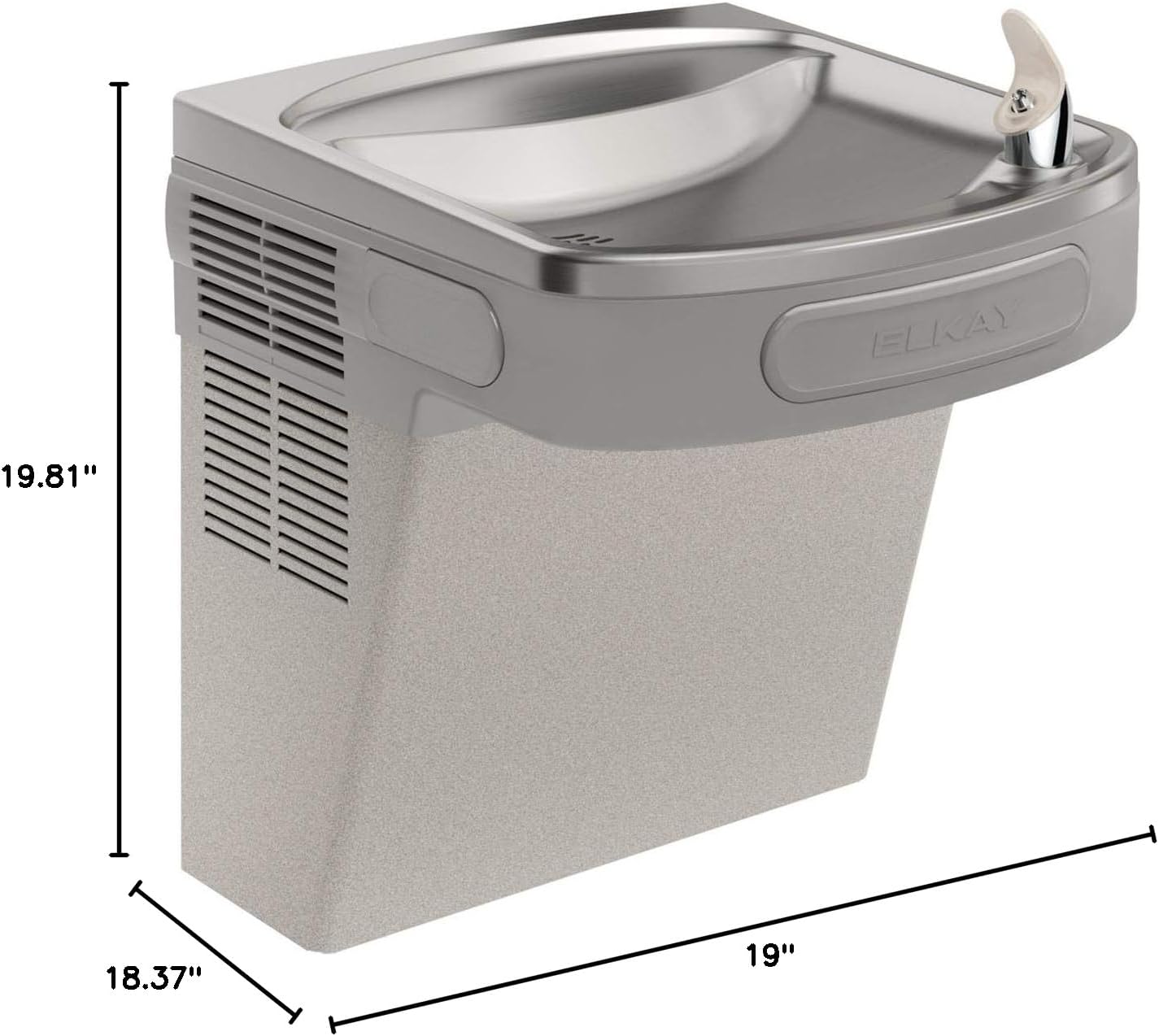

A: The EZSDL measures 18‑3/8" L × 19" W × 19‑13/16" H and weighs approximately 36 lbs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Confirm wall structure can support the Elkay EZ™ & LZ™ Versatile Bottle Filling Station; install a fixture support carrier if required.
- Choose configuration: left‑hand high/right‑hand low or left‑low/right‑high. Refrigerated unit must be installed on the right‑hand side.
- Mount hanger brackets securely to wall using all six 7/16" obround holes; maintain proper ADA heights (reduce by 3" for children’s cooler).
- Hang cooler on bracket, ensuring slots engage properly; remove lower front panel by loosening four screws.
- Connect water inlet line to 3/8" O.D. copper tube with shut‑off valve; purge line before connection.
- Install trap: attach slip nut and gasket to cooler waste line; fit into 1‑1/2" O.D. drain stub and tighten securely.
- Install bottle filler: mount wall plate above basin, feed power cord and waterline through basin opening, and secure filler to angled tabs.
- Install WaterSentry® Plus filter cartridge (filtered models) by inserting into filter head and rotating clockwise until secure.
- Turn on water supply; flush at least 1 gallon through bottle filler to purge air and carbon particles; check all connections for leaks.
- Plug cooler and bottle filler into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Adjust bubbler stream height if needed: regulator screw clockwise raises stream, counter‑clockwise lowers stream; target ~6‑1/2" above basin slope.
- Replace lower front panel and secure with screws; ensure wrapper is properly seated inside upper shroud.
- For detailed steps, refer to the Elkay EZ™ & LZ™ Versatile installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean stainless steel panels with mild soap and water or glass cleaner; avoid abrasive or petroleum‑based cleaners.
- Clean plastic components with mild detergent and soft cloth; antimicrobial properties will not be harmed.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
