Elkay  |  SKU: EZLMSN-EDFPVM214DK

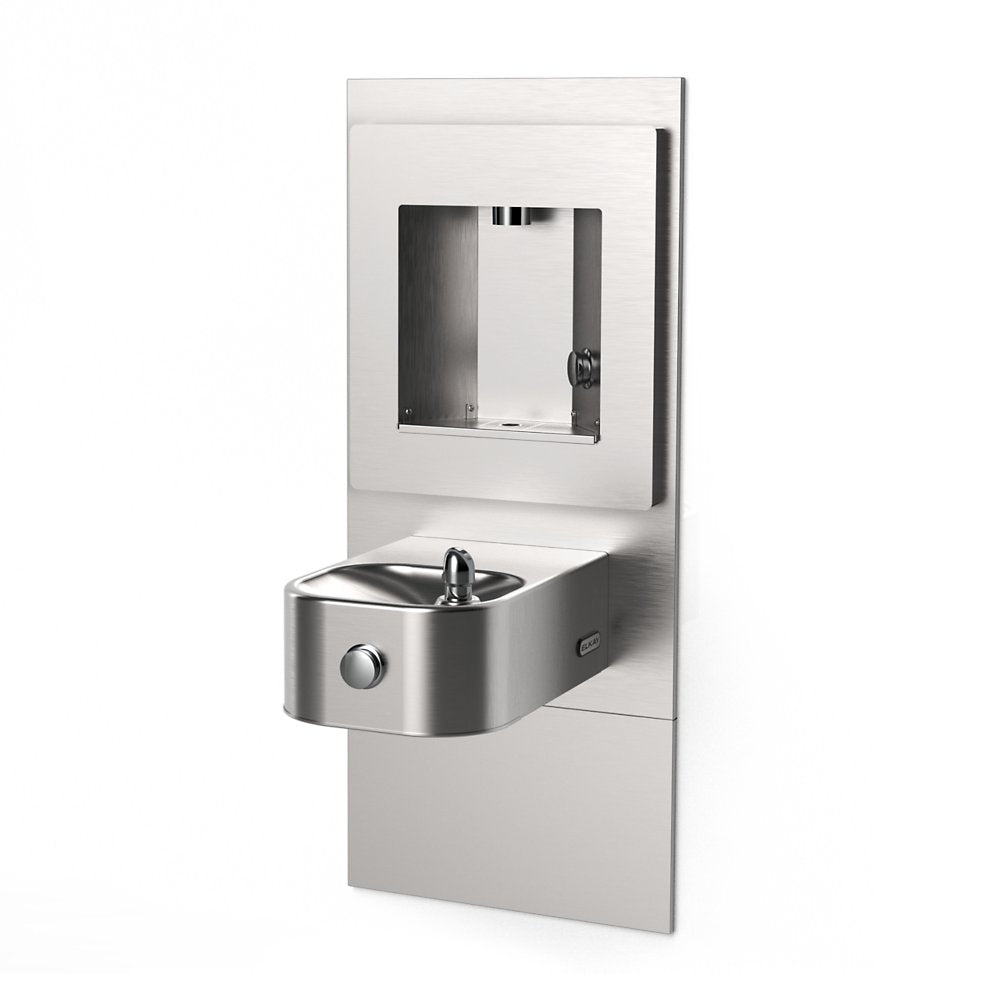

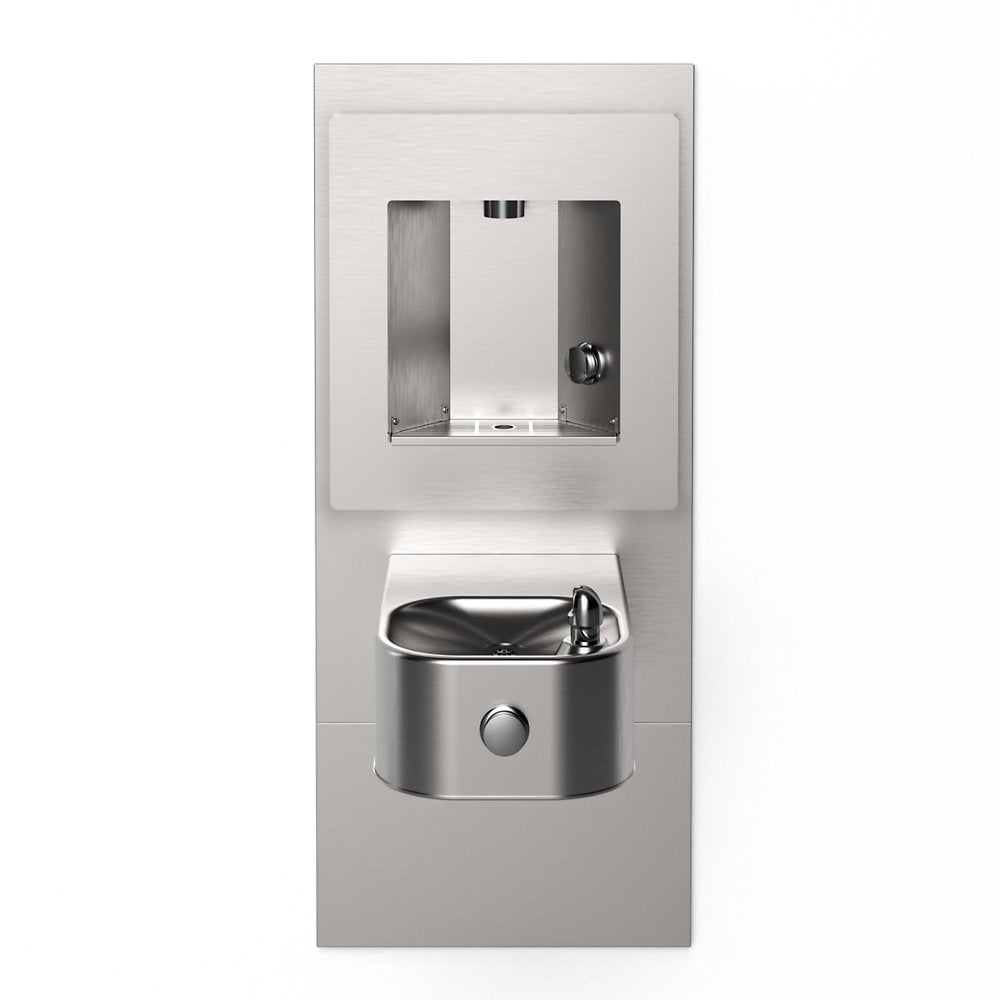

Elkay EZLMSN-EDFPVM214DK | ezH2O Mechanical Bottle Filling Station | Non-Filtered, Non-Refrigerated, Stainless

$ 2,985.96
Shipping calculated at checkout.

Product Care Information

INSTALLATION.

  • During a plumbing circuit inspection, be aware that the line might be grounded at a location away from the installation site, which could be outside the building or the area where the unit is being installed.
  • It is essential to consult local plumbing codes before beginning installation.


MAINTENANCE

  • Clean the entire unit, including the basin and bottle filler.
  • Clean the condenser and louvers if the unit is refrigerated.
  • Replace the filter if the unit is equipped with one.
  • If the bubbler orifice is scaly, clean it carefully to ensure proper water flow.
  • Inspect the height of the bubbler stream and adjust if needed. This task should be performed after changing the filter and cleaning the orifice.
  • Ensure the refrigeration system is cycling correctly by verifying that both the compressor and the fan activate and deactivate as intended.
  • Testing the activation of the bottle filler is essential to ensure it responds promptly and accurately when a bottle is placed for filling.
  • Testing the 20-second timeout feature of the bottle filler is essential.
  • Ensure that the water flow from the bottle filler is laminar, and clean, repair, or replace the nozzle as needed.

The Elkay EZLMSN-EDFPVM214DK is an ezH2O® Vandal Resistant Mechanical Bottle Filling Station with Integral Soft Sides® Fountain, designed for both indoor and outdoor applications. This non-filtered, non-refrigerated stainless steel unit combines a bottle filling station with a single drinking fountain, offering a durable and versatile hydration solution. Its mechanically activated system, vandal-resistant features, and laminar flow technology make it ideal for high-traffic areas where reliability, hygiene, and water conservation are crucial.


Key Specifications:

  • Dimensions: 19-3/4" L x 19" W x 34-5/8" H, suitable for various installation spaces.
  • Activation Method: Mechanical Bottle Filler Button with Mechanical Front Bubbler Button, ensuring reliable operation without electrical components.
  • Construction: Stainless Steel finish, providing durability and easy maintenance.
  • Mounting Type: Wall Mount (In-Wall Frame/Plate), offering a secure and streamlined installation.
  • Capacity: Serves 1 station, accommodating both bottle filling and drinking fountain needs.


Features & Benefits:

  • Vandal Resistant Design: Ensures longevity and functionality in challenging environments, reducing maintenance costs.
  • Laminar Flow Technology: Provides clean water fill with minimal splash, enhancing user experience and hygiene.
  • No Electricity Required: Mechanical operation allows for installation in areas without power sources and ensures functionality during outages.
  • Indoor/Outdoor Versatility: Suitable for various applications, expanding installation options and accessibility.
  • Water Conservation: Encourages the use of refillable bottles, reducing plastic waste and promoting environmental sustainability.


What's Included:

  • Bottle Filler (EBWDCM0SSC)
  • Fountain Only (EDFPV214LWS-NF)
  • Frame (MFWS102)


FAQ


Q: Is this unit suitable for outdoor installation in cold climates?

A: While the EZLMSN-EDFPVM214DK is designed for both indoor and outdoor use, it must be adequately winterized and/or protected from extreme temperatures in climates where freezing or excessive heat is a concern. Consult with a professional for proper winterization techniques.

Q: Does this model include a water filter?

A: No, this specific model (EZLMSN-EDFPVM214DK) is a non-filtered version. If filtration is required, consider exploring other models in the Elkay range that include built-in filtration systems.

Q: Is an access panel required for installation?

A: An access panel (Part number ACCESS12X19-75) is recommended for installations with no rear access. This ensures easier maintenance and servicing of the unit after installation.


Detailed Features & Benefits


Vandal Resistant Design: The EZLMSN-EDFPVM214DK's vandal-resistant features are a crucial aspect of its design, particularly for high-traffic or unsupervised areas. The stainless steel construction and specially designed vandal-resistant bubbler are engineered to withstand attempts at damage or misuse, ensuring the unit remains functional and hygienic over time. This durability not only extends the life of the product but also reduces maintenance costs and downtime, making it an ideal choice for schools, parks, and other public spaces where durability is paramount.

Laminar Flow Technology: The incorporation of laminar flow technology in the EZLMSN-EDFPVM214DK is a significant enhancement to both user experience and hygiene. This feature provides a smooth, non-aerated stream of water that minimizes splashing and reduces the potential for airborne contaminants. The result is a cleaner, more controlled water flow that not only improves the bottle-filling experience but also helps maintain a cleaner surrounding area. This technology is particularly beneficial in environments where water conservation and cleanliness are priorities, as it reduces water waste and the need for frequent cleaning around the unit.


NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
