Elkay EFA8L1Z | Legacy Freestanding Refrigerated Drinking Fountain ...

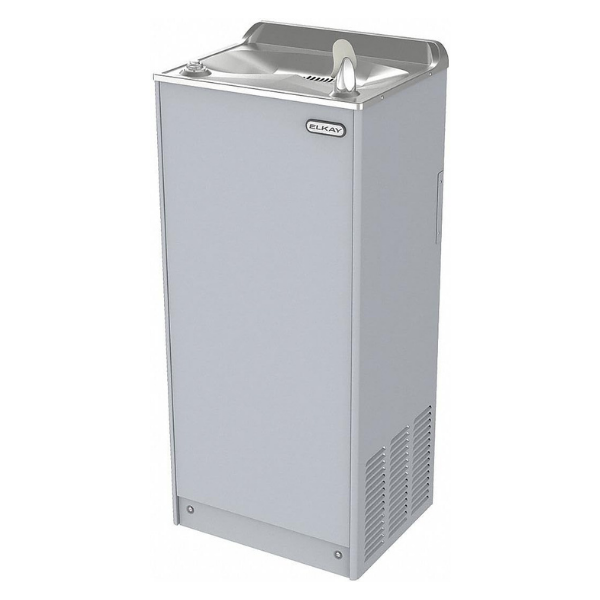

The Elkay EFA8L1Z Legacy Floor Mount Cooler delivers 8 GPH of chilled drinking water in a durable, mechanically activated design. With Flexi‑Guard® safety bubblers and ADA compliant construction, it provides reliable hydration for indoor commercial spaces.
Key Specifications:
| Design | Legacy floor‑mount cooler, non‑filtered |
| Finish | Light Gray Granite |
| Filtration | Non‑filtered. Compatible with EWF172 Watersentry VII Filter Kit |
| Refrigeration | 8.0 GPH chilled water capacity, 115V/60Hz, 370 watts |
| Stations Served | 1 |
Features & Benefits:
- Reliable Cooling: Provides 8 GPH of 50°F chilled water based on ASHRAE 18 testing
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when installed properly
- Durable Construction: Rust‑resistant granite finish with Flexi‑Guard® safety bubbler
- Mechanical Activation: Ensures water flow even during power outages
- Compact Installation: Floor‑mount design suitable for indoor commercial spaces
What's Included:
- EFA8L1Z Legacy Floor Mount Cooler
- Flexi‑Guard® Safety Bubbler
- Installation instructions (PDF)
- Warranty documentation
Comparison of Elkay Coolers & Fountains:
| Feature | EFA8L1Z (This Model) | LK4420BF1U | LVRC8S |
|---|---|---|---|
| Design | Legacy floor‑mount cooler (free-standing), indoor use | Outdoor free-standing bottle filling station, double station | Single‑level indoor drinking fountain, filtered |
| Finish | Light Gray Granite | Stainless steel, outdoor rated | Stainless steel |
| Filtration | Non‑filtered, compatible with EWF172 retrofit kit | Non‑filtered, optional filtration kits available | Includes filter, NSF/ANSI certified |
| Refrigeration | 8.0 GPH chilled water | Non‑refrigerated | 8.0 GPH chilled water |
| Stations Served | 1 | 2 | 1 |
| Best For | Indoor commercial spaces needing chilled water | Outdoor environments needing bottle filling + drinking stations | Indoor facilities needing filtered single‑level fountains |
FAQ
Q: What Applications Are Best Suited for the EFA8L1Z?

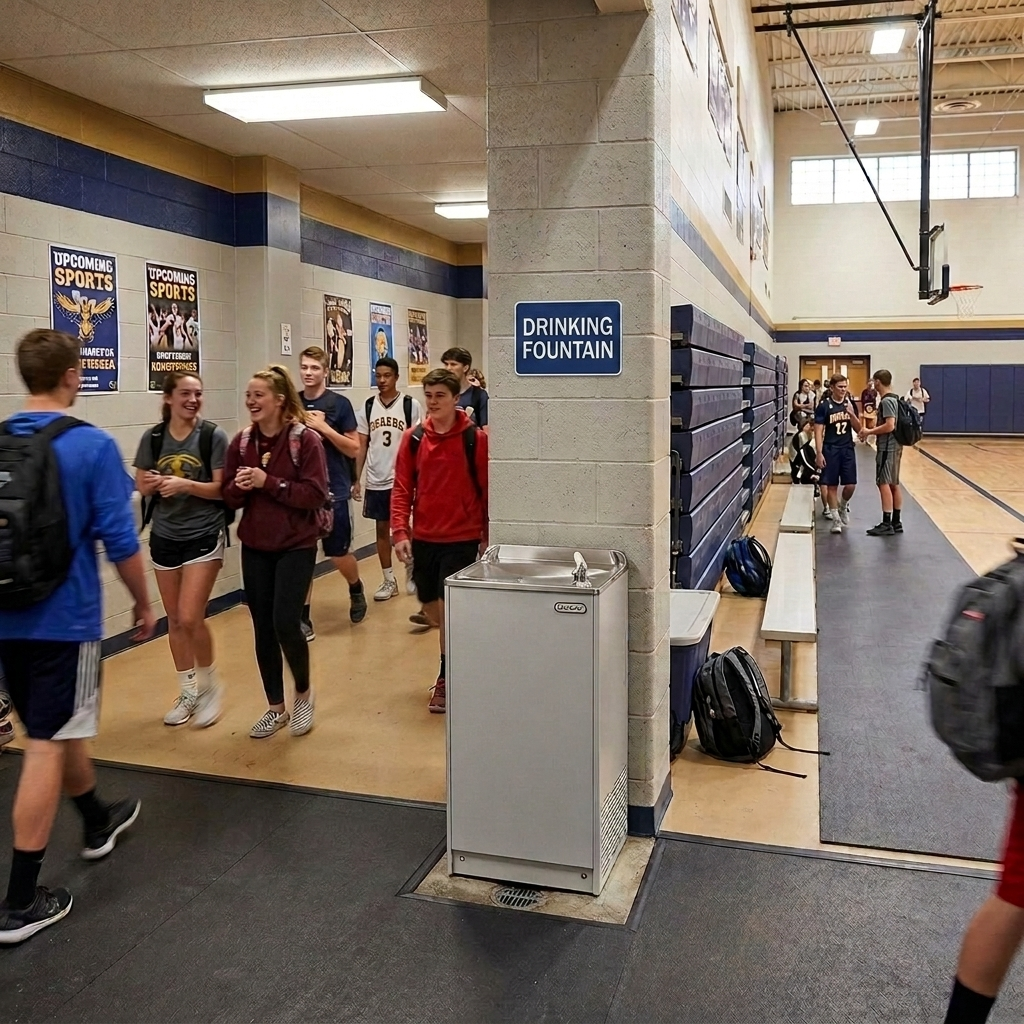

A: This cooler is ideal for schools, offices, and public facilities needing a durable, refrigerated floor‑mount drinking solution.
Q: Does the EFA8L1Z Include Filtration?
A: No. It is non‑filtered but compatible with the EWF172 Watersentry VII Filter Kit for added contaminant reduction.
Q: What Accessories Are Available?
A: Optional accessories include the 98498C Glass Filler Kit and the 97446C Vandal‑Resistant Bubbler Kit.
Q: Is the EFA8L1Z ADA Compliant?
A: Yes. It complies with ADA & ICC A117.1 accessibility standards when installed according to guidelines.
Q: Can the EFA8L1Z Be Installed Outdoors?
A: No. This model is designed for indoor installations only.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

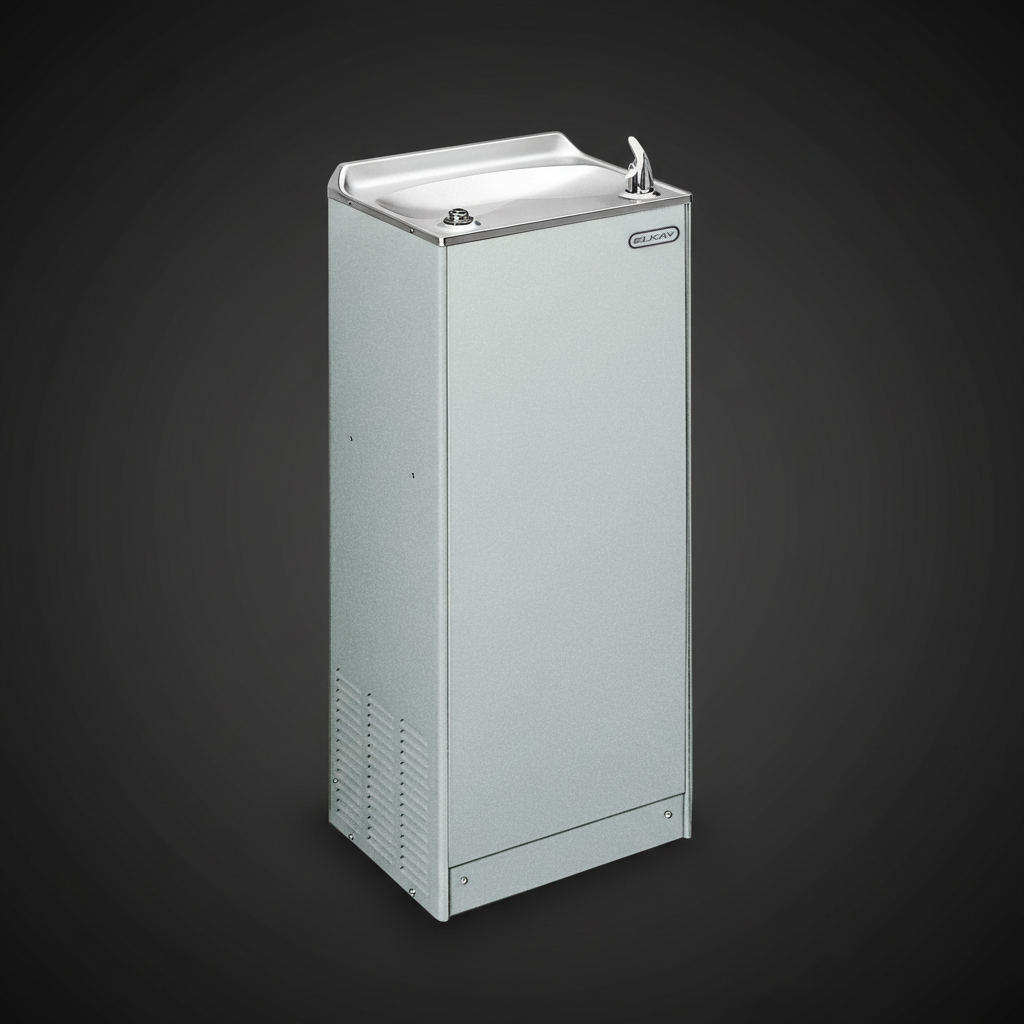

The Elkay EFA8L1Z is a single‑level drinking fountain designed for durability and accessibility. This filterless cooler delivers chilled water service with ADA‑compliant access, making it suitable for schools, offices, and public facilities.

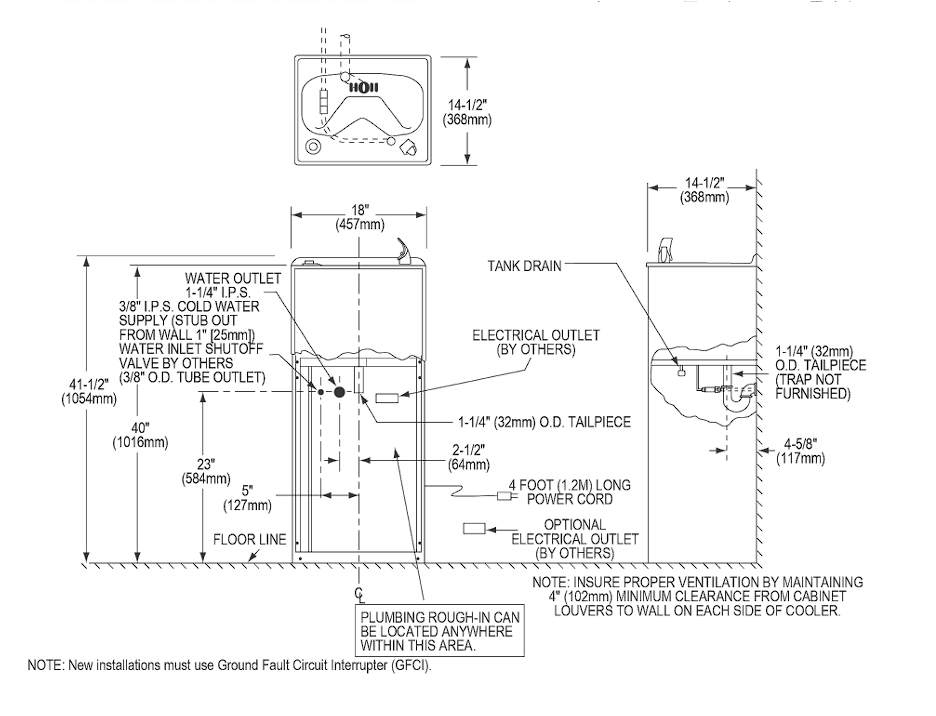

Key Installation Requirements:
- Wall‑mounted installation with proper carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for fountain basin
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless — delivers chilled water only
- Always depressurize water line before servicing
- Provide adequate ventilation clearance around louvers
- Outdoor installation requires winterization or protection in extreme climates
- Secure fountain firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier to support fountain weight
- Position fountain assembly and secure to wall structure
- Connect cold water supply line to inlet; flush line thoroughly
- Connect drain line from basin to building drain system
- Wire electrical supply to grounded outlet; verify cooling system powers on
- Pressurize system slowly and check for leaks
- Test bubbler stream height; adjust regulator if needed
- Install cover plates and finish trim
For complete specifications and installation guidelines, download the official EFA8L1Z Spec Sheet and the Installation Manual.
Want to Order the EFA8L1Z Drinking Fountain or Get a Custom Quote?
Shop EFA8L1Z Drinking Fountain
