Elkay ECTSRAD25226TBG1 | Crosstown Single Bowl Dual Mount Sink Kit ...

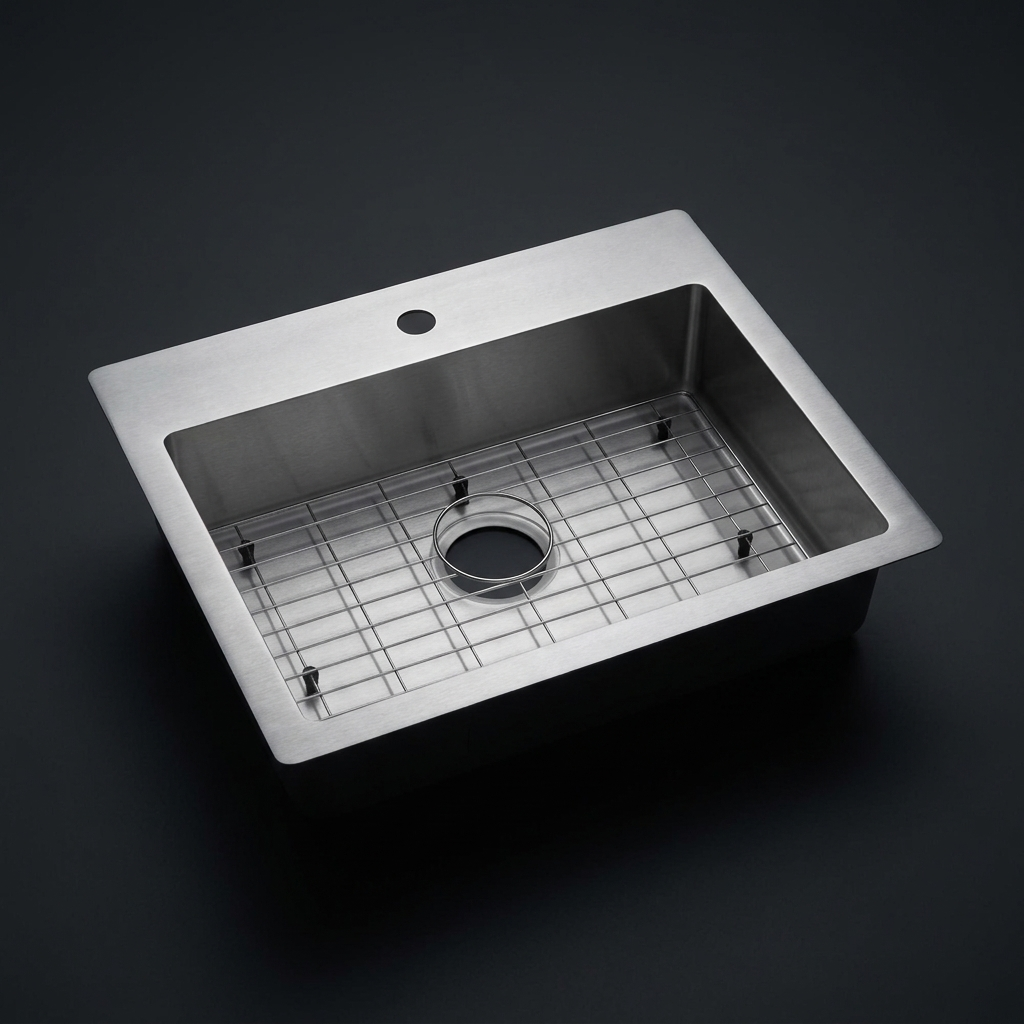

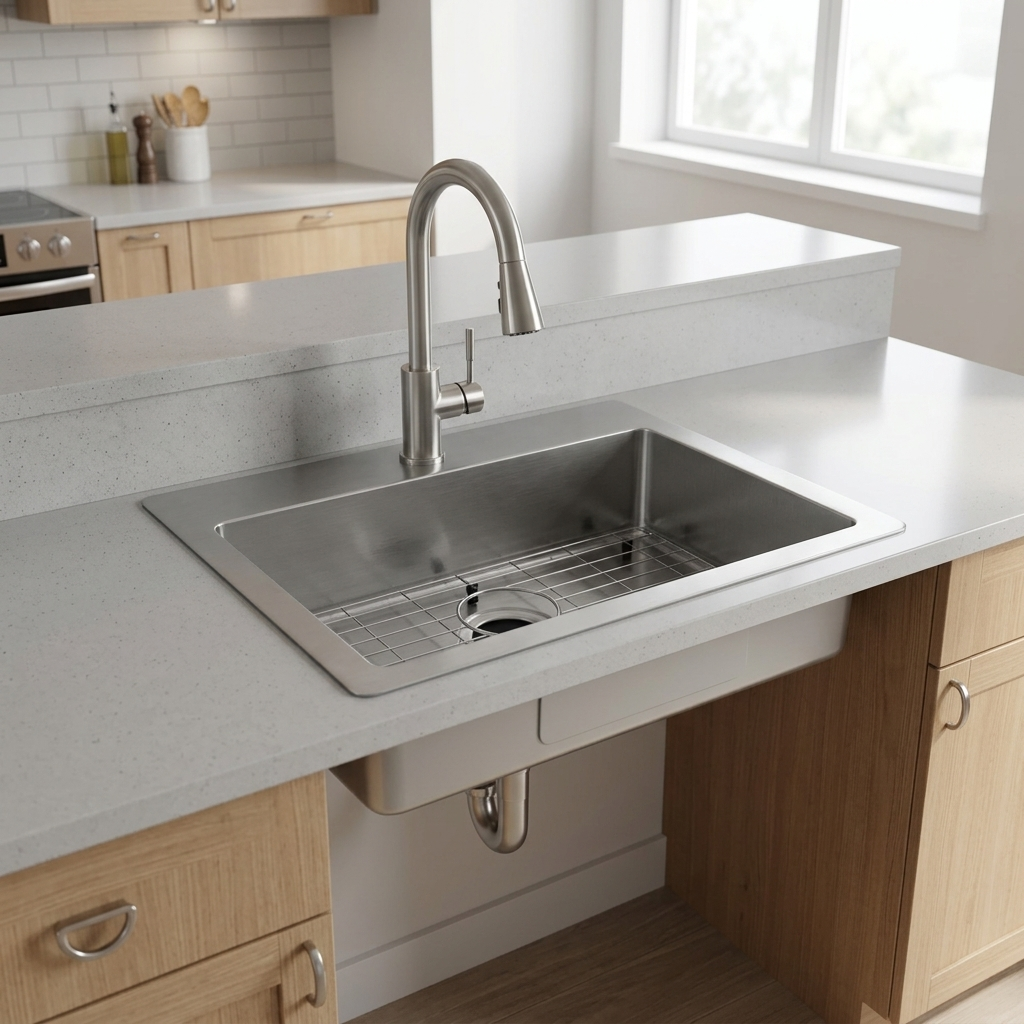

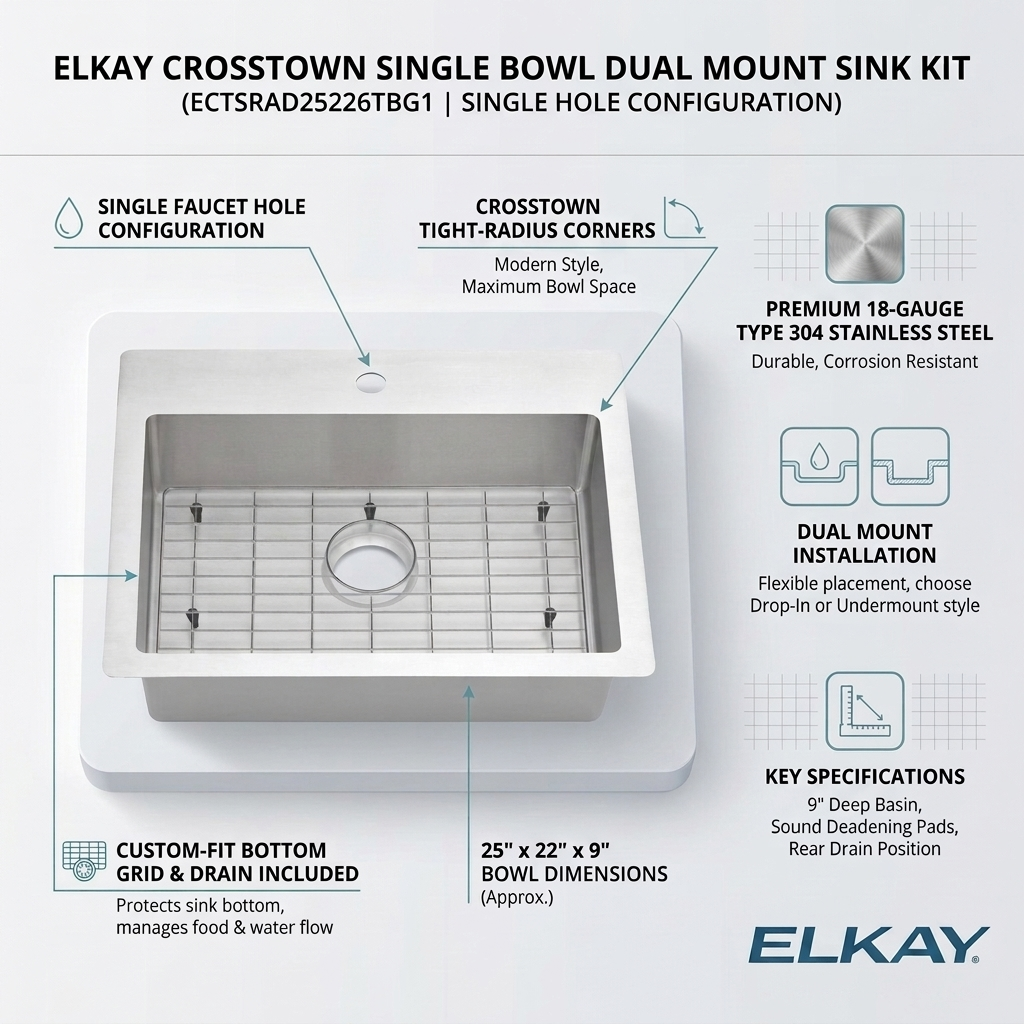

The Elkay ECTSRAD25226TBG1 Crosstown® Stainless Steel Single Bowl Dual Mount ADA Sink Kit is a handmade 18‑gauge 304 stainless steel sink with dual mount versatility and a sleek Polished Satin finish. Designed for ADA compliance, it combines durability, sound deadening, and modern aesthetics for accessible kitchen installations.
Key Specifications:
| Material | 304 Stainless Steel |
| Gauge | 18 Gauge |
| Sink Dimensions | 25" x 22" x 6" |
| Drain Location | Rear Center |
| Installation Type | Dual Mount (Drop-in or Undermount) |
Features & Benefits:
- Dual Mount Flexibility: Supports both drop-in and undermount installation, offering versatile options for different countertop styles.
- Handmade 18-Gauge Construction: Fabricated from heavy-duty 304 stainless steel for exceptional durability and resistance to corrosion and dents.
- Superior Sound Deadening: Full spray sides and bottom with dedicated pads reduce noise from water flow and dish handling.
- Slim Rim Design with Polished Satin Finish: Provides a clean, modern aesthetic that complements a wide range of kitchen designs.
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Other Related Variants:
- ECTSRAD25226TBG2: 2 Hole Drilling Configurations
- ECTSRAD25226TBG3: 3 Hole Drilling Configurations
- ECTSRAD25226TBG4: 4 Hole Drilling Configurations
- ECTSRAD25226TBG5: 5 Hole Drilling Configurations
What's Included:
- Elkay ECTSRAD25226TBG1 Single Bowl Dual Mount ADA Sink
- CTXBG2115 Bottom Grid (21" x 15-1/4" x 1-1/4")
- Mounting Hardware (Part #64090022) for countertops 3/4" to 1-1/2" thick
- Cutout Template (#1000001179)
Comparison of Elkay Sinks:
| Feature | ECTSRAD25226TBG1 (This Model) | ELGRU13322WMB0 Quartz Classic | ECTSRAD33226TBG5 Crosstown Kit |
|---|---|---|---|
| Material | 304 Stainless Steel | Quartz Composite | 304 Stainless Steel |
| Gauge | 18 Gauge | Not applicable (Quartz) | 18 Gauge |
| Sink Dimensions | 25" x 22" x 6" | 33" x 22" x 9-1/2" | 33" x 22" x 9" |
| Bowl Configuration | Single Bowl | Single Bowl Workstation | Double Bowl |
| Drain Location | Rear Center | Rear Center | Center |
| Installation Type | Dual Mount (Drop-in or Undermount) | Undermount | Dual Mount (Drop-in or Undermount) |
| Included Accessories | CTXBG2115 Bottom Grid, Mounting Hardware, Cutout Template | Workstation accessories (cutting board, colander, drying rack) | Kit includes bottom grid, drain fittings, mounting hardware |
| Best For | ADA-compliant compact kitchens needing versatile installation | Modern kitchens wanting quartz durability and workstation functionality | Larger kitchens needing a double bowl stainless steel kit |
How to Maintain Elkay ECTSRAD25226TBG1:
- Clean daily with mild detergent and a soft cloth; rinse and dry to prevent mineral deposits.
- Use Elkay bottom grids or rinsing baskets to protect the sink surface.
- Run cold water when pouring boiling water into the sink.
- Avoid harsh chemicals containing chlorides; rinse immediately if used.
- For tough stains, use Bar Keeper’s Friend or stainless steel cleaner, then dry thoroughly.
FAQ
Q: What Is The Minimum Cabinet Size Required For The Elkay ECTSRAD25226TBG1?
A: A minimum cabinet size of 30" is required for proper installation.
Q: What Are The Cutout Dimensions For Drop-In Installation?
A: The required cutout dimensions are 24-3/8" x 21-3/8" with a 1/2" corner radius.
Q: Is The Elkay ECTSRAD25226TBG1 ADA Compliant?
A: Yes. It complies with ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: Does The Elkay ECTSRAD25226TBG1 Include Mounting Hardware?
A: Yes. Mounting hardware (Part #64090022) is included for drop-in installation.
Q: What Accessories Are Compatible With The Elkay ECTSRAD25226TBG1?
A: Compatible accessories include the CTXBG2115 Bottom Grid, LK35 Drain Fitting, and LKAD35 Offset Drain Fitting.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay ECTSRAD25226TBG1 is a Crosstown single bowl dual mount sink kit with a single faucet hole configuration. Built from stainless steel, it offers flexibility for top mount or undermount installation, making it a versatile choice for modern kitchens.
Key Installation Requirements:
- Dual mount installation: compatible with top mount or undermount setups
- Single hole configuration for faucet installation
- Cutout template required for proper fit
- Mounting clips and hardware included
- Seal edges with silicone caulk to prevent leaks
- Allow clearance below sink for plumbing connections
Important Notes Before Installing:
- Confirm countertop compatibility with chosen installation method
- Always shut off water supply before connecting plumbing
- Use plumber’s putty or silicone sealant for drain assembly
- Check alignment before tightening clips to avoid stress on sink
- Do not overtighten fasteners — may damage countertop or sink
Basic Installation Overview:
- Prepare countertop cutout using provided template
- Position sink for top mount or undermount installation
- Apply silicone sealant around rim for watertight fit
- Secure sink with mounting clips and hardware
- Connect drain assembly and plumbing lines
- Turn on water supply and check for leaks
- Clean excess sealant and finish installation
For complete specifications and installation guidelines, download the official ECTSRAD25226TBG1 Spec Sheet, the Installation Manual, and the Maintenance Guide.
