Elkay EZWSRK | Retrofit Bottle Filler Kit For use with EZ-style fountains | Filterless, Stainless Steel
Elkay EZWSRK | Retrofit Bottle Filler Kit For use with EZ-style fountains | Filterless, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZWSRK | Retrofit Bottle Filler Kit For use with EZ-style fou...

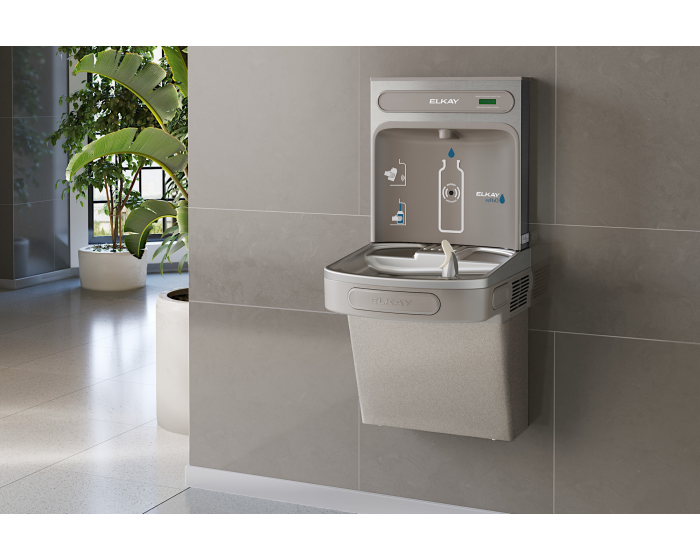

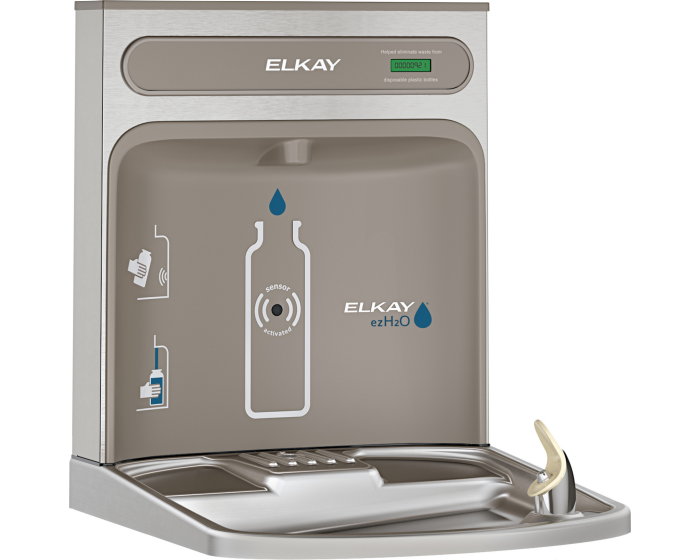

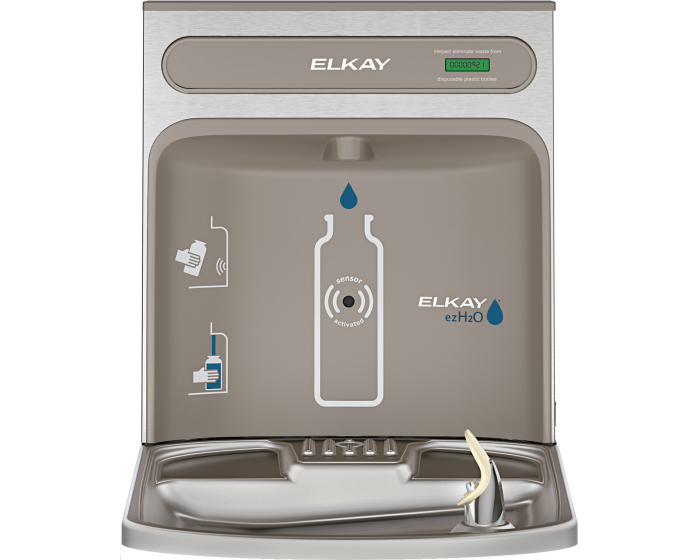

The Elkay EZWSRK shall be Wall Mount (On Wall), for Indoor applications. This product is a cutting-edge of EZH2O® Bottle Filling Station Retrofit Kit designed with ADA compliant design, to transform existing 115V push bar-activated EZ style water coolers into an efficient hydration solution.
This innovative product combines sustainability with convenience, featuring a sanitary no-touch sensor activation, impressive fill rate, and a Green Ticker™ to track plastic bottle savings, making it an ideal upgrade for various indoor environments.
Key Specifications:
- Fill Rate: Impressive 1.5 GPM (Gallons Per Minute) for quick and efficient bottle filling.

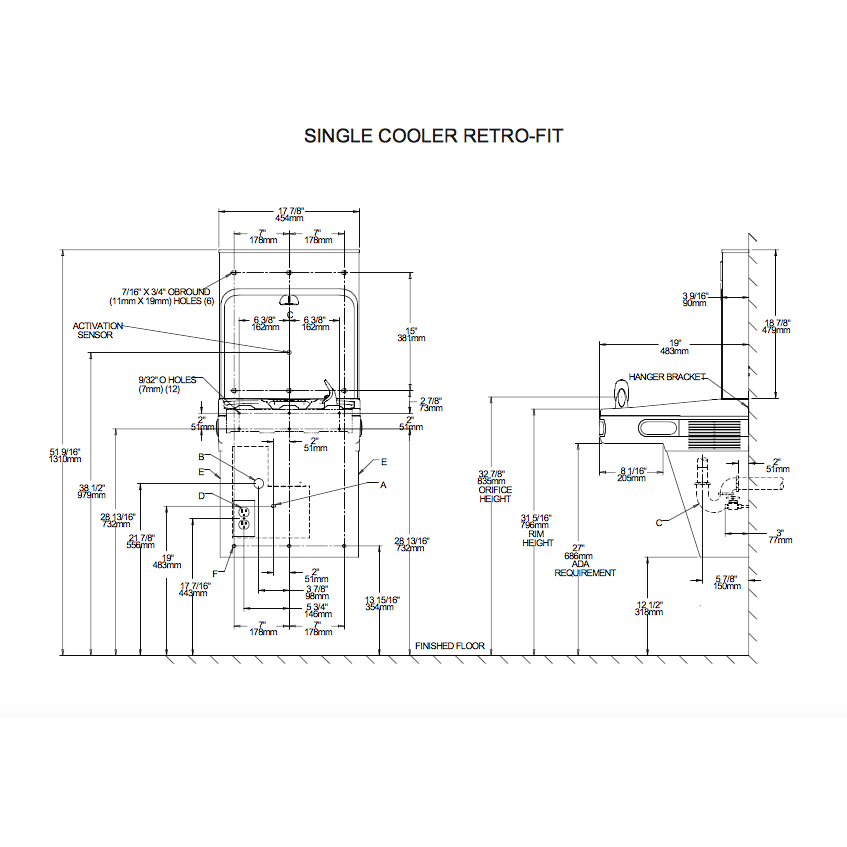

- Dimensions: Measures 18-7/8" in height, 19" in width, and 19" in depth, suitable for retrofitting existing fountains.
- Power Requirements: Operates on 115V/60Hz, compatible with standard electrical systems.
- Installation: Wall-mounted design for easy retrofit, and install for Indoor applications.
Features & Benefits:
- Touchless Technology: Sanitary, sensor-activated bottle filler with a 20-second automatic shut-off timer, promoting hygiene and reducing the spread of germs.
- Green Ticker™: Displays the number of 20 oz. plastic water bottles saved from waste, encouraging sustainable practices and environmental awareness.
- Antimicrobial Protection: Key plastic components feature silver ion antimicrobial agents, inhibiting the growth of mold and mildew for cleaner, safer hydration.
- ADA Compliant: Thoughtfully designed to meet ADA requirements, ensuring accessibility for all users.
What's Included:
- Retrofit Bottle Filler (EZWSRK)
- Basin with Drain Assembly
- Installation hardware and instructions
FAQ
Q: Is this retrofit kit compatible with all existing water fountains?
A: The Elkay EZWSRK is specifically designed for 115V/60Hz EZ style models with push bar activation. We recommend retrofitting non-chilled fountains less than 10 years old and chilled fountains less than 5 years old. For compatibility confirmation, email support@bottlefillingstations.com with your current fountain's serial number or a photo.
Q: Does this retrofit kit affect the cooling capacity of my existing fountain?
A: The EZWSRK retrofit kit does not include its own chiller. If installed on a refrigerated EZ fountain, it will utilize the existing compressor to provide chilled water. The retrofit process does not alter the original fountain's cooling capacity.
Q: How long does it take to install this retrofit?
A: It varies, but the typical Bottle Filling Station retrofit install takes 1-2 hours.
Detailed Features & Benefits
Smart Hydration Solution: The Elkay EZWSRK transforms ordinary water fountains into state-of-the-art hydration stations. Its touchless sensor activation not only enhances user experience but also promotes better hygiene practices in public spaces. The 20-second automatic shut-off timer ensures water conservation, while the laminar flow provides a clean, splash-free fill every time. This thoughtful design encourages more frequent hydration, supporting health and wellness initiatives in various settings such as schools, offices, and recreational facilities.
Sustainability Tracker: The Green Ticker™ feature is more than just a counter – it's a powerful tool for environmental education and motivation. By visually displaying the number of plastic bottles saved from landfills, it creates a tangible connection between individual actions and global sustainability efforts. This feature can be particularly impactful in educational institutions, helping to foster a culture of environmental responsibility among students and staff. The EZWSRK doesn't just provide water; it inspires a movement towards a more sustainable future, one refill at a time.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
