Elkay VRCTLR8WSK | Wall-mount Bi-Level Reverse Bottle Filling Station | Filterless, Refrigerated, VRC-style Fountains, Fully Vandal-resistant, Stainless Steel
Elkay VRCTLR8WSK | Wall-mount Bi-Level Reverse Bottle Filling Station | Filterless, Refrigerated, VRC-style Fountains, Fully Vandal-resistant, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
Maintenance
Cleaning
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
Video on Cleaning
Video on Fil Mat
Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
Video on Filter Change
Elkay VRCTLR8WSK | Wall-mount Bi-Level Reverse Bottle Filling Stati...
One of the most popular models, the Elkay VRCTLR8WSK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
The VRCTLR8WSK is a wall-mounted, non-refrigerated unit that includes a bottle filler and two drinking fountains. This model has a Stainless Steel color finish.
The VRCTLR8WSK is a heavy-duty, vandal-resistant unit that features a chrome-plated bubbler, push-button, and fountain basin as well as a bulkier, all stainless steel design perfect for heavy usage and for educational and indoor recreational facilities.

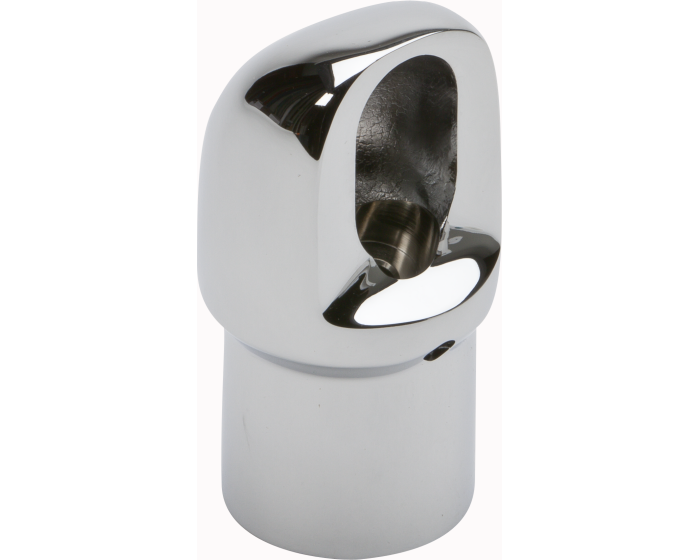

The VRCTLR8WSK chrome-plated bubblers are protected by an integral hood guard to prevent contamination from other users, airborne deposits and tampering
- ADA compliant design
- Vandal resistant push-button design for bottle filler, with automatic 20 second shut off
- Vandal resistant cooler and bottle filling station
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
Elkay VRCTLR8WSK resources:
- Elkay VRCTLR8WSK Spec Sheet
- Elkay VRCTLR8WSK Installation & Owner's guide
- Elkay VRCTLR8WSK CAD Symbols: TOP - SIDE - FRONT
- Elkay VRCTLR8WSK BIM file (RFA)
|
FILTERED? |
NO |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
Vandal-Resistant |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
8 GPH |
|
REFRIGERANT |
R134a |
|
TEMPERATURE CAPACITY |
50°F drinking water |
|
INSTALLATION LOCATION |
INDOOR/OUTDOOR |
|
NUMBER OF STATIONS |
Two Station |
|
DIMENSIONS |
L: 36-1/8" W: 18-5/8" H: 38-13/16" |
|
SHIPPING WEIGHT |
88 lbs |
|
PRODUCT COMPLIANCE |
|
Elkay VRCTLR8WSK Includes
- Water Cooler
- Water Bottle Filling Station
Warranty
Refrigeration System (IF APPLICABLE)
Elkay VRCTLR8WSK refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay VRCTLR8WSK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.
Installation Notes
- Elkay VRCTLR8WSK requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay VRCTLR8WSK MANUAL.
Maintenance
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
Read GUIDES on how to MAINTAIN an EZH2O Bottle Filler
FAQ
Q: Why is this Bottle Filling Station considered Vandal Resistant?
A: This Water Bottle Filling Station is considered Vandal Resistant due to the following Made in the U.S.A. construction specs:
- Vandal-resistant pushbutton
- Stainless steel construction bottle filler
- Stainless steel cooler panel
- Stainless steel constructed Cooler cabinet
- Heavy-duty, one-piece, Chrome plated bubble
Q: Do the Vandal Resistant Bottle Fillers include the Bottle Counter?
A: Yes.
Q: Do the Vandal Resistant Bottle Fillers include the sensor-activated, automatic bottle fill feature?
A: No. The Vandal Resistant Bottle Fillers offer a vandal-resistant pushbutton activation as opposed to sensor activation.
*MADE IN THE UNITED STATES.
