Elkay EZSTL8WSSK | Wall-mount Versatile Bi-Level Bottle Filling Station | Filterless, Refrigerated, EZ-style fountains, Stainless Steel
Elkay EZSTL8WSSK | Wall-mount Versatile Bi-Level Bottle Filling Station | Filterless, Refrigerated, EZ-style fountains, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZSTL8WSSK | Wall-mount Versatile Bi-Level Bottle Filling St...
In-Stock. Order before 3pm EST for same day shipping.

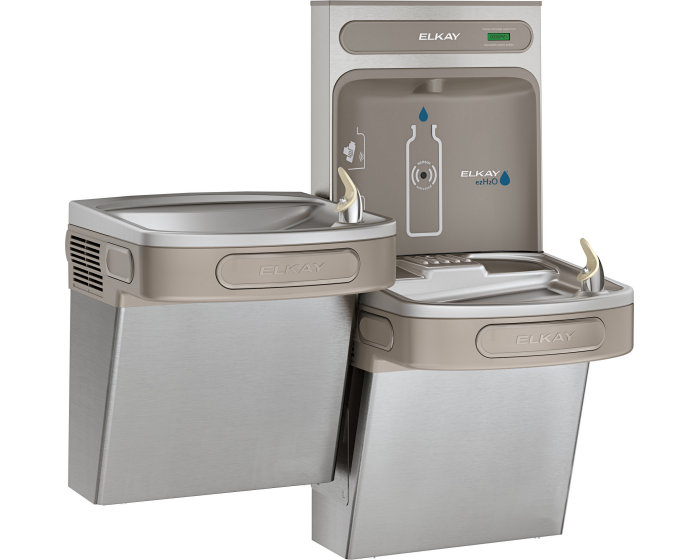

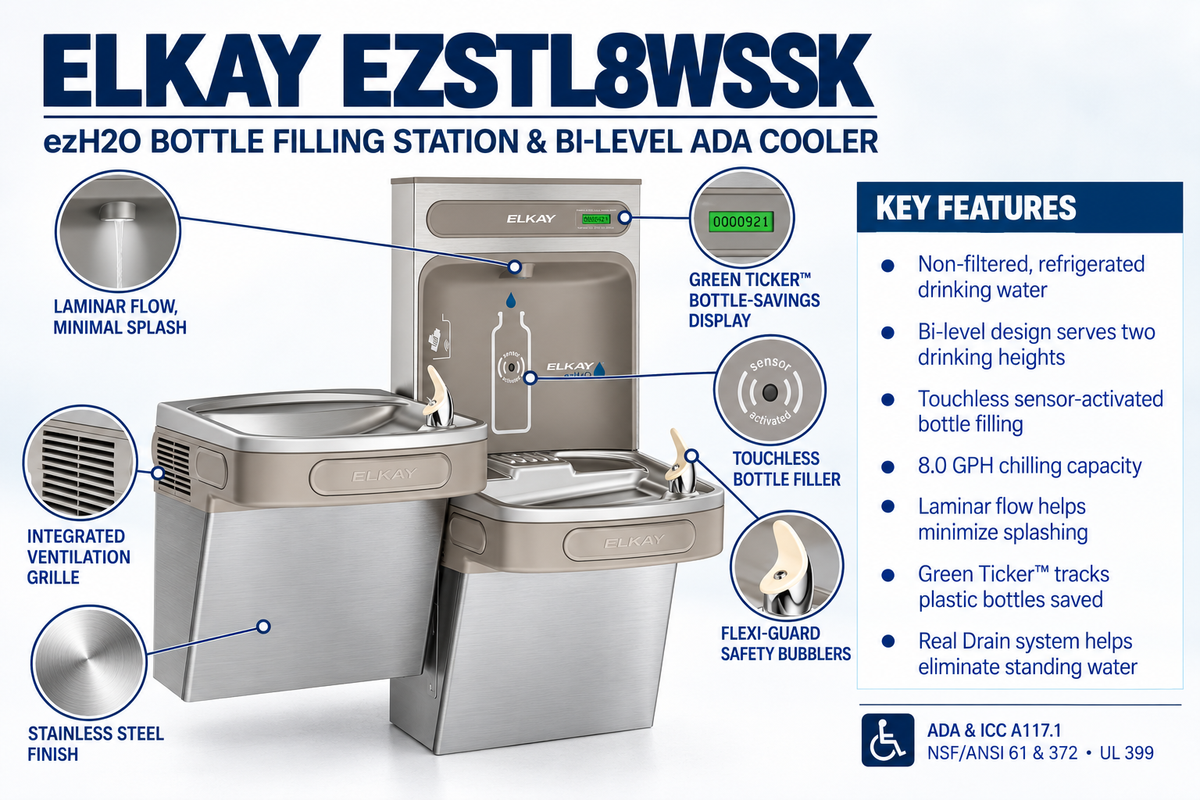

The Elkay EZSTL8WSSK is a versatile, ADA-compliant water bottle filling station and bi-level cooler designed for durability and ease of use in busy indoor environments. With its stainless steel finish, Flexi-Guard® safety bubbler, and hands-free bottle filler, it delivers safe, hygienic hydration while promoting sustainability through Elkay’s Green Ticker™ technology.
Key Specifications:
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
- Refrigeration: Hermetically sealed refrigeration system using R-134a refrigerant with factory-preset thermostat.
- Filtration: This EZSTL8WSSK is a non-filtered model. For a filtered version, see the Elkay LZSTL8WSSK, which includes a WaterSentry® Plus filter certified for lead, chlorine, microplastics, and more.
- Dimensions: 36-3/4" L × 19" W × 39-1/16" H.
- Power Requirements: 115V/60Hz, 370W, 6 full load amps.
- Stations Served: 2 (bi-level cooler + bottle filler).
- Finish: Stainless Steel.
Features & Benefits:
- Hands-Free Bottle Fill: Sensor-activated with recessed spout and 20-second auto shut-off for hygienic use.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Flexi-Guard® Safety Bubbler: Antimicrobial mouth guard reduces risk of injury and helps resist microorganisms.
- Laminar Flow: Provides a clean fill with minimal splash.
- Real Drain System: Eliminates standing water for improved hygiene.
- ADA Compliant: Accessible design meets ADA & ICC A117.1 standards.
- Durable Construction: Stainless steel body ensures long-term reliability and easy cleaning.
What's Included:
- EZSTL8WSSK Bottle Filling Station & Bi-Level Cooler unit
- Flexi-Guard® Safety Bubbler
- Hanger brackets for installation
- Installation instructions and user manual
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.

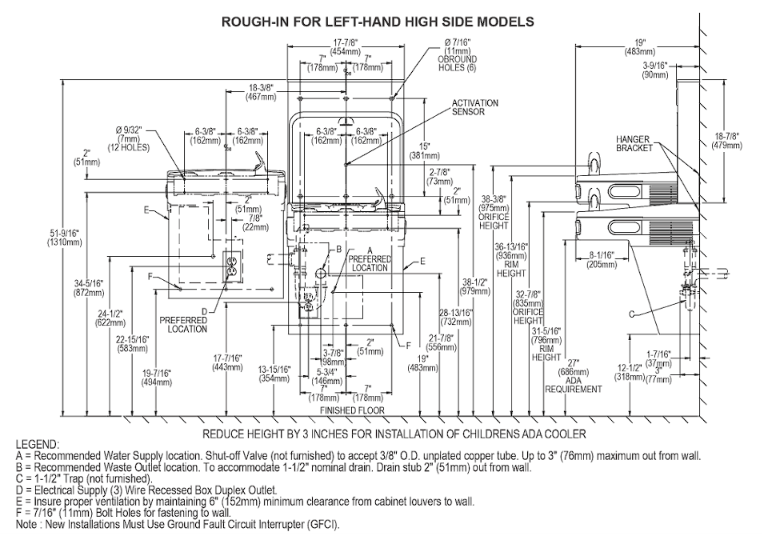

Q: Does the shipment include everything for the installation? Does plumber need anything else?
A: Does not include:
- Shut-off Valve (not furnished)
- 1-1/4” Trap (not furnished).
Q: Does this product come with a Mounting Frame?
A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP200) can be ordered separately.
Q: Is there a better, more updated model series available?
A: Yes, the latest model series is the Enhanced line, which includes improvements such as easier maintenance. View the Enhanced line HERE.
Detailed Features & Benefits
Cooling System: Hermetically sealed compressor and fan-cooled condenser deliver consistent chilled water. EPS foam insulation meets UL requirements for safety.
Durability: Stainless steel construction resists wear and tampering. ADA compliant design ensures accessibility for all users.
Sustainability: Green Ticker™ encourages reusable bottle use. Laminar flow provides clean, splash-free filling.
Hygiene: Flexi-Guard® bubbler with antimicrobial mouth guard protects against injury and microorganisms. Real Drain System eliminates standing water.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
