Elkay EDFPB114C | Wall-mount SwirlFlo Drinking Fountain | Filterles...
The Elkay EDFPB114C SwirlFlo® Single Fountain is a stainless steel, non‑filtered, non‑refrigerated unit with Flexi‑Guard® safety bubbler. Designed for indoor use, it provides durable hydration access with mechanical activation and ADA compliance.
Key Specifications:
- Design: SwirlFlo® single fountain with Flexi‑Guard® safety bubbler and mechanical front push button activation. Also available in the EDFPBWM114C on‑wall version.
- Finish: Stainless Steel (S).
- Filtration: Non‑filtered. Compatible with optional EWF172 universal filtration kit.
- Refrigeration: Non‑refrigerated (ambient water).
- Stations Served: 1 (single station)
Features & Benefits:
- Compact single‑station design for schools, offices, and public spaces.
- Flexi‑Guard® safety bubbler reduces accidental mouth injuries and improves user safety.
- Mechanical activation ensures reliable operation without electrical power.
- Durable stainless steel construction supports long‑term indoor installations.
What's Included:
- Elkay EDFPB114C SwirlFlo® Single Fountain
FAQ
Q: Does the EDFPB114C include filtration?
A: No. It is a non‑filtered model. For filtration, add the optional EWF172 universal kit.
Q: What accessories are required for installation?
A: Requires In‑Wall Carrier MPW101 (sold separately). For additional support, ML100 support legs may be needed. If rear access is not available, front access panels may be required such as AP99.
Q: Is the unit ADA compliant?
A: Yes. The design meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: Can this fountain be used outdoors?
A: No. The EDFPB114C is intended for indoor use only.
Q: What water pressure is required?
A: The fountain is designed to operate on 20–105 PSI supply line pressure. If pressure exceeds 105 PSI, a regulator must be installed.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

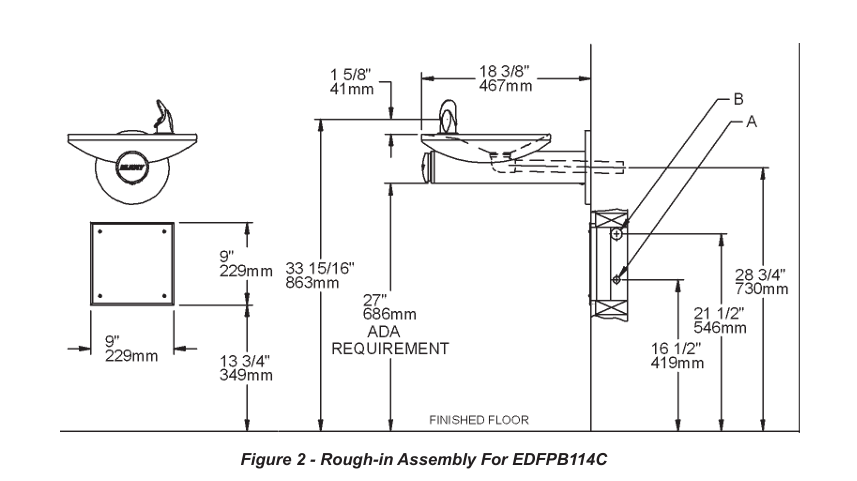

- Prepare wall framing to support unit weight and follow rough‑in dimensions provided in the package manual.
- Install water inlet and drain line per rough‑in guide.
- Mount back panel securely using hanger bracket or wall plate assembly.
- Attach fountain body with supplied hardware and tighten securely.
- Connect water supply line, flush thoroughly, and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice periodically; clean if flow is irregular.
- Adjust stream regulator as needed to maintain proper flow.
- Check quick‑connect fittings for leaks and reseat tubing if necessary.
- Clean basin and exterior surfaces with non‑abrasive cleaner.
- For service or repairs, consult the manual or a licensed plumber.
