Elkay EHWM17C | Soft Sides On-Wall Bi-Level Fountain | Vandal-Resis...

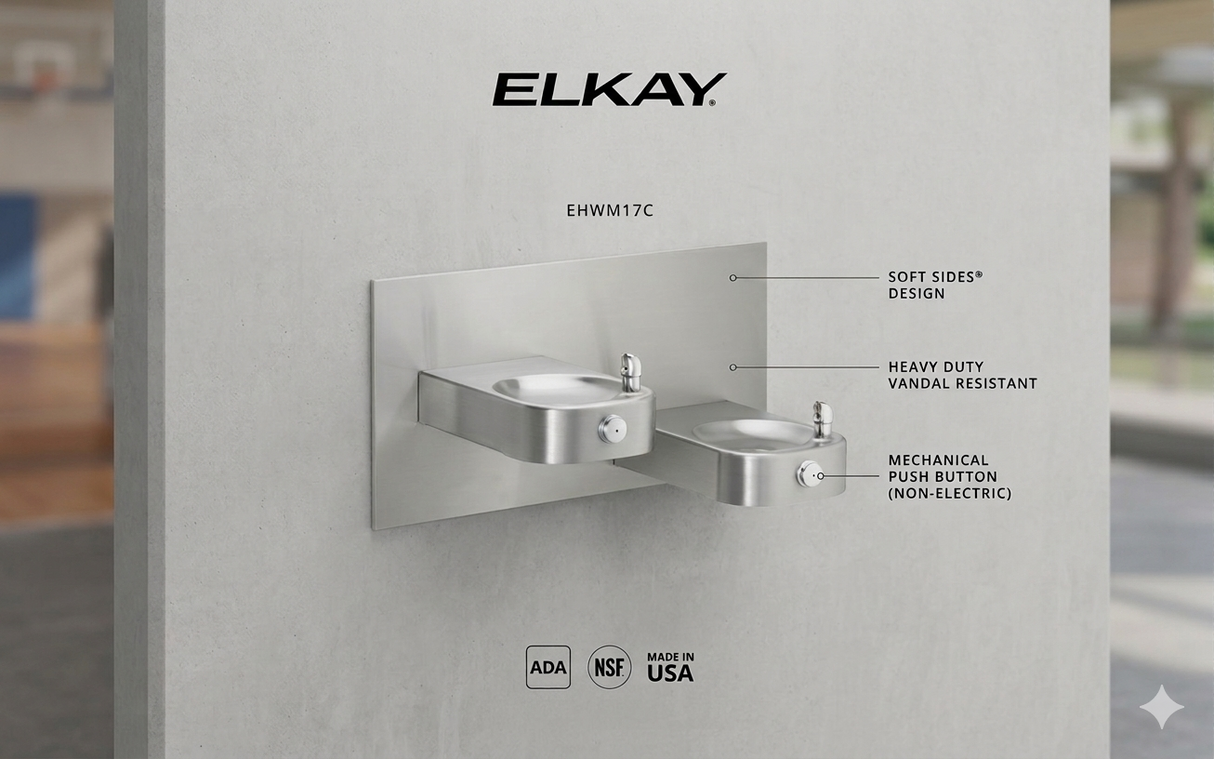

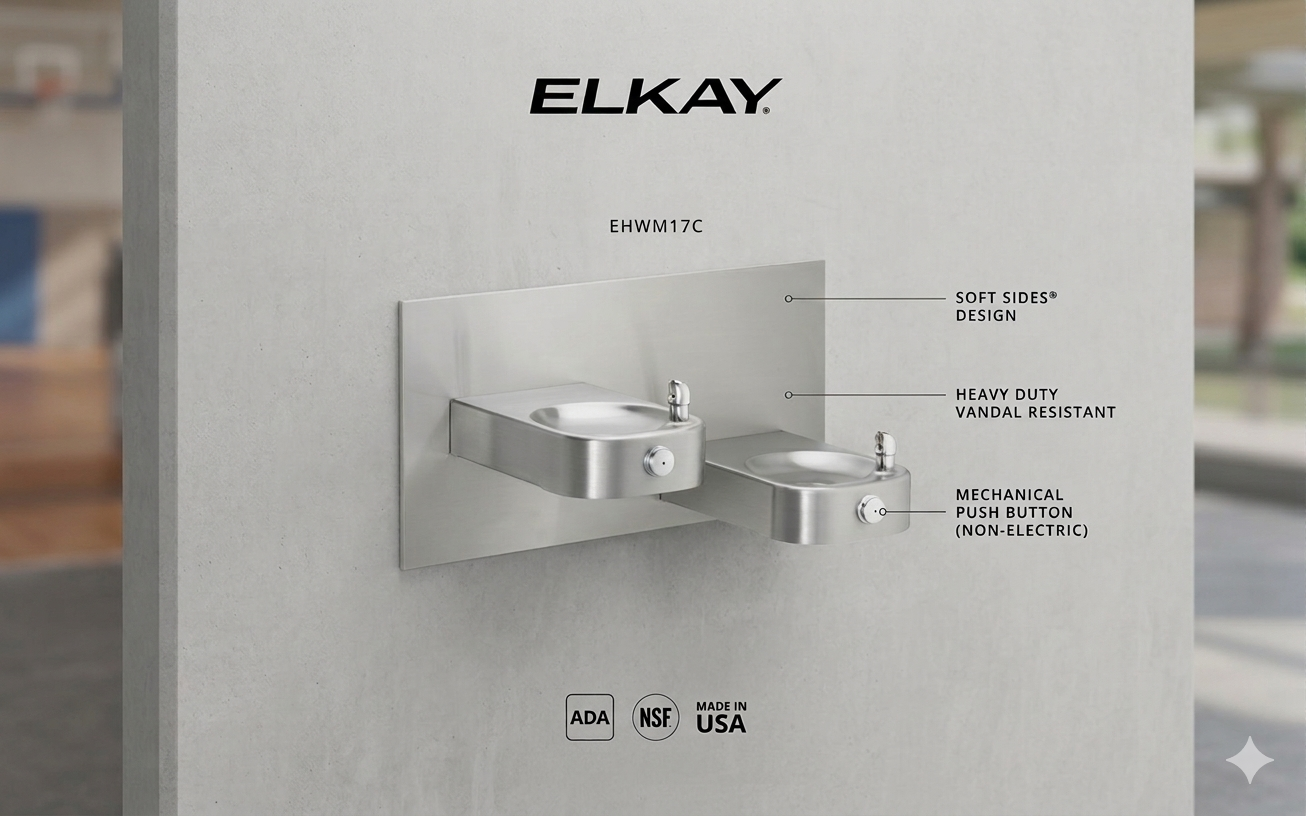

The Elkay EHWM17C Slimline Soft Sides® Heavy Duty Bi-Level Fountain is a non-filtered, non-refrigerated stainless steel unit designed for rugged durability in both indoor and outdoor environments. Built with vandal-resistant features and mechanical front pushbutton activation, it provides reliable hydration in high-traffic and demanding settings.
Key Specifications:
- Design: Heavy-duty bi-level Slimline® fountain, wall-mount installation
- Finish: Stainless Steel
- Filtration: Non-filtered. Optional filtration available with the EWF172 WaterSentry VII Filter Kit.
- Refrigeration: Non-refrigerated
- Stations Served: 2 (dual drinking fountains)
Features & Benefits:
- Heavy-Duty Construction: 14-gauge stainless steel with back panels for rugged durability
- Vandal-Resistant Design: Equipped with vandal-resistant bubbler and protective panels
- Mechanical Activation: Front pushbutton ensures reliable operation without electricity
- Indoor & Outdoor Use: Suitable for both environments when properly winterized or protected
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards
What's Included:
- EHWM17C Fountain Unit
- Vandal-resistant bubbler assembly
- Installation instructions
- Warranty documentation
FAQ
Q: Does the EHWM17C Include Refrigeration?
A: No. This model is non-refrigerated and dispenses room-temperature water only.
Q: Can Filtration Be Added to This Model?
A: Yes. The EHWM17C can be paired with the EWF172 WaterSentry VII Filter Kit for improved water quality.
Q: What Accessories Are Recommended for Installation?
A: Recommended accessories include the AP99 Access Panel for rear access, the ACCESS12X38-5 Stainless Steel Access Panel for bi-level installations, and the LKAPR2 Cane Apron for ADA compliance.
Q: Is the EHWM17C ADA Compliant?
A: Yes. When installed according to ADA and ICC A117.1 standards, the EHWM17C meets accessibility requirements.
Q: Is the Elkay EHWM17C Difficult to Install?
A: The unit is designed for wall-mount installation with heavy-duty support. It ships in one box with installation instructions. Professional installation is recommended to ensure proper water supply and drainage connections.
Q: How Is the Stream Height Adjusted?
A: The stream height is factory set at 35 PSI. If supply pressure varies, it can be adjusted using the regulator screw accessed through the pushbutton. Clockwise raises the stream, counter-clockwise lowers it. For best results, the stream should hit the basin approximately 6-1/2" from the bubbler.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Make sure the wall is strong enough to hold the fountain (up to 150 lbs).
- Turn off the water supply before starting.

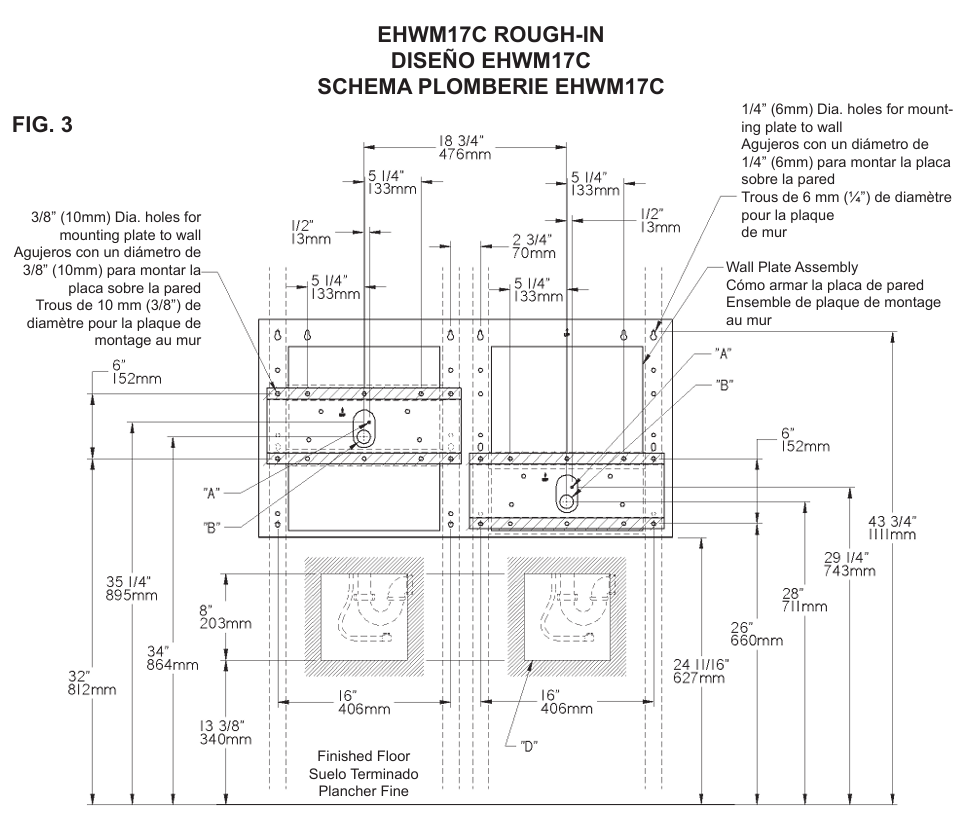

- Mount the hanger bracket securely to the wall at the correct height.
- Connect the water line to the fountain inlet and check for leaks.
- Attach the drain tube to the waste outlet and tighten securely.
- Secure the fountain to the wall with bolts and reinstall the access panel.
- Turn the water supply back on and test the bubbler stream.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Check the bubbler stream regularly; adjust if needed using the regulator screw.
- Inspect fittings and tubing for leaks; reseat connections if necessary.
- Clean the exterior with a soft cloth and mild cleaner.
- If water flow is uneven, check for mineral deposits and clean the orifice gently.
- For service or repairs, consult the manual or a licensed technician.
