Elkay LVRCGRN8WSK | Wall-mount Bottle Filling Station | Filtered, H...

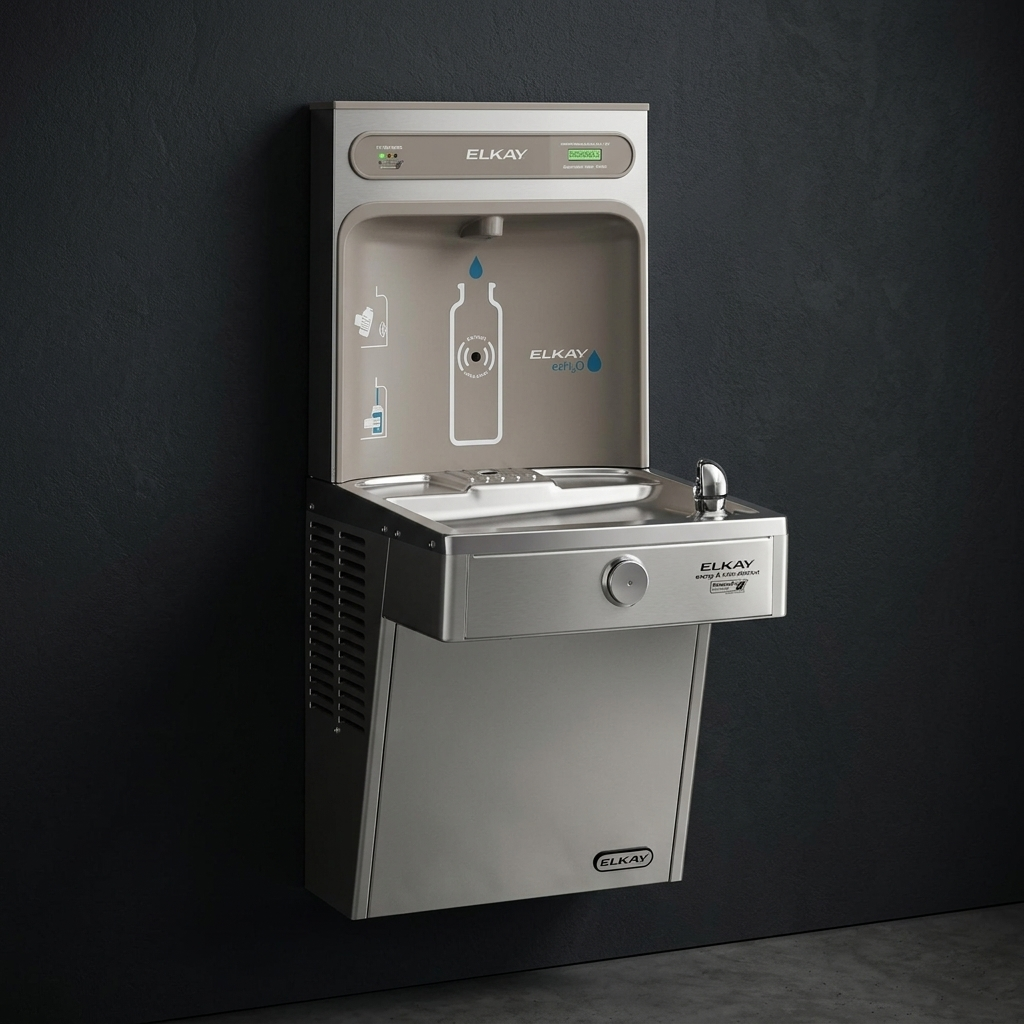

The Elkay LVRCGRN8WSK is a filtered, refrigerated ezH2O® Bottle Filling Station combined with a single high‑efficiency vandal‑resistant cooler. Built in stainless steel, this wall‑mounted unit delivers safe, sustainable hydration with advanced filtration, hands‑free bottle filling, and a vandal‑resistant StreamSaver™ bubbler for reliable performance in high‑traffic indoor environments.
Key Specifications:
| Design | Wall‑mounted ADA‑compliant bottle filler + single cooler |
| Finish | Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Plus filter, NSF/ANSI 42, 53, 372, 401 certified, 3,000‑gallon capacity |
| Refrigeration | Hermetically sealed high efficiency refrigeration system, fan‑cooled condenser, EPS foam insulation |
| Stations Served | 1 (fountain + bottle filler) |
Features & Benefits:

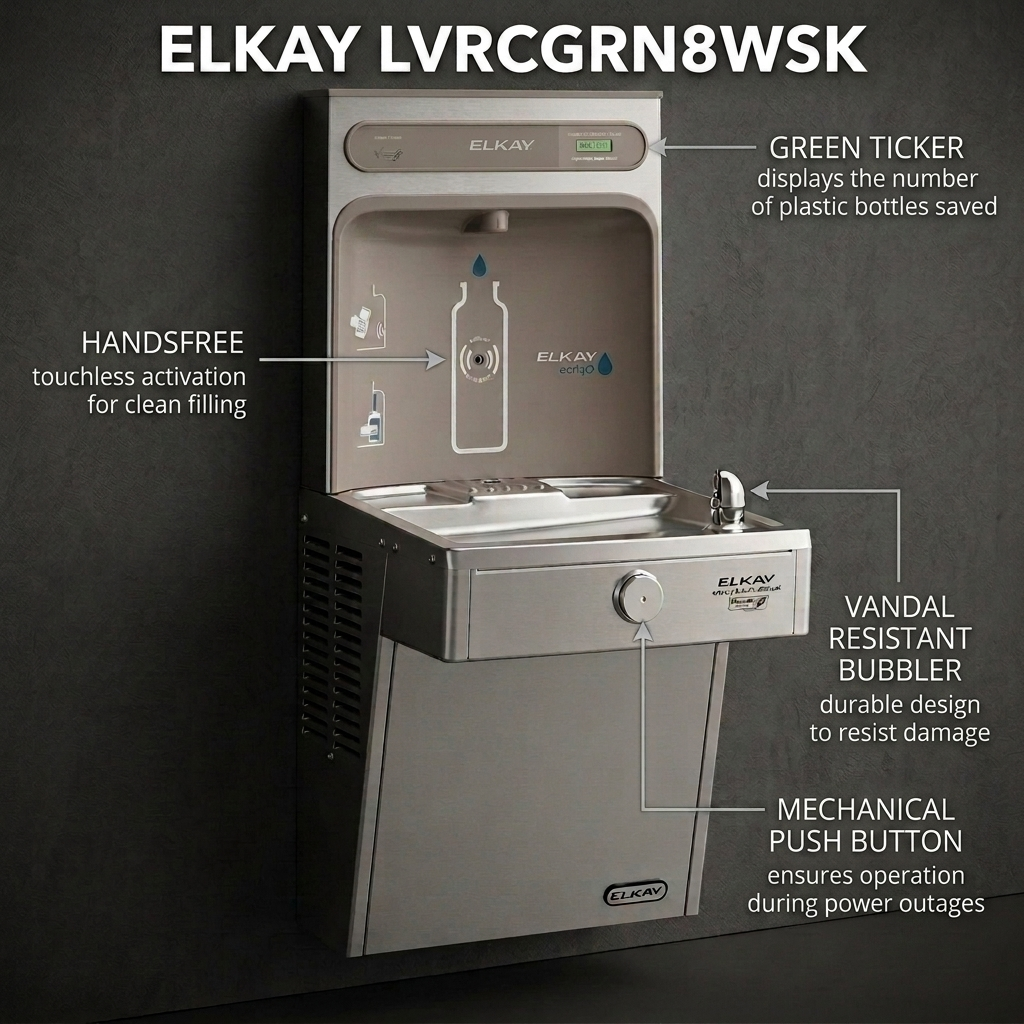

- Hands‑Free Bottle Fill: Sensor‑activated with recessed spout and 20‑second auto shut‑off
- Green Ticker™: Displays number of plastic bottles saved from waste
- Vandal‑Resistant StreamSaver™ Bubbler: Chrome‑plated hood guard protects against misuse
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Laminar Flow: Provides clean fill with minimal splash
- Real Drain System: Eliminates standing water for improved hygiene
What's Included:
- LVRCGRN8WSK Bottle Filling Station + Cooler unit
- 51300C WaterSentry® Plus filter
- Vandal‑resistant StreamSaver™ bubbler
- Installation hardware and instructions
- Owner’s manual and warranty guide
Comparison of Bottle Filling Stations:
| Feature | LVRCGRN8WSK | LZS8WSLK | LZ8WSSSMC |
|---|---|---|---|
| Finish | Stainless Steel | Stainless Steel | Stainless Steel |
| Filtration | 51300C WaterSentry® Plus filter, NSF/ANSI 42, 53, 372, 401 | 51300C WaterSentry® Plus filter, NSF/ANSI 42, 53, 372, 401 | 51300C WaterSentry® Plus filter, NSF/ANSI 42, 53, 372, 401 |
| Special Features | Vandal‑Resistant StreamSaver™ bubbler, Green Ticker™, High-efficiency chiller | Hands‑free bottle filler, Green Ticker™, ADA compliant | Surface‑mount design, hands‑free activation, compact footprint |
| Best For | High‑traffic indoor environments needing cooler + bottle filler combo | Schools, offices, and facilities needing a single refrigerated bottle filler | Spaces requiring a compact, surface‑mounted refrigerated bottle filler |
FAQ
Q: What Type Of Filter Does The Elkay LVRCGRN8WSK Use?
A: The Elkay LVRCGRN8WSK uses the 51300C WaterSentry® Plus Filter, NSF/ANSI 42, 53, 372, and 401 certified for lead, microplastics, chlorine taste and odor, cysts, and particulates. Replace every 3,000 gallons or 12 months.
Q: Is The Elkay LVRCGRN8WSK ADA Compliant?
A: Yes. The Elkay LVRCGRN8WSK complies with ADA and ICC A117.1 accessibility standards when installed according to proper guidelines.
Q: Does The Elkay LVRCGRN8WSK Come With A Mounting Frame?
A: The cooler includes hanger brackets. For added structural support, the MLP100 In‑Wall Carrier can be ordered separately.
Q: What Accessories Are Available For The Elkay LVRCGRN8WSK?
A: Optional accessories include the 98324C Cane Apron and additional WaterSentry® filter kits.
Q: What Makes The Elkay LVRCGRN8WSK Vandal Resistant?
A: The Elkay LVRCGRN8WSK features a StreamSaver™ bubbler with a chrome‑plated hood guard, stainless steel construction, and tamper‑resistant components to protect against misuse and contamination.
Q: What Are The Installation Requirements For The Elkay LVRCGRN8WSK?
A: Requires a secure water supply connection, proper drainage, and electrical access (115V/60Hz). New installations must use a GFCI outlet. Maintain at least 6" clearance from cabinet louvers to wall for ventilation.
Q: What Warranty Is Included With The Elkay LVRCGRN8WSK?
A: The Elkay LVRCGRN8WSK includes a 5‑year limited warranty on the refrigeration system and a 1‑year warranty on electrical components and the water system (for drinking water applications only).
Q: What Does High‑Efficiency Mean For The Elkay LVRCGRN8WSK?
A: The Elkay LVRCGRN8WSK is engineered with a high‑performance compressor and EPS foam insulation that significantly reduce energy consumption while maintaining 8.0 GPH chilled water capacity. This design lowers operating costs and supports sustainable performance in high‑traffic environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LVRCGRN8WSK is a vandal‑resistant single bottle filling station with integrated filtered cooler. Designed for high‑traffic public areas, it delivers chilled, filtered water with hands‑free sensor activation and heavy‑duty construction for durability.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for cooler and bottle filler basin
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lens is unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to meet vandal‑resistant requirements
Basic Installation Overview:
- Install mounting frame securely to support cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Hang main panel on frame, ensuring wires and tubing are not pinched
- Connect drain line from cooler and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LVRCGRN8WSK Spec Sheet and the Installation & Maintenance Manual.
