Elkay LVRCGRNTL8WSK | Wall-mount Bi-level Bottle Filling Station | Filtered, High-efficiency chiller, VRC-style fountain
Elkay LVRCGRNTL8WSK | Wall-mount Bi-level Bottle Filling Station | Filtered, High-efficiency chiller, VRC-style fountain is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LVRCGRNTL8WSK | Wall-mount Bi-level Bottle Filling Station | ...
In-Stock. Order before 3pm EST for same day shipping.
One of the most popular models, the Elkay LVRCGRNTL8WSK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

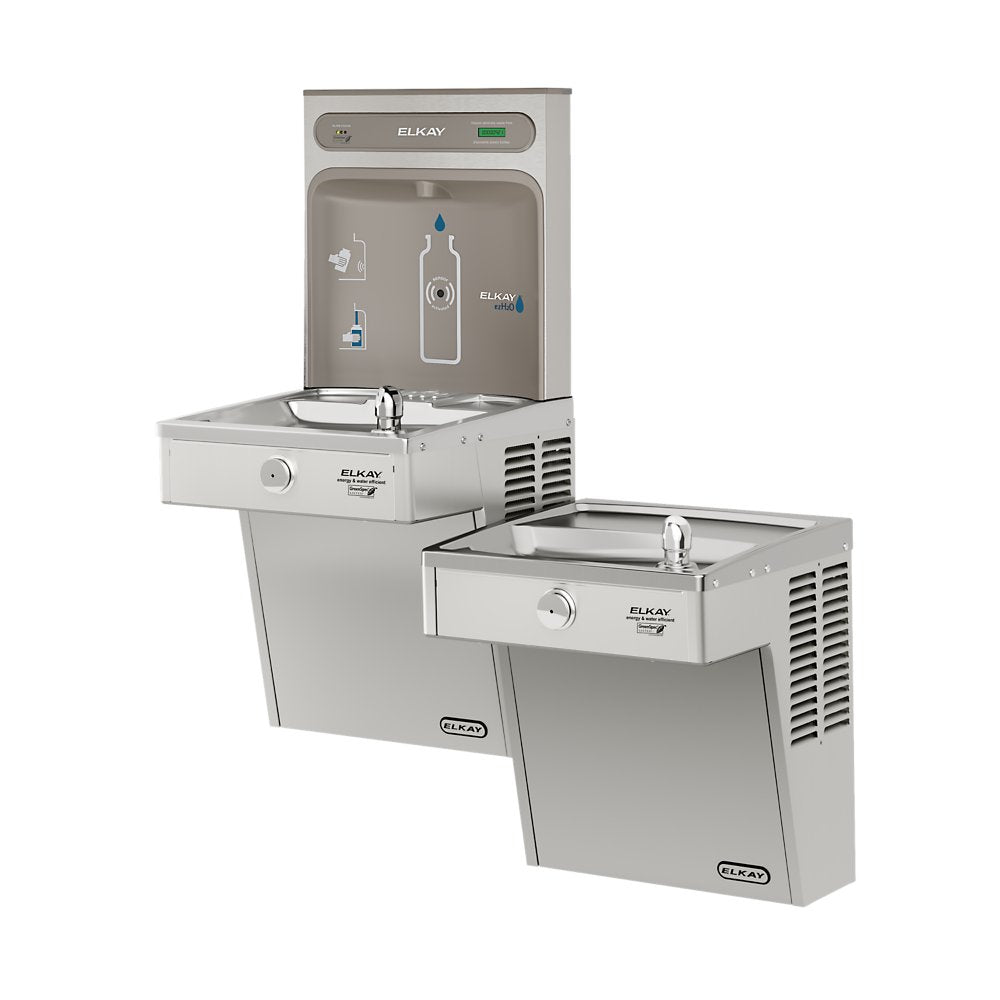

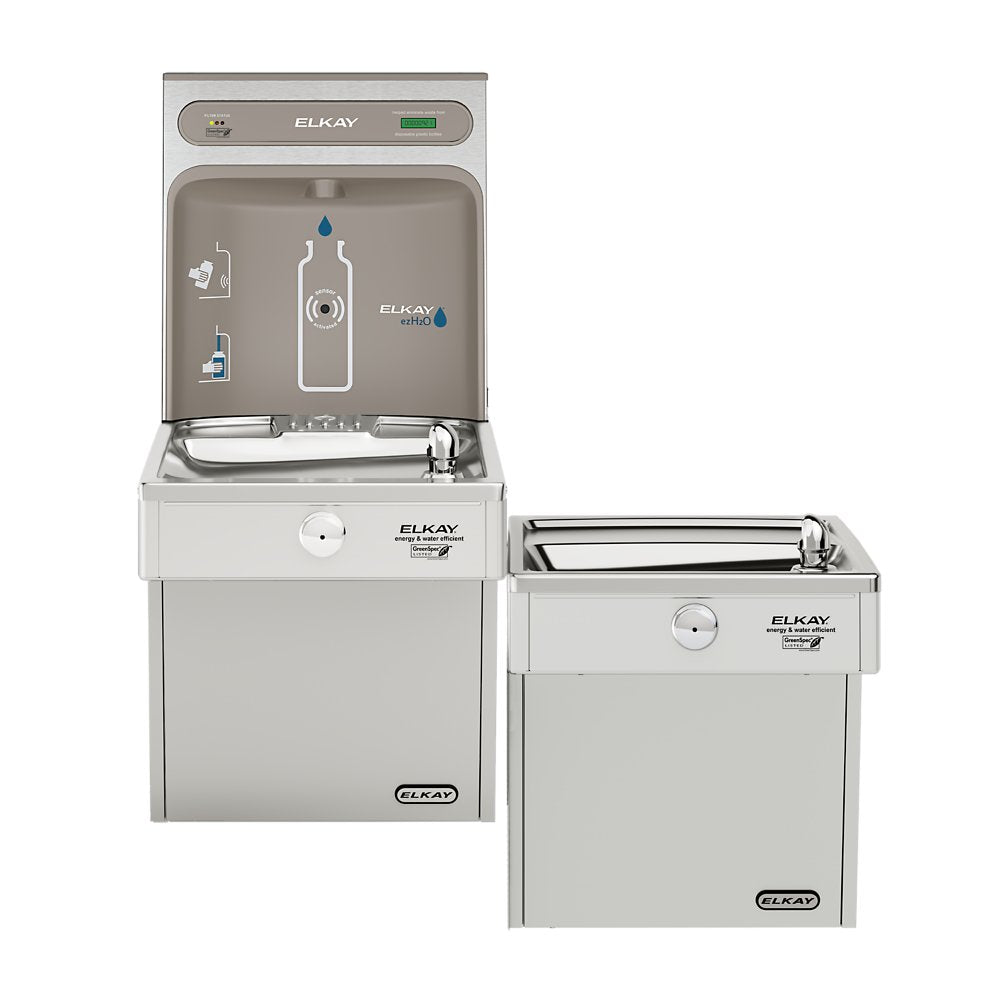

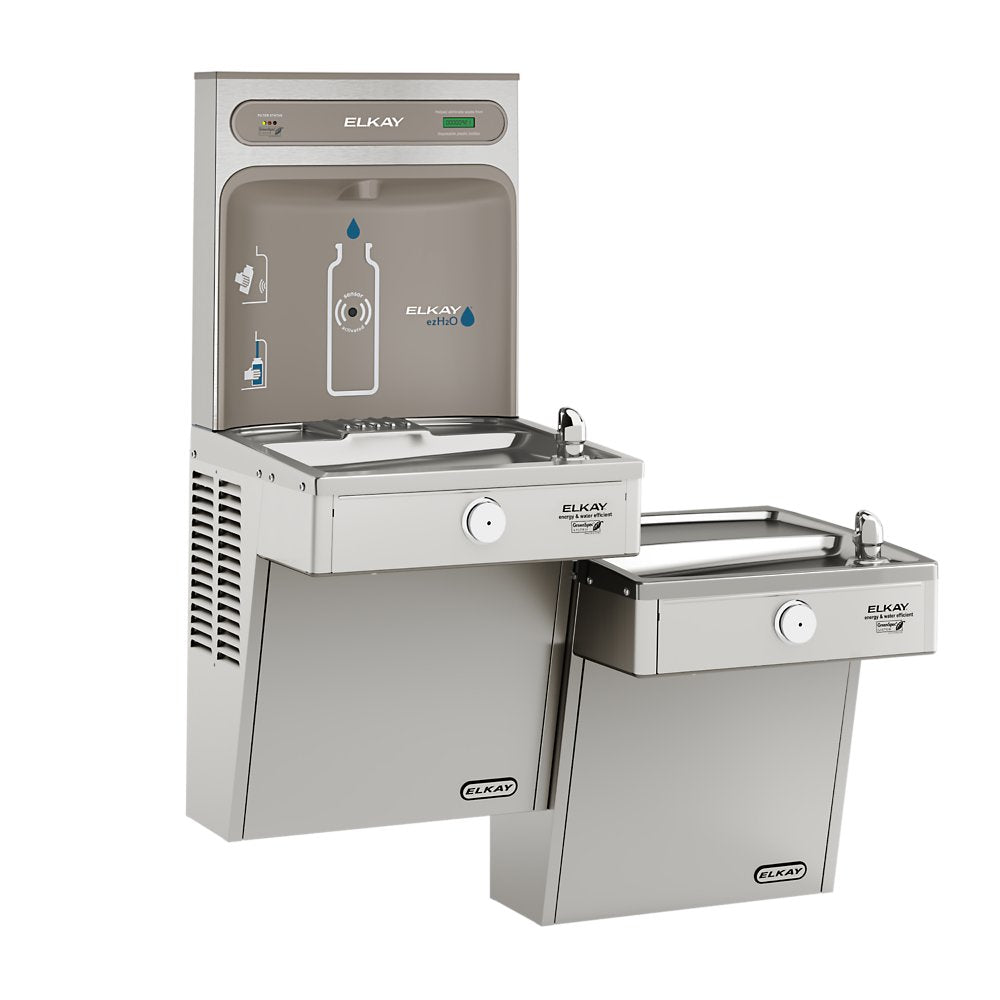

The LVRCGRNTL8WSK is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and two drinking fountains. This model has a Granite Gray stainless steel finish.

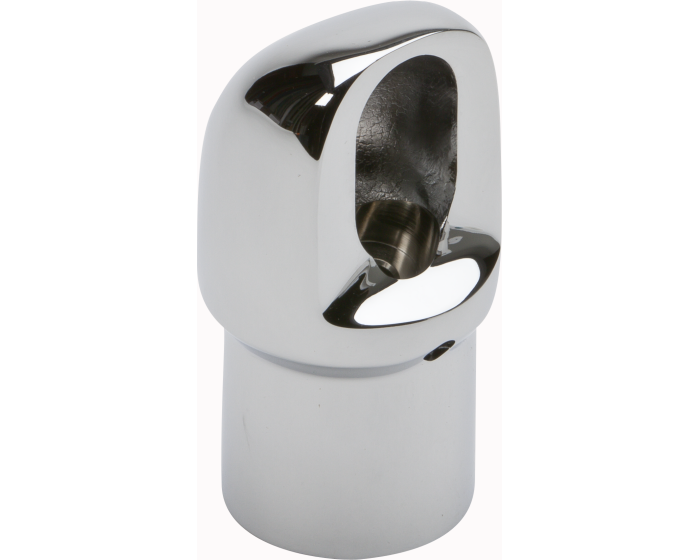

The LVRCGRNTL8WSK's drinking fountain features a vandal-resistant StreamSaver™ bubbler protected with a chrome-plated integral hood guard to prevent contamination from other users, airborne deposits, and tampering.
Key Specifications:
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
- Filter Capacity: 3,000 gallons or 12 months

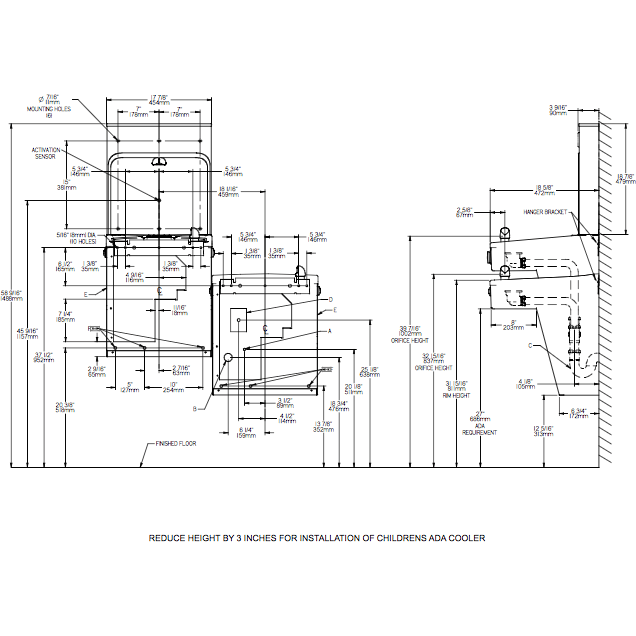

- Dimensions: 36-1/8" L × 18-5/8" W × 46-1/4" H.
- Stations Served: 2 (bi-level cooler + bottle filler).
- Finish: Granite Gray stainless steel.
Features & Benefits:
- Filtered Water: WaterSentry® Plus filter reduces lead, chlorine taste and odor, microplastics, cysts, and particulates.
- Hands-Free Bottle Fill: Sensor-activated with recessed spout and 20-second auto shut-off.
- Green Ticker™: Displays number of 20 oz. plastic bottles saved from waste.
- Energy Efficiency: 35% more efficient than market standard, exceeding CSA 815-99 performance.
- Antimicrobial Protection: Key plastic components manufactured with silver ion antimicrobial agent for cleaner surfaces.
- Real Drain System: Eliminates standing water for improved hygiene.
- ADA Compliant: Accessible design for all users.
- Durable Construction: Stainless steel cabinet and vandal-resistant bubbler for long-term reliability.
What's Included:
- LVRCGRNTL8WSK Bottle Filling Station & Bi-Level Cooler unit
- WaterSentry® Plus 3,000-gallon filter cartridge
- Vandal-resistant StreamSaver™ bubbler
- Wall mounting plate and hardware
- Installation instructions
FAQ
Q: What is the difference between the Cooler Combo and the Green model series?
A: According to CSA 815-99, the Green Bottle Filling Station series exceeds average Energy Efficiency market performance by 35%.
Q: Why is this Bottle Filling Station considered vandal resistant?
A: This unit is considered vandal resistant due to its stainless steel construction, reinforced cooler panels, vandal-resistant pushbutton, and heavy-duty chrome-plated bubbler.
Q: Do the vandal-resistant bottle fillers include the Bottle Counter?
A: Yes. The Green Ticker™ displays the number of plastic bottles saved from waste.
Q: Do the vandal-resistant bottle fillers include the sensor-activated, automatic bottle fill feature?
A: No. The vandal-resistant series uses pushbutton activation instead of sensor activation.
Q: What warranty does the LVRCGRNTL8WSK include?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.
Q: Which replacement filter does this model use?
A: The LVRCGRNTL8WSK uses the Elkay 51300C WaterSentry® Plus filter (3,000-gallon capacity).
Detailed Features & Benefits
Advanced Filtration: Certified to NSF/ANSI 42, 53, 372, and 401, the WaterSentry® Plus filter reduces lead, chlorine taste and odor, microplastics, cysts, and particulates. Visual Filter Monitor with LED indicator alerts when replacement is needed.
Efficient Cooling System: Hermetically-sealed compressor, fan-cooled condenser, and tube-tank cooling unit deliver consistent chilled water at 8.0 GPH. Uses R-134a refrigerant with factory-preset thermostat.
Durability & Safety: Stainless steel construction resists wear and tampering. UL 399 and CAN/CSA C22.2 No. 120 certified for electrical safety. NSF 61 and NSF 372 certified for water safety.
Sustainability: Green Ticker™ encourages reusable bottle use. Energy-efficient design reduces environmental footprint.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
