Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, VRC-style fountain, Fully Vandal-resistant
Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, VRC-style fountain, Fully Vandal-resistant is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refr...

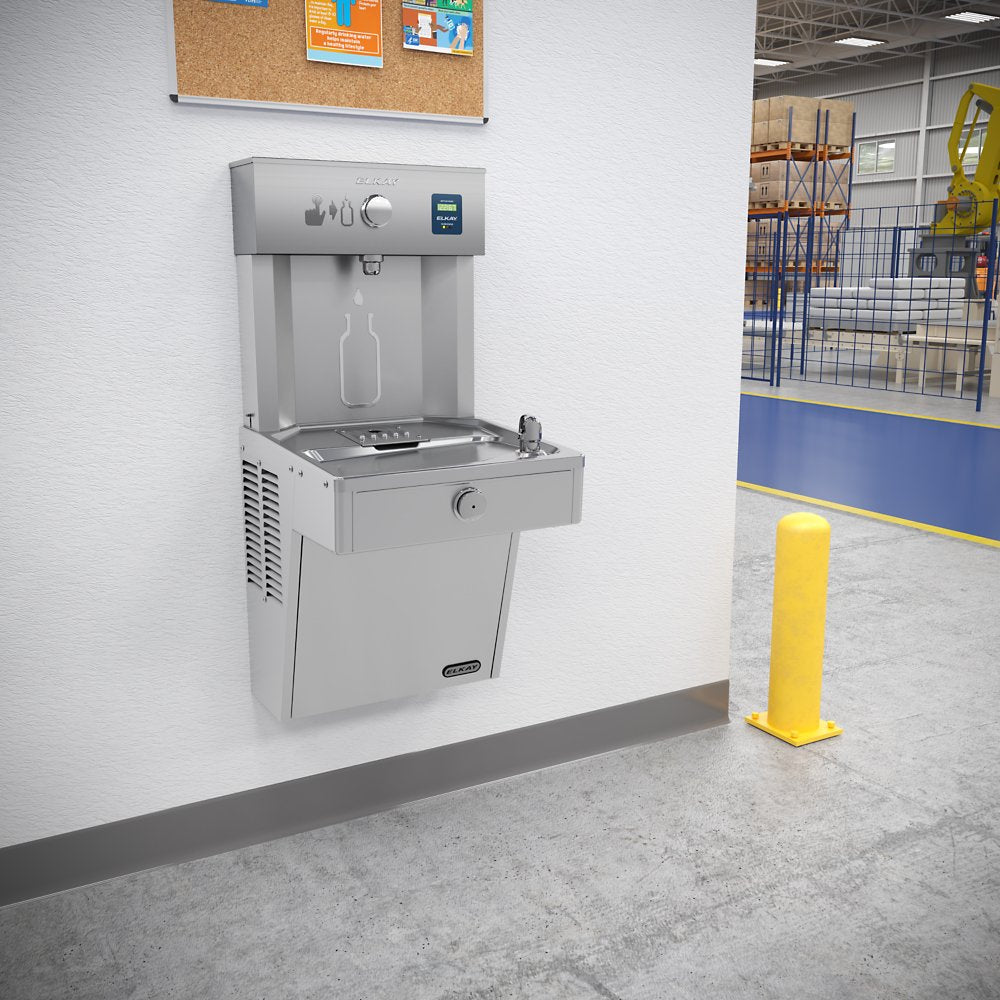

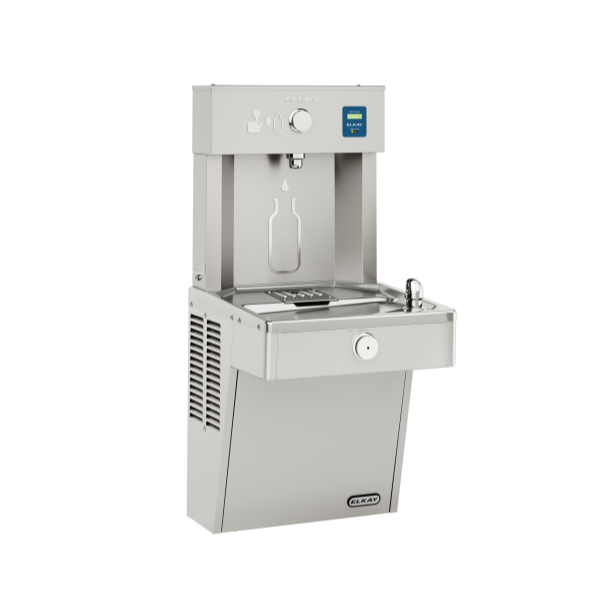

The Elkay LVRC8WSK is a vandal-resistant ezH2O® bottle filling station paired with a single ADA-compliant cooler. Designed for indoor and outdoor wall-mount installations, this filtered unit delivers chilled drinking water with mechanical bubbler activation and a push-button bottle filler, combining durability with advanced filtration and user-friendly features.
Key Specifications:
- Chilling Capacity: 8.0 GPH (based on 80°F inlet water and 90°F ambient per ASHRAE 18)
- Power: 115V / 60Hz
- Dimensions: 18" × 18-5/8" × 38-13/16"
- Activation: Mechanical bubbler button with electronic bottle filler button
Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 when installed per requirements
- Filtered Water: Includes WaterSentry® Plus filter certified to NSF/ANSI 42, 53, 372, and 401 for lead, microplastics, cysts, chlorine taste & odor
- Visual Filter Monitor: LED status indicator alerts when filter replacement is needed
- Green Ticker™: Displays number of 20 oz. plastic bottles saved from waste
- Vandal-Resistant Design: Reinforced bubbler and components for high-traffic or exposed environments
What’s Included:
- LVRC8WSK bottle filling station and cooler assembly
- WaterSentry® Plus filter (3,000-gallon capacity)
- Installation instructions and documentation
FAQ
Q: Can the LVRC8WSK be installed outdoors?
A: Yes. This unit is rated for indoor and outdoor use. In non-temperature-controlled environments, it must be winterized or protected from extreme heat to prevent damage.
Q: How do I know when to replace the filter?
A: The built-in LED filter monitor will indicate when the filter needs replacement. The included filter is rated for 3,000 gallons or one year of use.
Q: What happens during a power outage?
A: The mechanically activated bubbler continues to supply water even if power is lost, ensuring hydration access at all times.
Detailed Features & Benefits
Advanced Filtration: The included WaterSentry® Plus filter is certified to reduce lead, microplastics, chlorine taste and odor, cysts, and Class 1 particulates, ensuring safe and great-tasting water for every user.
Durable and Accessible: With a vandal-resistant bubbler and ADA-compliant design, the LVRC8WSK is built for reliability in public spaces, schools, and outdoor installations. The mechanical activation ensures continued operation during service interruptions.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
