Elkay MF200 | Bi-level Mounting Frame | For use with ENOB; ERFP; ER...
The Elkay MF200 is a heavy-duty, galvanized steel mounting frame designed for bi-level in-wall refrigerated coolers. Engineered for secure installation and long-term durability, the MF200 provides a stable foundation for Elkay SwirlFlo® and Soft Sides® models, ensuring proper alignment, ADA compliance, and reliable support in commercial environments such as schools, offices, and healthcare facilities.
Key Specifications:
- Mounting Type: Wall mount (in-wall frame/plate).
- Material: Galvanized steel construction for strength and corrosion resistance.
- Finish: Galvanized steel.

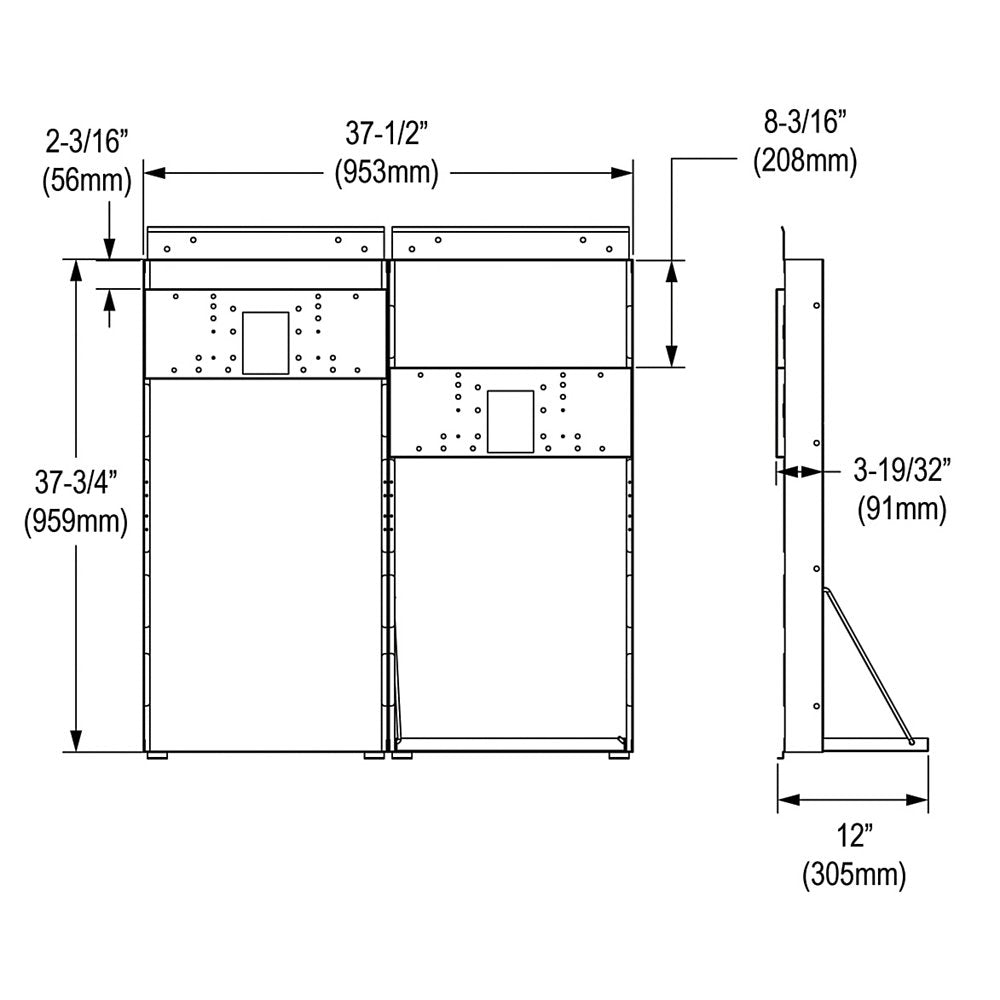

- Dimensions: 37-1/2" W x 12" D x 37-3/4" H.
- Shipping Weight: 32 lbs.
- Compatibility: Designed for Elkay ENOB, ERFP, ERO, ERPB, LNTE, and LRPB refrigerated bi-level models.
Features & Benefits:
- Secure Installation: Provides a stable, load-bearing structure capable of supporting up to 150 lbs static load.
- Versatile Compatibility: Works with multiple Elkay refrigerated bi-level cooler models, ensuring proper fit and alignment.
- ADA Compliance Support: Designed to meet ANSI A117.1 standards for rim and bubbler height when installed correctly.
- Durable Construction: Galvanized steel resists corrosion and ensures long-term reliability in demanding environments.
- Made in the USA: Built domestically with quality materials and craftsmanship.
What's Included:
- MF200 mounting frame assembly
- Hardware kit (bolts, nuts, shelf support rods, and chiller shelf)
- Installation instructions (PDF 97153C)
FAQ
Q: Which Elkay models are compatible with the MF200?
A: The MF200 is designed for Elkay ENOB, ERFP, ERO, ERPB, LNTE, and LRPB refrigerated bi-level coolers. It is also included with certain SwirlFlo® and Soft Sides® models.
Q: Does the MF200 meet ADA requirements?
A: Yes. When installed according to specifications, the MF200 ensures proper rim and bubbler heights for ADA compliance under ANSI A117.1 standards.
Q: What materials are used in the MF200 frame?
A: The MF200 is constructed from galvanized steel, providing strength, durability, and corrosion resistance for long-term use.
Detailed Features & Benefits

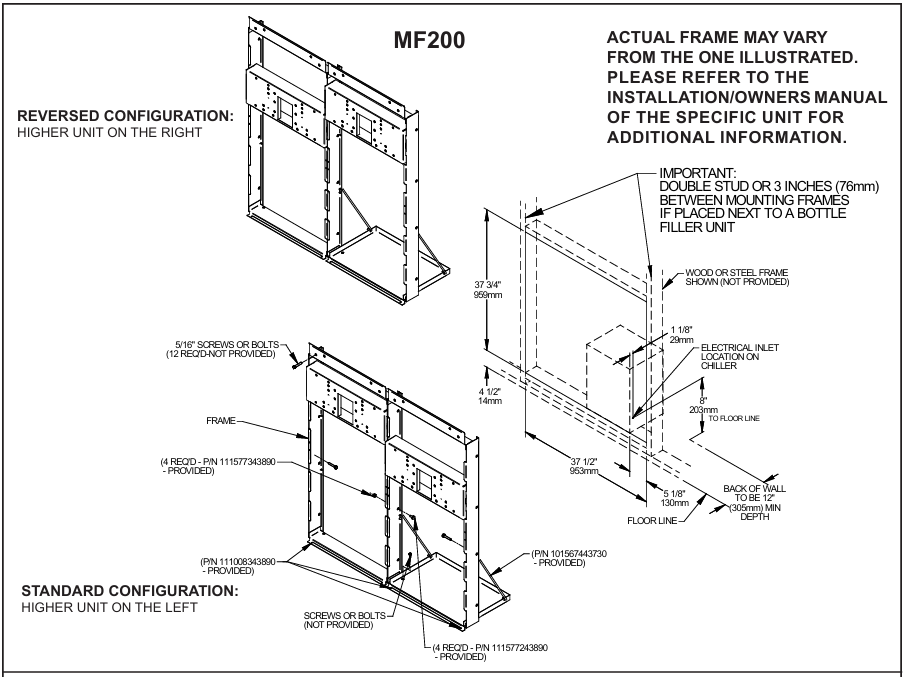

Bi-Level Mounting Support: The MF200 enables installation of dual-station in-wall coolers, supporting both standard and reversed configurations (higher unit on left or right).
Structural Reinforcement: Designed to reinforce wall openings, the frame ensures stability and prevents shifting or misalignment during use.
Ease of Installation: Includes shelf support rods and chiller shelf, with clear instructions for proper setup. Requires only standard fasteners to secure to load-bearing surfaces.
Corrosion Resistance: Galvanized steel finish protects against rust and wear, making the MF200 suitable for high-traffic commercial environments.
Made in the USA: Built domestically with Elkay’s century-long tradition of quality and innovation.
