Zurn Wilkins  |  SKU: 1-600XL

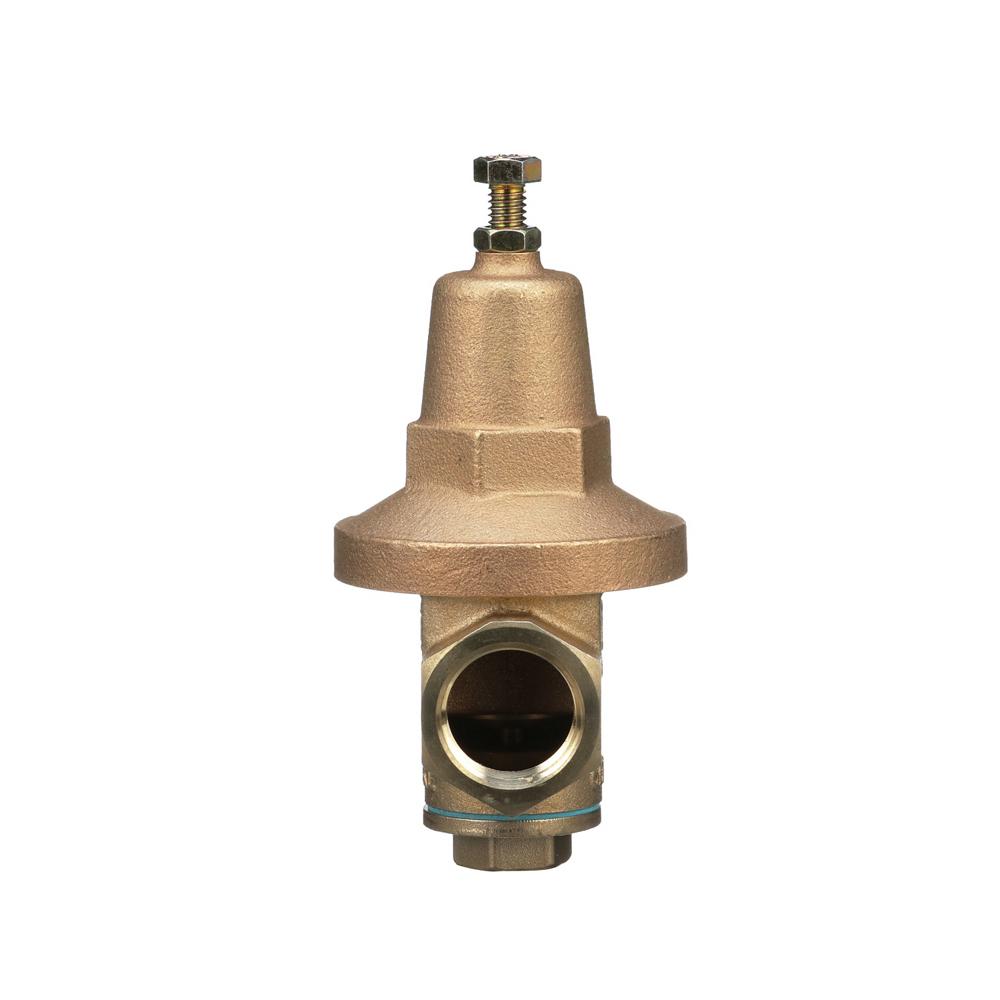

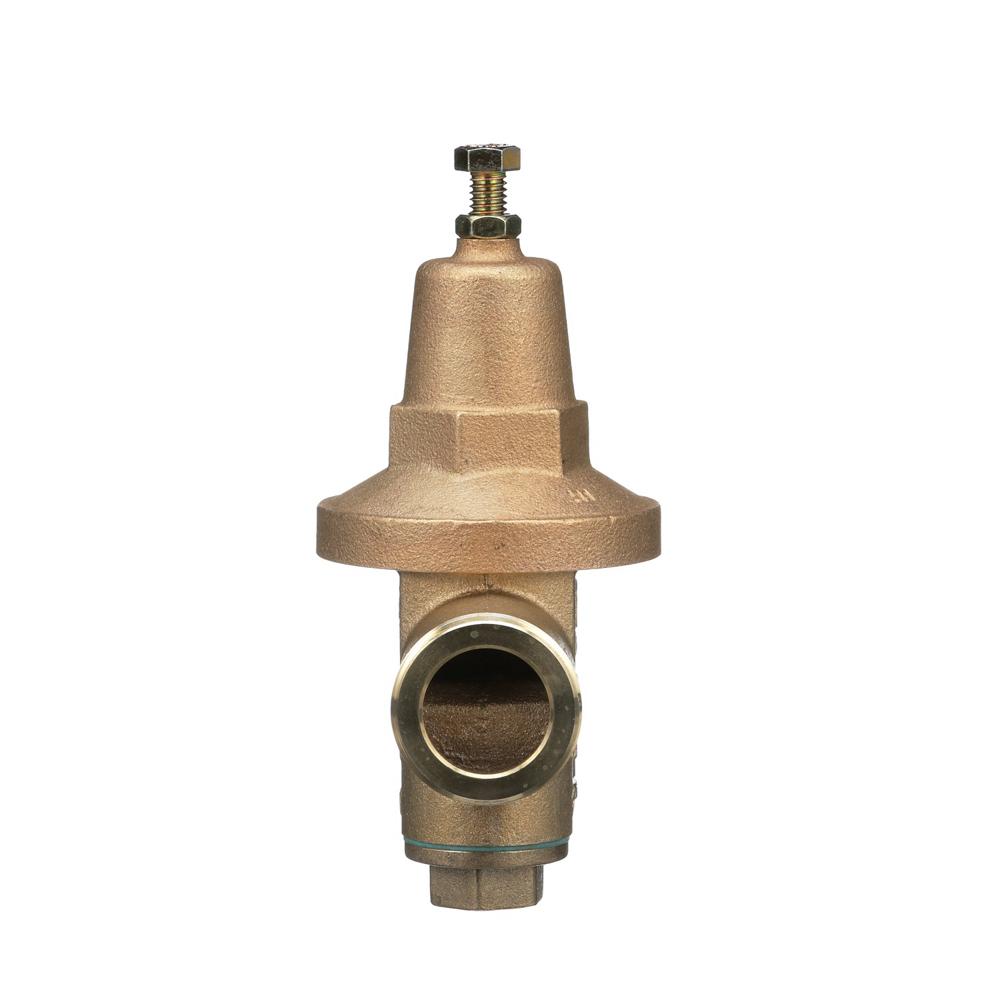

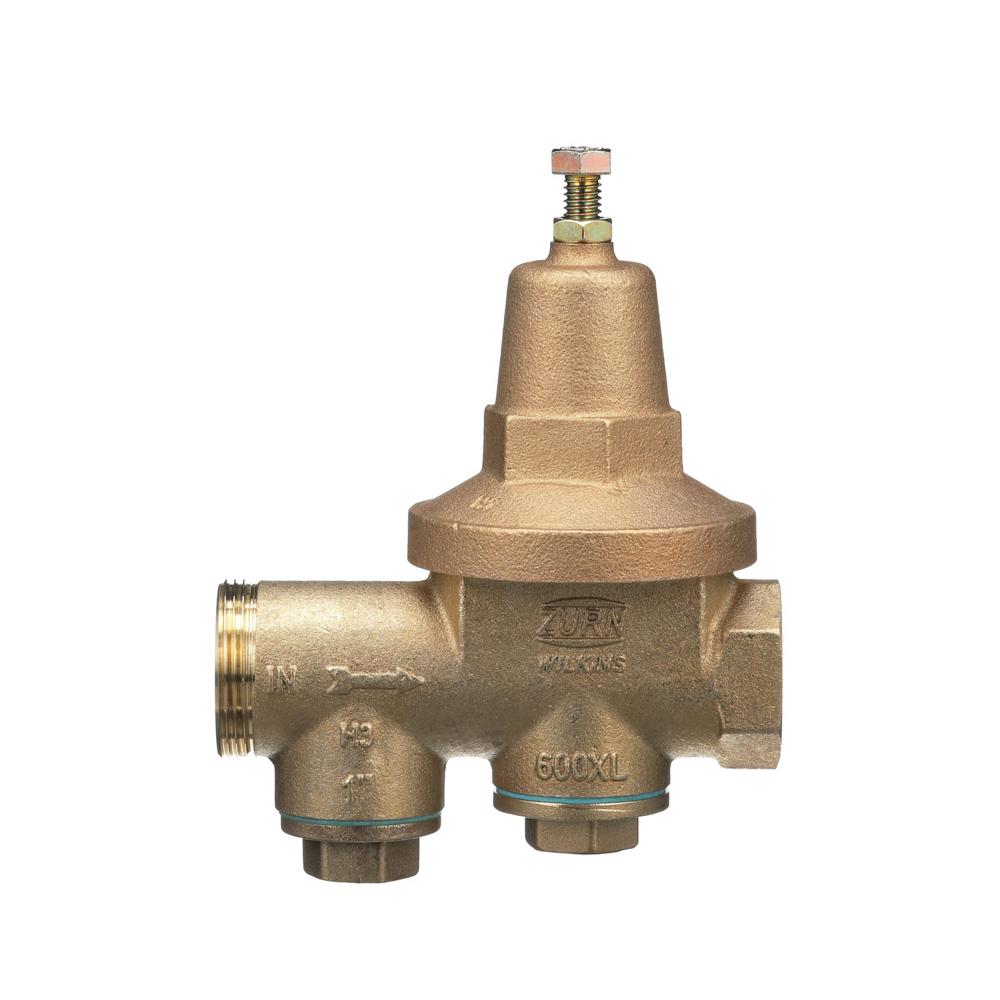

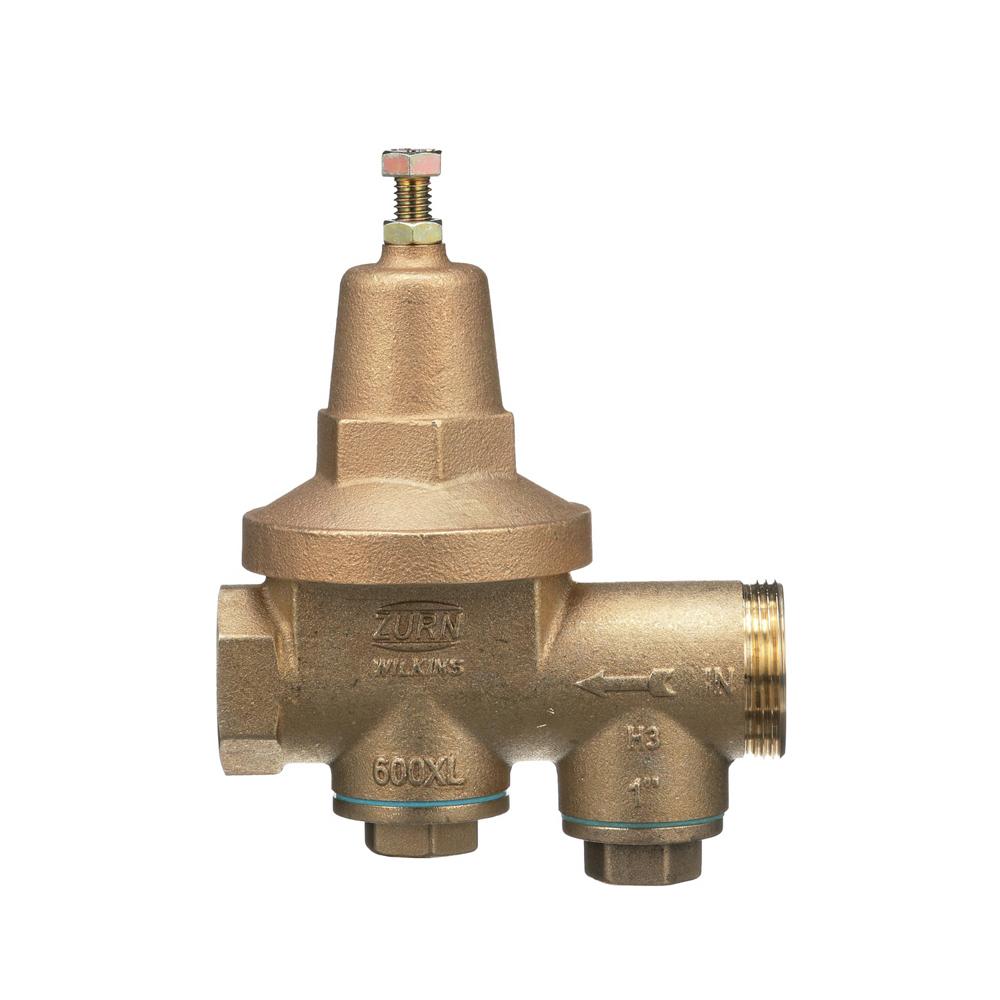

Wilkins 1-600XL | Water Pressure Reducing Valve with By-pass & Strainer

$ 483.99

Shipping

🚚✨ Free Shipping in the Continental U.S.
All Products. No Minimums.


Estimated Shipping Times:


Important Note on Delivery Times

All shipping estimates provided are approximate only. While we always strive to meet or exceed your delivery expectations, we cannot guarantee the exact delivery times listed.

For time-sensitive orders, please contact us directly so we can provide a more accurate lead time estimate based on your specific requirements.

Same Day Shipping

All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM EST will ship the following business day.

Water Filters, Hand Dryers, & Indoor Bottle Fillers are our most popular in stock items.

Outdoor Tubular Drinking Fountains

Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.

Ice Machines

In stock units ship within 48 hours. Other units normally ship in 2-4 weeks.

Other

Orders that ship directly from a manufacturer normally have a firm shipping estimate but those dates are subject to change due to manufacturer production, inventory or shipping. We do our best to estimate ship dates but orders shipping directly from the manufacturer can have unexpected delays. We will confirm tracking information when orders ship directly from a manufacturer but may not have updates or estimates beyond the original estimate. Once your order is placed with the manufacturer, it may not be able to be cancelled even if it hasn't shipped yet.

Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity. Or to inquire about an existing order.


Special Case Shipping Rates



Please note that shipping rates are subject to change at any time.  We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order.  Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!


Key Terms & Conditions



Exceptions may apply to islands and other remote territories.

All orders shipped by the carrier of our choice.














The Wilkins 1-600XL is a water pressure reducing valve with integral by-pass check valve and strainer, designed for residential and commercial potable water systems requiring reliable pressure control and protection from thermal expansion.



Key Specifications:

  • Size: 1 Inches
  • Maximum Working Water Pressure: 300 psi
  • Maximum Working Water Temperature: 140°F
  • Notable Certifications: ASSE 1003, IAPMO, CSA
  • Connection Type: Single Union



Other Related Variants:



Materials:

  • Main valve body: Low Lead Cast Bronze ASTM B 584
  • Access covers: Low Lead Cast Bronze ASTM B 584 / Low Lead Brass
  • Fasteners: Stainless Steel, 300 Series
  • Stem & plunger: Low Lead Cast Bronze ASTM B 584 / Low Lead Brass
  • Elastomers: Buna Nitrile (FDA Approved) / EPDM (FDA Approved)
  • Cap gaskets: Natural Vulcanized Fibre / Acetal (Delrin™)
  • Strainer screen: Stainless Steel, 300 Series
  • Seat: Stainless Steel, 300 Series



Typical Installation:

Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the latest edition of the Uniform Plumbing Code. The Zurn 1-600XL may be installed in any position. If installed in a pit, vault or inside application, specify the "SC" sealed cage option. Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1 (i.e.: 200 psi inlet reduced to 50 psi outlet). Anytime a reducing valve is adjusted, a pressure gauge must be used downstream to verify correct pressure setting. Do not bottom adjustment bolt on bell housing.



Standards Compliance:

ASSE Listed 1003; IAPMO Listed; CSA Certified; City of Los Angeles Approved; NSF/ANSI/CAN 61



Features & Benefits:

  • Integral By-pass Check Valve: Prevents excessive system pressure buildup caused by thermal expansion, providing comprehensive protection.
  • Balanced Piston Design: Enables smooth, responsive reaction to system flow demand changes while protecting against inlet pressure variations.
  • Built-in Strainer: Integral strainer design makes the Zurn 1-600XL ideal for systems requiring frequent cleaning due to sediment and debris.
  • Flexible Installation: Can be installed in any position with separate access covers for easy plunger and strainer screen maintenance.



FAQ



Q: What is the factory preset pressure setting for the 1-600XL?

A: The Wilkins 1-600XL comes factory preset at 50 psi with an adjustable pressure range of 25 psi to 75 psi (standard). A downstream pressure gauge must be used when adjusting the setting.

Q: Can the 1-600XL be installed in a pit or vault application?

A: Yes, the valve may be installed in any position. For pit, vault, or inside applications, specify the "SC" sealed cage option for proper protection and functionality.

Q: What is the maximum pressure reduction ratio recommended for this valve?

A: Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1 (example: 200 psi inlet reduced to 50 psi outlet) to ensure optimal performance.



NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
