Elkay LZS8WSSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Stainless Steel
Elkay LZS8WSSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZS8WSSK | Wall-mount Bottle Filling Station | Filtered, Refr...

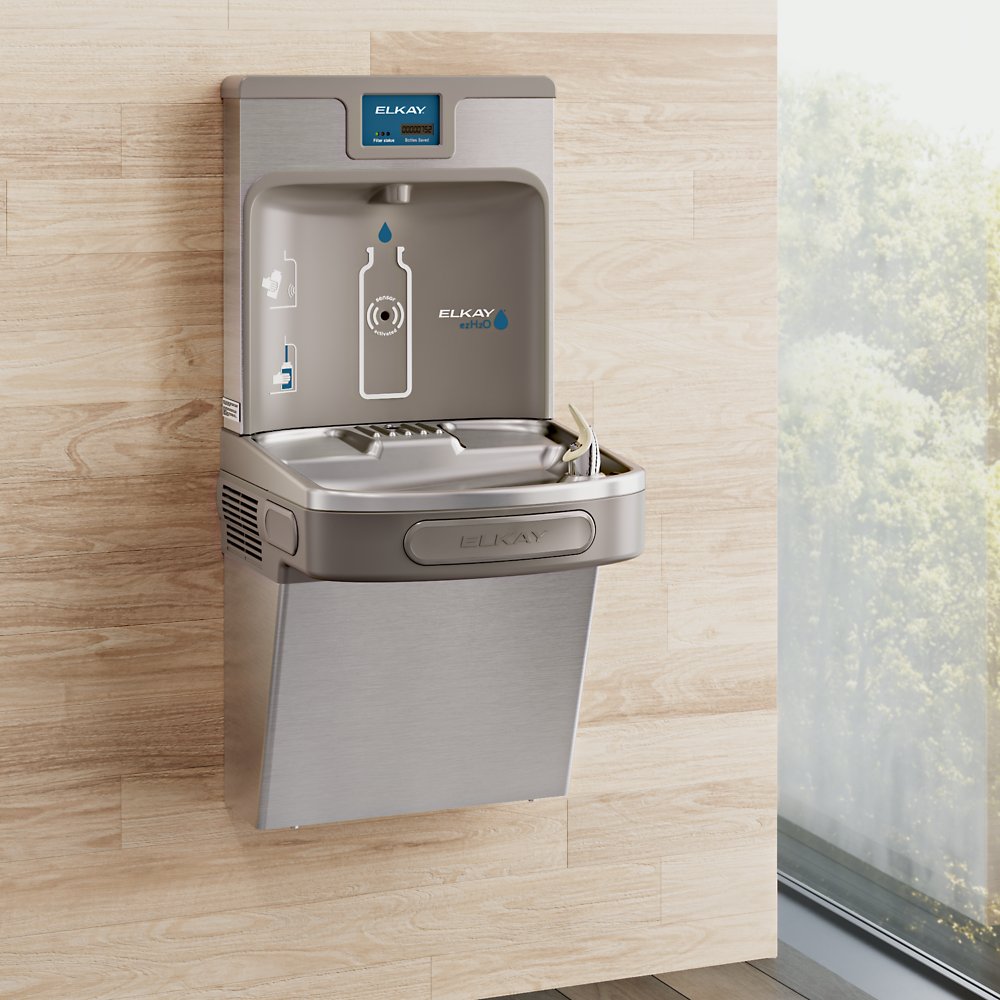

The Elkay LZS8WSSK is a wall-mounted ezH2O® Bottle Filling Station with Single ADA Cooler, designed for indoor environments where accessibility, hygiene, and sustainability are essential. This filtered, refrigerated unit delivers chilled drinking water with hands-free activation and advanced filtration, making it ideal for schools, offices, and public facilities.
Key Specifications:
- Cooling Capacity: 8.0 gallons per hour at 50°F (based on 80°F inlet and 90°F ambient)
- Power: 115V / 60Hz
- Rated Watts: 370W
- Full Load Amps: 5A
- Dimensions: 18-3/8" W × 19" D × 39-7/16" H
- Shipping Weight: Approx. 85 lbs
Features & Benefits:
- Filtered Hydration: Includes WaterSentry® Plus filter for lead and particulate reduction

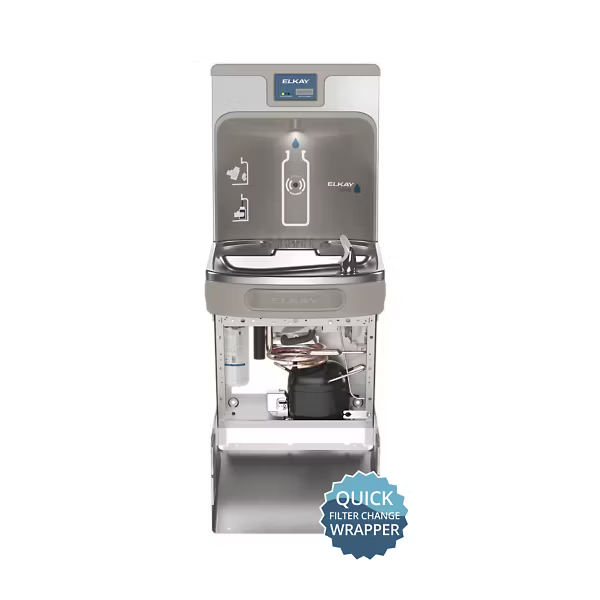

- Quick Filter Change: Wrapper design allows easy access for fast filter replacement
- Visual Filter Monitor: LED indicator alerts when filter needs replacement
- Hands-Free Bottle Filler: Sensor-activated for hygienic operation
- Flexi-Guard® Bubbler: Safety bubbler with antimicrobial mouth guard
- Green Ticker™: Displays number of bottles saved from waste
- Laminar Flow: Provides clean fill with minimal splash
- ADA Compliant: Meets ADA & ICC A117.1 standards when installed properly
What's Included:
- Elkay LZS8WSSK Bottle Filling Station and ADA Cooler
- WaterSentry® Plus Filter
- Hanger Bracket
- Installation and Operation Manual
- Warranty Documentation
FAQ
Q: What type of filter does the LZS8WSSK use?
A: It comes standard with a WaterSentry® Plus filter for lead and particulate reduction. Optional filters are available for higher capacity or microplastics.
Q: How do I know when to change the filter?
A: The unit features a visual LED filter monitor. When the light turns red, it's time to replace the filter.
Q: Is this unit ADA compliant?
A: Yes, when installed according to ADA and ICC A117.1 guidelines. Height adjustments may be required for children's ADA compliance.
Q: Can this unit be installed outdoors?
A: No. The LZS8WSSK is designed for indoor use only and should not be exposed to outdoor elements.
Detailed Features & Benefits
Filtered, Chilled Hydration: The LZS8WSSK delivers up to 8 gallons per hour of chilled water at 50°F, making it ideal for high-traffic indoor environments. Its WaterSentry® Plus filter removes lead and particulates, ensuring safe and great-tasting water for users.
Smart and Hygienic Operation: Hands-free sensor activation minimizes contact, while the Flexi-Guard® bubbler adds an extra layer of safety. The Green Ticker™ tracks bottles saved, promoting sustainability and user engagement.
Efficient Maintenance: The quick-change wrapper design allows fast filter replacement from the front or side. The LED filter monitor and automatic filter recognition system simplify upkeep and ensure consistent performance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
