Hoshizaki KM-161BAJ | Undercounter Crescent Cuber Icemaker, Air-coo...

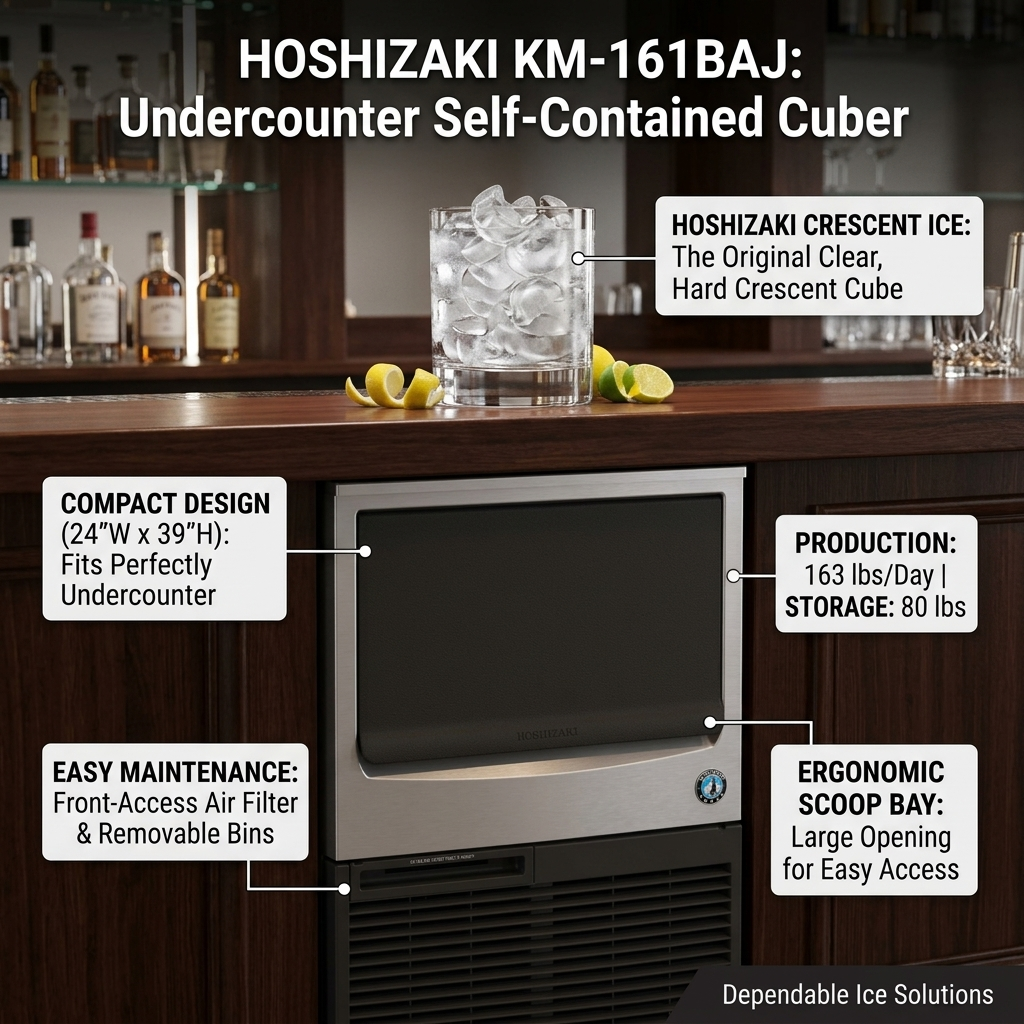

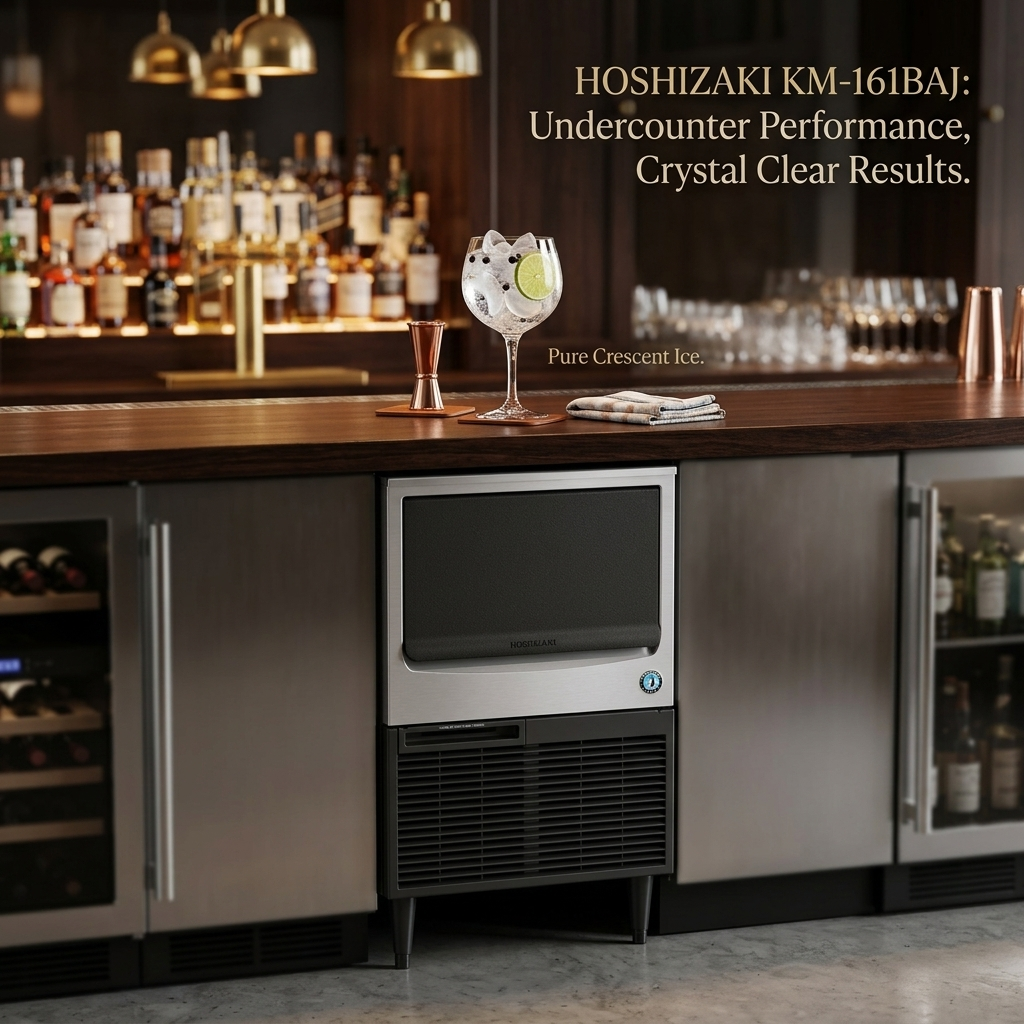

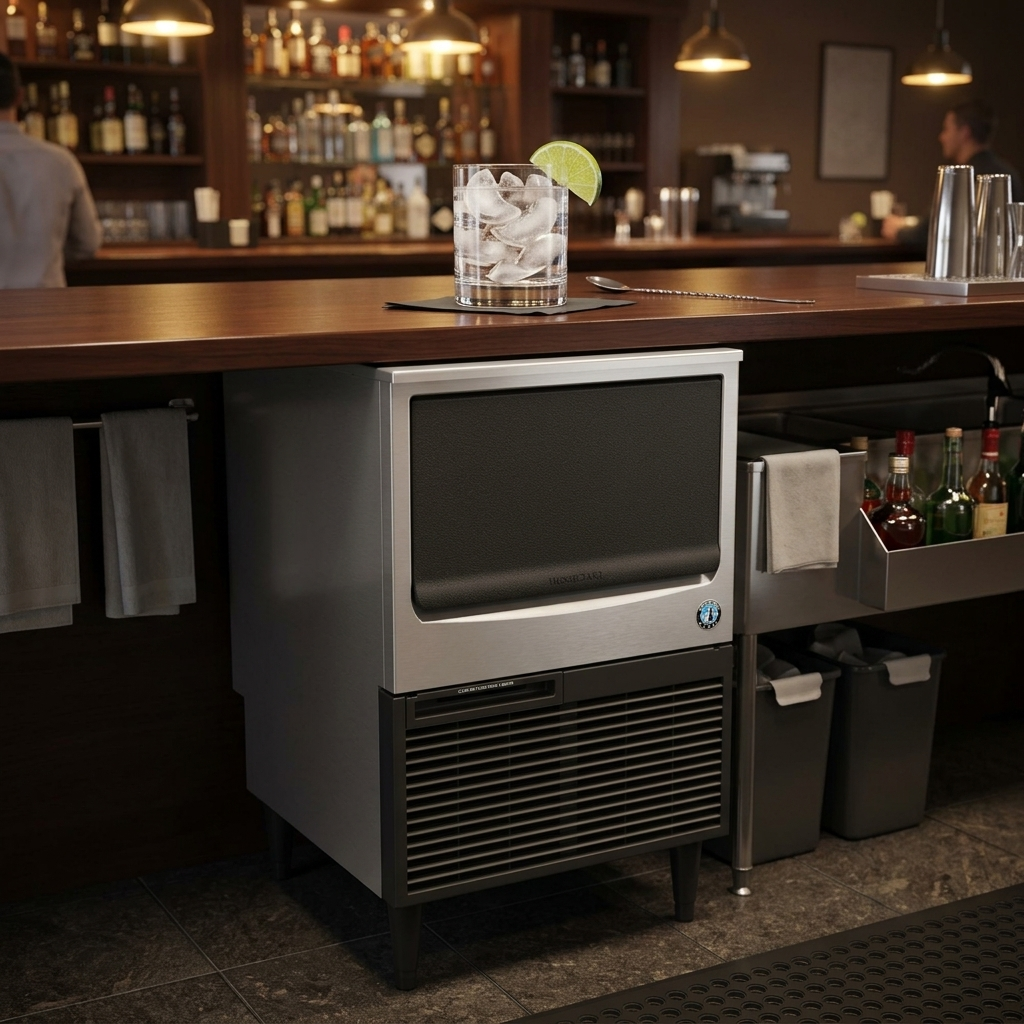

The Hoshizaki KM‑161BAJ is a self‑contained crescent cuber with a built‑in storage bin. Compact yet powerful, it produces up to 163 lbs of crescent ice cubes per day and stores 78 lbs in its integrated bin. With stainless steel durability, CycleSaver™ design, and EverCheck™ diagnostics, the KM‑161BAJ is ideal for bars, cafés, and small restaurants needing reliable ice production in limited space.
Key Specifications:
- Ice Production Capacity: 163 lbs per 24 hours at 70°F air/50°F water; 123 lbs at 90°F air/70°F water
- Storage Capacity: 78 lbs built‑in bin (2.6 ft³)
- Dimensions: 23‑3/4" W × 28" D × 39" H (including 6" legs)
- Electrical: 115V/60Hz/1 phase, 7.1A, max fuse size 15A
- Refrigerant: R‑134a, charge 7.4 oz
Features & Benefits:
- Crescent Cube Production: Produces clear, hard crescent‑shaped cubes ideal for beverages
- CycleSaver™ Design: Maximizes efficiency with fewer cycles
- EverCheck™ Alert System: Provides audible alerts for service and maintenance needs
- Durable Construction: Stainless steel exterior and evaporator for long‑lasting performance
- Easy Maintenance: Front‑in, front‑out airflow with removable air filter simplifies servicing
Comparison With Other KM Series Models:
| Model | Ice Production (70°F/50°F) | Storage Capacity | Cube Type | Dimensions (W×D×H) |
|---|---|---|---|---|
| KM‑81BAJ | 78 lbs/day | 38 lbs built‑in bin | Crescent cube | 24" × 16‑1/2" × 39" |
| KM‑116BAJ | 125 lbs/day | 53 lbs built‑in bin | Crescent cube | 23‑3/4" × 24" × 39" |
| KM‑161BAJ | 163 lbs/day | 78 lbs built‑in bin | Crescent cube | 23‑3/4" × 28" × 39" |
What's Included:
- Hoshizaki KM‑161BAJ Ice Machine Unit with Built‑in Bin
- Ice Scoop with H‑GUARD Plus antimicrobial protection
- 6.5 ft. Power Cord with NEMA 5‑15 Plug
- Removable Air Filter
- Installation and Operation Manual
- Warranty Documentation
FAQ
Q: What Type of Ice Does the KM‑161BAJ Produce?
A: The KM‑161BAJ produces individual crescent‑shaped cubes, which are clear, hard, and slow‑melting — ideal for beverages.
Q: What Are the Operating Requirements?
A: The KM‑161BAJ requires ambient temperatures between 45–100°F, water temperatures between 45–90°F, and water pressure between 10–113 PSIG.
Q: What Warranty Coverage Is Provided?
A: Hoshizaki offers a 3‑year parts and labor warranty on the entire machine, 5‑year parts and labor on the evaporator, and 5‑year parts on the compressor and condenser coil.
Q: Can the KM‑161BAJ Be Paired With a Filter System?
A: Yes. For enhanced water quality and ice clarity, the KM‑161BAJ can be paired with the H9320‑51 Single 4HC‑H Water Filter System.
Q: Is There a Water‑Cooled Version of This Model?
A: Yes. The KM‑161BWJ is the water‑cooled variant, producing up to 153 lbs/day with the same 78 lbs built‑in storage capacity.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Ice for Every Occasion!" Hoshizaki America | Contact us now
- Position the Hoshizaki KM‑81BAJ, KM‑116BAJ, and KM-161BAJ in a permanent indoor location with ambient temperature between 45°F–100°F and water temperature between 45°F–90°F.
- Allow at least 12" clearance at the front and 5/8" clearance at the top for service access; provide space at the rear for water and drain connections.
- Level the icemaker front‑to‑rear and side‑to‑side; optional legs (6"–7") can be installed and adjusted for leveling. If mounting flat to a counter, seal the perimeter with approved caulk.
- Electrical connection must be to a dedicated 115V/60Hz/1‑phase circuit with proper breaker or fuse; plug into a grounded 3‑prong outlet. Do not use extension cords.
- Connect the icemaker water supply to the 1/2" FPT inlet using minimum 1/4" ID copper tubing; install a shut‑off valve and drain valve.
- Connect the drain to the 3/4" FPT outlet using minimum 3/4" ID hard pipe; maintain a 2" vertical air gap to the floor drain and slope horizontal runs 1/4" per foot.
- Check refrigerant lines and compressor mounting pads; ensure fan blade turns freely.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Follow the recommended maintenance schedule: clean and sanitize the water system and ice bin regularly.
- Inspect and clean the condenser air filter and louvers to maintain airflow.
- Check water supply pressure (10–113 PSIG) and verify proper drainage; clean strainers or filters as needed.
- Inspect refrigerant lines and compressor mounting pads; ensure components are secure.
- Prepare the Hoshizaki KM‑81BAJ, KM‑116BAJ, and KM-161BAJ for long storage by draining the water system and disconnecting power if ambient temperature may drop below freezing.
- Clean exterior panels with mild soap and water; avoid harsh chemicals or abrasives.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
