Hoshizaki KM-161BAJ | Undercounter Crescent Cuber Icemaker, Air-coo...

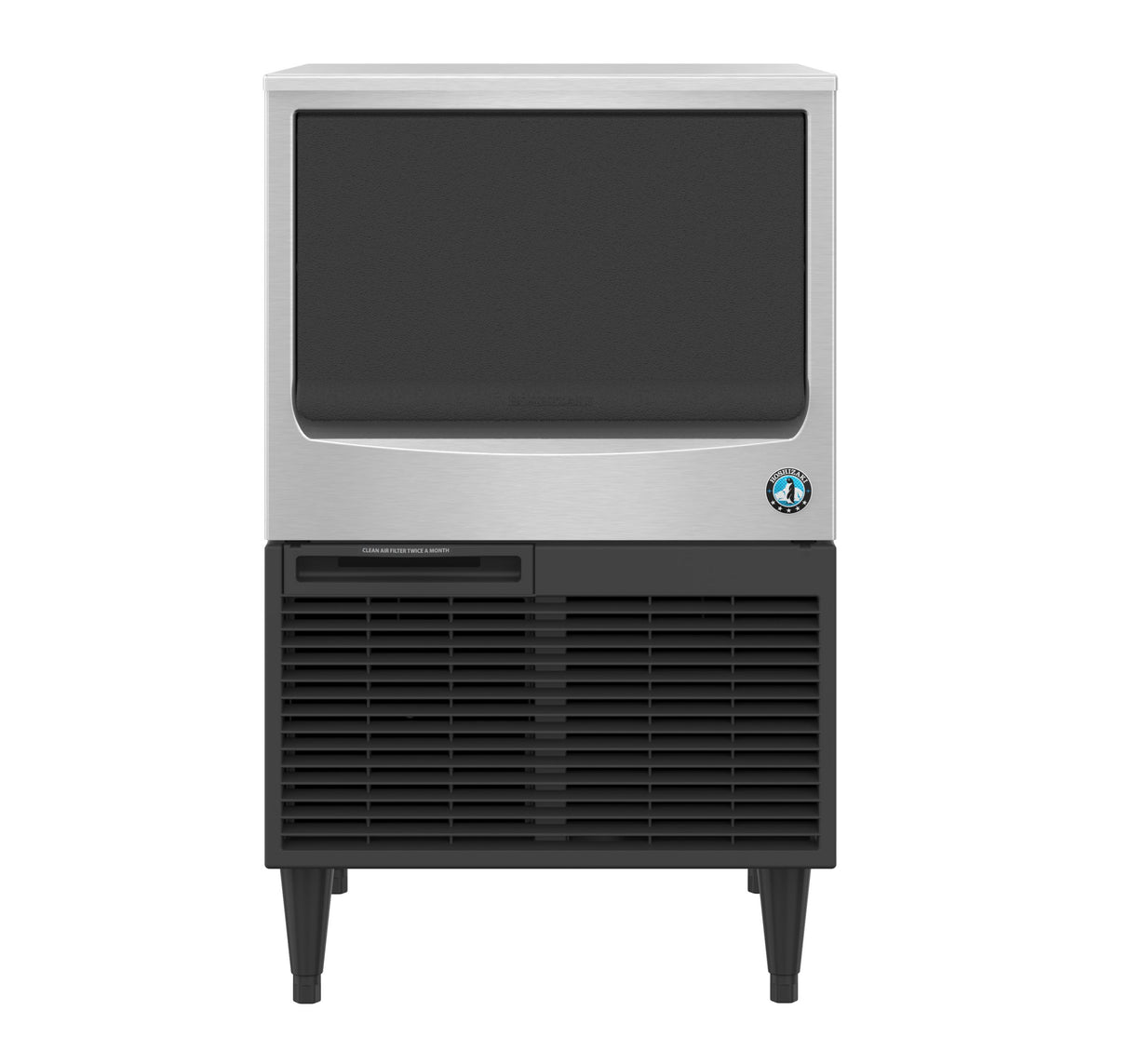

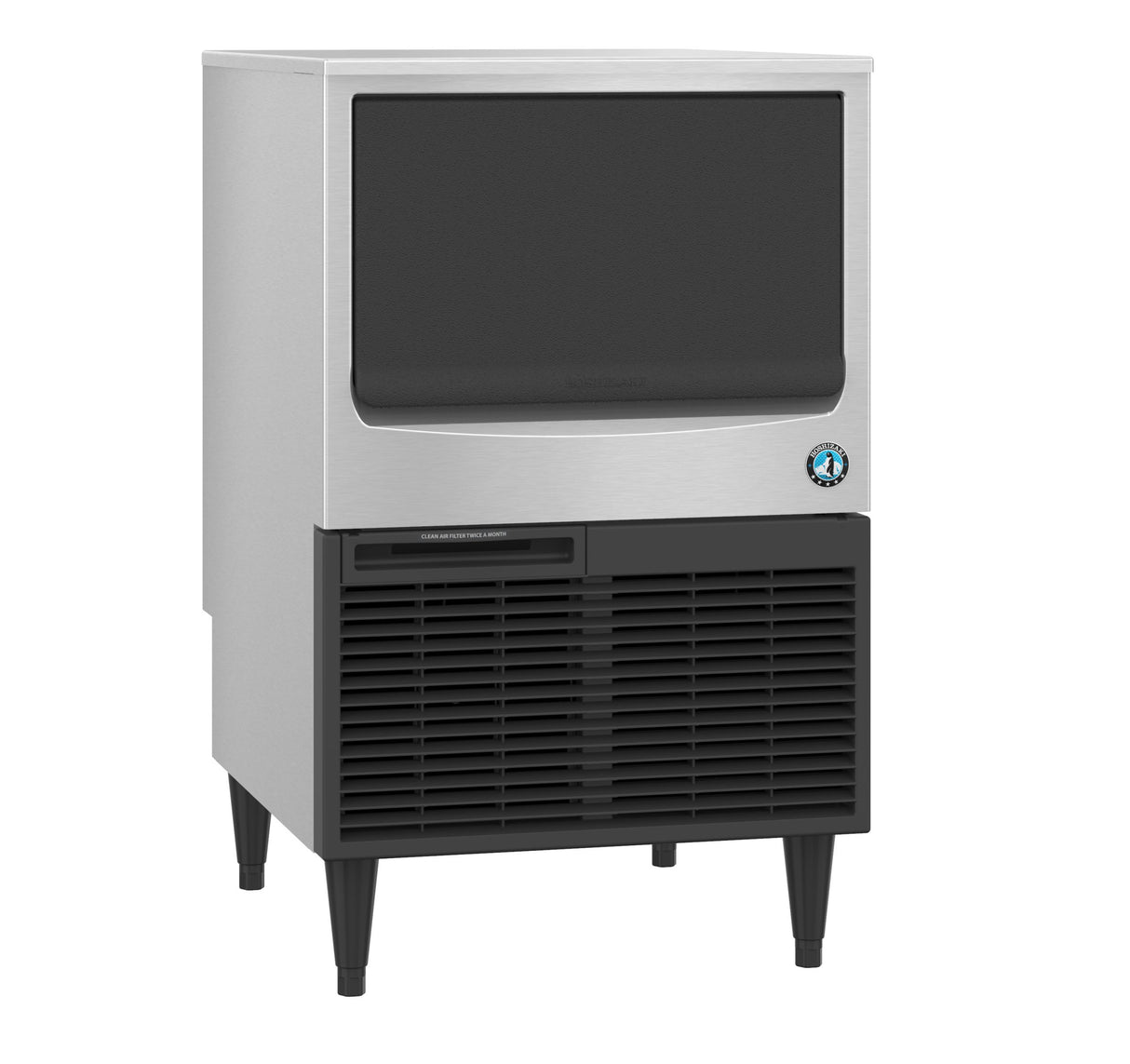

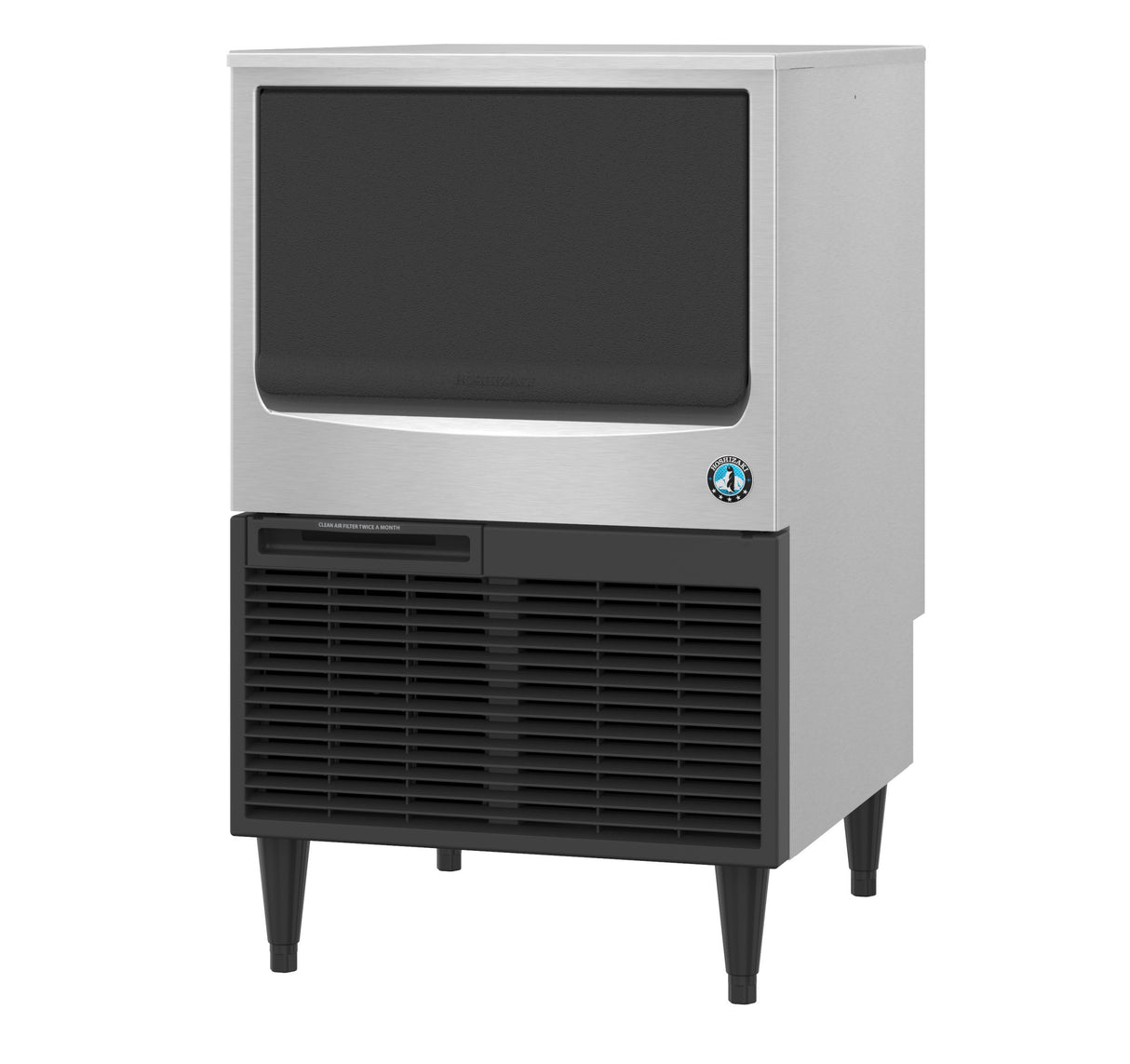

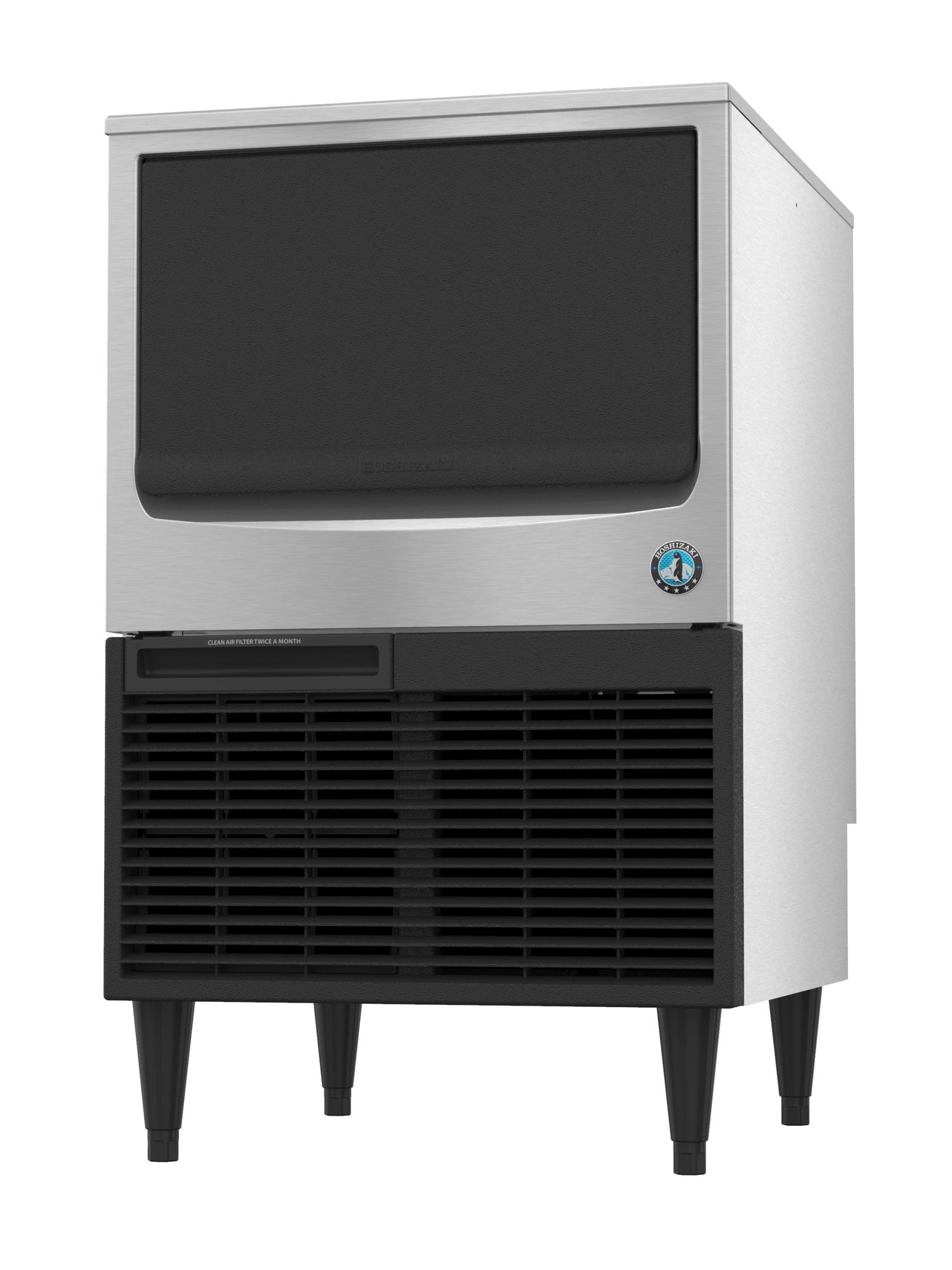

The Hoshizaki KM-161BAJ is a high-performance, self-contained crescent cuber ice machine from Hoshizaki America, Inc. This versatile unit combines efficient ice production with built-in storage, making it ideal for various commercial applications. Its standout features include high daily ice output, compact design, and the innovative CycleSaver™ technology, setting it apart in the commercial ice machine market with its ability to produce clear, individual crescent cubes.
Key Specifications:
- Ice Production: Up to 163 lbs. of ice production per 24 hours, with a built-in storage capacity of 2.6 ft³/78 lbs.

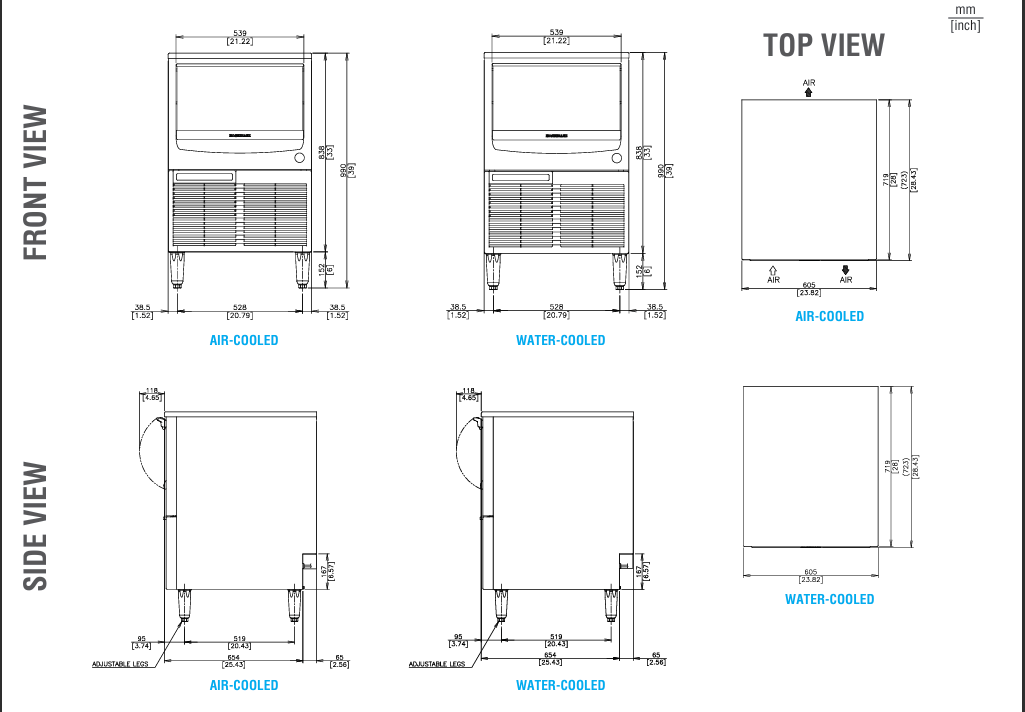

- Dimensions: 23¾" W x 28" D x 39" H (including 6" legs), offering a compact footprint for space-efficient installation.
- Electrical: 115V/60/1, 7.1A running load, 15A maximum fuse size.
- Refrigerant: R-134a, with a charge amount of 7.4 oz.
- Operating Limits: Ambient temperature range of 45-100°F, water temperature range of 45-90°F.
Features & Benefits:
- CycleSaver™ Design: Enhances energy efficiency by reducing start-stop cycles. This feature also extends compressor life for long-term reliability.
- EverCheck™ Alert System: Monitors machine status to ensure optimal performance. It provides early warnings to prevent costly downtime.
- Durable Construction: Stainless steel exterior and evaporator deliver strength and longevity. They also simplify cleaning in demanding commercial environments.
- Easy Maintenance: Front-in, front-out airflow with a removable air filter makes servicing straightforward. This design reduces maintenance time and keeps ice production consistent.
- ADA Compliant: Meets accessibility standards for inclusive use. Ideal for a wide range of commercial settings.
What's Included:
- KM-161BAJ Self-Contained Crescent Cuber Ice Machine
- 6.5 ft. (2000 mm) power cord with NEMA 5-15P plug
- Removable air filter
- 6" adjustable legs
- Ice scoop
- Installation and operation manual
- Warranty information
FAQ
Q: What are the water supply requirements for the KM-161BAJ?
A: The ice machine requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for the water supply line. The water pressure should be between 10-113 PSIG, and the water temperature should be within 45-90°F.
Q: How much clearance is required for proper installation and operation?
A: The KM-161BAJ requires at least 12" (30 cm) clearance at the front, at least 0.6" (15 mm) clearance at the top for maintenance, and enough space at the rear for water supply and drain connections.
Q: What type of warranty does the KM-161BAJ come with?
A: The KM-161BAJ comes with a 3-year parts and labor warranty on the entire machine, a 5-year parts and labor warranty on the evaporator, and a 5-year parts warranty on the compressor and air-cooled condenser coil.
Q: Can the KM-161BAJ be paired with a filtration system?
A: Yes. For optimal ice quality and machine longevity, Hoshizaki recommends using compatible filtration systems such as the H9320-51 Single 4HC-H Water Filter System, the H9655-11 4HC-H Replacement Cartridge, or the 9795-80 E-10 Prefilter System.
Detailed Features & Benefits
Advanced Ice Production Technology: The KM-161BAJ produces up to 163 lbs of crescent-shaped ice cubes per day. These cubes are formed on a stainless steel evaporator, ensuring crystal-clear ice that cools beverages efficiently without rapid dilution.
Energy-Saving CycleSaver™ Design: This system reduces the number of start-stop cycles, saving energy and lowering operating costs. It also extends the life of the compressor, making the machine more reliable over time.
User-Friendly Operation: The power switch is accessible without panel removal, allowing quick control. A slide-in door provides easy access to the ice storage bin, making retrieval simple and efficient.
Maintenance Made Simple: Front-in, front-out airflow and a removable air filter streamline cleaning and servicing. The EverCheck™ alert system continuously monitors performance, notifying users of potential issues before they escalate.
NOTICE: Ensure proper maintenance and cleaning of your ice machine to guarantee the highest quality ice production and machine longevity.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
