Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay VRCGRNTL8WSK | Wall-mount Bi-level Bottle Filling Station | F...

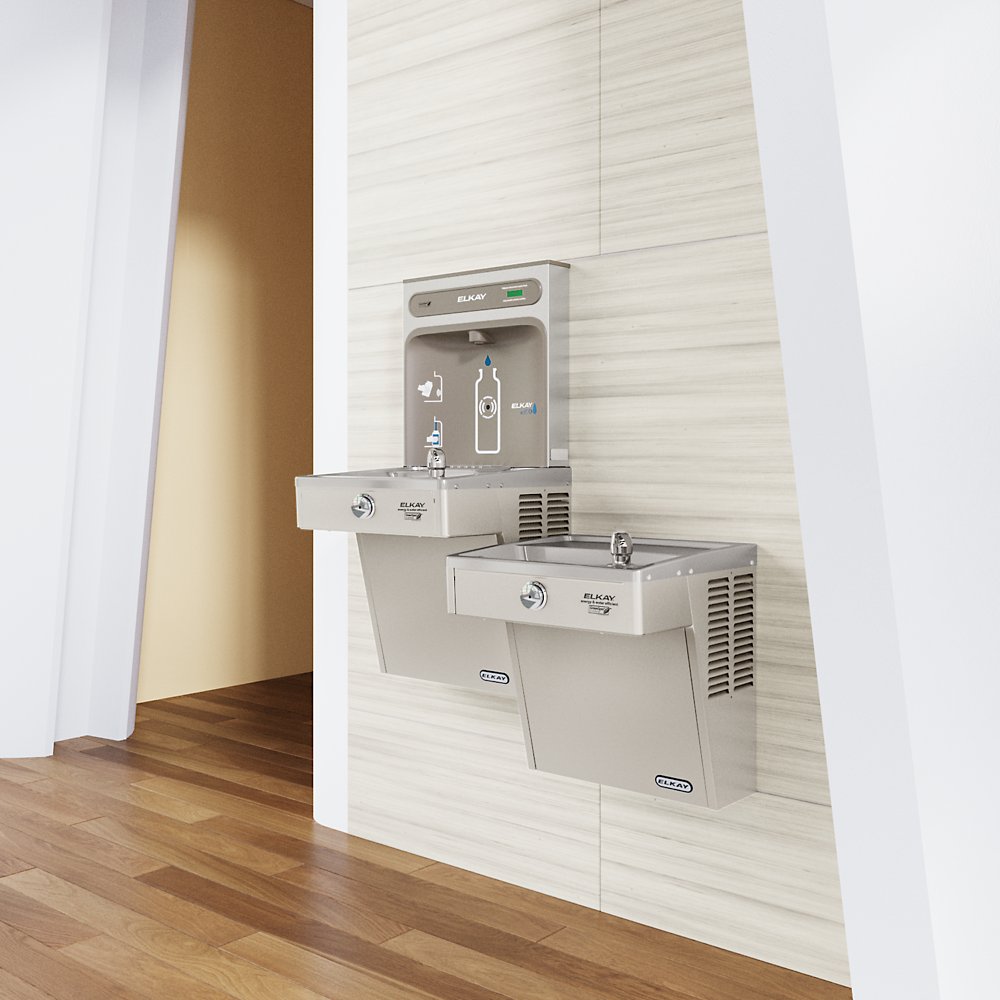

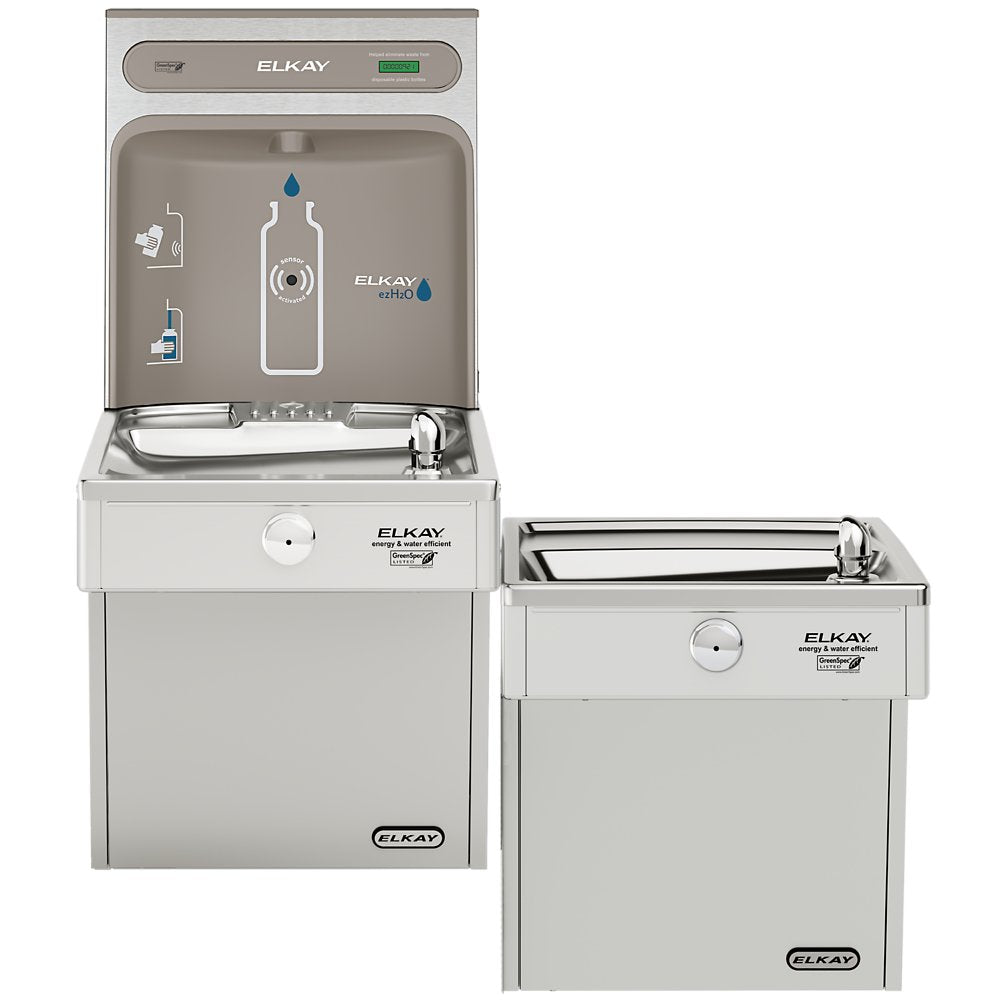

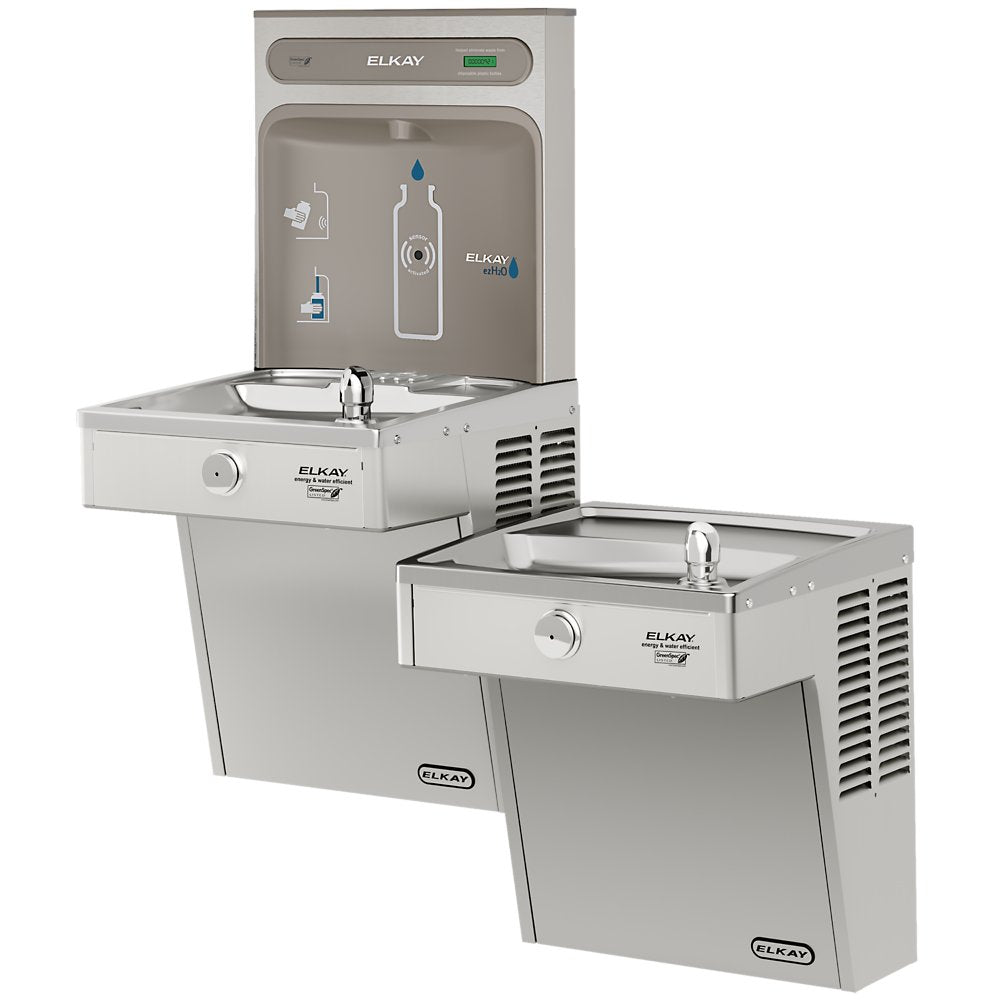

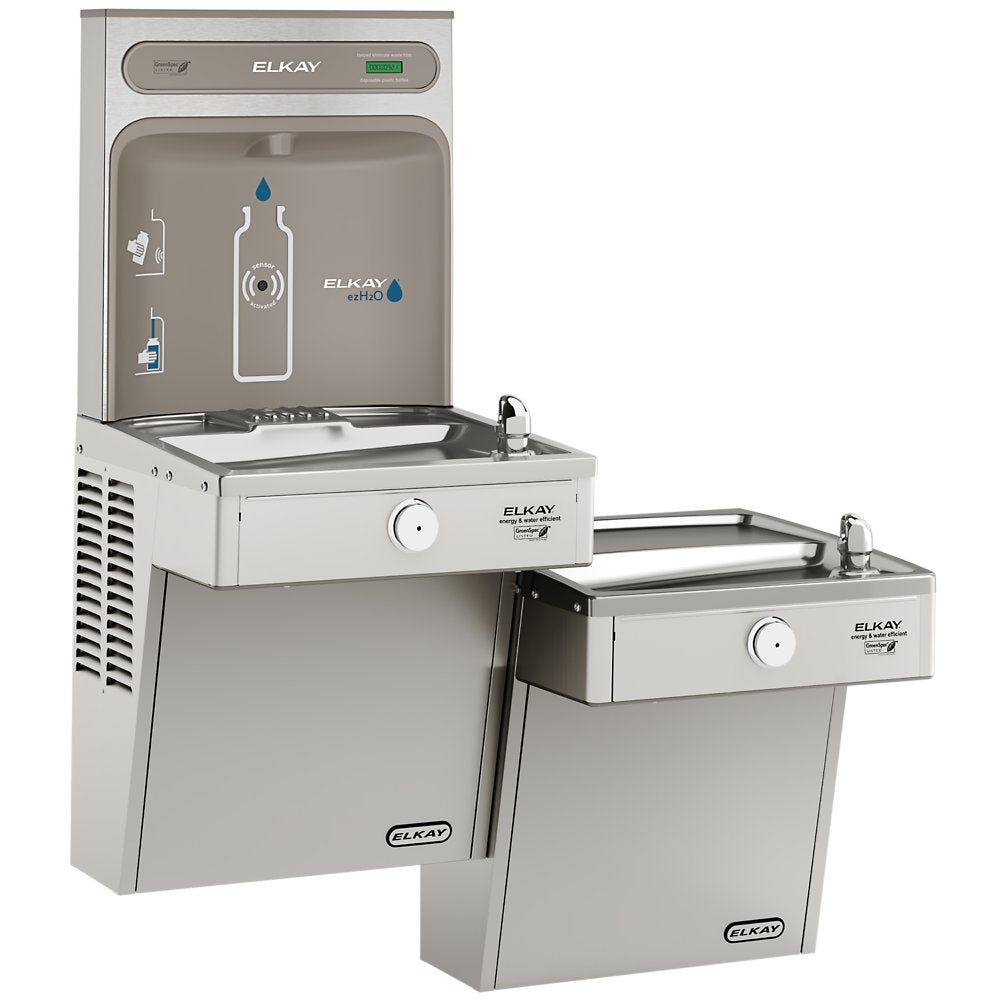

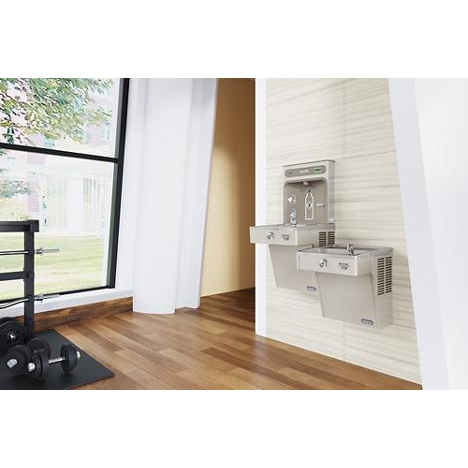

Elkay VRCGRNTL8WSK is a high-efficiency ezH2O® Bottle Filling Station with Bi-Level ADA Cooler, designed for indoor wall-mounted installation. This vandal-resistant stainless steel unit delivers chilled water through hands-free bottle filling and mechanical bubbler activation, making it ideal for schools, offices, and public facilities that require durability, accessibility, and sustainability.
Key Specifications:
- Design: Wall-mounted, bi-level ADA cooler with integrated bottle filler.
- Finish: Stainless steel.
- Chilling capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
- Refrigeration: Hermetically-sealed compressor, fan-cooled condenser, and EPS-insulated copper tubing. Uses R-134a/HFC-134a refrigerant with capillary tube control and factory-preset adjustable thermostat.
- Filtration: Non-filtered model. For filtered performance, see LVRCGRNTL8WSK.
- Activation: Electronic bottle filler sensor with mechanical front bubbler pushbutton.

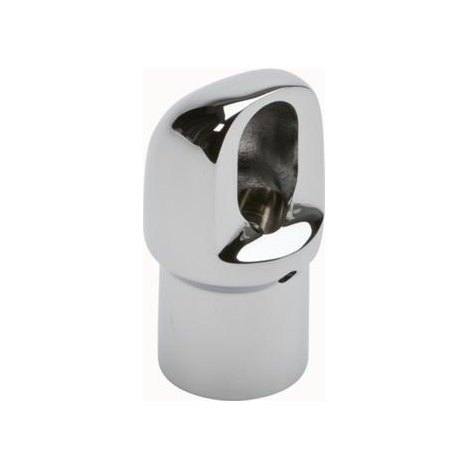

- Bubbler style: Vandal-Resistant StreamSaver™ bubbler.
- Stations served: 2.
- Power: 115V/60Hz, 260 rated watts, 6 full load amps.
Features & benefits:
- Hands-free bottle fill: Sensor-activated with laminar flow for clean, splash-free filling.
- Green Ticker™: Displays number of 20 oz. plastic bottles saved from waste.
- Energy efficiency: High-performance compressor and insulation reduce energy consumption.
- Antimicrobial protection: Key plastic components manufactured with silver ion antimicrobial agent for cleaner surfaces.
- Real Drain System: Eliminates standing water for improved hygiene.
- Vandal-resistant design: Heavy-duty bubbler and mechanical activation for reliable performance in public spaces.
- ADA compliant: Accessible bi-level design when installed at proper heights.
What's included:
- VRCGRNTL8WSK Bottle Filling Station & Bi-Level Cooler unit
- Vandal-Resistant StreamSaver™ bubbler
- Wall mounting plate and hardware
- Installation instructions
FAQ
Q: What warranty does the VRCGRNTL8WSK include?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.
Q: Does this model include filtration?
A: No. The VRCGRNTL8WSK is a non-filtered model. For filtered performance, see the LVRCGRNTL8WSK.
Q: What makes this unit vandal-resistant?
A: The VRCGRNTL8WSK features a heavy-duty StreamSaver™ bubbler with mechanical activation, reinforced stainless steel panels, and tamper-resistant components. These design elements make it ideal for high-traffic public environments where durability and security are essential.
Q: Can filtration be added later as a retrofit?
A: Yes. You can add filtration using the EWF3000 WaterSentry® Plus Filter Kit (3,000-gallon capacity).
Q: Is this unit ADA-compliant?
A: Yes. The VRCGRNTL8WSK meets ADA & ICC A117.1 accessibility standards when installed at the proper height. For enhanced compliance, Elkay offers the 98324C Cane Apron accessory.
Detailed features & benefits
- Advanced Cooling System: Hermetically‑sealed compressor with lifetime lubrication, fan‑cooled condenser, and EPS‑insulated copper tubing ensure reliable 8.0 GPH chilled water delivery at 50°F, even under heavy use.
- Vandal‑Resistant Design: Reinforced stainless steel panels, tamper‑resistant fastenings, and a heavy‑duty StreamSaver™ bubbler with mechanical activation make this unit ideal for high‑traffic public environments.
- Hands‑Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation with laminar flow for splash‑free filling, while mechanical bubbler buttons guarantee water delivery during service interruptions.
- ADA Accessibility: Bi‑level design meets ADA & ICC A117.1 standards, serving users of all abilities. For enhanced compliance, the unit supports the 98324C Cane Apron accessory.
- Sustainability Features: The Green Ticker™ displays the number of 20 oz. plastic bottles saved from waste, encouraging reusable bottle use and reinforcing eco‑friendly practices in public facilities.
- Easy Maintenance & Retrofit Filtration Option: Stainless steel surfaces clean easily with mild soap and water. Quick‑connect fittings simplify servicing, and filtration can be added later using the EWF3000 Universal Filtration Kit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
