Haws 1119P | Hi-Lo Vandal-Resistant Dual Fountain & Bottle Fill...

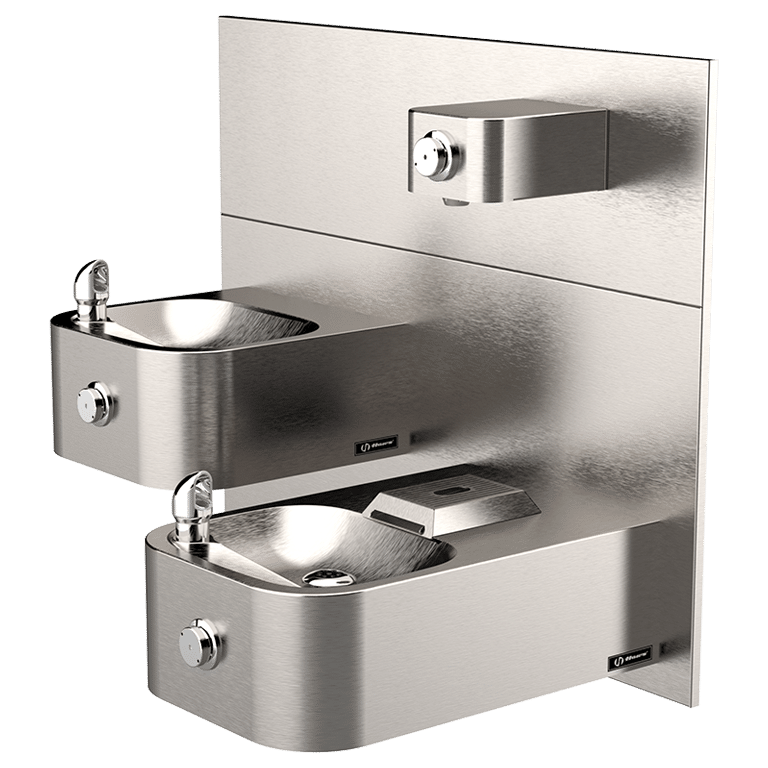

The Haws 1119P Series is a complete ADA-compliant hydration station bundle that combines a vandal-resistant Hi-Lo drinking fountain with a wall-mounted bottle filler. Designed for schools, office buildings, transportation facilities, and other high-traffic environments, the 1119P delivers reliable hydration with durable stainless steel construction and easy maintenance access.
Key Specifications:
| Design | ADA-compliant Hi-Lo wall-mounted dual drinking fountain with integrated bottle filler bundle |
| Finish | Satin Stainless Steel with Type 304 stainless steel construction |
| Filtration | Non-filtered (Optional 6480 Filter Kit available). |
| Refrigeration | Non-refrigerated (Refer to the Haws 1119.8P for chilled option) |
| Stations Served | 3 user points (2 Drinking Fountains + 1 Bottle Filler) |
Features & Benefits:
- Dual-Height Hydration Design: Hi-Lo configuration accommodates users of varying heights while increasing hydration capacity in a compact footprint.
- Vandal-Resistant Construction: Bubbler heads, push buttons, drain strainers, and bottom plates are secured against tampering for public-use environments.
- Lead-Free Waterways: Complies with NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act.
- Front-Access Maintenance: Valve assemblies allow front-access cartridge replacement, stream adjustment, and strainer servicing without removing the bottom plate.
- Integrated Bottle Filling Station: Includes a vandal-resistant bottle filler with 1.0 GPM laminar flow for efficient reusable bottle filling.
What's Included:
- Haws 1119 Hi-Lo Drinking Fountain Assembly
- Haws 1920 Bottle Filler
- BP32 Stainless Steel Back Panel
- 6469 Drip Tray
- 6700 Bottle Filler Mounting Plate
- 6700.4 Drinking Fountain Mounting Plate
Comparison Table:
| Feature | 1119P | 1119.8P |
|---|---|---|
| Design | Hi-Lo Drinking Fountain + Bottle Filler | Hi-Lo Drinking Fountain + Bottle Filler |
| Filtration | Non-Filtered (Optional 6480 Kit) | Non-Filtered (Optional 6480 Kit) |
| Refrigeration | No | Yes |
| Bottle Filler | 1920 Bottle Filler Included | 1920 Bottle Filler Included |
| Best For | Standard Indoor & Outdoor Hydration Applications | Applications Requiring Chilled Drinking Water |
FAQ
Q: What Components Are Included In The Haws 1119P Bundle?
A: The Haws 1119P bundle includes the 1119 Hi-Lo drinking fountain assembly, 1920 bottle filler, BP32 back panel, 6469 drip tray, 6700 bottle filler mounting plate, and 6700.4 drinking fountain mounting plate.
Q: Is The Haws 1119P ADA Compliant?
A: Yes. The Haws 1119P is designed to meet current ADA accessibility requirements when installed according to Haws installation guidelines.
Q: Can A Water Filter Be Added To The Haws 1119P?
A: Yes. The optional Haws 6480 Filter Kit can be added to provide filtered drinking water. The kit includes a filter head, mounting bracket, and 3,000-gallon carbon block filter cartridge.
Q: Is The Haws 1119P Refrigerated?
A: No. The Haws 1119P is a non-refrigerated model. If chilled water is required, refer to the Haws 1119.8P refrigerated configuration.
Q: Is The Haws 1119P Suitable For Outdoor Installation?
A: Yes. The Haws 1119P may be installed indoors or outdoors where temperatures remain above freezing. In extreme heat or freezing conditions, the unit should be protected from environmental exposure.
Q: What Is The Bottle Filler Flow Rate On The Haws 1119P?
A: The included Haws 1920 bottle filler delivers a 1.0 GPM laminar flow stream for efficient bottle filling.
Q: What Operating Pressure Is Required For The Haws 1119P?
A: The recommended operating pressure range is 30 to 90 PSI (2.1 to 6.2 bar).
Q: What Makes The Haws 1119P Vandal Resistant?
A: The unit features vandal-resistant bubbler heads, push buttons, drain strainers, bottom plates, and tamper-resistant components designed for high-traffic public installations.
Q: Does The Haws 1119P Include Lead-Free Waterways?
A: Yes. The Haws 1119P incorporates 100% lead-free waterways and meets applicable federal and NSF lead-free requirements.
Q: What Is The Difference Between The Haws 1119P And Haws 1119.8P?
A: Both models include the same Hi-Lo fountain and bottle filler configuration. The primary difference is that the 1119.8P includes a refrigeration system for chilled drinking water, while the 1119P is non-refrigerated.
Q: Can The Haws 1119P Be Installed With The Haws SK1 Fountain Skirt?
A: Yes. The Haws SK1 Fountain Skirt can be used to provide a finished appearance below the drinking fountain while helping conceal exposed plumbing connections and improve the overall installation aesthetics.
Q: Can The Haws 1119P Be Connected To The Haws HCR8 Remote Water Chiller?
A: Yes. The Haws HCR8 Remote Water Chiller may be paired with the Haws 1119P when chilled drinking water is desired. Installing a remote chiller allows the fountain and bottle filler to dispense cold water while maintaining the vandal-resistant hydration station design.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Haws 1119P is a vandal‑resistant hydration station that combines a touchless bottle filler with hi‑lo drinking fountains. Designed for schools, transportation facilities, parks, and other high‑traffic public environments, it provides durable hydration access while helping encourage reusable bottle use.
Key Installation Requirements:
- Wall‑mounted installation with adequate structural support
- Cold water supply connection required
- Drain connection required for fountain operation
- Electrical supply required for bottle filler sensor activation
- Provide access for future maintenance and servicing
- Follow ADA guidelines and local plumbing codes during installation
Important Notes Before Installing:
- Always shut off water and power before installation or servicing
- Ensure the wall structure can support the unit's operating weight
- Do not overtighten plumbing connections or mounting hardware
- Verify proper drainage before placing the unit into service
- Keep the bottle filler sensor area unobstructed for reliable activation
- Inspect all water connections for leaks during startup
Basic Installation Overview:
- Prepare the wall and verify rough‑in requirements
- Install mounting brackets and support hardware according to specifications
- Connect the water supply line to the fountain assembly
- Connect the waste line to the building drainage system
- Complete electrical connections for bottle filler operation
- Pressurize the water system and inspect all connections for leaks
- Test bottle filler activation and drinking fountain operation
- Complete final inspection and verify proper performance
For complete specifications and installation guidelines, download the official 1119P Spec Sheet and the Installation Manual.
