Haws 1011MS | Vandal-Resistant Dual Drinking Fountain | 0.45 GPM

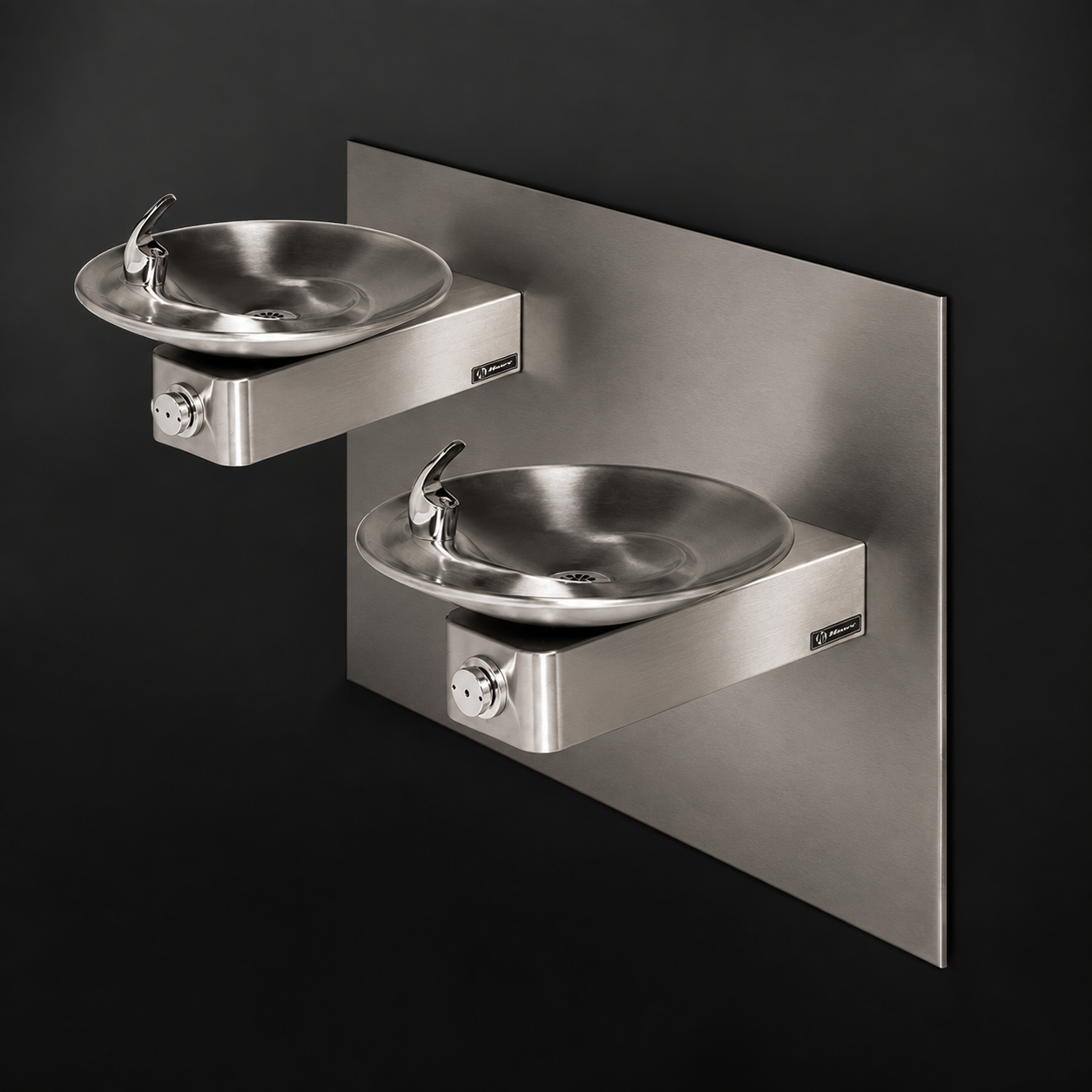

The Haws 1011MS Series is a vandal-resistant, wall-mounted dual drinking fountain built with Type 304 Stainless Steel for durable, lead-free hydration in demanding public spaces.
Note: This product requires the Haws MTGFR.DF2 in-wall mounting frame, which must be purchased separately.

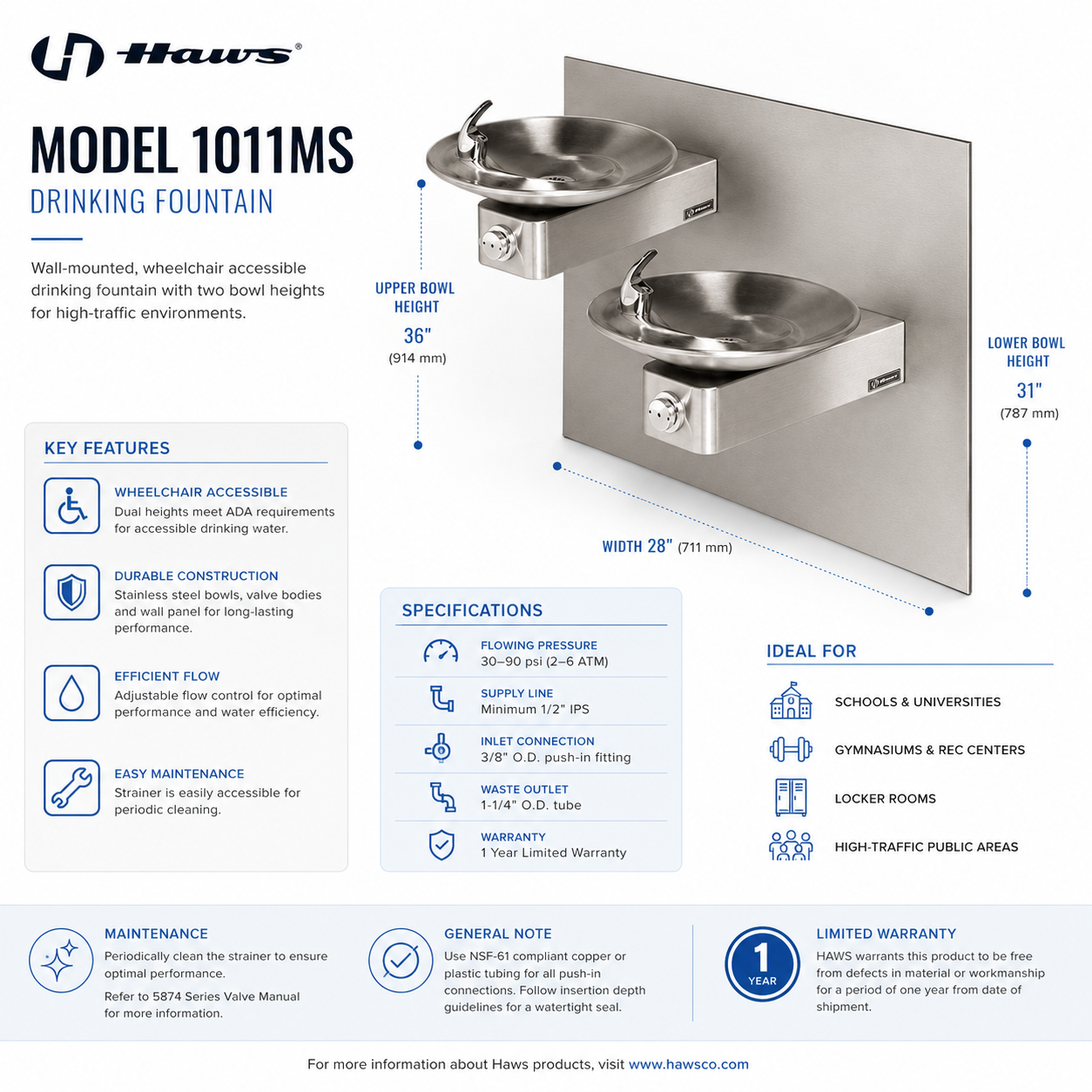

Key Specifications:
| Design | Dual vandal-resistant ADA drinking fountain with stainless steel bowls and push-button valves |
| Finish | Satin Stainless Steel |
| Filtration | Non-filtered. Optional Haws 6480 Filter Kit available |
| Refrigeration | Not included. Optional Haws HCR8 Remote Water Chiller |
| Stations Served | 2 (drinking fountains) |
Features & Benefits:
- Vandal-Resistant Design: Locked bubbler heads, push buttons, bowls, drain strainers, and bottom plates deter tampering.
- 100% Lead-Free Waterways: Compliant with NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act.
- Easy Front-Access Maintenance: Stainless steel valve body allows cartridge service and stream height adjustment from the front.
- Customizable & Expandable: Supports optional add-ons such as bottle filler (Model 1920), remote chiller (Model HCR8), and custom logo panel.
Comparison of Haws Drinking Fountains:
| Feature | 1011MS | 1011MSB | 1011MSP |
|---|---|---|---|
| Mounting System | Requires MTGFR.DF2 frame (sold separately) | Includes MTGFR.DF2 mounting system bundle | Includes MTGFR.DF2 mounting system with back and access panel |
| Bottle Filler | Not included | Not included | Integrated stainless steel bottle filler (Model 1920) |
| Best For | Facilities needing a base vandal-resistant ADA fountain | Projects requiring a bundled fountain + mounting system | Facilities needing a bundled fountain + bottle filler solution |
FAQ
Q: Does the Haws 1011MS Require Additional Components for Installation?
A: Yes. The 1011MS requires the fountain unit and the MTGFR.DF2 mounting frame, purchased separately. Installers must also provide a proper P-trap and supply connections.
Q: Can the Haws 1011MS Be Used Outdoors?
A: Yes. The 1011MS can be installed outdoors but must be protected from extreme heat and cold. It is best suited for environments where temperatures remain above freezing.
Q: Is Filtration Available for the Haws 1011MS?
A: Filtration is not included by default, but the optional Model 6480 filter kit is available as a compatible add-on.
Q: What Is the Flow Rate of the Haws 1011MS?
A: Each bubbler head delivers 0.45 GPM with laminar flow, ensuring splash-free hydration.
Q: What Warranty Coverage Applies to the Haws 1011MS?
A: The Haws 1011MS includes a limited 1-year warranty against defective material or workmanship, provided installation and maintenance instructions are followed.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Haws 1011MS is a vandal‑resistant dual drinking fountain designed for durability in high‑traffic environments. Constructed of heavy‑gauge stainless steel with shielded bubblers, it provides safe, accessible hydration at two levels in compliance with ADA standards.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Supply line pressure: 30–90 PSI
- Drain connection required for both fountain basins
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is non‑filtered and non‑refrigerated — delivers ambient water only
- Always depressurize water line before servicing
- Outdoor installation requires winterization or protection in extreme climates
- Ensure proper drainage to avoid water damage from spillage
- Secure fountains firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier to support dual fountain weight
- Position fountain assembly and secure to wall structure
- Connect cold water supply line to inlet
- Connect drain lines from both basins to building drain system
- Pressurize system slowly and check for leaks
- Test bubbler stream height; adjust regulator if needed
- Install bottom cover plates and finish trim

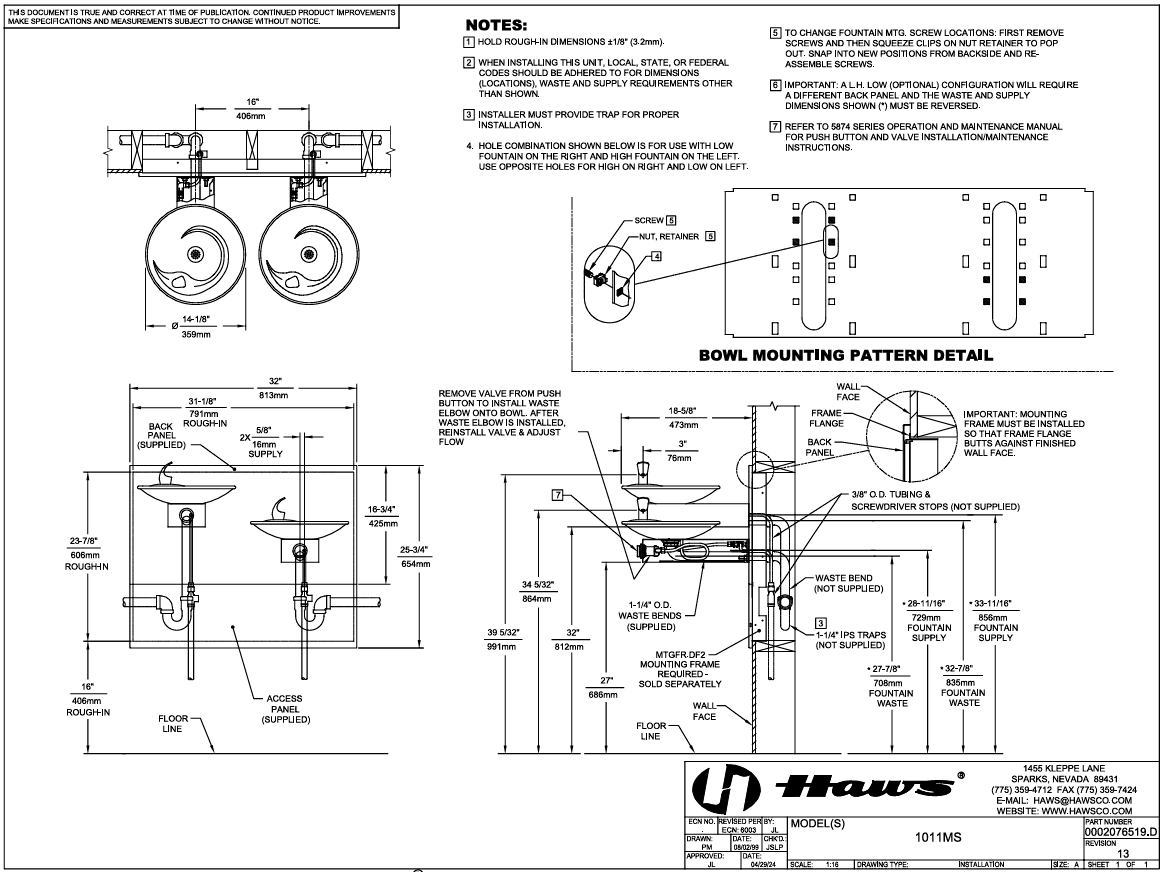

For complete specifications and installation guidelines, download the official 1011MS Spec Sheet and the Installation & Maintenance Manual.
