Elkay LZWS-ERPB8-RF| In-wall Retrofit Bottle Filler | Filtered, Refrigerated
Elkay LZWS-ERPB8-RF| In-wall Retrofit Bottle Filler | Filtered, Refrigerated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZWS-ERPB8-RF| In-wall Retrofit Bottle Filler | Filtered, Ref...

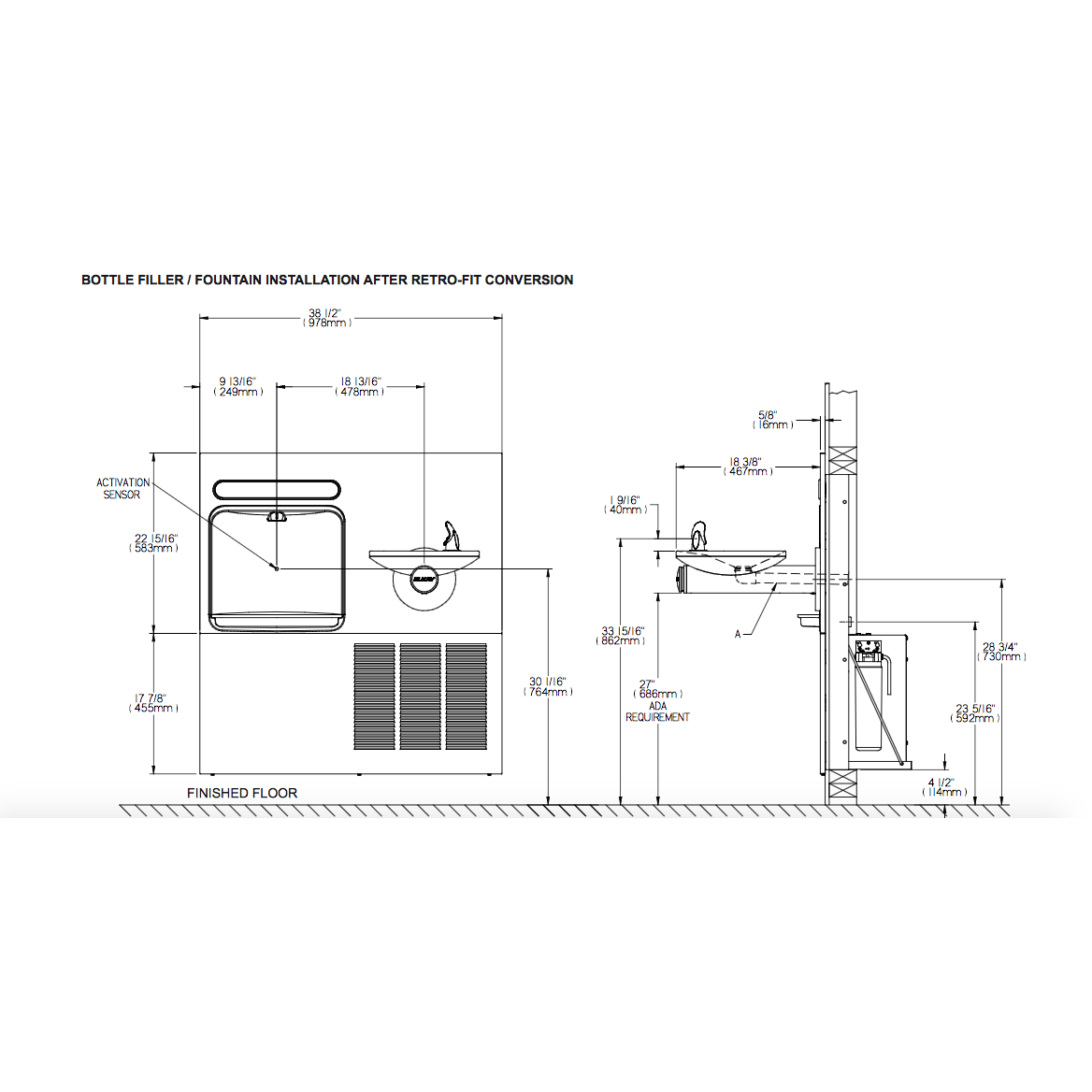

Special Note: For use with Elkay bi-level refrigerated SwirfFlo fountains. It also requires a minimum of 12" of wall depth for installation.

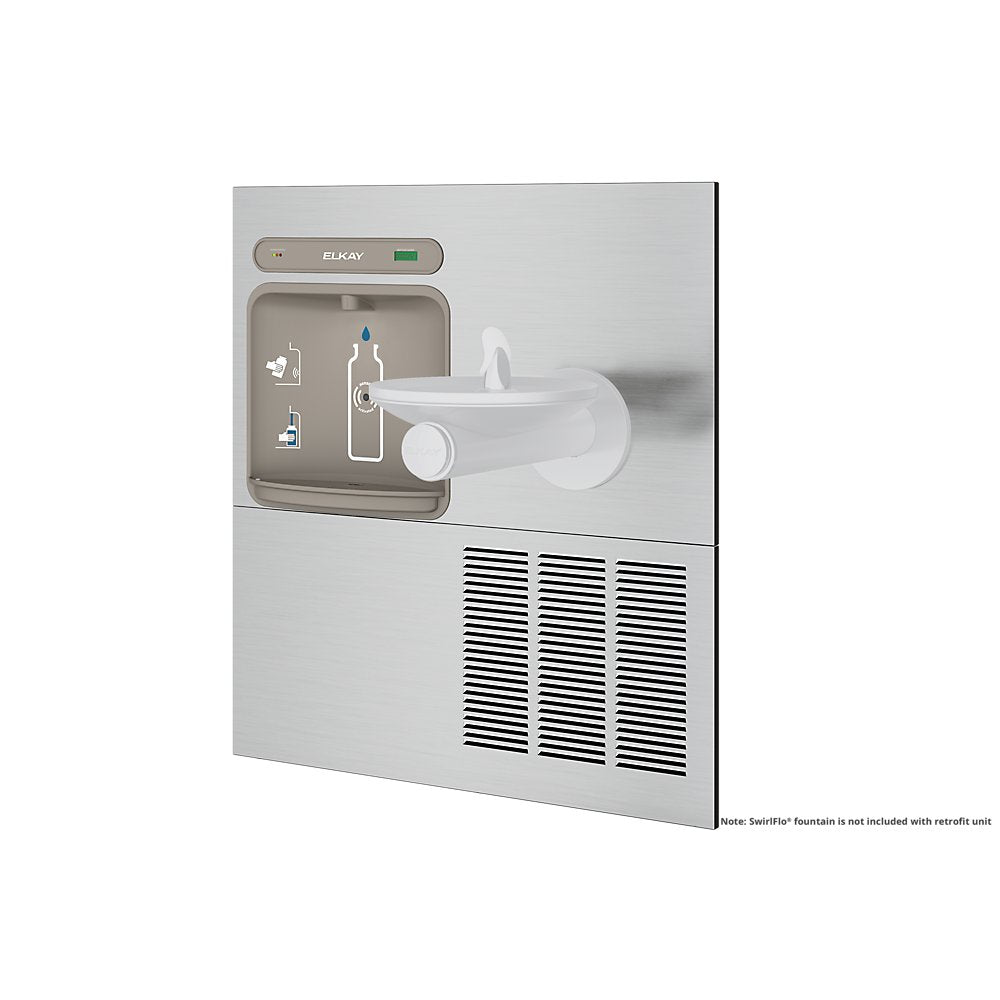

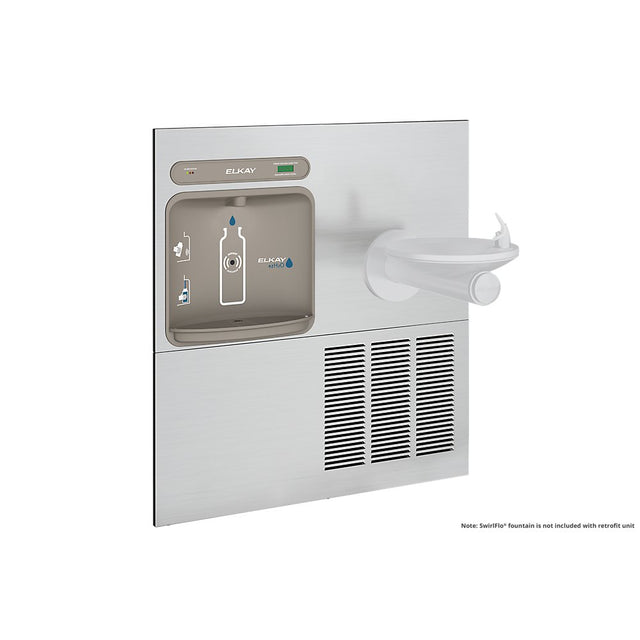

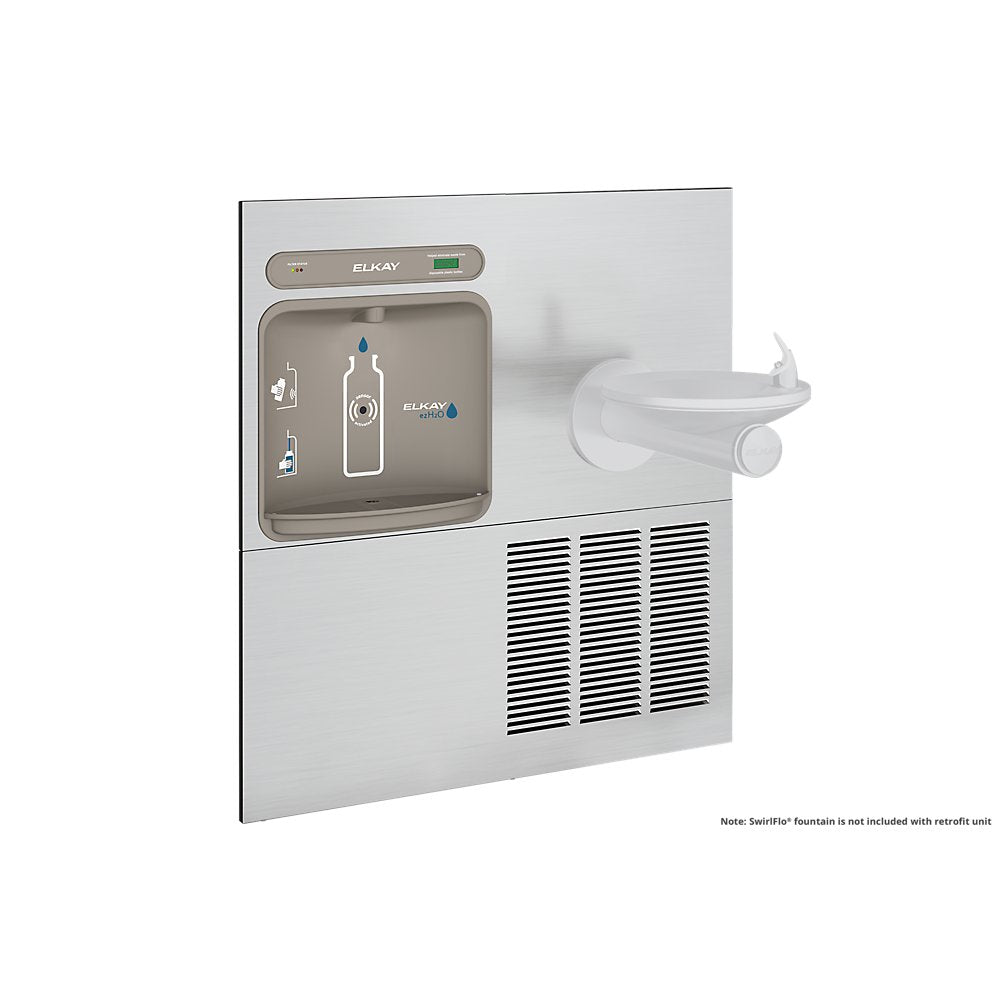

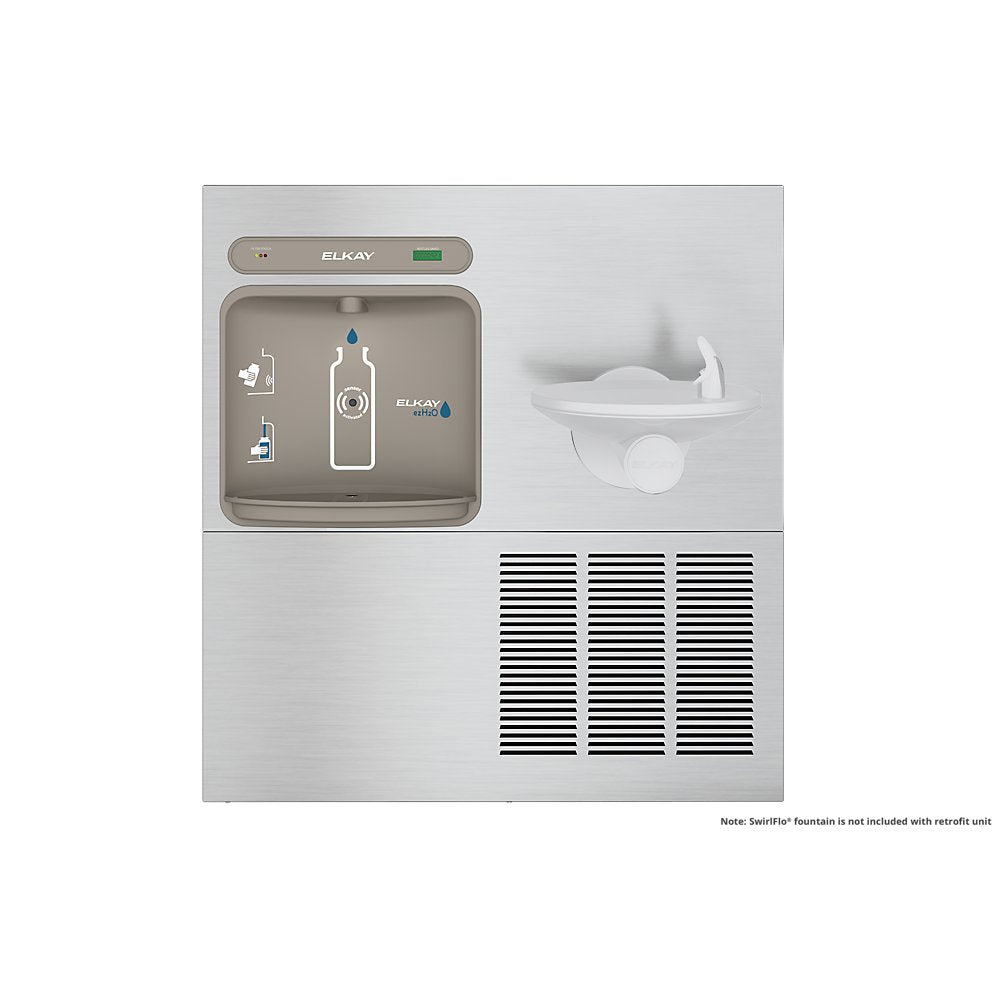

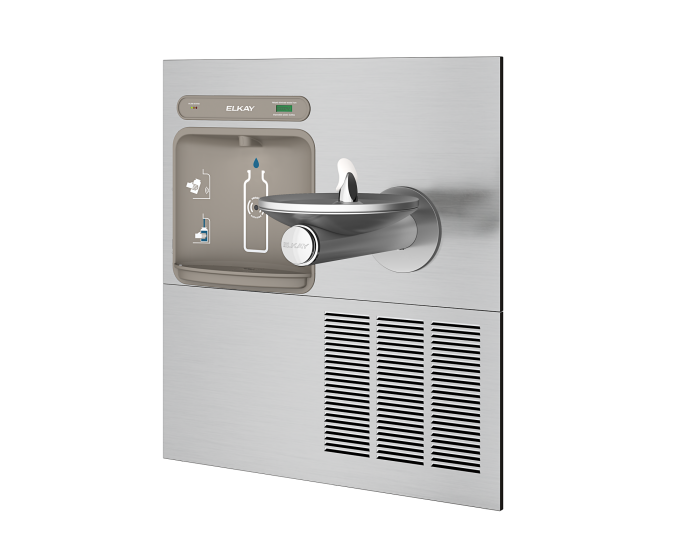

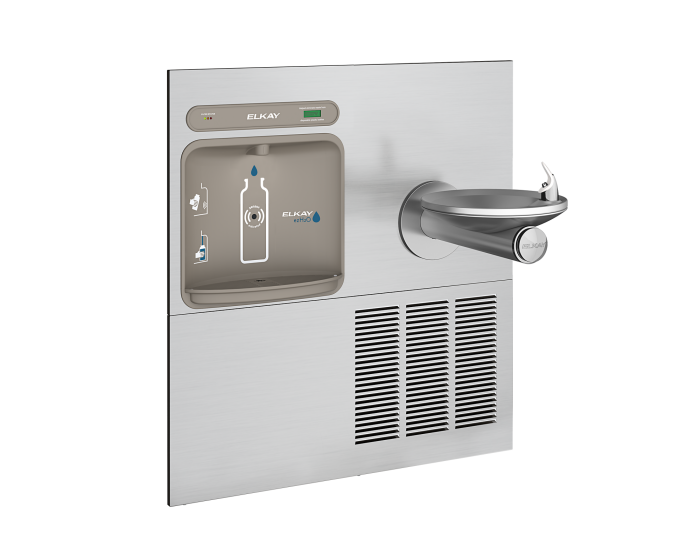

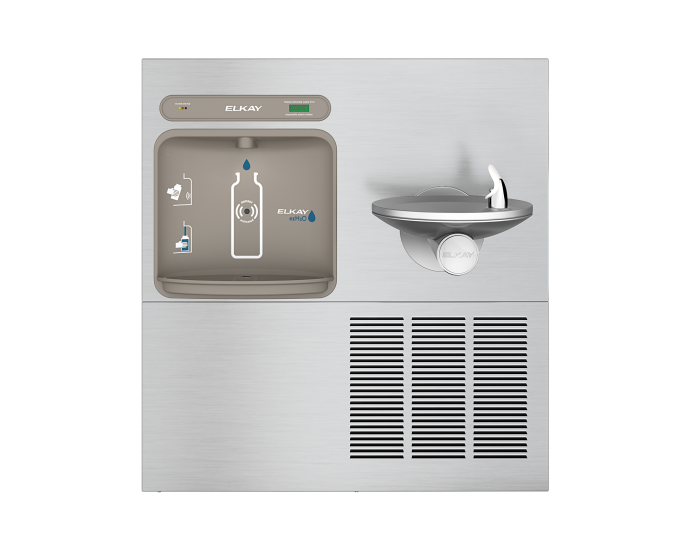

The Elkay LZWS-ERPB8-RF ezH2O Retrofit Bottle Filling Station transforms existing bi-level refrigerated SwirlFlo fountains into modern filtered bottle filling stations. Designed for indoor applications, this ADA compliant unit delivers a quick fill rate of 1.1 Gallons Per Minute while tracking plastic bottle savings through its Green Ticker™ technology, making it an ideal sustainable upgrade for existing fountain installations.
Key Specifications:
- Compatibility: Designed specifically for existing SwirlFlo fountains, utilizing the existing single fountain, right mounting frame and water chiller.
- Fill Rate: Quick fill rate of 1.1 Gallons Per Minute for efficient bottle filling.
- Installation Type: Wall Mount (Inwall Frame/Plate) design for indoor applications, serving 2 stations with refrigerated water.
- ADA Compliant: Meets accessibility requirements when installed according to standards, ensuring usability for all individuals.
Features & Benefits:
- Green Ticker™ Technology: Tracks and displays the number of 20 oz. plastic bottles saved from waste, promoting environmental awareness and sustainability efforts.
- Advanced Filtration: Includes WaterSentry Plus filter certified to reduce contaminants for cleaner, better-tasting water.
- Retrofit Solution: Transforms existing fountains that are less than 5 years old (chilled) or 10 years old (non-chilled) into modern bottle filling stations without complete replacement.
- Assembled in USA: Quality construction with domestic assembly for reliable performance.
What's Included:
- Integral Bottle Filling Station, Mounting Frame, Panels, and WaterSentry Filter
FAQ
Q: How long does it take to install this retrofit?
A: Depending on factors such as existing mounting, electrical access, and drainage, installation typically falls between 2-5 hours.
Q: Does this retrofit come with a chiller?
A: No. However, the retrofit will utilize the compressor from your existing fountain (if applicable).
Q: Where is the filter status and bottle counter button located on this retrofit?
A: If properly installed, the programming button should be located in the pushbar of the previously existing fountain.
Detailed Features & Benefits
Warranty Protection: The Elkay LZWS-ERPB8-RF comes with a 5-year limited warranty on the refrigeration system. Electrical parts and water system are warranted for 12 months from the date of installation or 18 months from factory shipment, whichever comes first.
Maintenance & Care: For cleaning, use a soft cloth and mild dishwashing soap to spray and wipe down the unit. When the filter status light turns red, replace the filter by removing the bottom access panel, unplugging the unit, unscrewing the old filter, installing a new WaterSentry Plus filter, and resetting the filter light using the black reset button.
Professional Installation: Requires installation from a licensed plumber with access to electrical connections. Contact support@bottlefillingstations.com to be connected to a network of Bottle Filler installation professionals for expert installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
