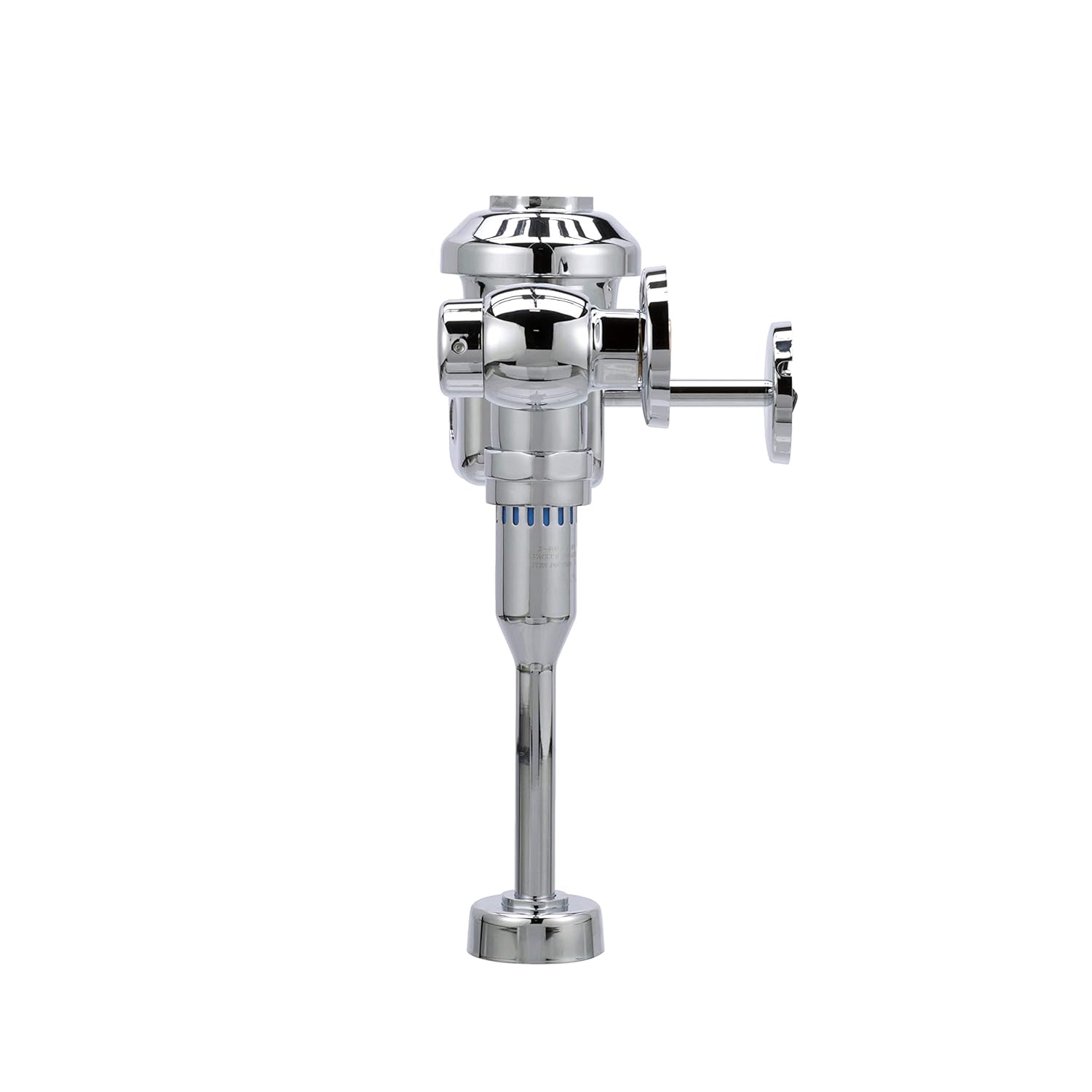

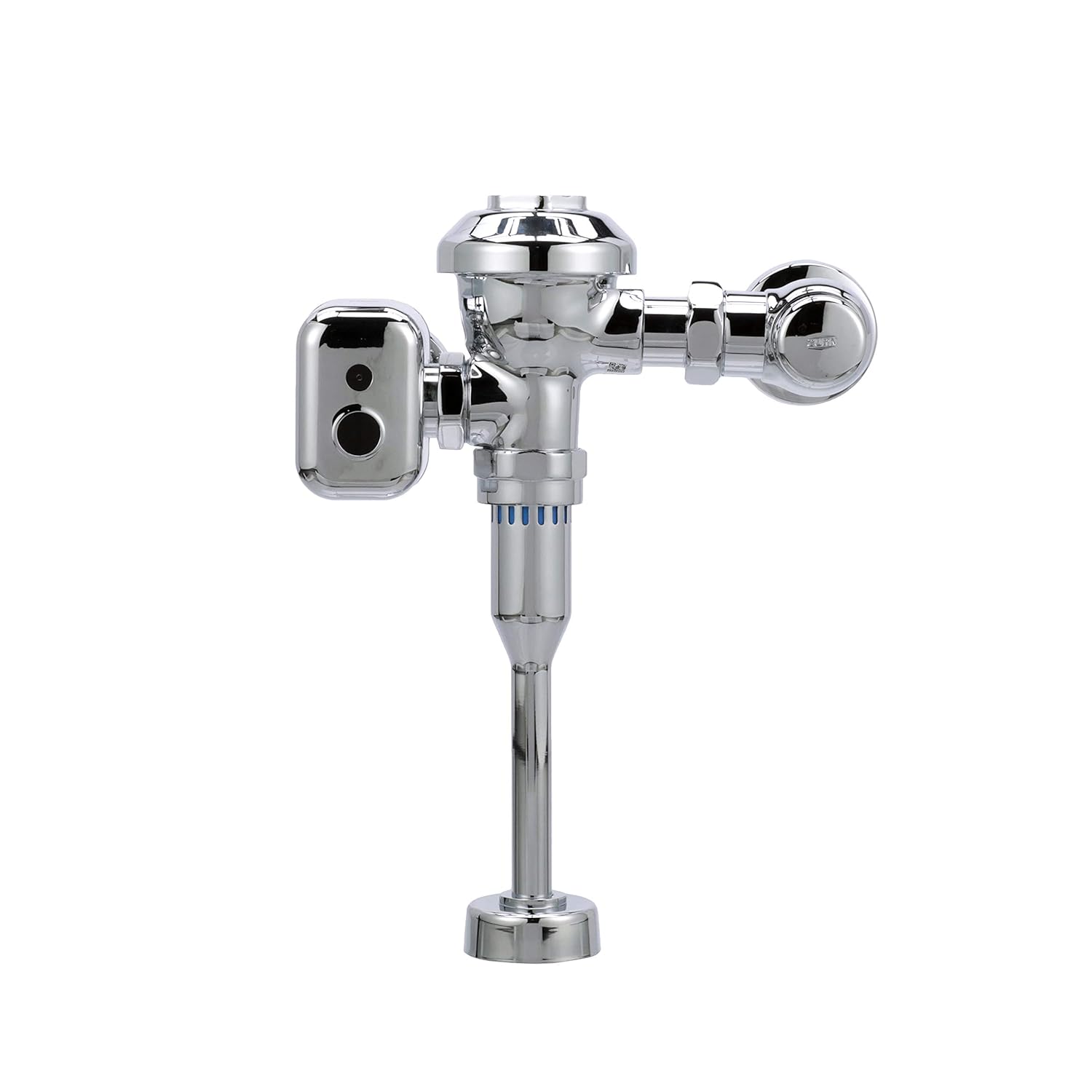

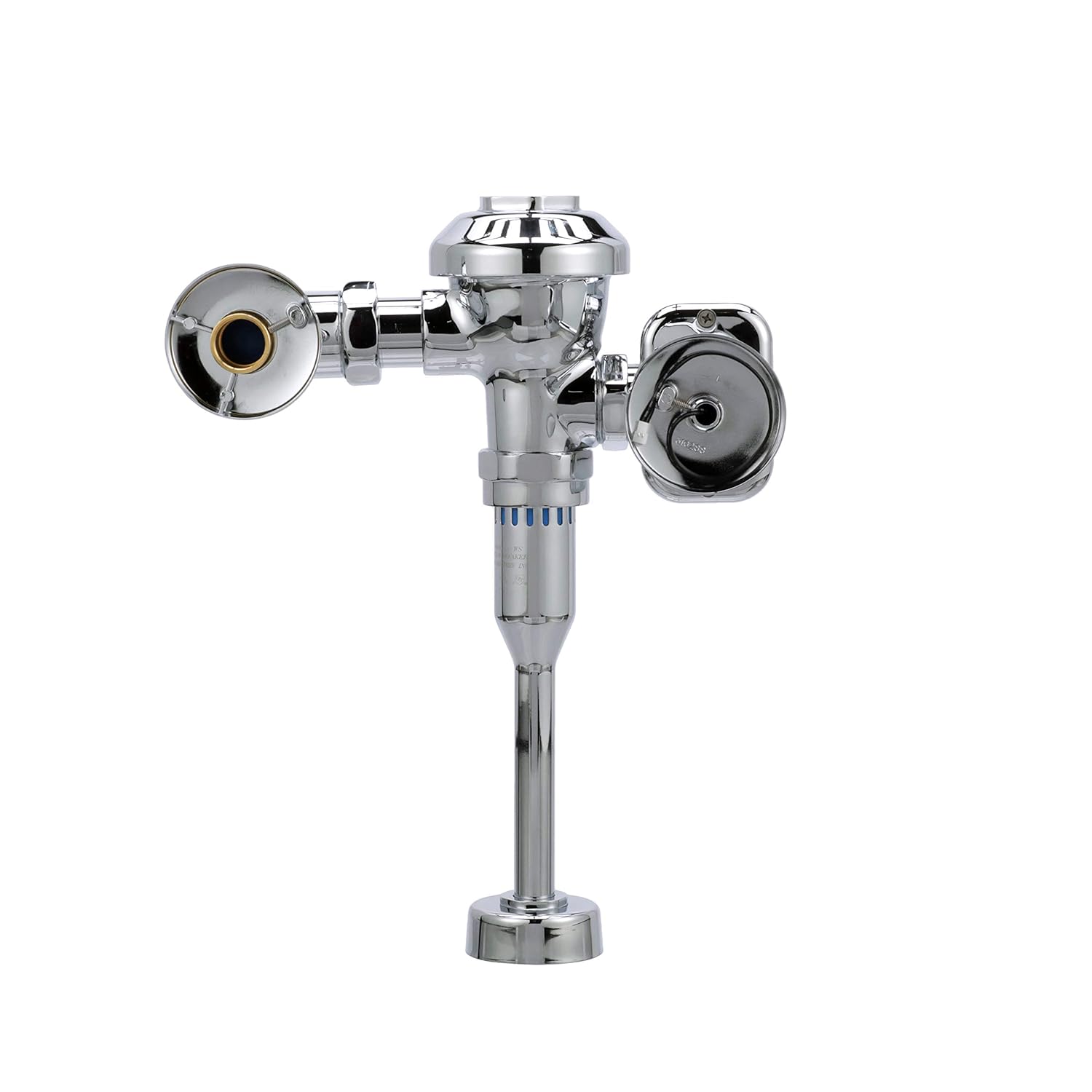

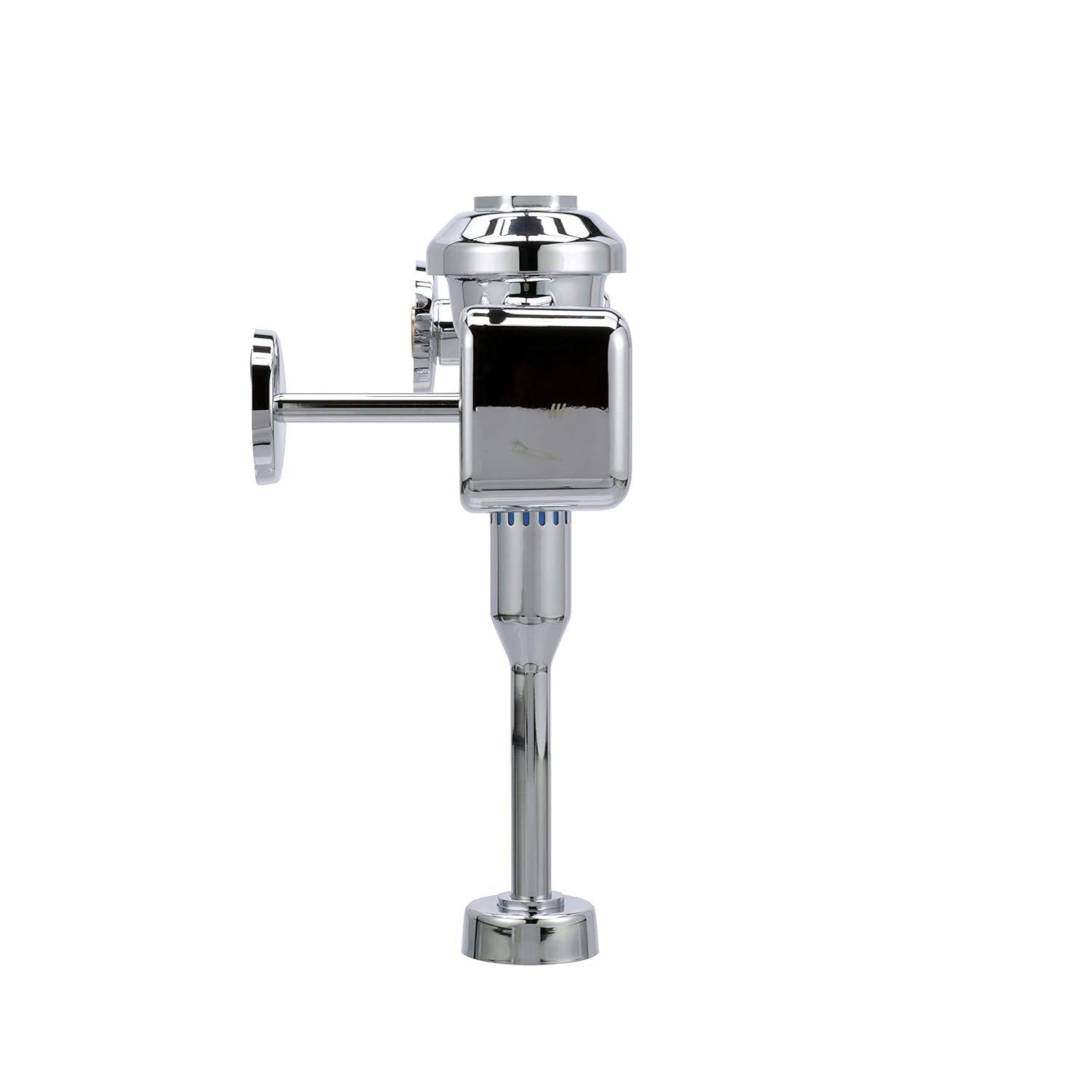

Zurn ZEMS6003AV-WS1-IS | AquaVantage ZEMS Exposed Hardwired Sensor Flush Valve, Chrome
Zurn ZEMS6003AV-WS1-IS | AquaVantage ZEMS Exposed Hardwired Sensor Flush Valve, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6003AV-WS1-IS | AquaVantage ZEMS Exposed Hardwired Sensor ...
The ZEMS6003AV-WS1-IS is a hardwired, sensor-activated flush valve designed for urinals requiring 1.0 gallons per flush. Built with Zurn’s AquaVantage® diaphragm technology and a vandal-resistant actuator, it delivers reliable performance in high-traffic commercial restrooms while supporting water conservation goals.
Key Specifications:
- Flow Rate: 1.0 gallons per flush (Water Saver).
- Operation: Infrared sensor activation with capacitive manual override button.
- Construction: Chrome-plated brass valve body with chloramine-resistant seals.
- Dimensions: 11-1/2" valve height; top spud connection.
Features & Benefits:
- Water-Saving Performance: The 1.0 gpf flush volume balances conservation with effective fixture evacuation. Ideal for facilities upgrading from standard 1.5 gpf systems.
- Touchless Hygiene: The integral sensor provides hands-free operation, reducing the spread of germs. Manual override button allows maintenance flushing without removing the actuator.
- Durable Design: Dezincification-resistant brass body, reinforced diaphragm, and vandal-resistant stop cover ensure long-term reliability in public environments.
What's Included:
- 1 x ZEMS6003AV-WS1-IS Exposed Urinal Flush Valve
- 1 x Sensor-Activated Actuator Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Vandal-Resistant Stop Cover
- 1 x Installation Hardware
Options Available:
- ZEMS6003AV-ULF-IS: Ultra Low Flow model with 0.125 gpf for maximum water savings
- ZEMS6003AV-IS-EWS: Extra Water Saver model with 0.5 gpf and hardwired sensor activation
FAQ
Q: Is this valve compatible with all urinals?
A: The ZEMS6003AV-WS1-IS is designed for 3/4" top spud urinals rated for 1.0 gpf. Always verify fixture compatibility before installation.
Q: What power source is required?
A: This valve must be powered by Zurn’s HW6 hardwire power converter or PC6 plug-in converter. Using non-Zurn power supplies may result in malfunction or damage to the sensor system.
Detailed Features & Benefits
Sensor Precision: The infrared convergence sensor minimizes false activations and supports adjustable range settings. Ideal for restrooms with varying stall configurations.
Commercial Durability: Engineered for high-use environments, the valve includes a vandal-resistant stop cap, cast wall flange, and chloramine-resistant internal seals.
Water Efficiency: The WS1 model supports LEED credits and WaterSense compliance when paired with compatible fixtures, offering a balance between conservation and performance.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
