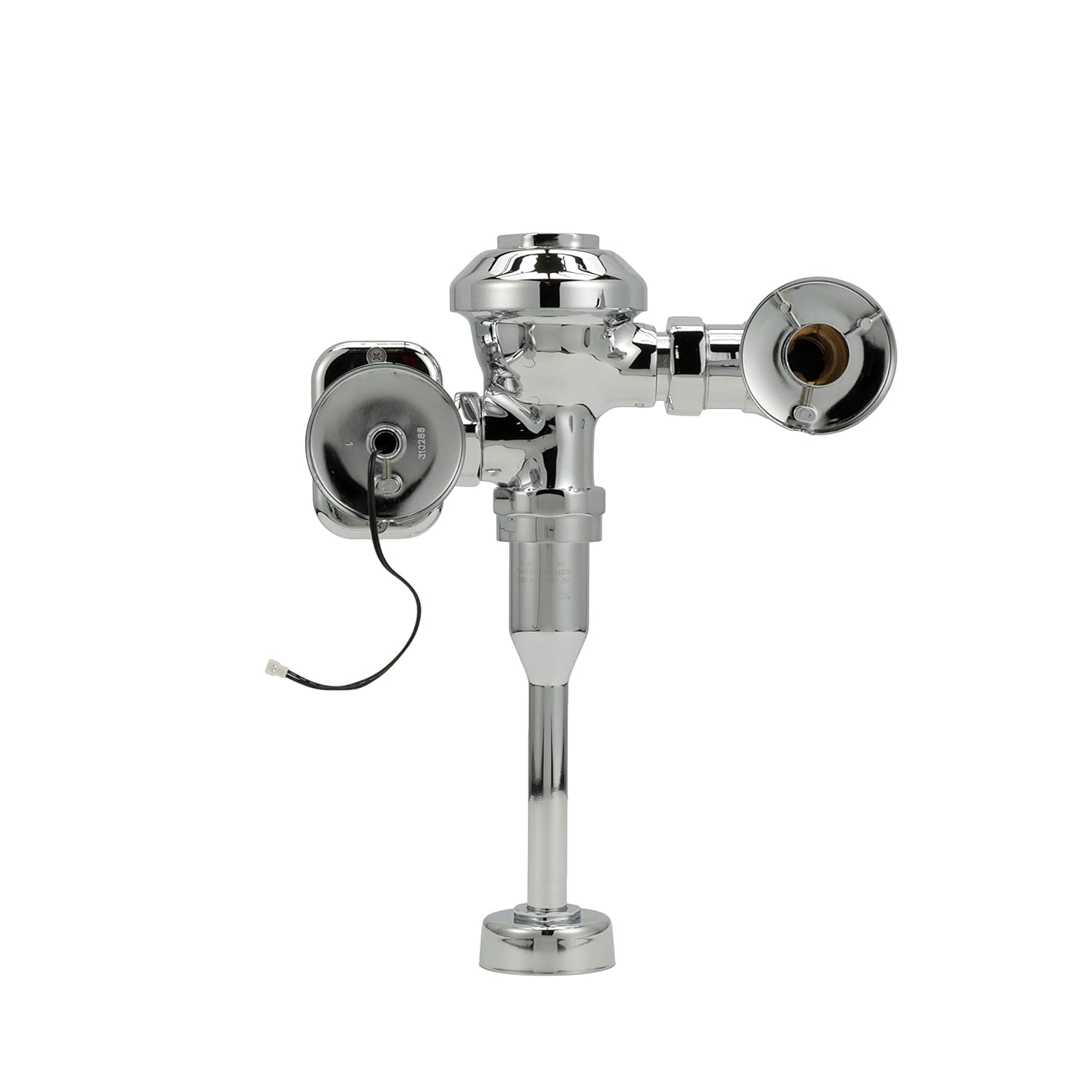

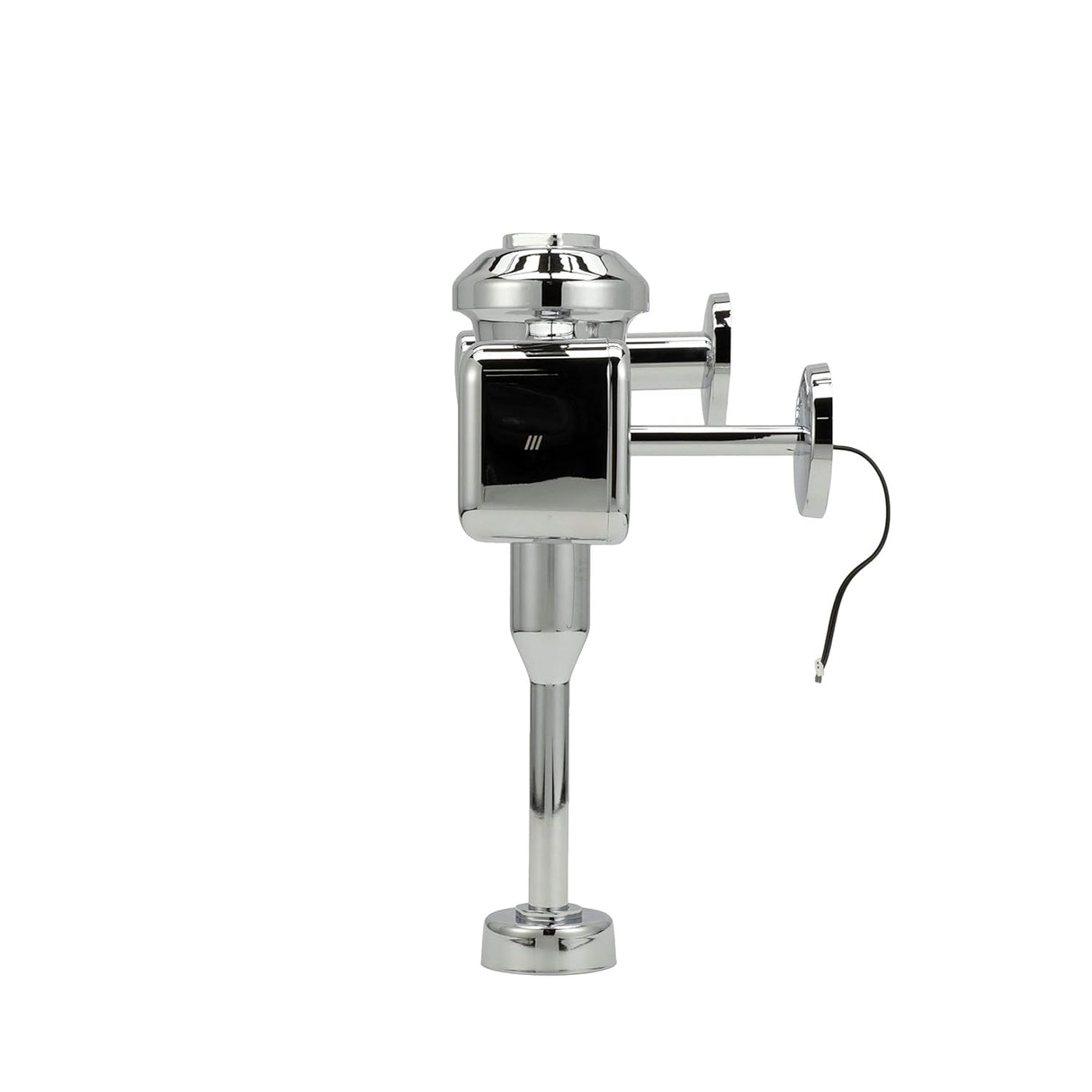

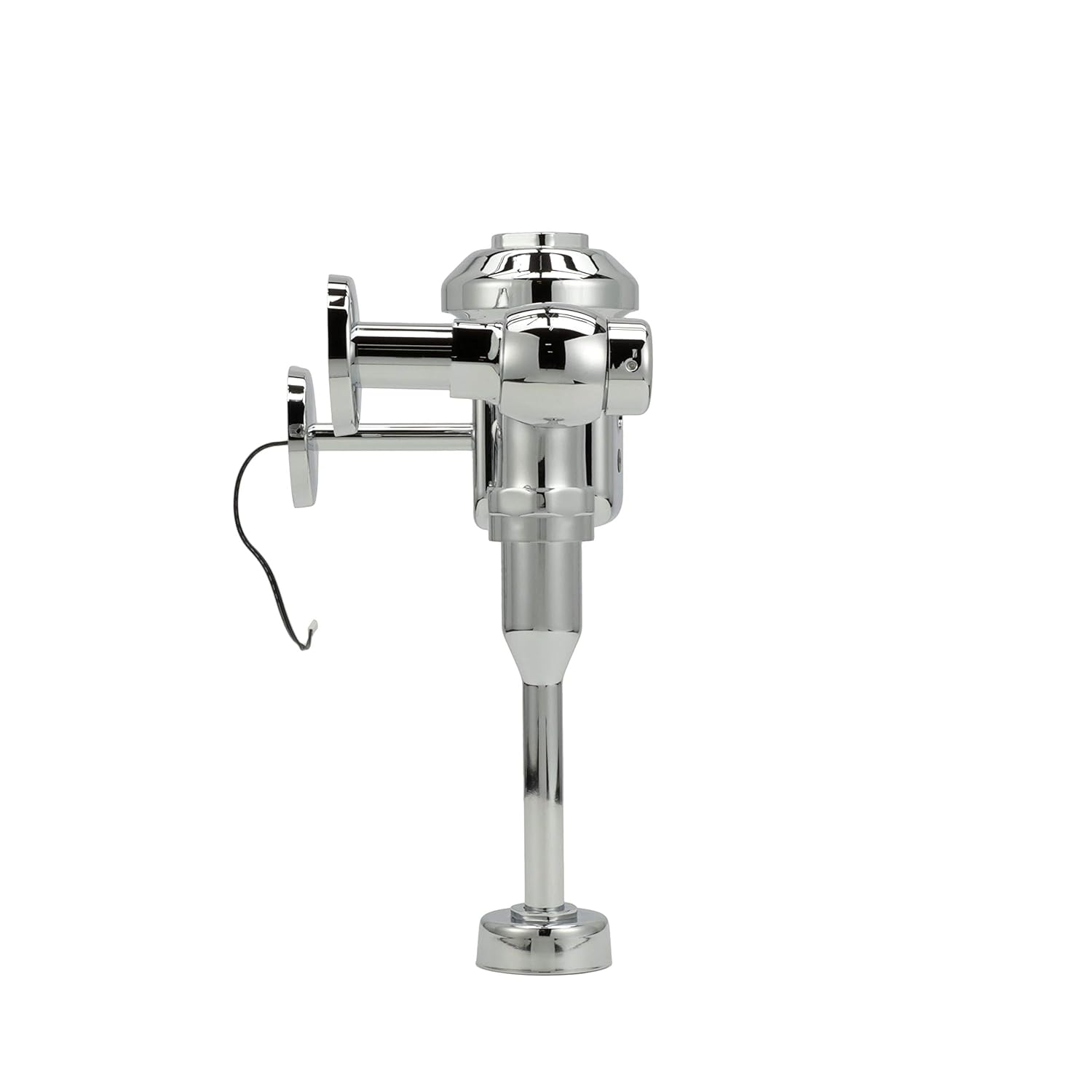

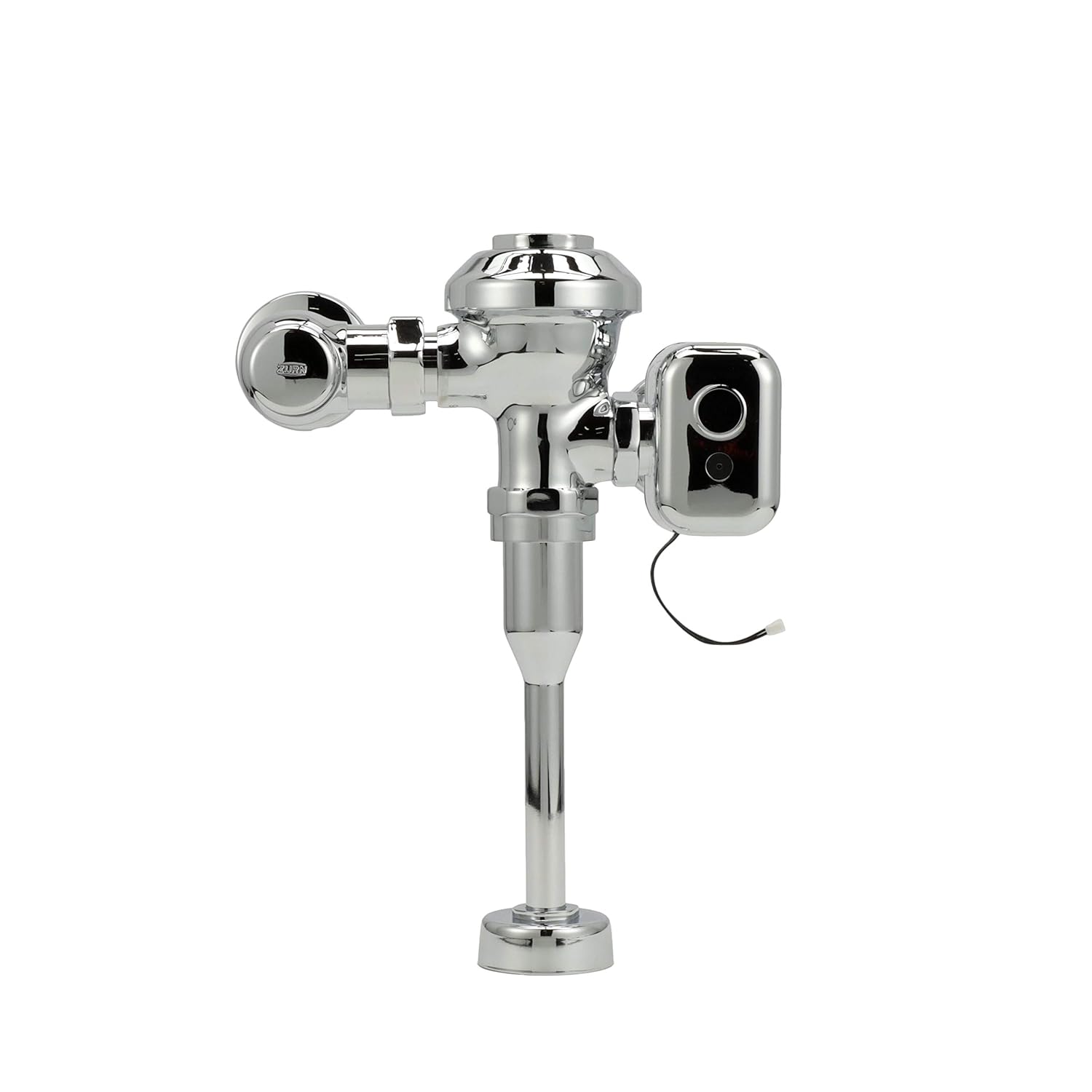

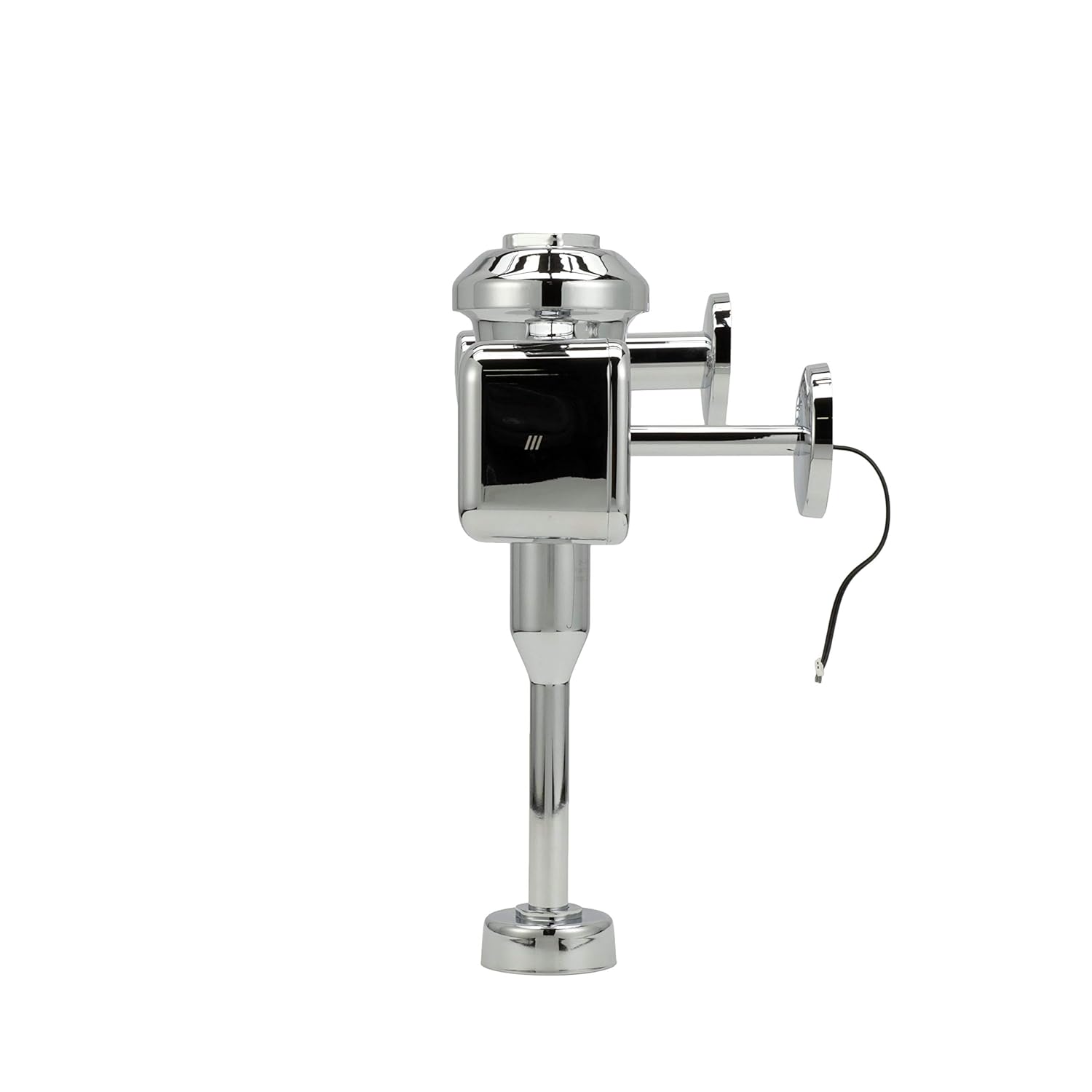

Zurn ZEMS6003AV-IS-EWS | AquaVantage Sensor Flush Valve, 0.5 gpf, Chrome
Zurn ZEMS6003AV-IS-EWS | AquaVantage Sensor Flush Valve, 0.5 gpf, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6003AV-IS-EWS | AquaVantage Sensor Flush Valve, 0.5 gpf, C...
The ZEMS6003AV-IS-EWS delivers reliable, water-conserving performance with integral sensor technology for commercial urinals. Its durable AquaVantage® technology combines with polished chrome-plated brass construction, making it an ideal solution for high-use facilities seeking both efficient performance and hands-free operation.
Key Specifications:
- Flow Rate: 0.5 gallons per flush (Extra Water Saver)
- Operation: Hardwired integral sensor with manual override button.
- Construction: Proprietary dezincification-resistant, polished chrome finish.
- Compliance: ADA compliant and WaterSense certified.
Features & Benefits:
- Integral Sensor Design: The IS designation features an integrated sensor directly mounted on the valve, eliminating the need for separate in-wall sensor installation.
- Water Conservation: The 0.5 gpf performance reduces water consumption by up to 67% compared to standard 1.5 gpf flush valves while providing effective fixture cleaning.
- Hands-Free Operation: Infrared convergence-type proximity sensor with capacitive sensing override push button eliminates the need to touch the flush valve, reducing cross-contamination in public restrooms.
- Durable Design: Chrome-plated brass construction ensures long-lasting performance in demanding commercial environments.
- Smart Technology: Customizable sensor range setting with automatic 8-hour flush feature ensures fresh fixture conditions even during periods of non-use.
What's Included:
- 1 x ZEMS6003AV-IS-EWS AquaVantage® Urinal Flush Valve with Integral Sensor
- 1 x Control Stop with Internal Siphon-Guard Protection
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Connecting Wire for Power
- 1 x Mounting Hardware Kit
Options Available:
- ZEMS6003AV-ULF-IS: Ultra Low Flow model with 0.125 gallons per flush
- ZEMS6003AV-WS1-IS: Water Saver model with 1.0 gallon per flush
FAQ
Q: What does the IS designation indicate?
A: The IS designation indicates that this model features an integral sensor, where the sensor is directly integrated into the flush valve body rather than installed separately in the wall. This provides a streamlined appearance and simplifies installation.
Q: What power options are available for this sensor flush valve?
A: The ZEMS6003AV-IS-EWS is a hardwired model that connects to a 120VAC power source using the P6000-HW6 power converter, which can power up to 8 flush valves. An optional P6000-MJ mini junction box is recommended for distributing power to multiple sensor locations.
Detailed Features & Benefits
Advanced Integral Sensor Technology: The ZEMS6003AV-IS-EWS features a sophisticated integral sensor design that combines the sensor and actuator in one unit attached to the flush valve. The 10-degree angled sensor provides optimal user detection while the manual override button offers backup operation if needed. The sensor range is easily customizable to accommodate specific installation environments.
Professional Grade Construction: The dezincification resistant low lead brass alloy with polished chrome finish provides superior durability in commercial environments. Designed to withstand frequent use and resist vandalism, the ZEMS6003AV-IS-EWS maintains its attractive appearance while delivering reliable performance year after year.
Enhanced Water Efficiency: With a highly efficient 0.5 gpf flow rate, this model significantly reduces water consumption compared to standard urinal flush valves. The EWS designation represents Zurn's commitment to environmental water savings without compromising performance, helping facilities meet sustainability goals and reduce operational costs.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
