Elkay LZSTL8WSLP | Wall-mount Enhanced EZH2o Bi-level Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Granite Gray
Elkay LZSTL8WSLP | Wall-mount Enhanced EZH2o Bi-level Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Granite Gray is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSTL8WSLP | Wall-mount Enhanced EZH2o Bi-level Bottle Fillin...

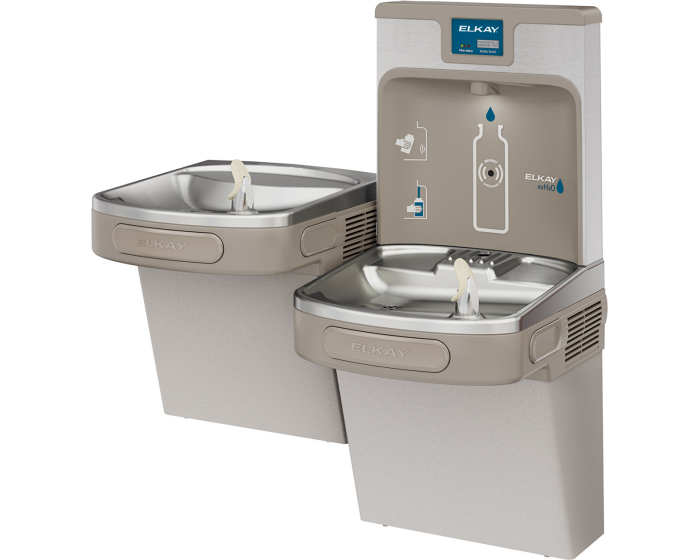

The Elkay LZSTL8WSLP Enhanced Bi-Level Bottle Filler & ADA Cooler delivers clean, filtered water through a fast-filling bottle filler and dual drinking fountains. Designed for high-traffic indoor environments such as schools and airports, it combines advanced filtration, energy savings, and ADA accessibility in a durable Light Gray Granite finish.
Key Specifications:
- Design: Enhanced EZH2O® bi-level cooler with integrated bottle filler and electronic sensor activation.

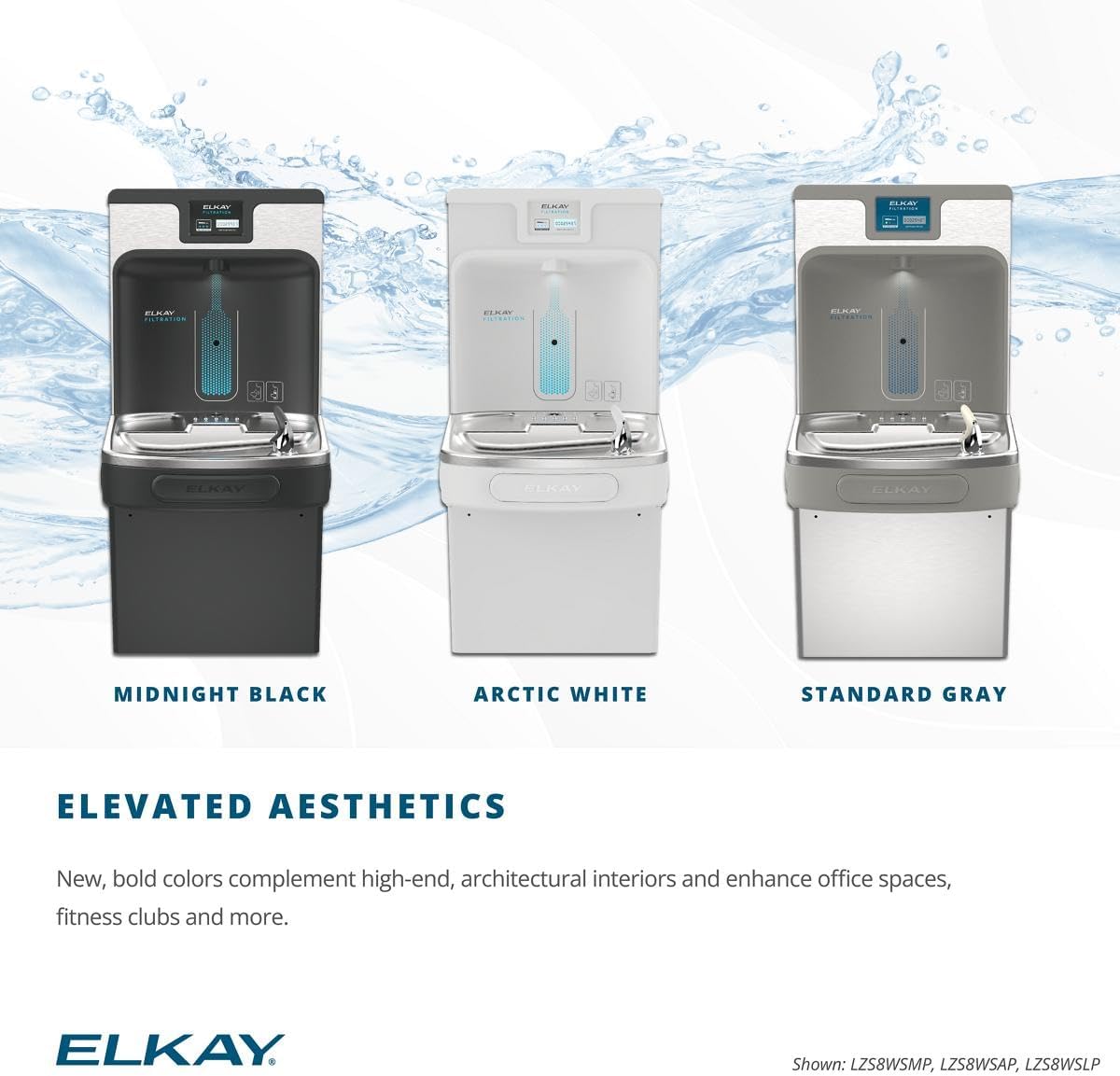

- Finish: Light Gray Granite (also available in Arctic White and Midnight Black).
- Filtration: Ships with 51600C WaterSentry® Filter (6,000-gallon high capacity); compatible with 51300C (3,000-gallon) and 71300C (PFAS reduction).
- Refrigeration: Provides 8.0 GPH of 50°F chilled water using R-134a refrigerant.
- Stations Served: 2 (bi-level ADA cooler with integrated bottle filler).
Features & Benefits:
- LED Screen: Displays filter status and Green Ticker™ tracking bottles saved from waste.
- Automatic Reset: Fillsafe recognition resets LED light upon filter replacement.
- Sustainability: Green Ticker™ encourages reusable bottle use and reduces plastic waste.
- Guided Filling: Low-energy LED light assists users during bottle fill.
- Hygiene: Flexi-Guard® safety bubbler and antimicrobial components inhibit mold and microorganisms.
- Cold Water: Hermetically sealed refrigeration system delivers chilled water.
- Accessibility: ADA-compliant bi-level design for all users.
What's Included:
- LZSTL8WSLP Bottle Filling Station and Bi-Level Cooler unit
- WaterSentry® Filter Cartridge (51600C, 6,000-gallon capacity)
- Flexi-Guard® safety bubbler
- Installation instructions
Elkay LZSTL8WSLP Videos:
| Enhanced Bi-level EZH2o Installation: | Elkay EZH2o Filter change: | Elkay EZH2o Care & Cleaning |
FAQ
Q: What new features are included in the Enhanced series?

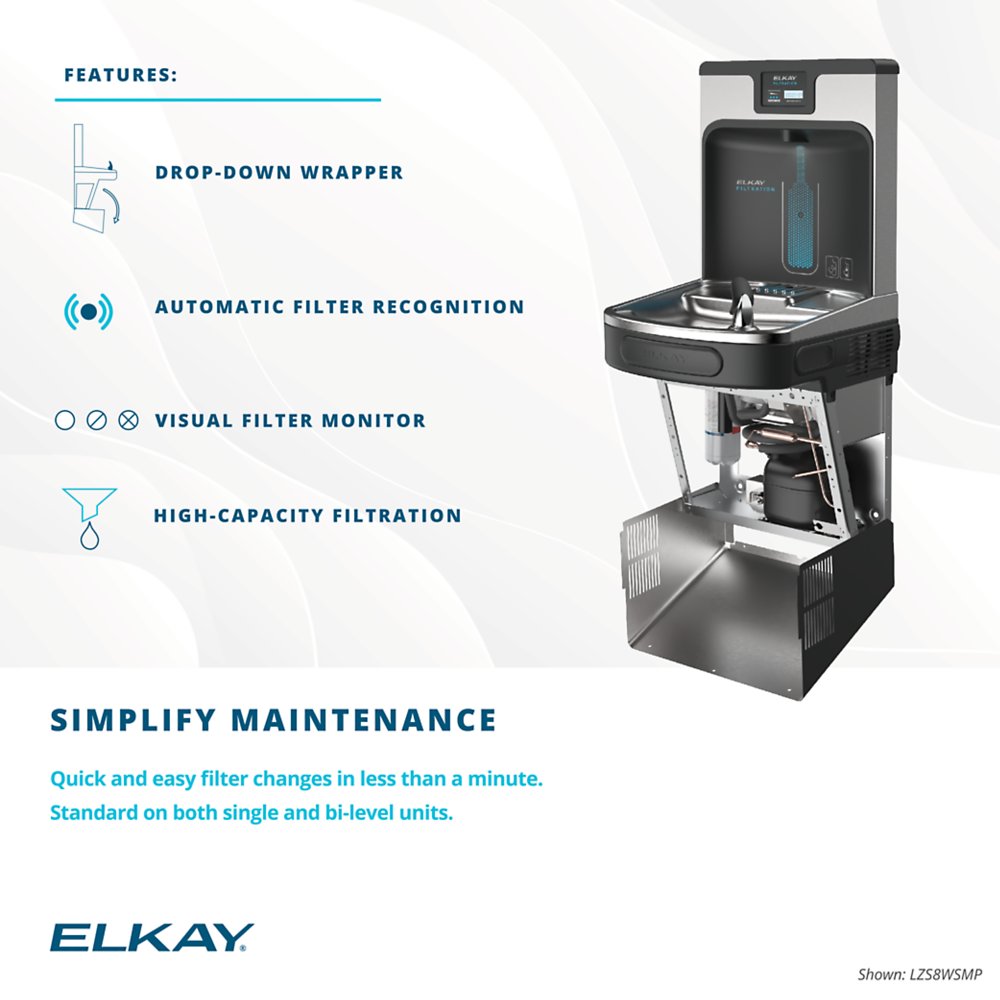

A: Enhanced models feature energy savings mode, built-in diagnostics, automatic LED reset upon filter replacement, Quick Filter Change wrapper for faster service, and Real Drain system to eliminate standing water.
Q: What filter does this model use?
A: The LZSTL8WSLP ships with the 51600C WaterSentry® Filter (6,000-gallon high capacity). Standard replacement option is the 51300C (3,000-gallon), and the 71300C provides PFAS reduction.
Q: How long do filters last?
A: Standard filters last 3,000 gallons or 1 year; high-capacity filters last 6,000 gallons or 1 year. Actual lifespan depends on usage and water quality.
Q: What water pressure is required?
A: Supply line pressure must be between 20–105 psi.
Q: What is the difference between the LZSTL8WSLP and the LZSTL8WSSP?
A: The LZSTL8WSLP comes in Light Gray Granite finish, while the LZSTL8WSSP comes in Stainless Steel.
Q: What warranty coverage is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 12 months on electrical components and water system.

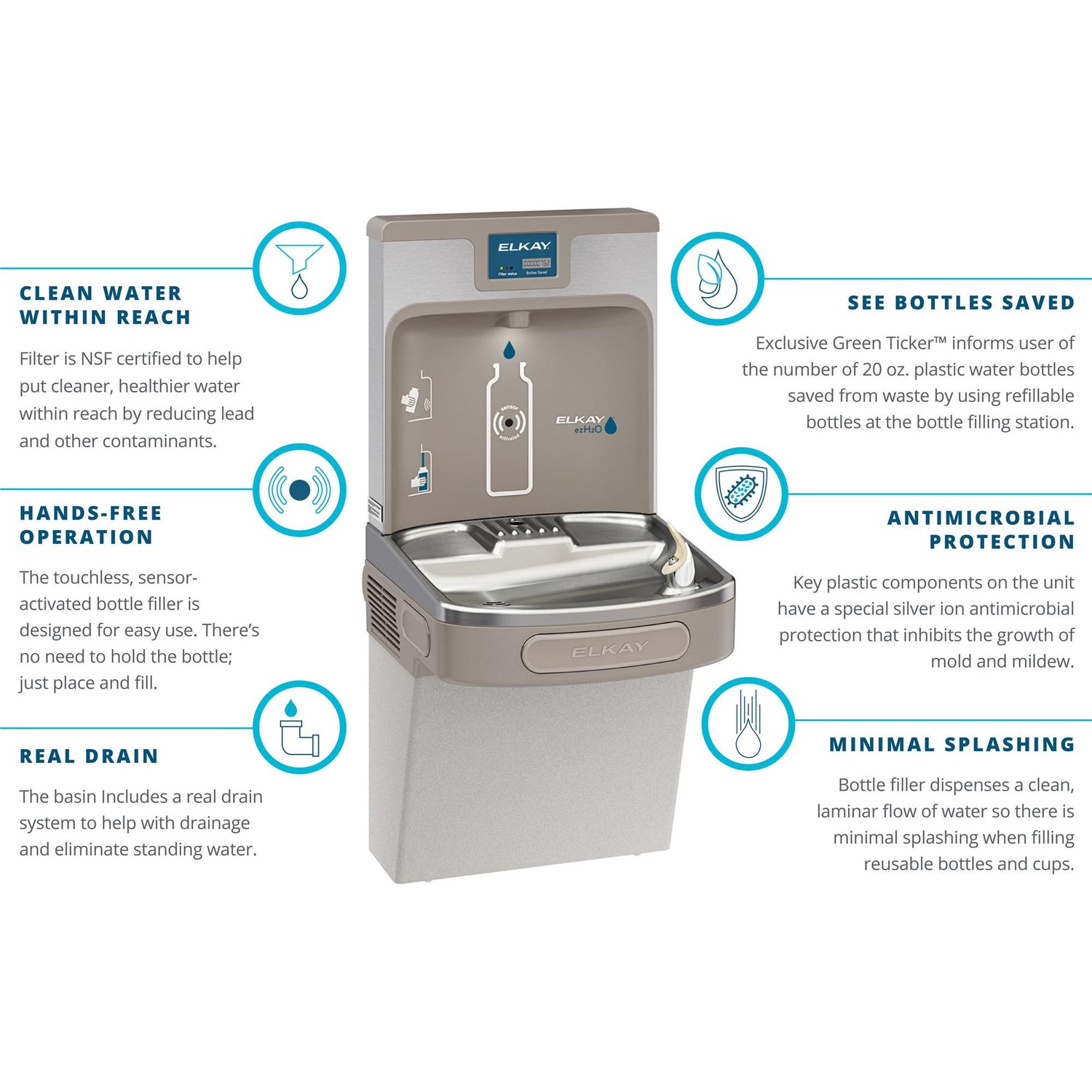

Detailed Features & Benefits

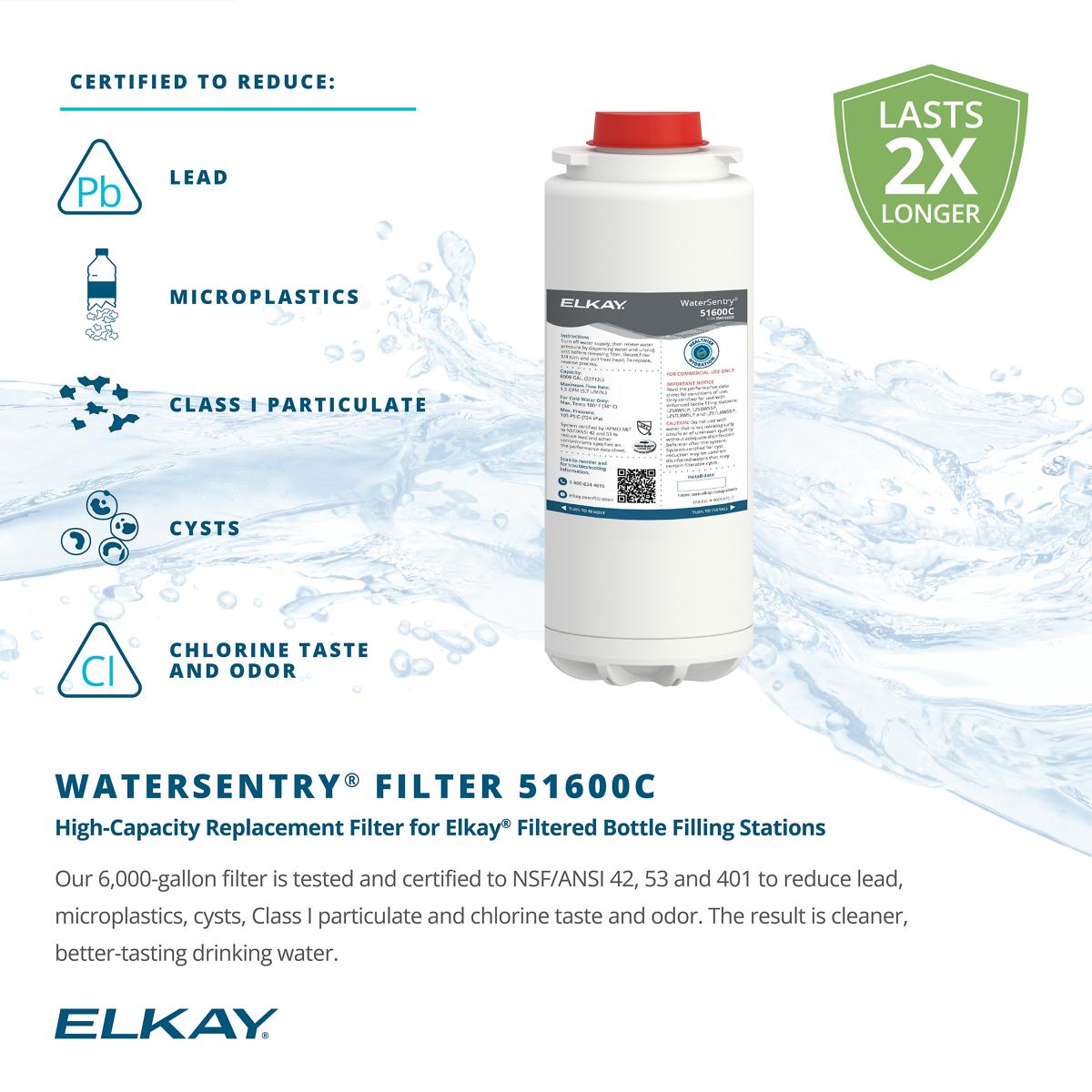

Advanced Filtration: Certified to NSF/ANSI 42, 53, 372, and 401 standards, the WaterSentry® filter reduces lead, microplastics, particulates, cysts, chlorine taste, and odor.
Energy Savings & Diagnostics: Enhanced models feature programmable energy-saving mode and built-in diagnostics for troubleshooting and sustainability reporting.
Hygienic Design: Flexi-Guard® safety bubbler, antimicrobial components, laminar flow, and Real Drain system ensure safe, splash-free hydration.
ADA Compliance & Durability: Bi-level design meets ADA standards. Finished in Light Gray Granite, the unit is durable and modern, ideal for high-traffic environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
