Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless...
The Elkay LK4420BF1U Outdoor ezH2O® Upper Bottle Filling Station is a bi-level pedestal unit designed for outdoor durability, accessibility, and reliable hydration. Featuring a bottle filler and a drinking fountain, it is ideal for parks, campuses, and recreational facilities.
Key Specifications:
- Design: Outdoor bi-level pedestal with upper bottle filler and lower drinking fountain
- Finish: Heavy-duty 300 Series Stainless Steel, vandal-resistant construction
- Filtration: Non-filtered
- Refrigeration: Non-refrigerated
- Stations Served: 2 (Bottle Filler + Drinking Fountain)
Features & Benefits:
- ADA Compliant: Inclusive bi-level design ensures accessibility for all users
- Vandal-Resistant: Tamper-resistant bubbler, push-button, and basin withstand heavy use
- Laminar Flow: Provides clean, splash-free bottle filling
- Corrosion Protection: E-Coat immersion process ensures long-lasting outdoor performance
- Durable Construction: Stainless steel with tamper-resistant screws for longevity
What's Included:
- Elkay LK4420BF1U Outdoor Bottle Filling Station and Drinking Fountain unit
Related Variants:
| Model | Design | Freeze Resistant | Dimensions | Best For |
|---|---|---|---|---|
| LK4420BF1U | Bi-Level (Bottle Filler + Drinking Fountain) | No | 14" × 31" × 64" | Budget-friendly outdoor hydration |
| LK4420BF1UDB | Bi-Level + Pet Fountain | No | 26" × 31" × 64" | Pet-friendly locations |
| LK4420BF1UFRK | Bi-Level (Bottle Filler + Drinking Fountain) | Yes | 14" × 31" × 64" | Cold climates |
FAQ
Q: What Colors are Available?
A: Standard in Evergreen. Other options (Black, Blue, Gray, plus additional finishes with MOQ 10) are available with extended lead times.
Q: Is the LK4420BF1U Designed for Outdoor Use?
A: Yes. It is specifically engineered for outdoor environments with heavy-duty stainless steel construction, E-Coat corrosion protection, and vandal-resistant components. It must be winterized or protected in extreme climates.
Q: Does the LK4420BF1U Include Freeze Protection?
A: No. This model is non-freeze resistant. For installations in cold climates, choose the LK4420BF1UFRK variant which includes a freeze-resistant valve installed below the frost line.
Q: Does the LK4420BF1U Include Filtration?
A: No. It is a non-filtered unit. Inline filtration can be added separately using a WaterSentry® Plus Filter Kit.
Q: Is the LK4420BF1U Refrigerated?
A: No. It is non-refrigerated. A remote chiller can be connected if properly sheltered and temperature controlled.
Q: What Accessories are Available for Installation and Operation?
A: Elkay offers several accessories for outdoor installations, including the 97890C Direct Bury Adaptor Kit for secure mounting and the 4481FP Foot Pedal Accessory for hands-free activation. Also Locking hose Bib for keeping the hose safe.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).

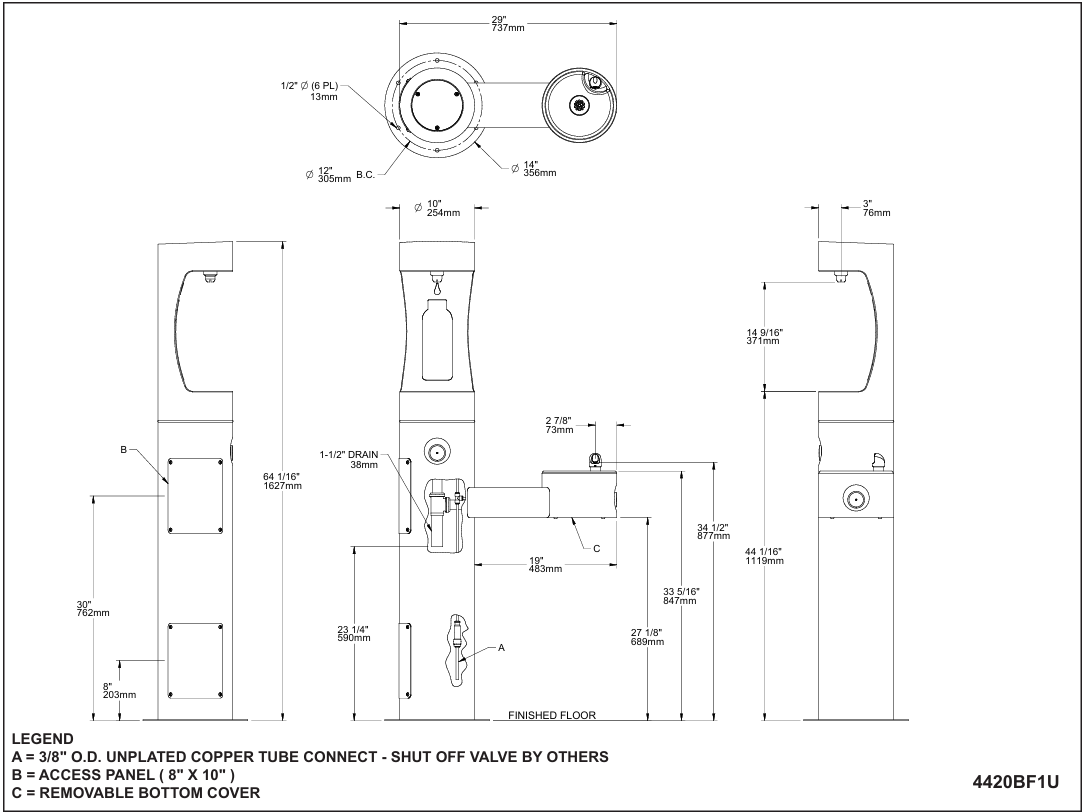

- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
