Elkay LK4430BF1M | Freestanding Tri-level Bottle Filling Station | Filterless, Non-refrigerated
Elkay LK4430BF1M | Freestanding Tri-level Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.

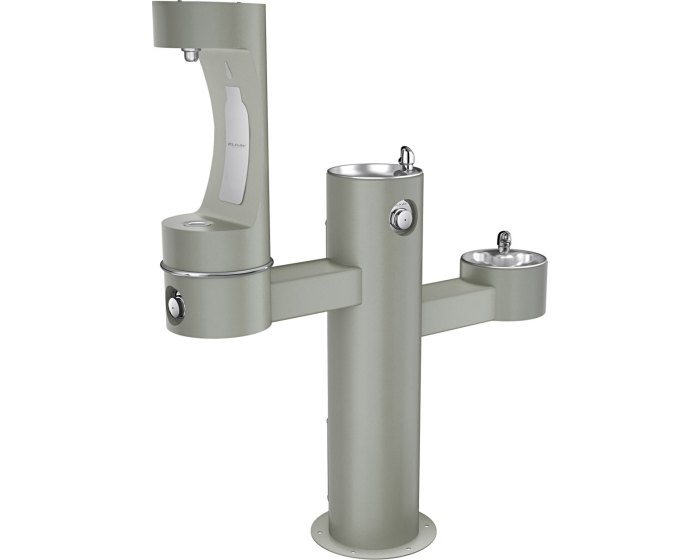

*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

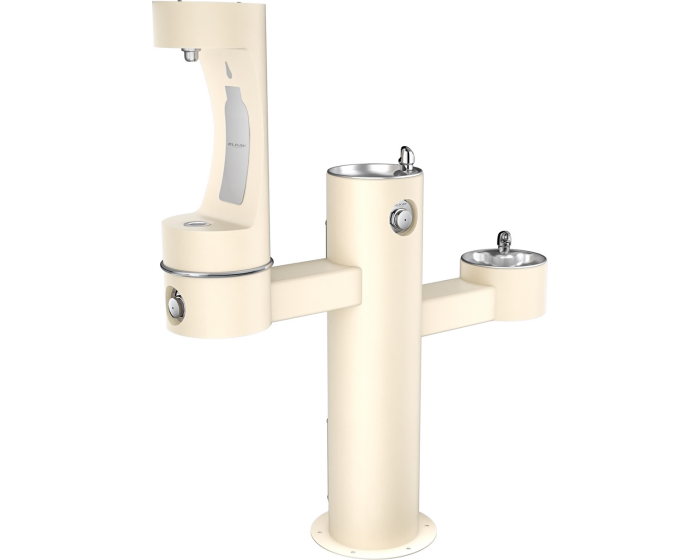

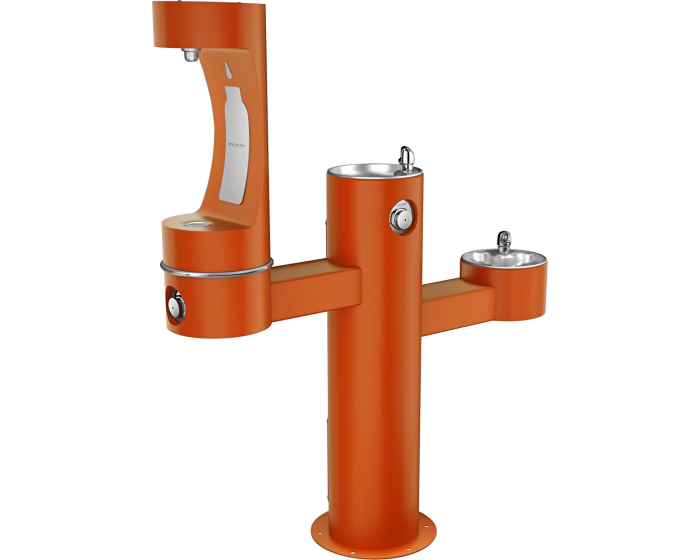

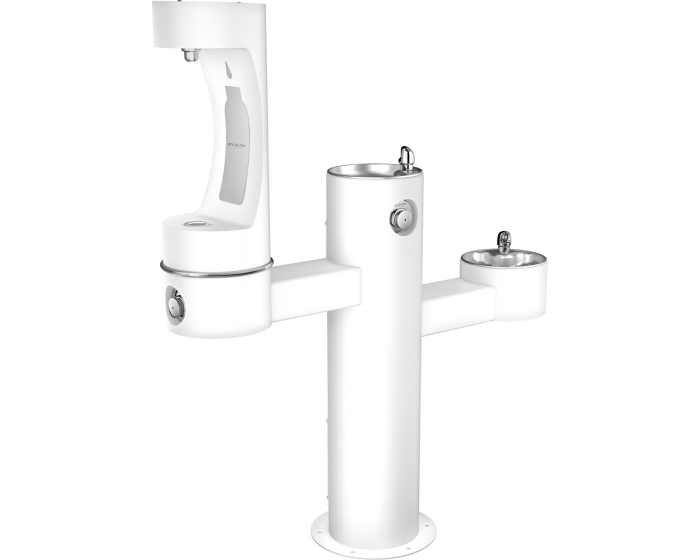

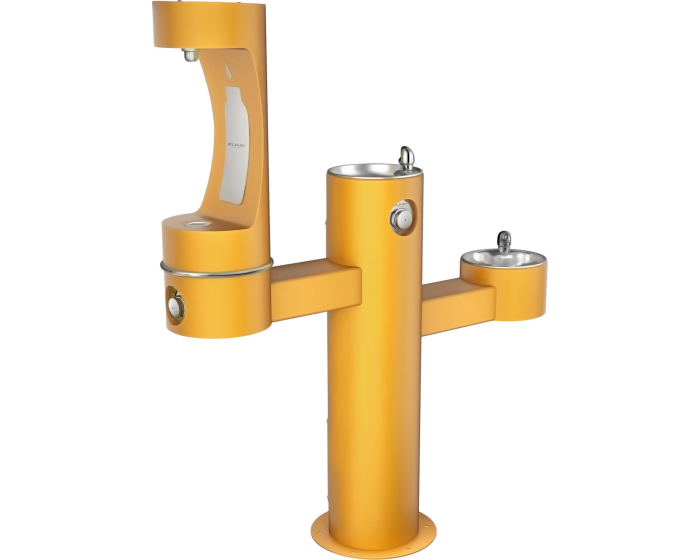

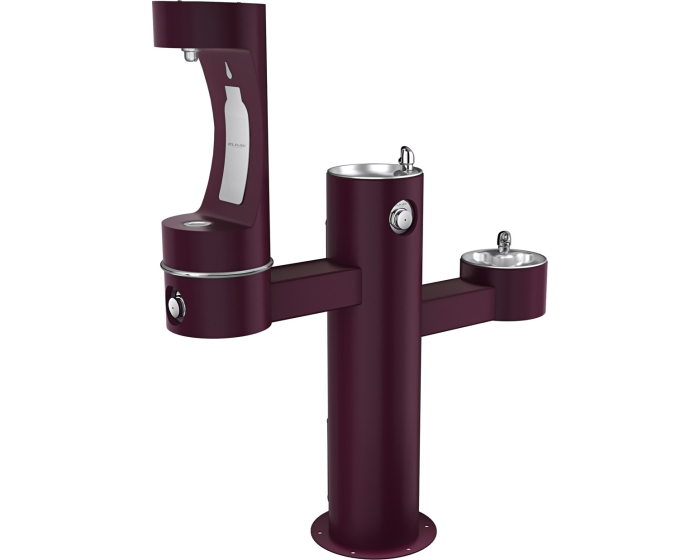

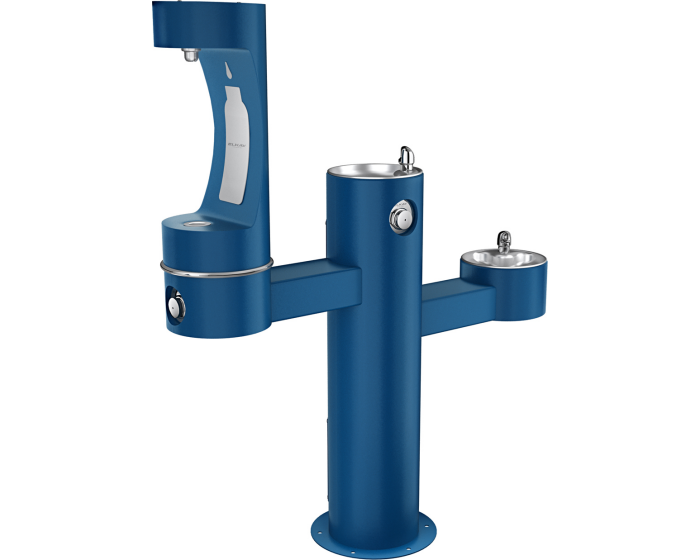

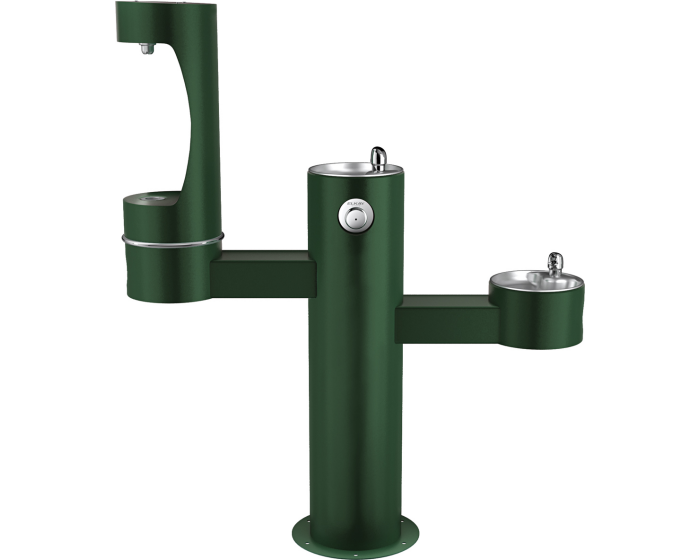

The Elkay LK4430BF1M is a versatile outdoor ezH2O® Middle Bottle Filling Station with a Tri-Level Pedestal design, offering a robust hydration solution for diverse public spaces. This non-filtered, non-refrigerated unit combines durability, accessibility, and eco-friendly features, making it an ideal choice for parks, campuses, and high-traffic outdoor areas where reliable, inclusive hydration is essential for users of all ages and abilities.
Key Specifications:

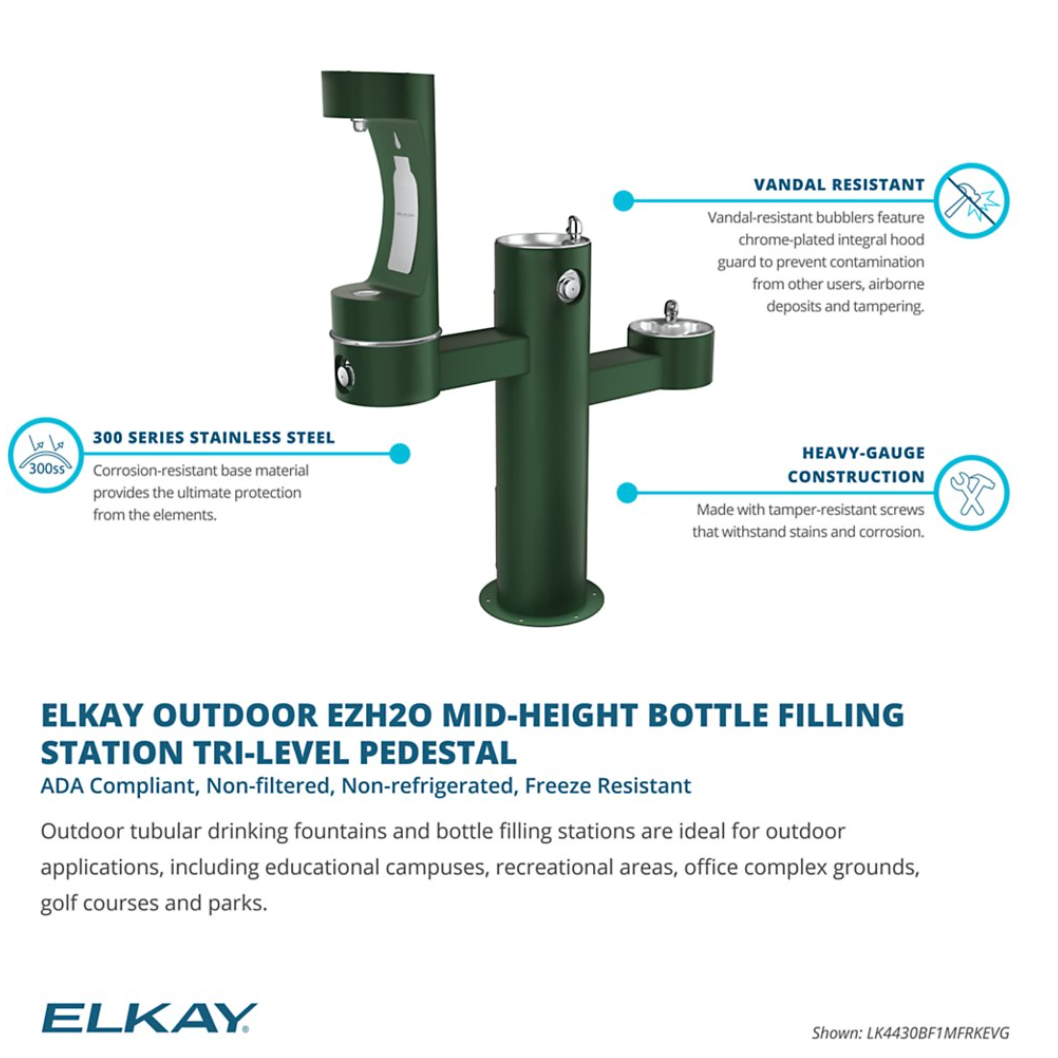

- Construction: Heavy-duty, vandal-resistant 300 Series stainless steel for maximum durability in outdoor environments.
- Design: Tri-Level configuration with a middle bottle filling station and two bubbler stations, serving 3 stations in total.
- Dimensions: 14" L x 48" W x 55-1/8" H, suitable for various outdoor installations.
- Weight: Approximately 215 lbs. shipping weight, ensuring stability and robustness.
- Activation: Mechanical button operation, requiring no electrical power for reliable function.
Features & Benefits:
- Inclusive Accessibility: Tri-Level design accommodates users of different heights and abilities, promoting universal access to hydration.
- Weather Resistance: Engineered for outdoor use with proper winterization, providing year-round hydration access in various climates.
- Eco-Friendly Operation: Encourages the use of refillable bottles, reducing single-use plastic waste and supporting sustainability initiatives.
- Laminar Flow Technology: Ensures a clean, splash-free fill, enhancing user experience and maintaining a tidy surrounding area.
- Vandal Resistance: Robust construction and vandal-resistant features ensure longevity and reduced maintenance costs in high-traffic public areas.
What's Included:
- Elkay LK4430BF1M Outdoor ezH2O® Middle Bottle Filling Station Tri-Level Pedestal
- Vandal-resistant bubblers
FAQ
Q: What colors are available for the Outdoor Bottle Filling Station?

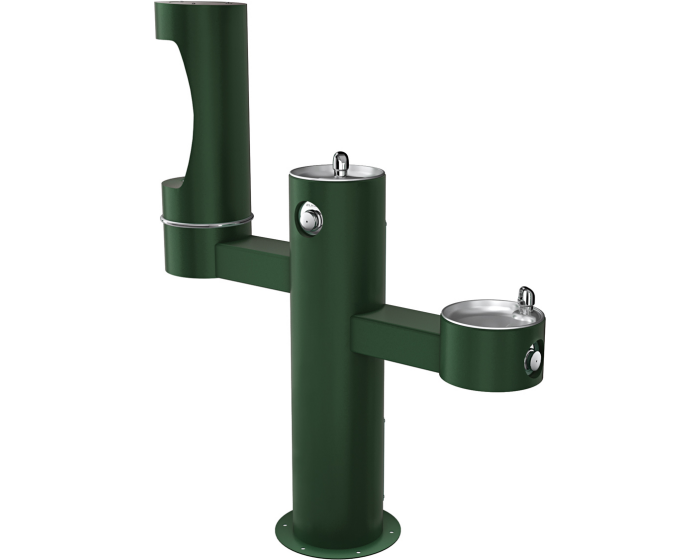

A: Our outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 15-20 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor Bottle Filling Stations, Outdoor Filling Stations don’t have a built-in filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit. If this is desired, we will need to create a custom order.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: There are currently no floor-mounted Outdoor Bottle Filling Stations with refrigerating abilities. However, both the outdoor wall-mounted Elkay VRC8WSK and VRCTL8WSK units come with a chiller. There is also the option of hooking up a remote chiller to the floor-mounted Outdoor Drinking Fountains, which can be especially beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Outdoor Bottle Filling Stations are very durable. They are made with heavy-duty steel with textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
Detailed Features & Benefits
Tri-Level Design for Universal Accessibility: The LK4430BF1M's standout feature is its Tri-Level design, which sets a new standard for inclusive hydration solutions in outdoor spaces. By offering a middle bottle filling station and two bubbler stations at different heights, this fountain ensures that users of all ages, heights, and abilities can easily access fresh drinking water. This thoughtful design not only complies with ADA requirements but goes beyond to create a truly inclusive environment. The middle bottle filling station caters to the growing trend of reusable water bottles, while the two bubbler stations at different heights accommodate both children and adults, as well as individuals using wheelchairs. This universal accessibility promotes equal access to hydration, making public spaces more welcoming and functional for everyone.
Durability and Vandal Resistance: Engineered for the challenges of high-traffic outdoor environments, the LK4430BF1M boasts exceptional durability and vandal resistance. Constructed from heavy-duty, 300 Series stainless steel, this fountain is built to withstand the rigors of constant use, attempted vandalism, and harsh weather conditions. The vandal-resistant bubblers and mechanical button activation system are designed to resist tampering and ensure consistent operation even in unsupervised areas. This robust construction not only extends the product's lifespan but also significantly reduces maintenance costs and downtime. For municipalities, campuses, and public spaces, this translates to a reliable, long-term hydration solution that maintains its functionality and appearance year after year, providing an excellent return on investment and ensuring continuous access to drinking water for the community.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
