Elkay EMASM | Surface Mount Bottle Filler | Filterless, Non-refrige...

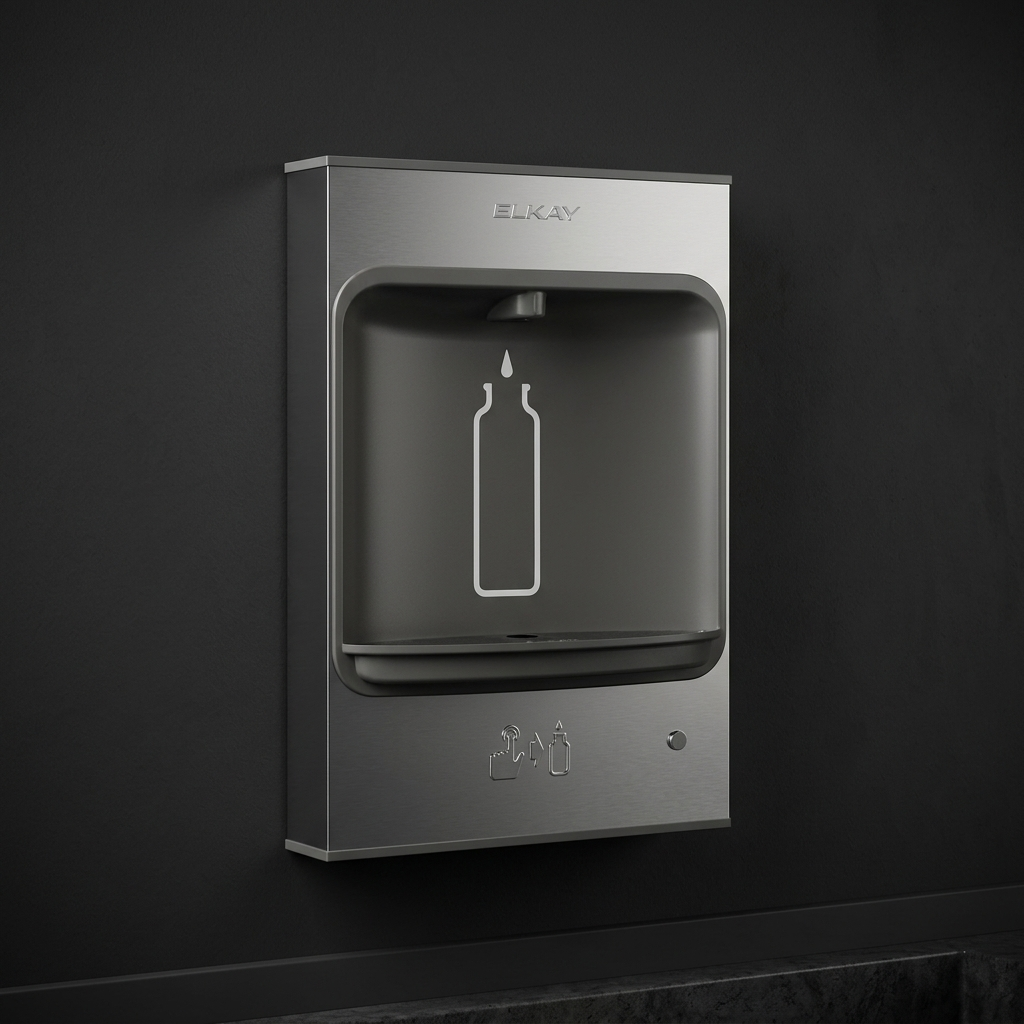

The Elkay EMASM ezH2O® Bottle Filling Station provides convenient bottle filling in a mechanically activated surface-mount design that requires no electricity. Ideal for indoor applications with limited wall depth or electrical access, it delivers reliable hydration with antimicrobial components, laminar flow technology, and a real drain system.
Key Specifications:
| Design | Surface-mount mechanically activated bottle filling station |
| Finish | Stainless Steel |
| Filtration | Non-filtered; filtered version available as LMASMB |
| Refrigeration | Non-refrigerated; compatible with ECH8 or ECH8GRN remote chillers |
| Stations Served | 1 bottle filling station |
Features & Benefits:

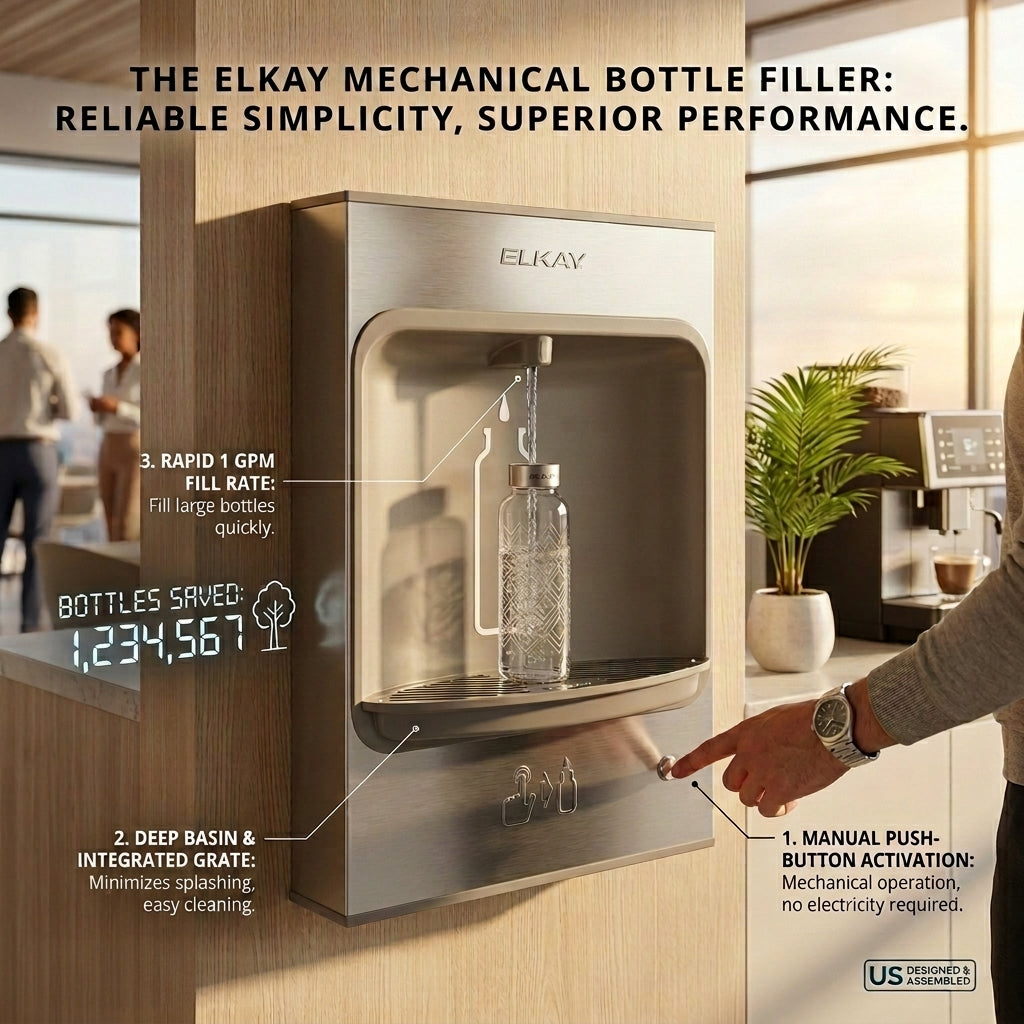

- Mechanical Activation: Continues to provide water during power outages since no electricity or batteries are required.
- Laminar Flow Delivery: Provides a clean fill with minimal splashing for reusable bottles and containers.
- Antimicrobial Protection: Key plastic components utilize silver ion antimicrobial technology to help maintain cleaner surfaces.
- Real Drain System: Eliminates standing water to support a more hygienic filling environment.
- Surface-Mount Installation: Ideal for retrofit applications and locations where wall depth or electrical access is limited.
What's Included:
- EMASM Mechanical Bottle Filling Station
- Factory-installed bottle filling assembly
- Mounting hardware
- Installation instructions and warranty documentation
Comparison of Surface-Mount Elkay Bottle Filling Stations:
| Feature | EMASM | EZWSSM |
|---|---|---|
| Finish | Stainless Steel | Stainless Steel |
| Filtration | Non-filtered | Non-filtered |
| Activation | Mechanical push-button activation | Sensor-activated, touchless operation |
| Power Requirement | No electricity required | Requires electrical connection |
| Best For | Applications where simplicity, low maintenance, and operation during power outages are important | Schools, offices, and public spaces seeking touchless bottle filling convenience |
| Features | Mechanical activation, antimicrobial components, laminar flow, Real Drain System | Hands-free sensor operation, antimicrobial components, laminar flow, Real Drain System |
FAQ
Q: Does the Elkay EMASM Require Electricity or Batteries?
A: No. The EMASM is fully mechanically activated and requires no electricity or batteries for operation.
Q: Is the Elkay EMASM Filtered?
A: No. The EMASM is a non-filtered bottle filling station. For filtration, choose the LMASMB.
Q: Can the Elkay EMASM Be Connected to a Chiller?
A: Yes. The EMASM is compatible with the ECH8 and ECH8GRN remote chillers for chilled water applications.
Q: Does the Elkay EMASM Include Drainage?
A: Yes. The integrated Real Drain System helps eliminate standing water and supports cleaner operation.
Q: Is the Elkay EMASM ADA Compliant?
A: Yes. The EMASM complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: Can Someone Drink Directly From the Elkay EMASM?
A: No. The EMASM is a bottle filling station only and does not include a drinking fountain or bubbler.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EMASM is a surface‑mount, non‑filtered bottle filling station designed for retrofit and space‑saving installations. Its compact design provides convenient bottle filling capabilities without requiring major wall modifications, making it ideal for schools, offices, and public facilities.
Key Installation Requirements:
- Surface‑mount installation on properly supported wall structure
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for proper operation
- Maintain service clearance for future maintenance
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is non‑filtered and delivers ambient water only
- Always depressurize water line before servicing
- Ensure sensor area remains unobstructed for proper activation
- Secure unit firmly to wall structure to prevent movement
- Verify all plumbing connections are leak‑free before operation
Basic Installation Overview:
- Prepare mounting location and verify wall support requirements
- Install mounting bracket and secure assembly to wall
- Connect cold water supply line and flush plumbing thoroughly
- Connect drain line to building drain system
- Connect electrical supply to grounded outlet
- Pressurize system and inspect for leaks
- Test bottle filler activation and water flow
- Install cover panels and complete final adjustments
For complete specifications and installation guidelines, download the official EMASM Spec Sheet and the Installation Manual.
