Elkay LZSTL8WSVRSK | Wall-mount Bi-Level Versatile Bottle Filling S...

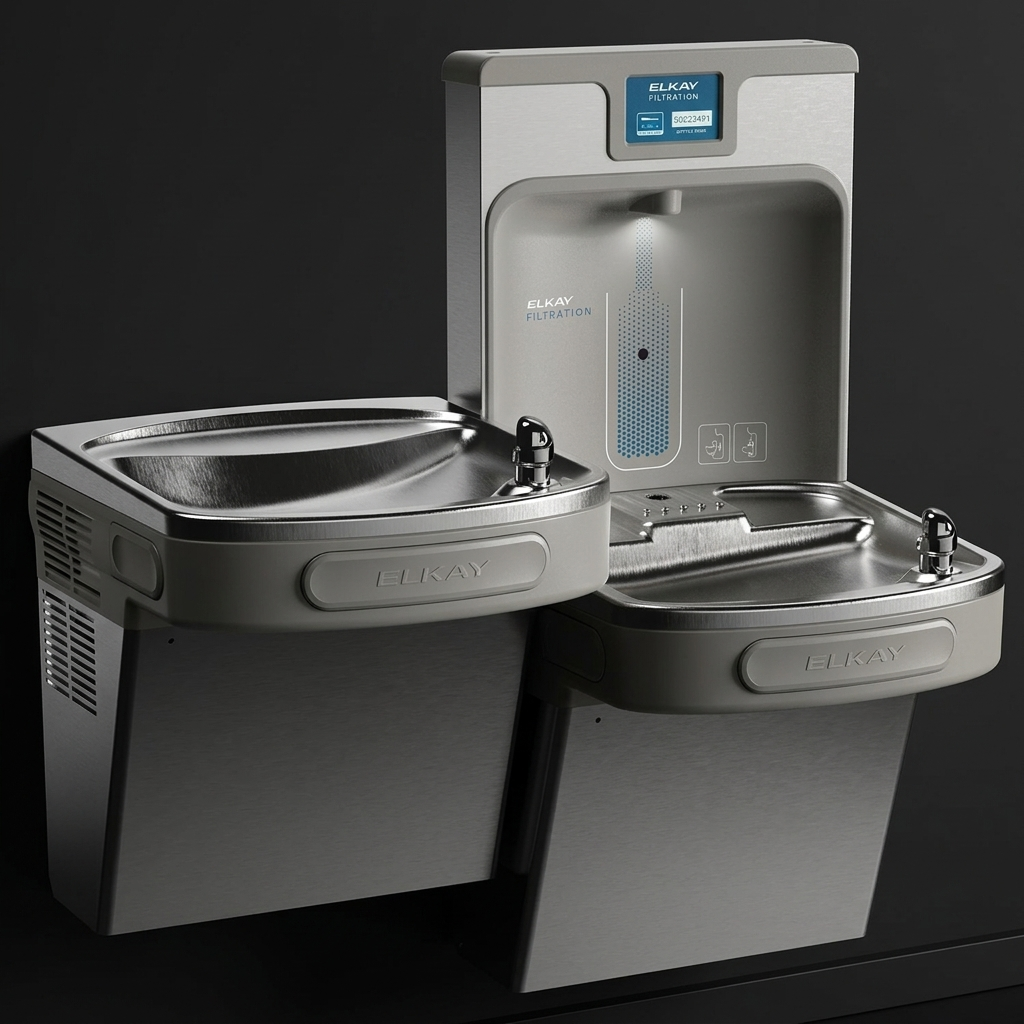

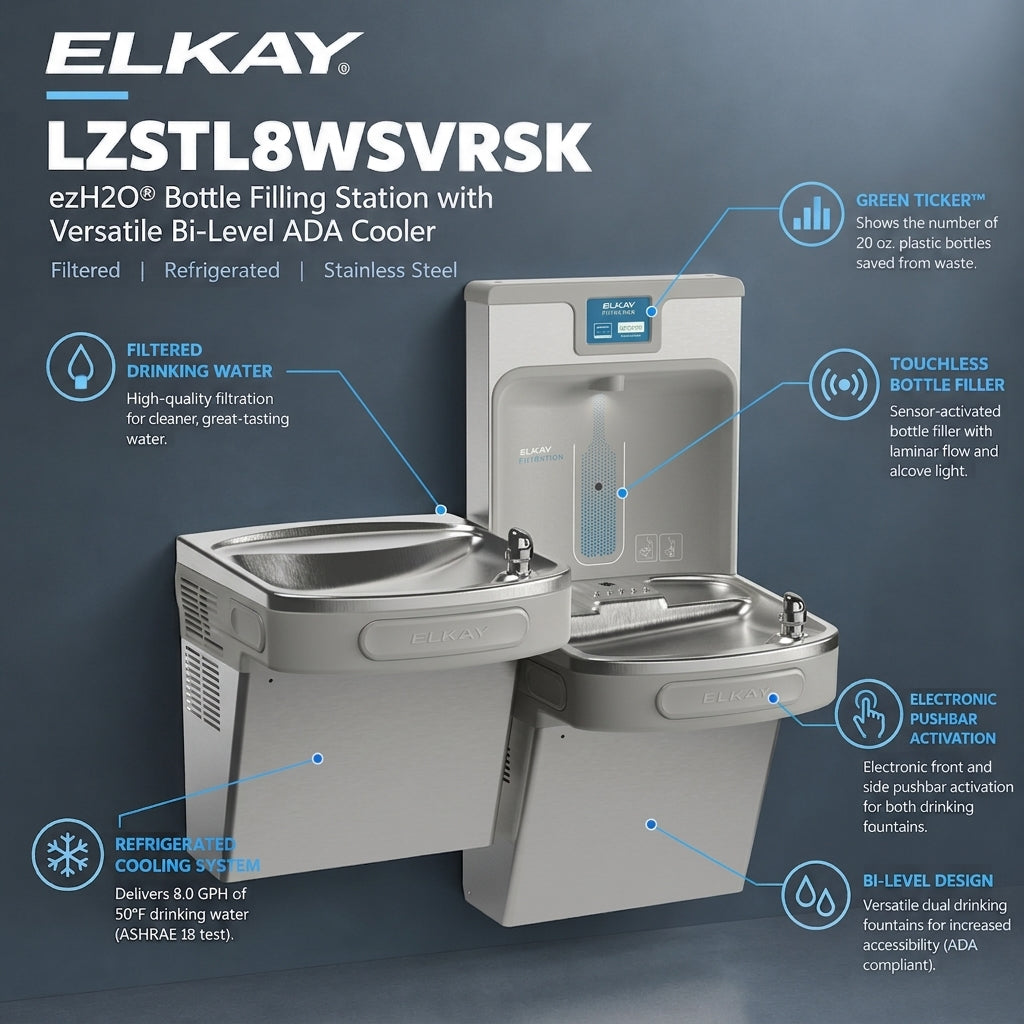

The Elkay LZSTL8WSVRSK ezH2O® Bottle Filling Station combines touchless filtered bottle filling with a versatile bi-level ADA cooler in a vandal-resistant stainless steel design. Built for high-traffic indoor environments, it delivers 8.0 GPH of refrigerated drinking water while helping reduce disposable bottle waste.
Key Specifications:
| Design | Versatile bi-level ADA cooler with integrated bottle filler, sensor activation, and vandal-resistant pushbar bubblers |
| Finish | Stainless Steel. Also available in Granite Gray |
| Filtration | Includes the 51600C WaterSentry® Plus Filter, NSF 42, 53, and 401 certified with a 6,000-gallon capacity |
| Refrigeration | 8.0 GPH of 50°F chilled water, 115V/60Hz, 370W |
| Stations Served | 2 drinking fountains and 1 bottle filler |
Features & Benefits:
- Quick Filter Change: Wrapper design provides front and side access for filter replacement in under a minute.
- Automatic Filter Status Reset: System automatically recognizes a new filter and resets indicator status.
- Visual Filter Monitor: LED filter indicator alerts users when filter replacement is required.
- Green Ticker™: Tracks the number of disposable plastic water bottles saved from waste.
- Vandal-Resistant Construction: Durable stainless steel finish and vandal-resistant bubblers help withstand heavy public use.
What's Included:
- LZSTL8WSVRSK Bottle Filling Station and Versatile Bi-Level Cooler
- 51600C WaterSentry® Plus Filter
- Vandal-Resistant Bubblers
- Installation hardware and documentation
FAQ
Q: Does the Elkay LZSTL8WSVRSK Include a Filter?
A: Yes. The LZSTL8WSVRSK includes one 51600C WaterSentry® Plus Filter with a 6,000-gallon capacity and NSF 42, 53, and 401 certifications.
Q: How Often Should the Filter Be Replaced on the Elkay LZSTL8WSVRSK?
A: The included 51600C Filter should be replaced after 6,000 gallons of use or every 12 months, whichever occurs first.
Q: Is the Elkay LZSTL8WSVRSK ADA Compliant?
A: Yes. The versatile bi-level configuration complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: What Accessories Are Available for Elkay LZSTL8WSVRSK?
A: Optional accessories include the MLP200 In-Wall Carrier, the LKAPREZL Cane Apron, and the STLBFUP Universal Back Panel Assembly Kit.
Q: What Is the Elkay LZSTL8WSVRSK Warranty Coverage?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical and water system components.
Q: Can the Elkay LZSTL8WSVRSK Be Connected for Smart Monitoring?
A: Yes. The unit can be upgraded using the PLZSRK-W1 Connected Retrofit Kit for enhanced monitoring and maintenance tracking capabilities.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LZSTL8WSVRSK is a bi‑level, filtered bottle filling station with integrated coolers and vandal‑resistant features. Designed for high‑traffic environments such as schools, transportation facilities, and public buildings, it delivers chilled, filtered water with hands‑free sensor activation and dual ADA‑compliant access points.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to maintain vandal‑resistant performance
Basic Installation Overview:
- Install in‑wall carrier securely to support dual cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connecting tubing per routing diagram
- Mount cooler and bottle filler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet and verify unit operation
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install access panels and secure all vandal‑resistant fasteners
For complete specifications and installation guidelines, download the official LZSTL8WSVRSK Spec Sheet and the Installation Manual.
