Elkay LZWS-EDFPBM114K | In-wall Bottle Filling Station | Filtered, ...

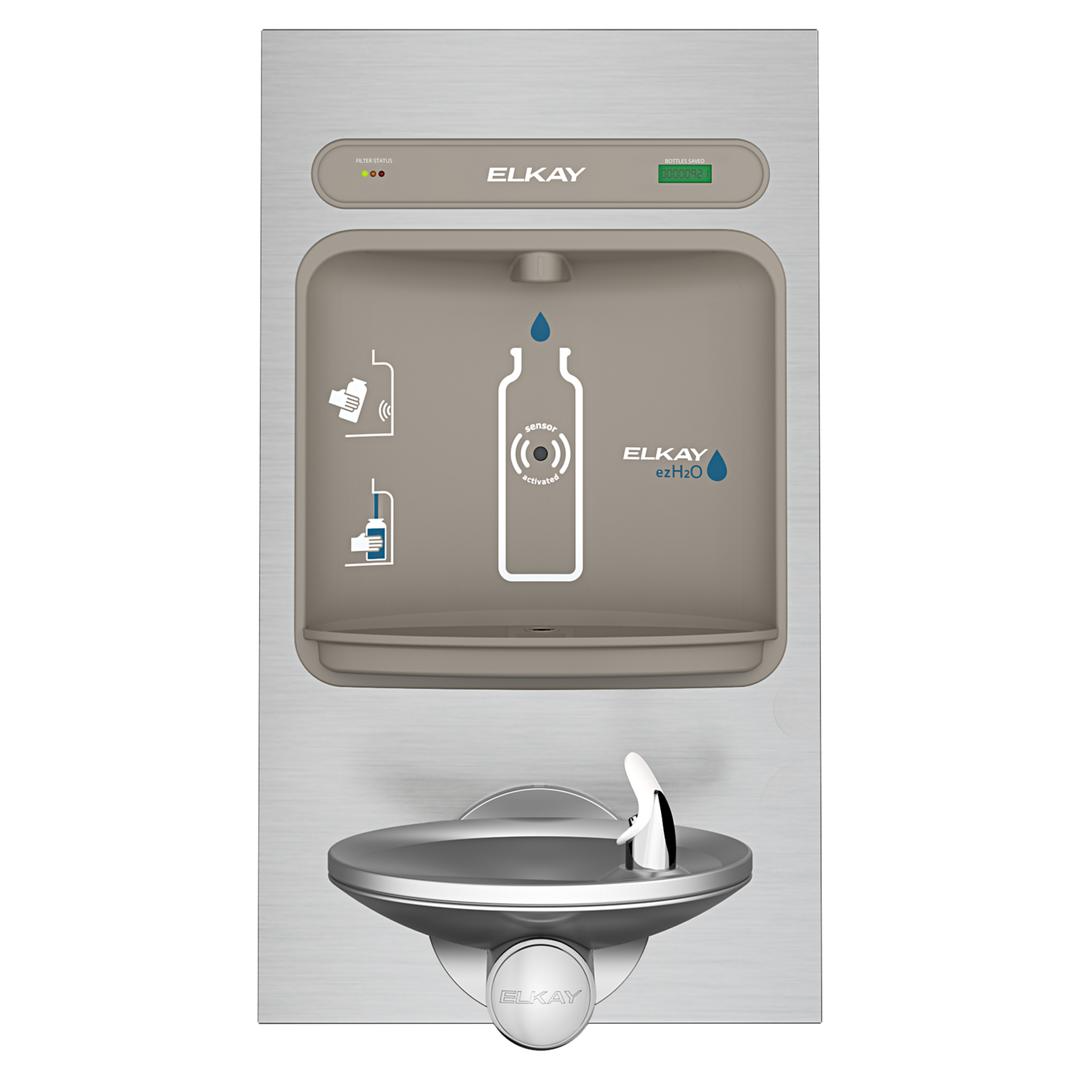

The Elkay LZWS-EDFPBM114K ezH2O® Bottle Filling Station combines touchless filtered bottle filling with an integral SwirlFlo® drinking fountain in a sleek in-wall stainless steel design. Built for indoor commercial environments, it features a 3,000-gallon filtration system, hands-free bottle filling, and a space-saving recessed installation.
Key Specifications:
| Design | In-wall bottle filling station with integral SwirlFlo® drinking fountain and Flexi-Guard® Safety Bubbler |
| Finish | Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Filter, NSF/ANSI 42, 53, 372, and 401 certified, 3,000-gallon capacity |
| Refrigeration | Non-refrigerated |
| Stations Served | 1 drinking fountain and 1 bottle filler |

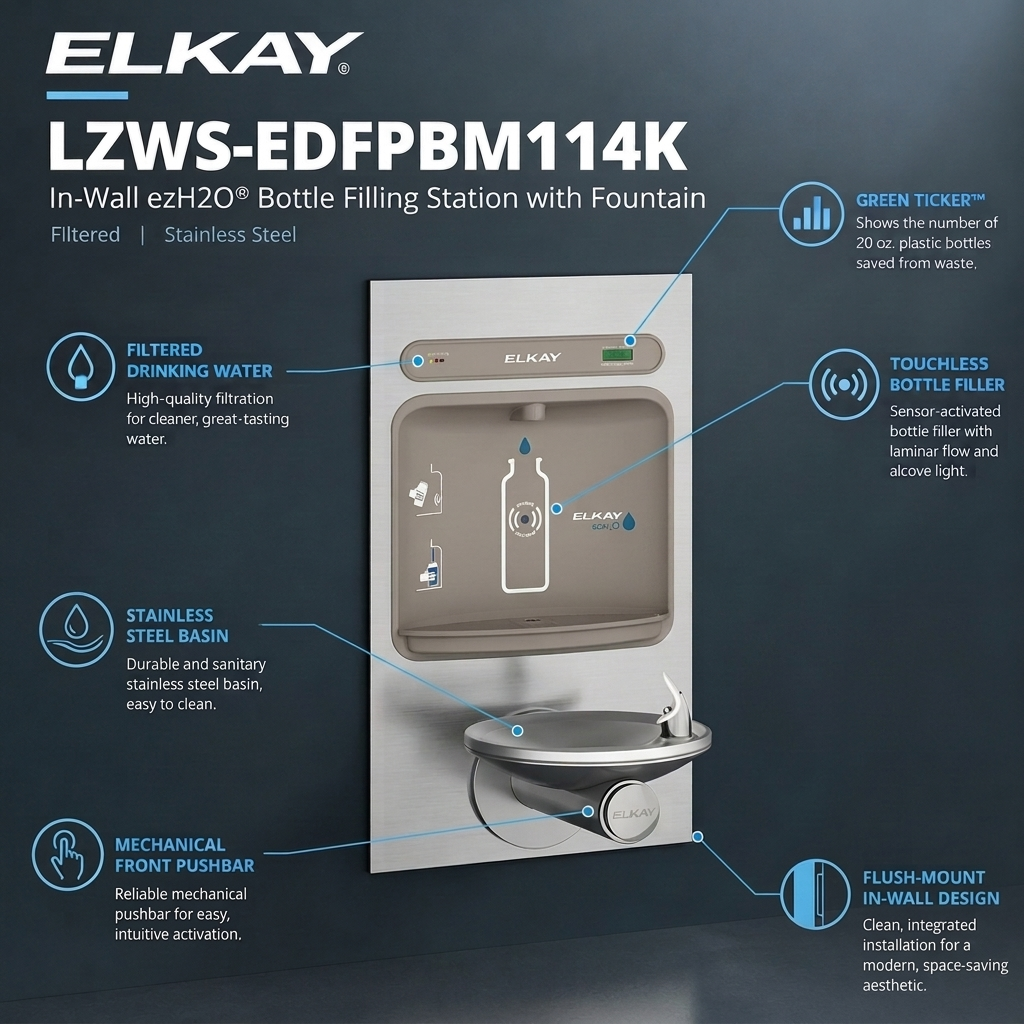

Features & Benefits:
- Hands-Free Bottle Filling: Sensor activation promotes hygienic bottle refills without touching controls.
- Integrated Filtration: Certified 3,000-gallon filter reduces lead, microplastics, chlorine taste and odor, cysts, and particulates.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Green Ticker™: Tracks the number of disposable plastic bottles saved from waste.
- Real Drain System: Eliminates standing water to support cleaner operation and easier maintenance.
What's Included:
- LZWS-EDFPBM114K Fountain with Integral Bottle Filling Station
- MFWSF100 Mounting Frame
- 51300C WaterSentry® Filter
- Installation hardware and documentation
FAQ
Q: Does the Elkay LZWS-EDFPBM114K Include a Filter?
A: Yes. The LZWS-EDFPBM114K includes a 51300C WaterSentry® Filter with a 3,000-gallon capacity and NSF/ANSI 42, 53, 372, and 401 certifications.
Q: Is the Elkay LZWS-EDFPBM114K Refrigerated?
A: No. The LZWS-EDFPBM114K is a non-refrigerated bottle filling station and drinking fountain combination.
Q: What Contaminants Does the Elkay LZWS-EDFPBM114K Filter Reduce?
A: The included filter is certified to reduce lead, microplastics, Class 1 particulates, cysts, and chlorine taste and odor.
Q: Is the Elkay LZWS-EDFPBM114K ADA Compliant?
A: Yes. The LZWS-EDFPBM114K complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: What Accessories Are Available for Elkay LZWS-EDFPBM114K?
A: Optional accessories include the LKAPR1 SwirlFlo® Cane Apron.
Q: How Do I Know When to Replace the Filter in the Elkay LZWS-EDFPBM114K?
A: The built-in Visual Filter Monitor uses an LED indicator to notify users when filter replacement is necessary.
Q: What Is the Warranty Coverage for the Elkay LZWS-EDFPBM114K?
A: Elkay provides a 1-year warranty on electrical components and the water system for drinking water applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LZWS‑EDFPBM114K is an in‑wall ezH2O® bottle filling station combined with a SwirlFlo® drinking fountain. Designed for commercial applications, it delivers chilled, filtered water through a touchless bottle filler while maintaining ADA‑compliant fountain access in a space‑saving recessed design.

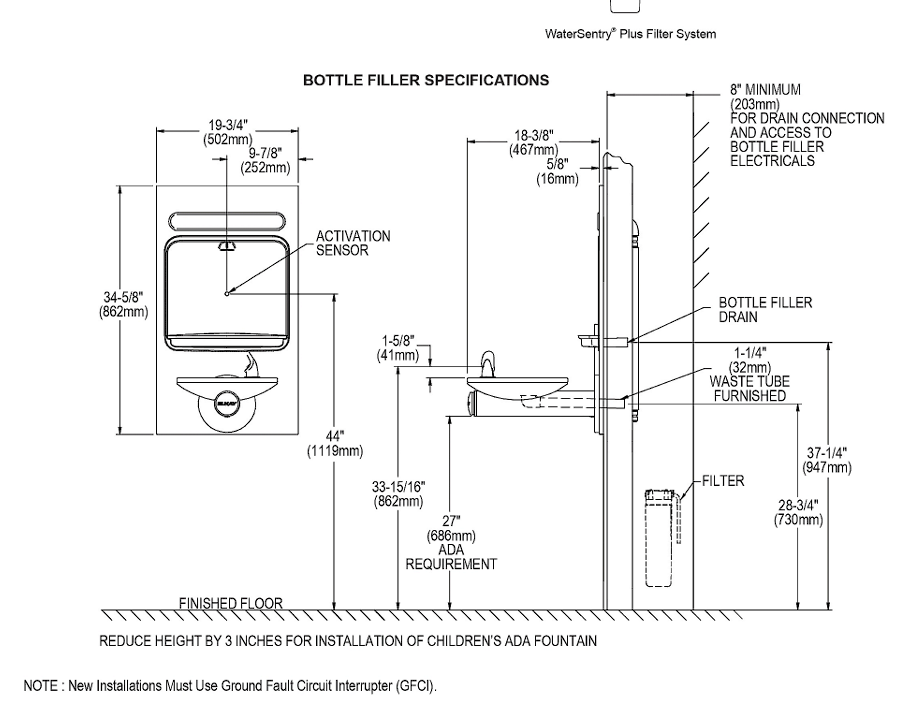

Key Installation Requirements:
- In‑wall installation with proper framing and support structure
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for fountain basin
- Maintain clearance for filter replacement and service access
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Use only genuine Elkay replacement filters to maintain certification and performance
- Ensure sensor area remains unobstructed for reliable bottle filler activation
- Provide adequate ventilation clearance around refrigeration components
- Verify wall cavity dimensions before beginning installation
Basic Installation Overview:
- Prepare wall opening and install support framing according to specifications
- Mount carrier assembly securely within wall structure
- Connect cold water supply line and flush plumbing thoroughly
- Install filter head and filter cartridge
- Connect fountain drain line to building drainage system
- Connect electrical supply to grounded outlet
- Mount bottle filler and fountain assembly to carrier
- Pressurize system, check for leaks, and verify sensor activation
- Install finish panels and complete final adjustments
For complete specifications and installation guidelines, download the official LZWS‑EDFPBM114K Spec Sheet and the Installation Manual.
