Elkay LZSTL8WSSP-PF | Bi-Level Enhanced ezH2O Bottle Filler | PFOA/...

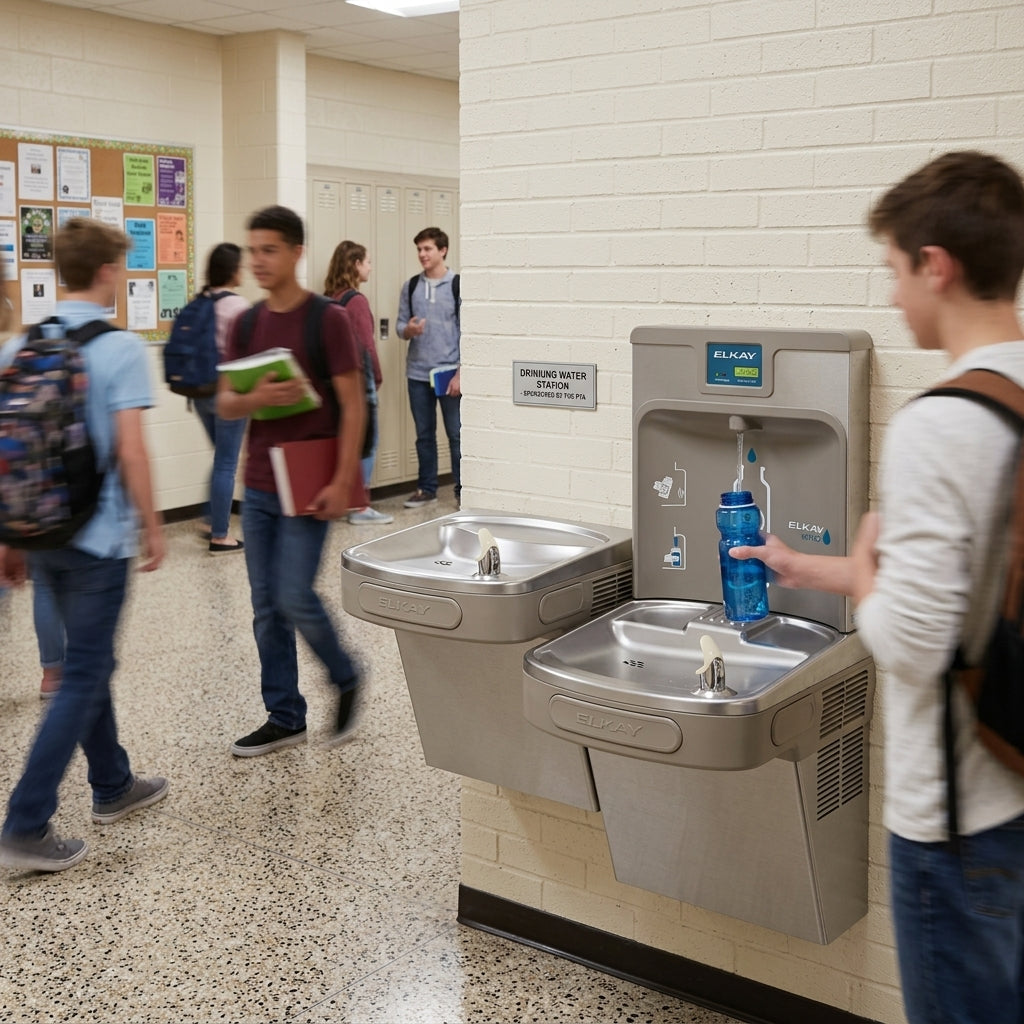

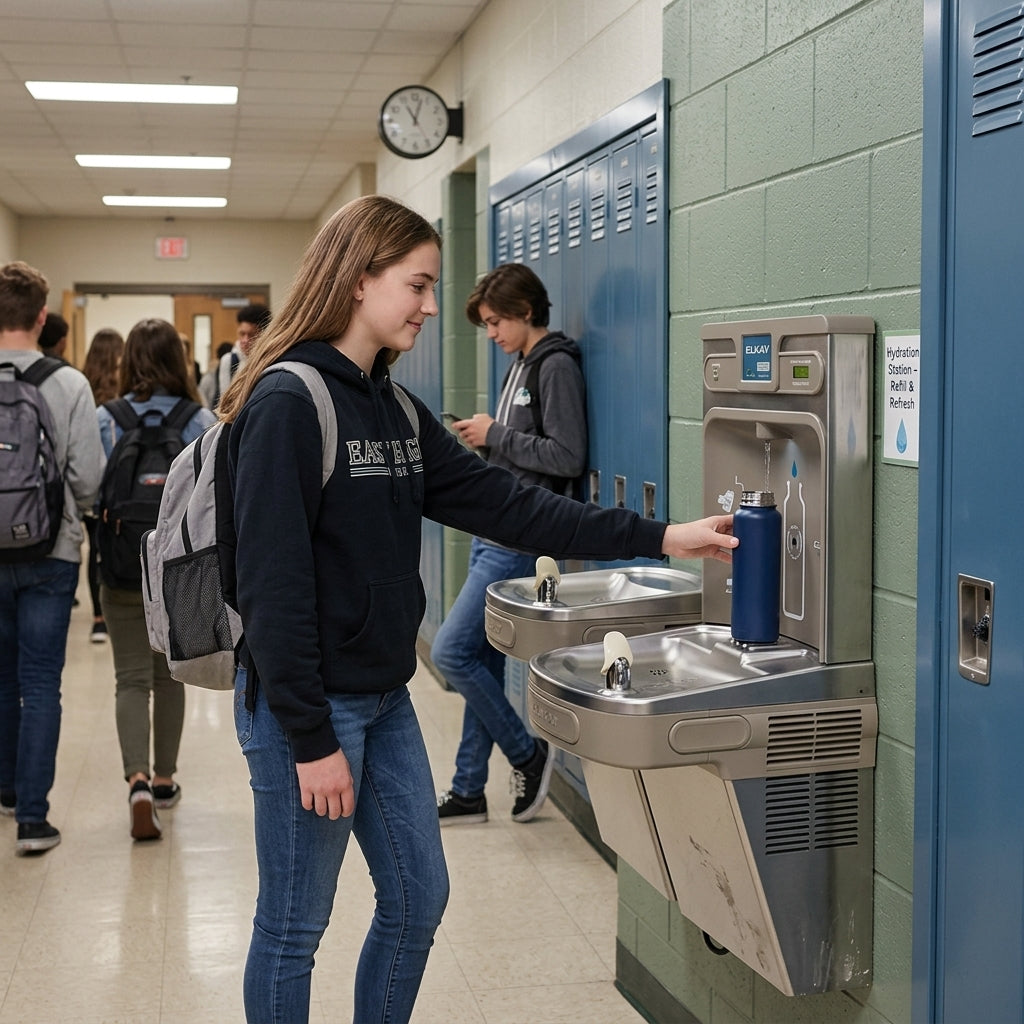

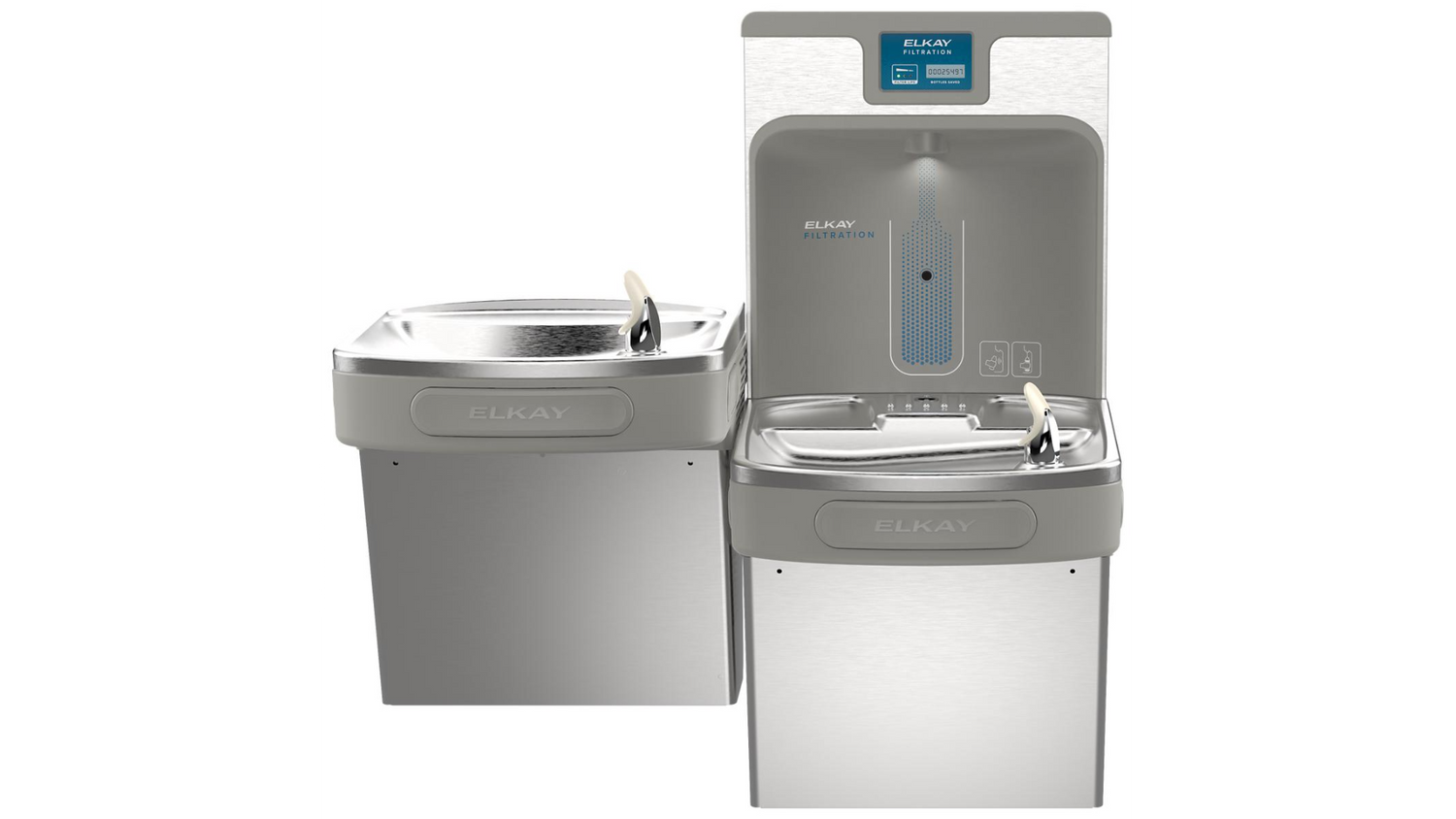

The Elkay LZSTL8WSSP-PF Enhanced ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler delivers advanced hydration with certified PFOA/PFOS reduction, quick filter change access, and energy-saving technology. Designed for indoor wall-mount installation, this stainless steel unit combines touchless bottle filling with ADA-compliant bi-level fountains, making it ideal for schools, healthcare facilities, offices, and public spaces.
Key Specifications:
- Design: Versatile bi-level ADA cooler with integral bottle filling station, serving 2 stations
- Finish: Stainless Steel. Also available in Arctic White and Midnight Black
- Filtration: Includes Elkay 71300C PFAS Replacement Filter — 2,250-gallon WaterSentry® Plus filter certified to NSF/ANSI 42 & 53 for PFAS (PFOA/PFOS), lead, particulates, chlorine taste and odor
- Refrigeration: 8.0 GPH chilled water at 50°F (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient)
- Stations Served: 2 (dual drinking fountains + bottle filler)
Features & Benefits:
- PFAS Reduction: Certified filter reduces PFOA/PFOS, lead, chlorine, and particulates
- Quick Filter Change: Front-access wrapper design allows filter replacement in under a minute
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation
- ADA Accessibility: Bi-level design meets ADA requirements, providing inclusive access for all users
What's Included:
- LZSTL8WSSP-PF Bottle Filling Station & Bi-Level Cooler
- WaterSentry® Plus PFAS Reduction Filter (2,250-gallon capacity)
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How Often Should the Filter Be Replaced?
A: The included WaterSentry® Plus filter should be replaced every 2,250 gallons or 12 months. Use the Elkay 71300C Replacement Filter for continued PFAS reduction performance.
Q: Is This Unit ADA Compliant?
A: Yes. The LZSTL8WSSP-PF meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What Accessories are Recommended for Installation?
A: Recommended accessories include the LKAPREZL Cane Apron for ADA compliance, the MLP200 In-Wall Carrier for secure mounting, and the Stainless Steel Back Panel for added durability.
Q: What Warranty is Included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: Is the Elkay LZSTL8WSSP-PF Difficult to Install?
A: The unit is designed for wall-mount installation and ships in one box with comprehensive instructions. Professional installation is recommended to ensure proper water supply, drainage, and electrical connections.
Q: What Accessories are Required for Versatile Installation or Connected Monitoring?
A: Moving the bottle filler to the left side requires the VERSATILEBFKIT accessory. For connected monitoring, a retrofit accessory, PlumbSMART Gateway, and account setup are needed. All of these accessories are sold separately.
Q: Are There Other Models Similar to the LZSTL8WSSP-PF?
A: Yes. Customers may also consider the LZSTL8WSSP (standard Enhanced ezH2O® bi-level cooler) or the LZSTL8WSSP-W1 (Enhanced Connected ezH2O® model with connected monitoring features).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Secure hanger brackets to the wall using all six 1/4" mounting holes; add a support carrier if wall strength is insufficient.
- Mount the refrigerated cooler on the right side of the bracket, ensuring proper engagement in the slots. Mount the non‑refrigerated cooler on the opposite side.
- Connect the 3/8" O.D. copper water supply line with shut‑off valve; maximum supply pressure 105 psi.
- Connect the 1‑1/2" O.D. waste outlet to a trap (not furnished), maintaining proper air gap. Check for leaks if drain tube is cut and reassembled.
- Maintain at least 6" clearance from cabinet louvers to wall for ventilation; allow 24" clearance above for service access.
- Install the bottle filler mounting plate securely above the basin, route tubing and wiring harness through the gasket, and connect to cooler bulkhead fittings.
- Plug into a GFCI‑protected electrical outlet; a dedicated 20‑amp circuit is recommended.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Replace filters as required; turn off water supply, relieve pressure, unplug unit, and install new cartridge fully clockwise.
- Clean exterior panels with warm soapy water or mild household cleaner; avoid harsh chemicals or abrasives.
- Inspect bubbler, pushbars, solenoid valves, and regulators during service; replace worn components with authentic kits.
- Check drain assembly periodically to ensure proper flow and no leaks.
- Disconnect power before servicing; electrical shock hazard.
- For service or repairs, consult the manual or a certified service representative.
