Elkay ER101Y | 10 GPH Remote Chiller for Non-Refrigerated Drinking ...

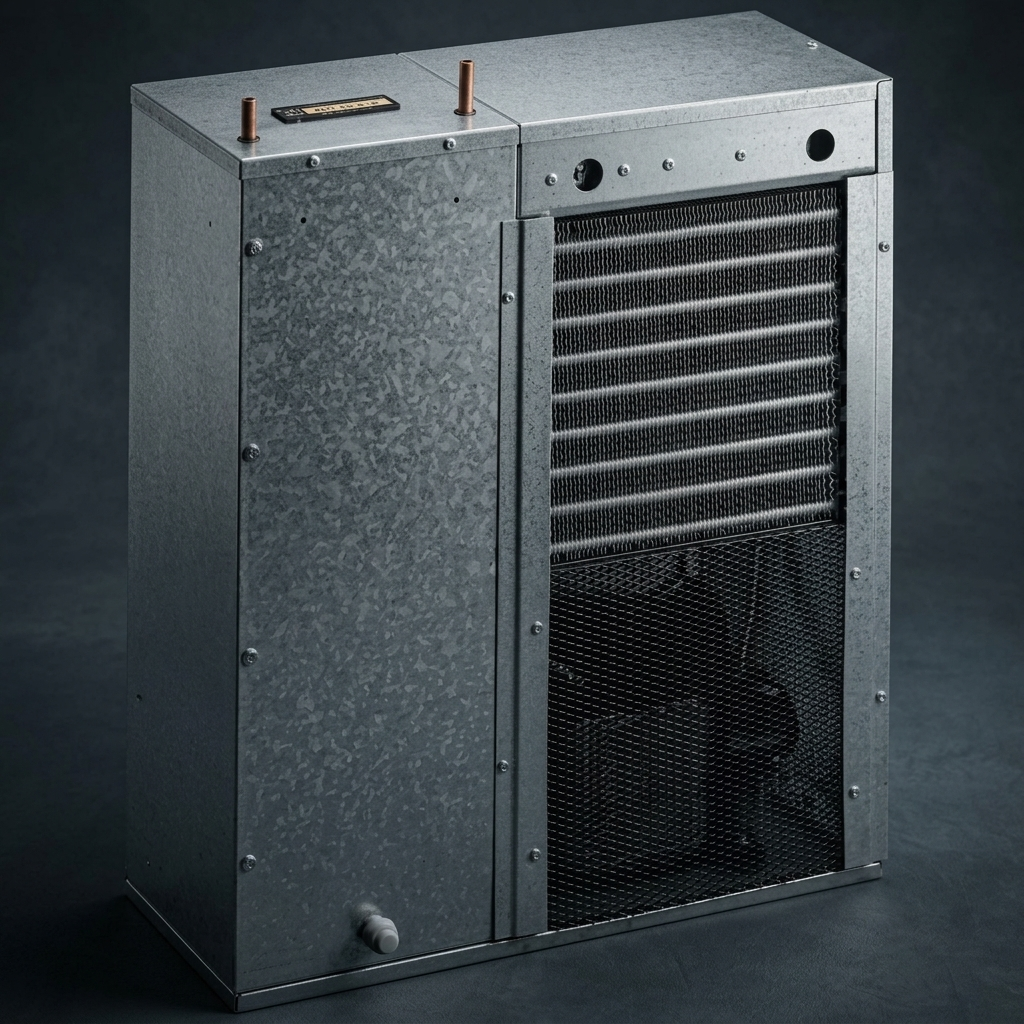

The Elkay ER101Y is a non-filtered remote water chiller designed to convert non-refrigerated Elkay drinking fountains and bottle filling stations into refrigerated coolers. Delivering up to 10 gallons per hour of chilled drinking water, it provides reliable cooling performance in a compact design suitable for commercial hydration applications.
Key Specifications:
| Finish | Galvanized Steel Cabinet |
| Power | 115V / 60Hz, Single Phase |
| Chilling Capacity | 10.0 GPH at 50°F drinking water (based on 80°F inlet, 90°F ambient) |
| Refrigeration | Hermetically-Sealed Compressor, R-134a Refrigerant, Fan-Cooled Condenser |
| Stations Served | Up to 2 Remote Outlets (within 15 feet recommended) |

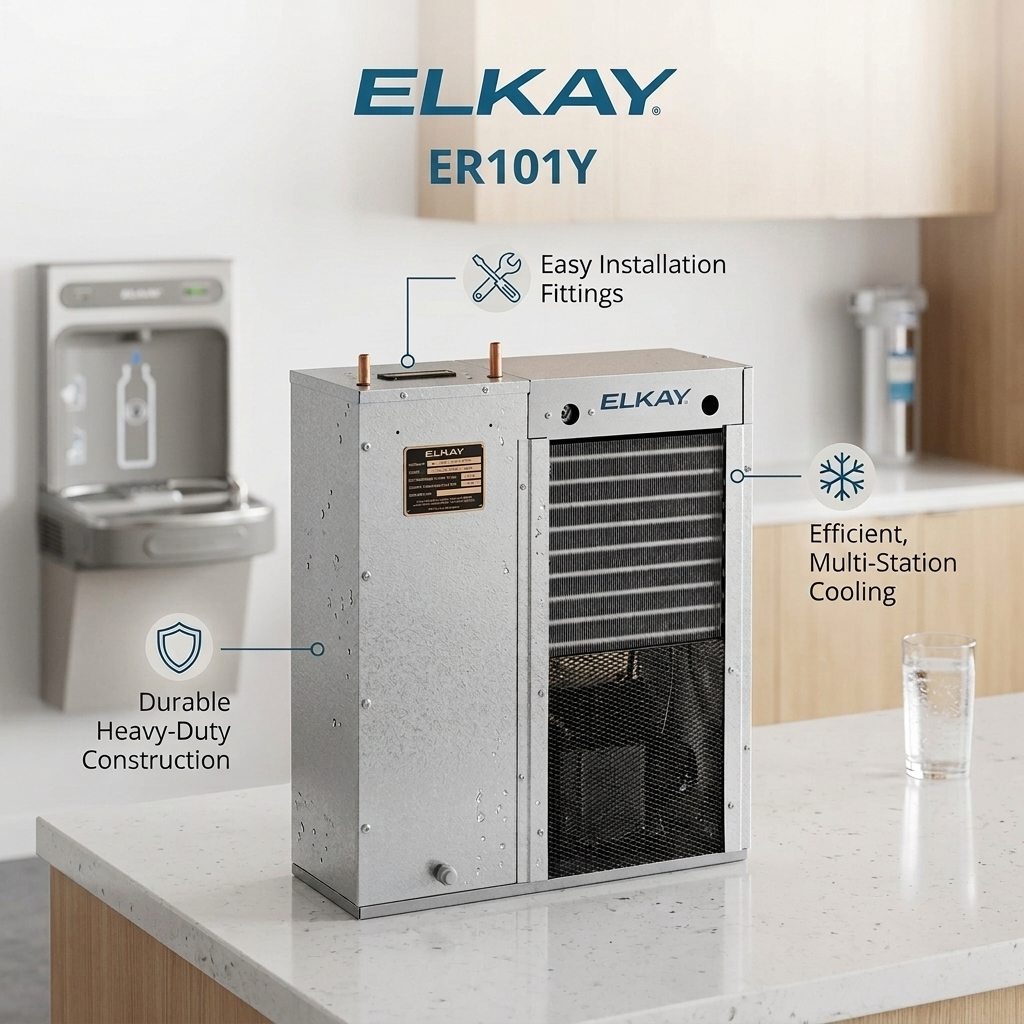

Features & Benefits:
- High Capacity Cooling: Provides 10 gallons per hour of chilled water for demanding applications.
- Durable Construction: Rust-resistant galvanized steel cabinet delivers long-term reliability.
- Efficient Cooling System: Copper tube/aluminum fin condenser and lifetime-lubricated fan motor optimize cooling performance.
- Compact Design: Installs beneath fountains or in service areas while minimizing footprint requirements.
- Certified Compliance: Meets UL, CSA, and NSF lead-free standards for commercial drinking water systems.
What's Included:
- Elkay ER101Y Remote Chiller Unit
- Installation Instructions
- Warranty Documentation
FAQ
Q: What Applications Are Best Suited for the Elkay ER101Y?
A: The Elkay ER101Y is ideal for commercial installations requiring chilled water for up to two stations, including drinking fountains, bottle filling stations, and service areas.
Q: What Is the Recommended Operating Pressure for the Elkay ER101Y?
A: The ER101Y operates best between 40 and 105 PSI supply water pressure to ensure consistent chilled water output.
Q: How Much Clearance Is Required for Installing the Elkay ER101Y?
A: Allow at least 6" clearance in front, 3" at the rear, and 1" on each side for proper ventilation. When installed inside an enclosure, these minimum clearances should be maintained for efficient cooling.
Q: What Accessories Are Available for the Elkay ER101Y?
A: Optional accessories include the EG3 Louvered Grill, PM3 On-Wall Chiller Shelf, and Elkay filtration kits including EWF172 and EWF3000.
Q: What Certifications Does the Elkay ER101Y Meet?
A: The ER101Y is certified to UL 399, CAN/CSA C22.2 No. 120, and NSF/ANSI 61 & 372 for lead-free compliance.
Q: How Is the Water Temperature Controlled on the Elkay ER101Y?
A: The ER101Y includes an enclosed adjustable thermostat that is factory preset to provide approximately 50°F ± 5°F chilled water and can be adjusted as needed for installation conditions.
Q: Which Drinking Fountains Can Use the Elkay ER101Y Remote Chiller?
A: The ER101Y is designed for compatible non-refrigerated Elkay drinking fountains and bottle fillers. Examples include the EZSTLDDLC and bi-level units such as the EDFP217FPK. Its large storage tank capacity makes it particularly suitable for installations serving multiple users.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

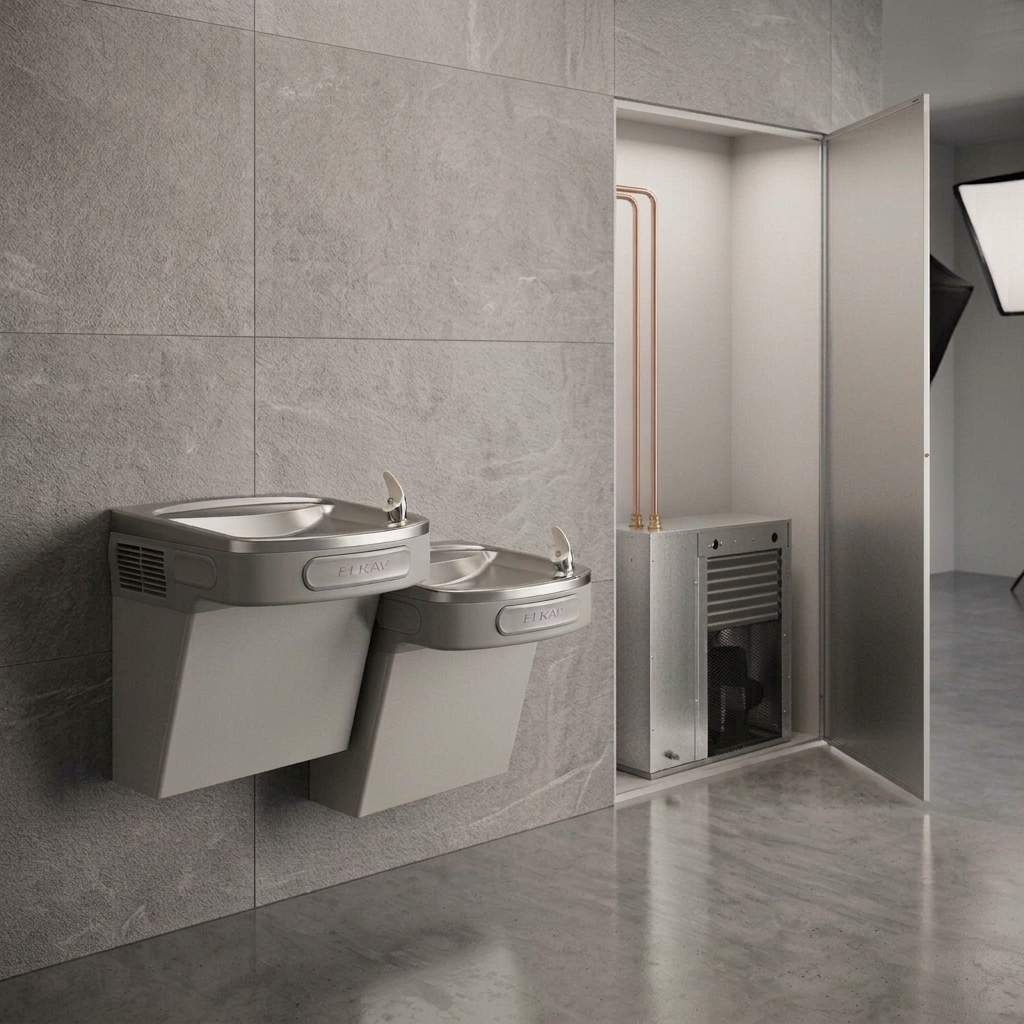

The Elkay ER101Y is a remote water chiller designed to provide chilled drinking water to compatible fountains, bottle fillers, and other dispensing systems. Installed remotely from the point of use, it helps maximize space while delivering reliable cooling performance in commercial and institutional environments.
Key Installation Requirements:
- Indoor installation in a well‑ventilated service area
- Cold water line connection required
- Electrical supply: 115V / 60Hz grounded outlet
- Install within recommended distance of dispensing fixture
- Provide adequate clearance for airflow and maintenance access
- Follow local plumbing and electrical codes during installation
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing
- Ensure adequate ventilation around the refrigeration components
- Keep unit accessible for future maintenance and inspection
- Verify all plumbing connections are secure before powering the unit
- Check for leaks after startup and before placing into service
Basic Installation Overview:
- Select a suitable indoor location with adequate ventilation
- Position the chiller on a stable, level surface
- Connect incoming and outgoing water tubing according to specifications
- Flush water lines before connecting to the dispensing fixture
- Connect electrical supply to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Allow the chiller to reach operating temperature
- Test water flow and cooling performance
For complete specifications and installation guidelines, download the official ER101Y Spec Sheet and the Installation Manual.
