Elkay LKAPREZL | Cane Apron for EZ units, Granite Gray

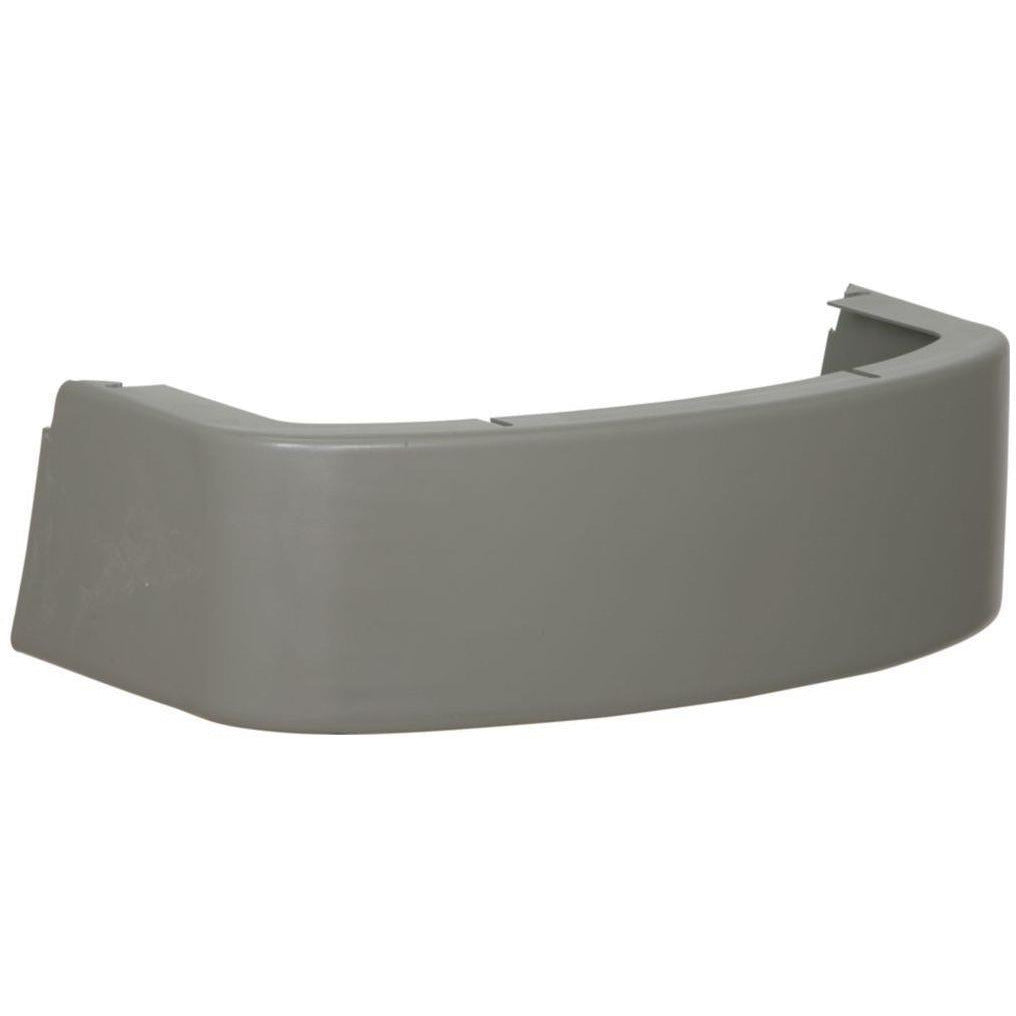

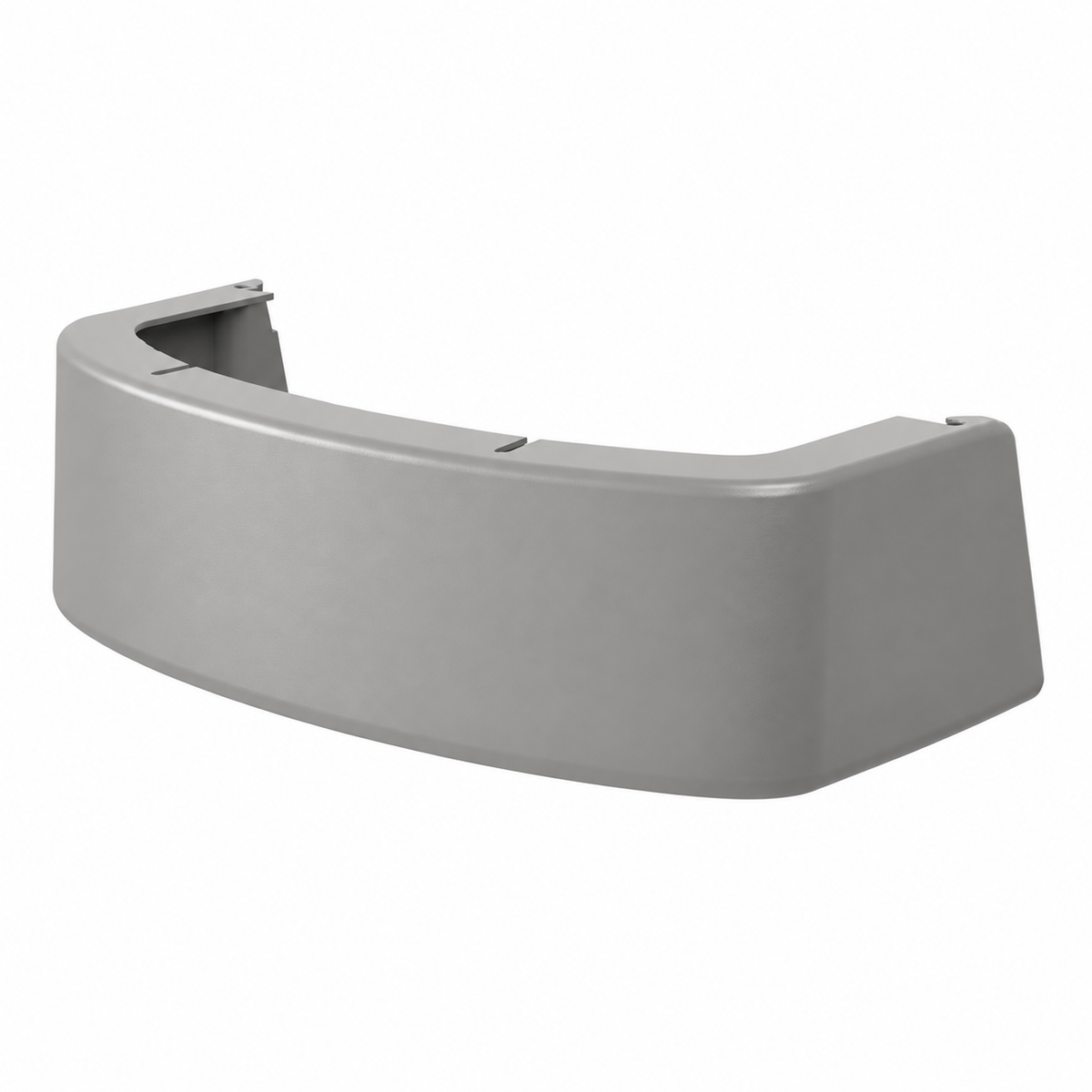

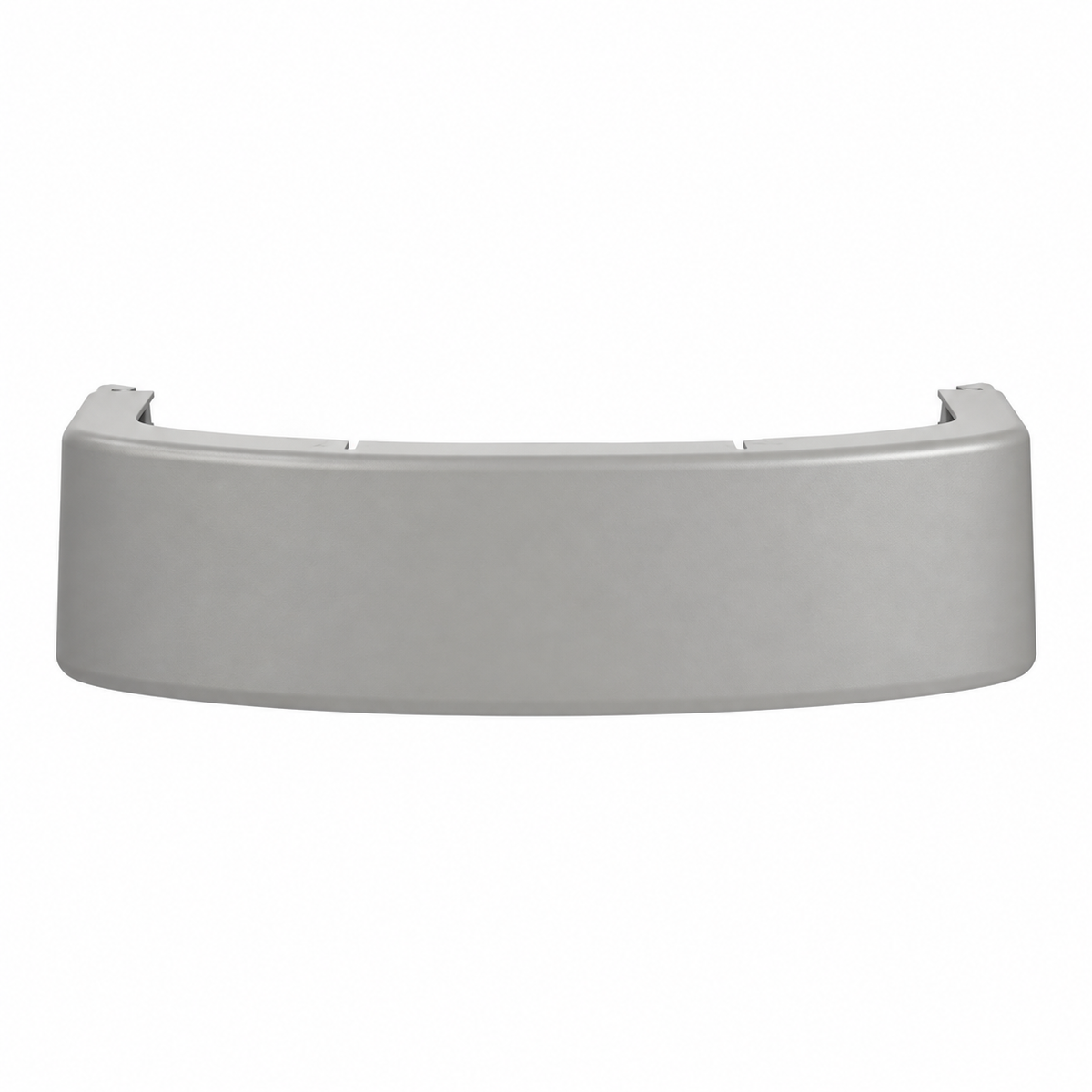

The Elkay LKAPREZL Cane Apron is a durable accessory designed for EZ style drinking fountains and bottle fillers. With its light gray vinyl finish, this apron ensures ADA compliance by providing the mandatory 27" floor-to-underside detection requirement when properly installed. It is ideal for bi-level applications where coolers or fillers are mounted on exposed walls, offering both safety and a clean, finished look.
Key Specifications:
| Finish | Light Gray vinyl (GRY). Also available in Midnight Black and Arctic White. |

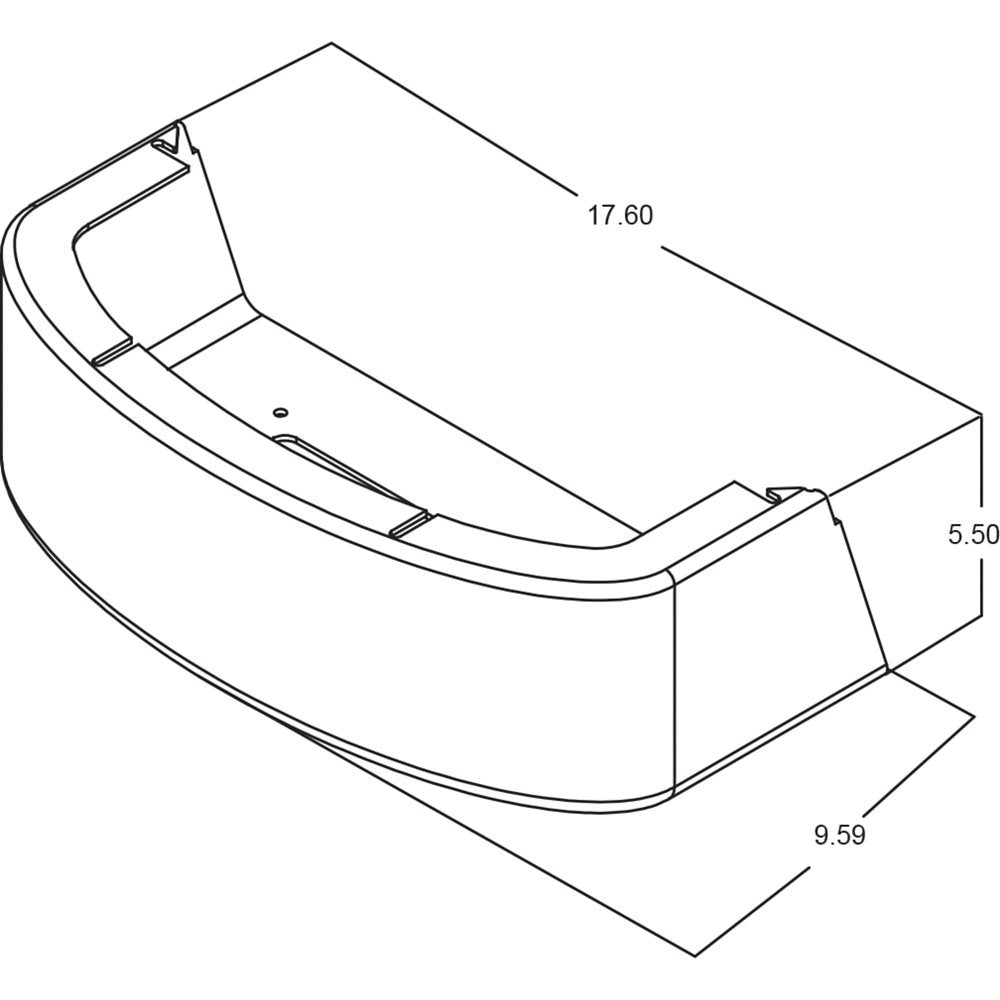

| Dimensions | 17-5/8" L × 9-9/16" W × 5-1/2" H |
| Compatibility | Designed for EZ style models in bi-level exposed wall installations |
| ADA Compliance | Provides the required 27" floor-to-underside clearance for cane detection in circulation paths |
| Shipping Weight | 2 lbs. |
Features & Benefits:
- ADA Safety: Ensures compliance with accessibility standards by providing proper cane detection clearance
- Durable Construction: Vinyl finish resists wear and maintains an attractive appearance
- Versatile Use: Designed for bi-level cooler and bottle filler applications mounted on exposed walls
- Easy Installation: Attaches securely with screws and clips, following Elkay’s installation guide
What's Included:
- LKAPREZL Cane Apron assembly
- Bottom cover with screws and clips
- Installation instructions (PDF 97629C)
How to Install Elkay LKAPREZL:
- Fasten four screws into the designated holes using the cover plate to gauge depth
- Align slots on the apron to the screw heads and push apron onto the screw heads
- If apron does not snap into place, remove the bottom cover and push back corners to clear snaps
- Attach the bottom cover to the apron with six screws and clips provided
- To remove, detach the bottom cover, push rear corners out, and pull forward
FAQ
Q: What Is The Purpose Of The Elkay LKAPREZL Cane Apron?
A: The Elkay LKAPREZL provides the mandatory 27" floor-to-underside clearance required for ADA cane detection, ensuring accessibility compliance in circulation paths.
Q: Which Models Are Compatible With The Elkay LKAPREZL Cane Apron?
A: The Elkay LKAPREZL is designed for EZ style drinking fountains and bottle fillers. It is compatible with models such as the EZSTL8WSLK and LZSTL8SC, particularly in bi-level exposed wall installations.
Q: How Is The Elkay LKAPREZL Cane Apron Installed?
A: The Elkay LKAPREZL attaches to the cooler using screws and clips provided. Installation involves fastening screws, aligning slots, and securing the bottom cover as outlined in Elkay’s installation manual.
Q: Is The Elkay LKAPREZL Cane Apron Available In Other Finishes?
A: Yes. In addition to Light Gray, the Elkay LKAPREZL is also available in Midnight Black and Arctic White.
Q: Does The Elkay LKAPREZL Cane Apron Affect Cooler Or Bottle Filler Performance?
A: No. The Elkay LKAPREZL is an accessory designed to ensure ADA compliance and provide a finished look. It does not alter the cooling or filling performance of the unit.
NOTICE: For proper compliance, install according to instructions. Do not modify or use with non-compatible models.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LKAPREZL is a cane apron accessory designed for use with Elkay bi‑level drinking fountains and bottle filling stations. It provides ADA compliance by allowing wheelchair users to access the lower unit while shielding exposed plumbing for safety and durability.
Key Installation Requirements:
- Compatible with Elkay bi‑level fountains and bottle fillers
- Mounts directly to the lower unit for ADA compliance
- Durable stainless steel construction with protective finish
- Includes mounting hardware for secure installation
- Designed to conceal plumbing and provide user safety
Important Notes Before Installing:
- Verify compatibility with specific Elkay fountain or bottle filler model
- Ensure apron is aligned properly with lower unit before fastening
- Do not modify apron — use only genuine Elkay parts
- Secure firmly to resist vandalism and daily wear
- Check ADA clearance after installation
Basic Installation Overview:
- Position apron against lower unit ensuring proper alignment
- Attach using provided mounting hardware
- Tighten screws securely without overtightening
- Confirm apron conceals plumbing and provides smooth edges
- Verify ADA compliance and accessibility clearance
- Inspect installation for stability and safety
For complete specifications and installation guidelines, download the official LKAPREZL Spec Sheet and the Installation Manual.
