Elkay EMABF8WSLK | Wall-mount Bottle Filling Station | Filterless, Refrigerated, EMAB-style fountain, Granite Gray
Elkay EMABF8WSLK | Wall-mount Bottle Filling Station | Filterless, Refrigerated, EMAB-style fountain, Granite Gray is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information

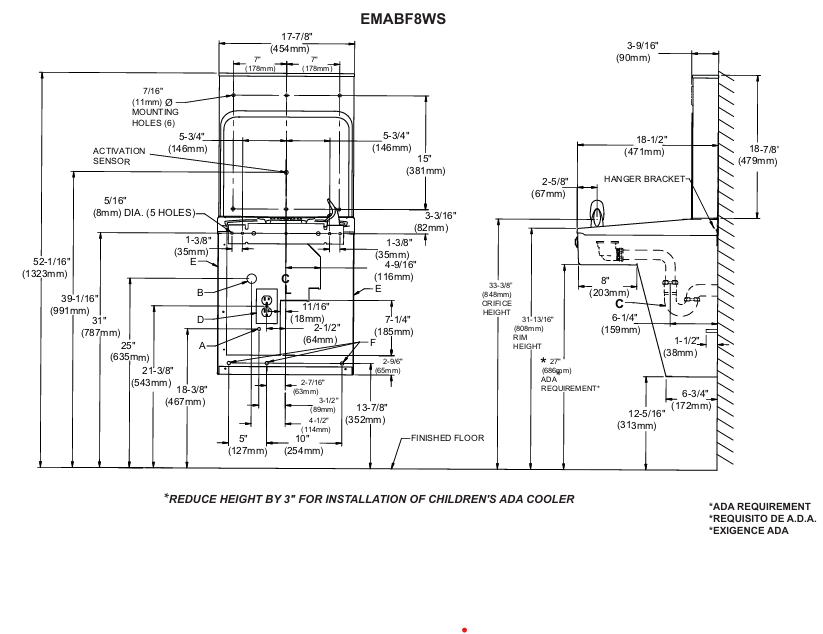

Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EMABF8WSLK | Wall-mount Bottle Filling Station | Filterless, ...

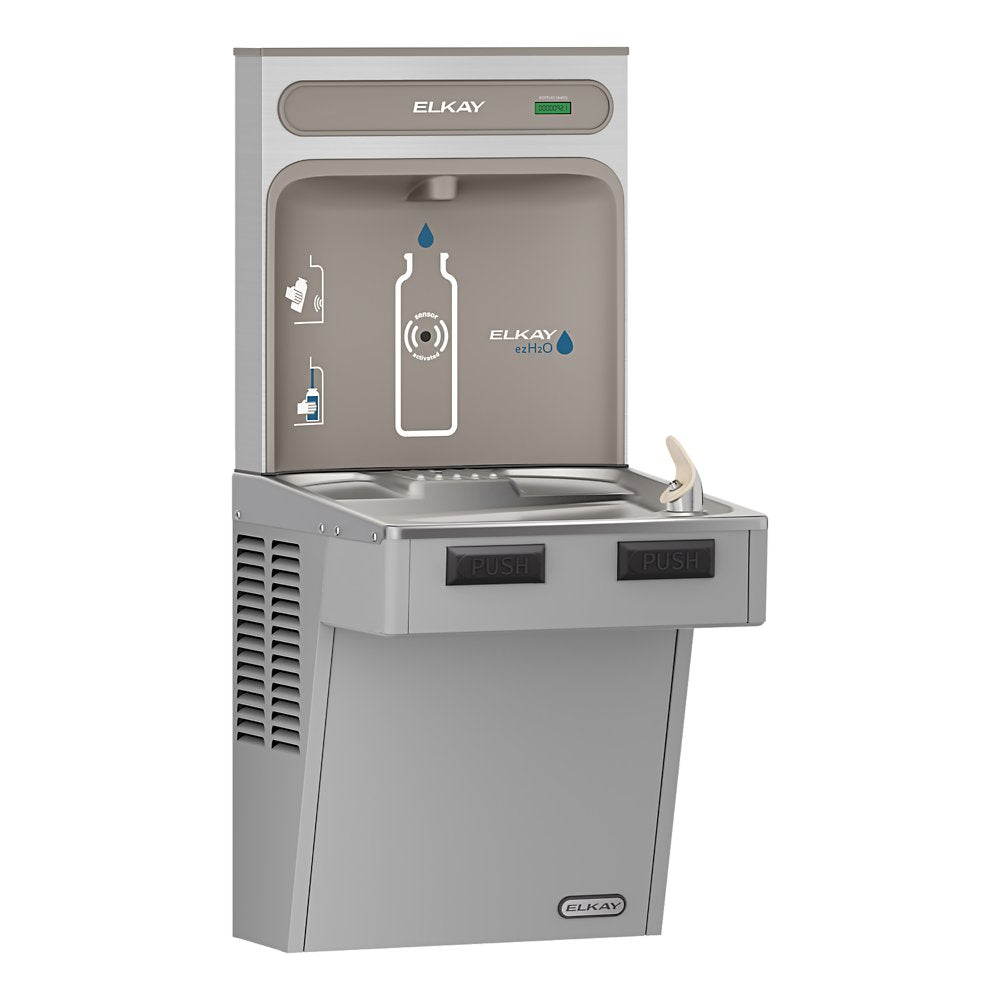

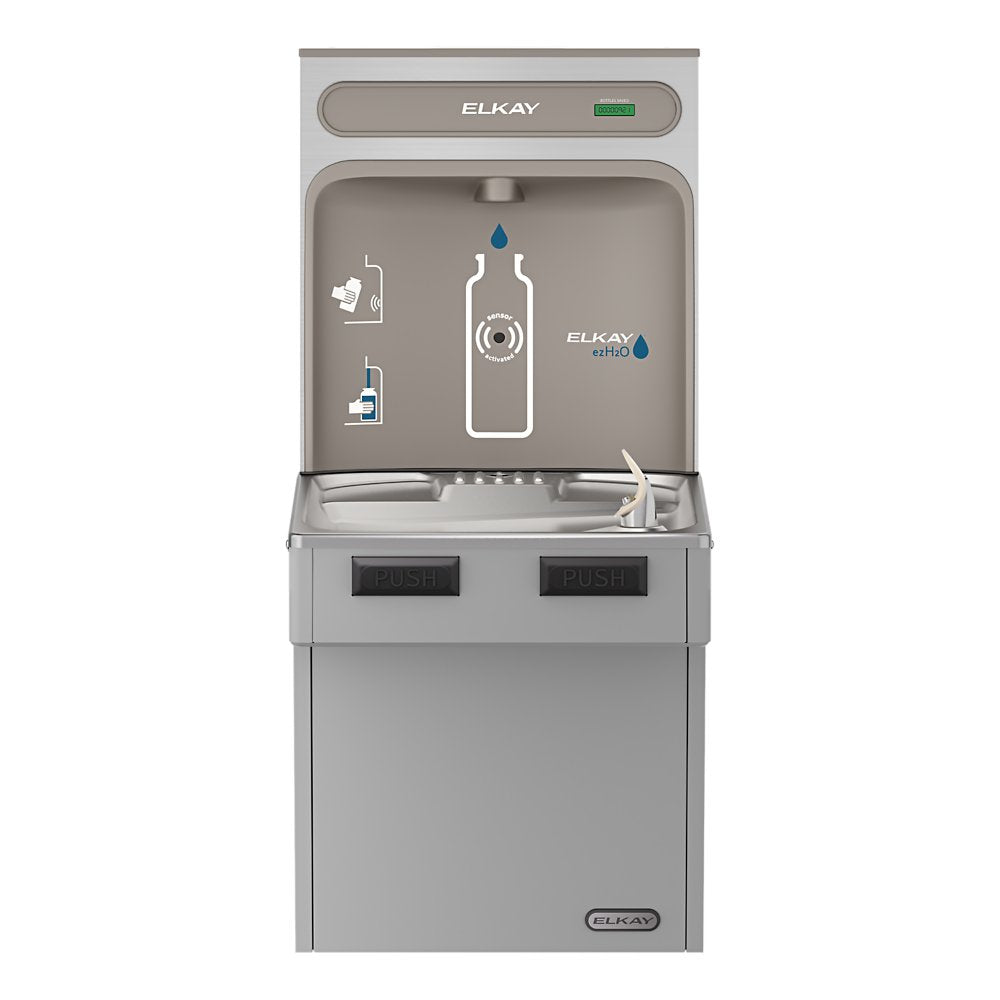

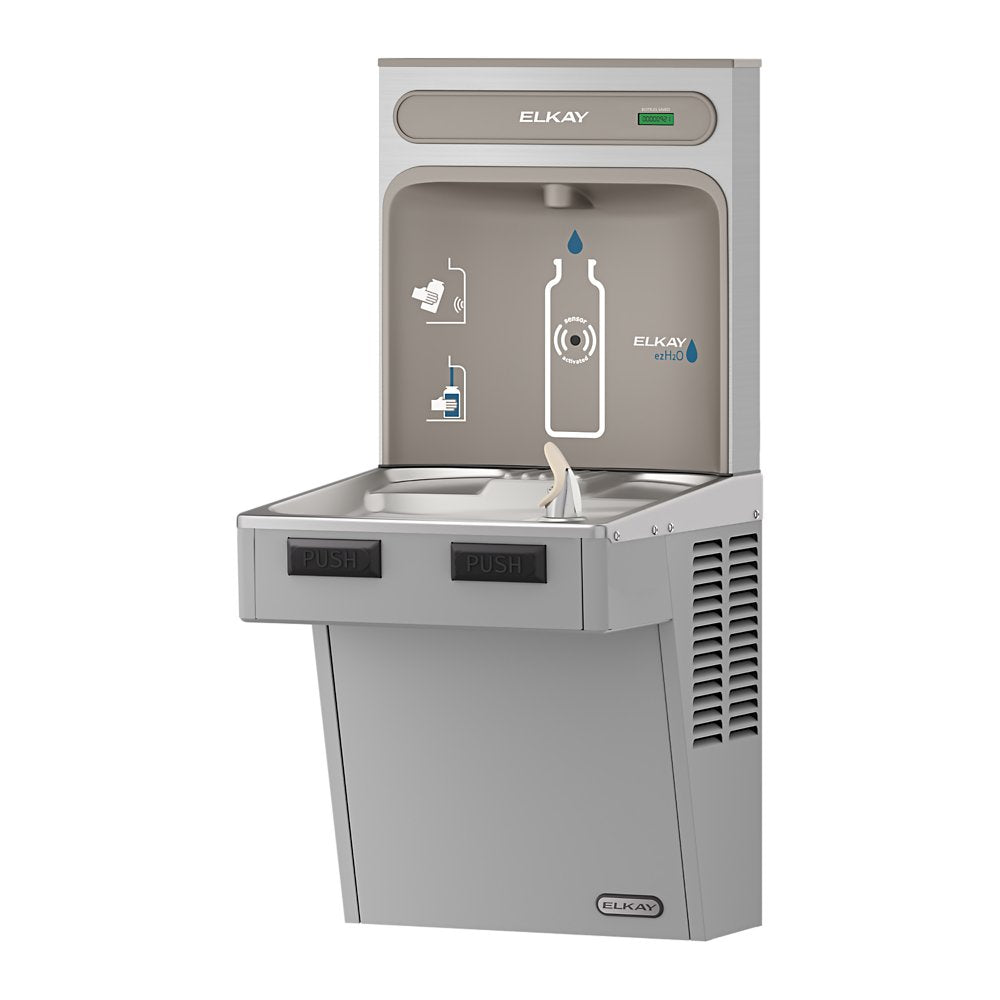

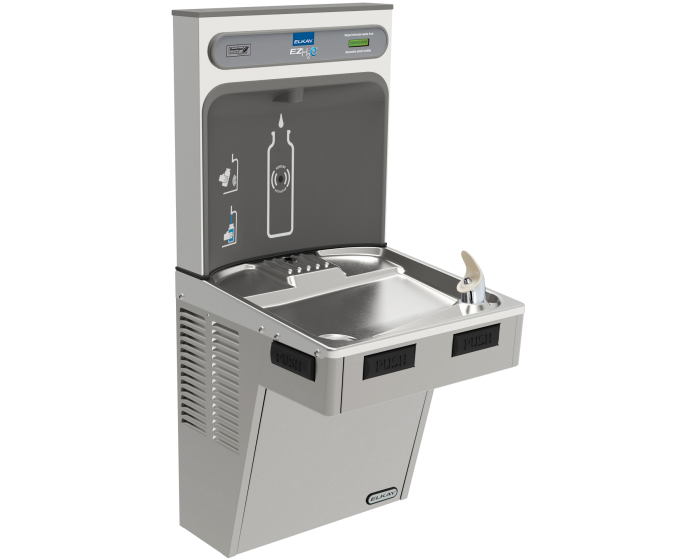

Elkay EMABF8WSLK is an ezH2O® Bottle Filling Station with a mechanically activated single ADA cooler. This light gray granite unit delivers 8.0 GPH of chilled water through pushbar activation and touchless bottle filling. Designed for reliability even during service disruptions, it combines durable construction, hygienic features, and sustainable hydration for schools, offices, and public facilities.
Key Specifications:
- Chilling Capacity: 8.0 GPH of 50°F drinking water.
- Design: Single ADA cooler with integrated bottle filler, wall-mounted indoor installation.
- Finish: Light Gray Granite.
- Filtration: This model is non-filtered. For the filtered version check LMABF8WSLK model.
- Refrigeration: Hermetically-sealed compressor, fan-cooled condenser, EPS-insulated copper tubing. Uses R-134a refrigerant.
- Stations Served: 1.
Features & Benefits:
- Reliable Operation: Mechanically activated pushbars ensure water delivery even during power or service disruptions.
- Enhanced Hygiene: Touchless bottle filler sensor and Flexi-Guard® Safety Bubbler with antimicrobial mouth guard.
- Sustainability: Green Ticker™ displays bottles saved from waste, encouraging reusable bottle use.
- Laminar Flow & Real Drain: Provides clean, splash-free bottle filling while eliminating standing water.
FAQ
Q: Does the EMABF8WSLK include filtration?
A: This model is non-filtered. For filtration, you can add the EWF3000 Universal Filtration Kit, or choose the LMABF8WSLK filtered model.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system.
Q: Can this unit be installed outdoors?
A: No. The EMABF8WSLK is rated for indoor use only.
Q: Is the EMABF8WSLK part of a larger collection?
A: Yes. It belongs to the ezH2O® Collection, which includes multiple models and finishes designed for sustainable hydration solutions.
Detailed Features & Benefits
Cooling System: The EMABF8WSLK uses a hermetically-sealed reciprocating compressor with lifetime lubrication, fan-cooled condenser, and EPS-insulated copper tubing. It delivers consistent 8.0 GPH chilled water at 50°F, with a factory-preset thermostat requiring minimal adjustment.
Durable Design: Mechanically activated pushbars ensure reliable water delivery even during service interruptions. The light gray granite finish provides a clean, modern look suitable for high-traffic indoor environments.
Sustainability & Hygiene: Green Ticker™ tracks bottles saved from waste, while laminar flow and real drain eliminate standing water. Key plastic components are manufactured with silver ion antimicrobial agents to resist stains and odors.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
