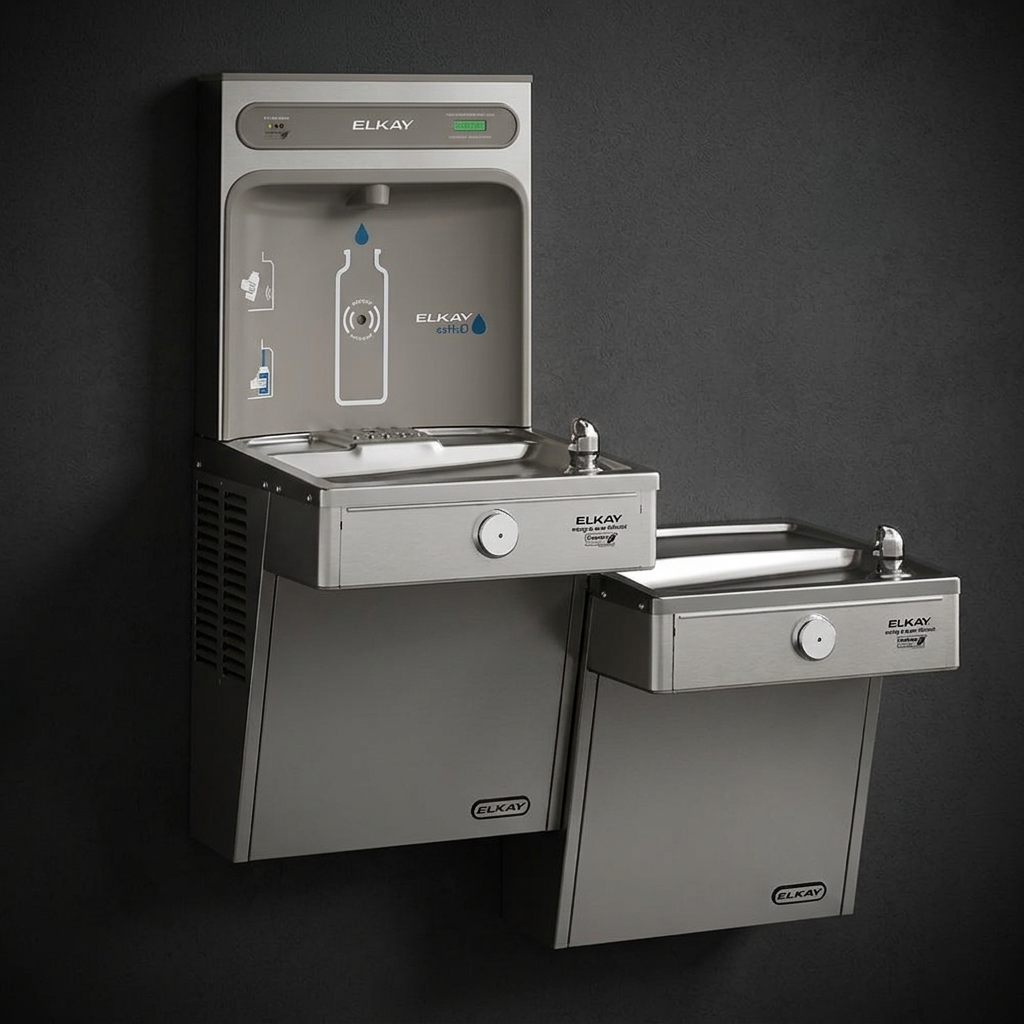

The Elkay LVRCGRNTL8WSK ezH2O® Bottle Filling Station combines a filtered, refrigerated bottle filler with a bi-level high-efficiency vandal-resistant drinking fountain. Designed for indoor installations, this wall-mounted hydration station features a vandal-resistant StreamSaver™ bubbler, hands-free bottle filling, Green Ticker™, Visual Filter Monitor, and WaterSentry® filtration.
Key Specifications:
| Design | Bi-Level High-Efficiency Vandal-Resistant ADA Cooler with Integrated ezH2O® Bottle Filling Station |
| Finish | Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Plus Filter, certified to NSF/ANSI 42, 53, 372, and 401 for the reduction of lead, microplastics, Class 1 particulates, cysts, and chlorine taste and odor. |
| Refrigeration | 8.0 GPH Chilled Water at 50°F (Based on 80°F Inlet Water and 90°F Ambient Air) |
| Stations Served | 2 (Bi-Level Drinking Fountains with Integrated Bottle Filler) |

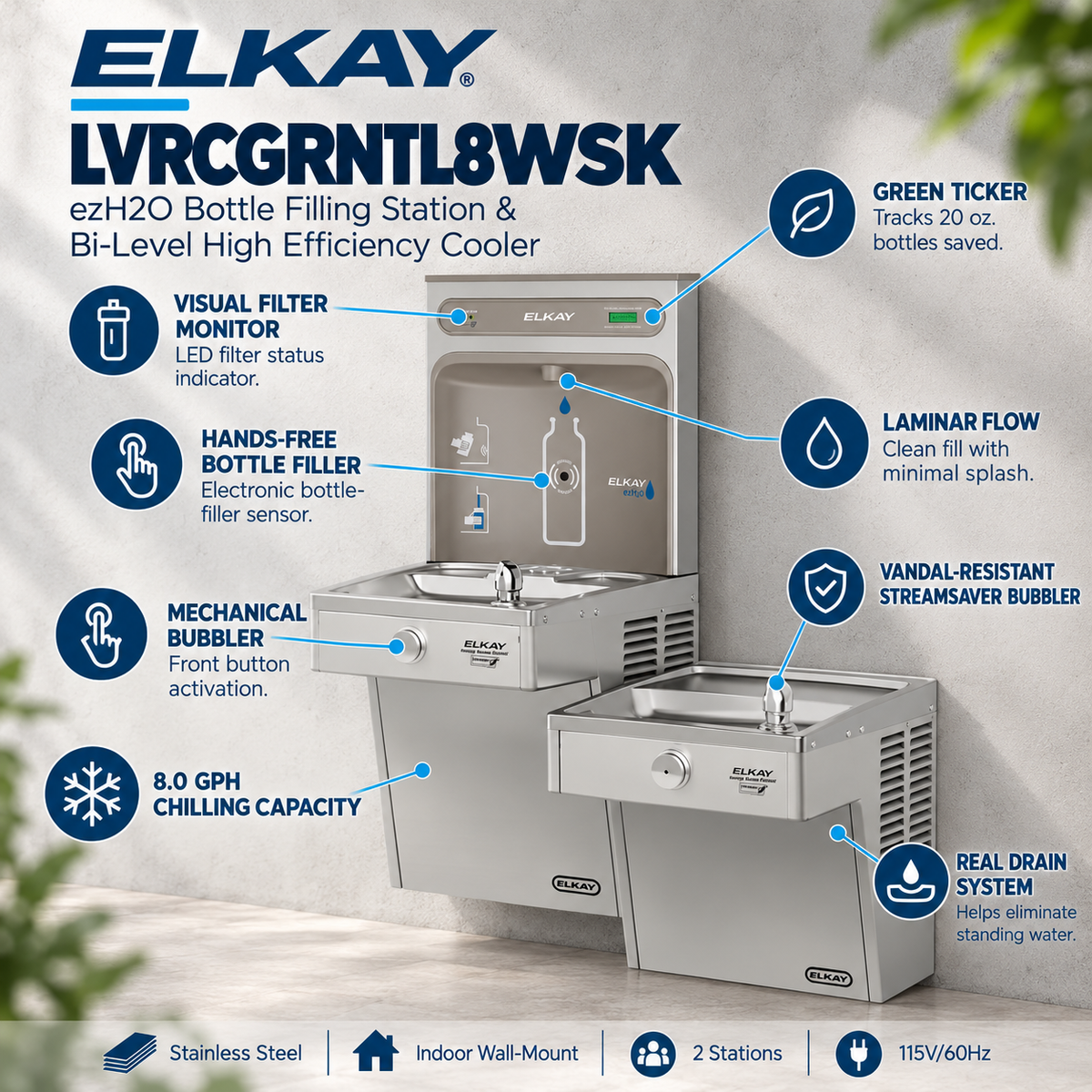

Features & Benefits:
- Hands-Free Bottle Filling: Electronic sensor activation provides touchless bottle filling.
- Vandal-Resistant Construction: Features a vandal-resistant StreamSaver™ bubbler and durable construction for public environments.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Real Drain System: Eliminates standing water from the bottle filling area.
What's Included:
- LVRCGRNTL8WSC Bi-Level Vandal-Resistant Refrigerated Water Cooler
- LZWSR Bottle Filling Station
- 51300C WaterSentry® Plus Filter
FAQ
Q: Does the LVRCGRNTL8WSK Include Water Filtration?
A: Yes. The unit includes a 51300C WaterSentry® Plus Filter certified to NSF/ANSI 42, 53, 372, and 401 standards. The filter has a 3,000-gallon capacity or up to one year of service after installation.
Q: What Makes This Model Vandal Resistant?
A: The LVRCGRNTL8WSK features a vandal-resistant StreamSaver™ bubbler and mechanical front bubbler button activation designed for demanding public environments.
Q: Does the Bottle Filler Operate Hands-Free?
A: Yes. The bottle filler uses an electronic sensor for touchless operation, while the drinking fountain is activated by a mechanical front bubbler button.
Q: What Accessories Are Available for the LVRCGRNTL8WSK?
A: Available accessories include the 98324C Cane Apron for HAC, HVR, EMABF, and VRC series models and the 36292C Power Block for multistation bottle filling station installations.
Q: What Warranty Coverage Is Included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty coverage applies to drinking water applications only.
Q: Is This Unit ADA Compliant?
A: Yes. The LVRCGRNTL8WSK complies with ADA and ICC A117.1 accessibility requirements when installed according to Elkay's installation requirements.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LVRCGRNTL8WSK is a bi‑level, vandal‑resistant bottle filling station with integrated filtration and refrigeration. Featuring a GreenSpec® powder-coated finish, touchless bottle filling, and dual ADA‑compliant drinking stations, it is designed for schools, transportation centers, parks, and other demanding public environments.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and refrigeration service
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize the water line before servicing or replacing the filter
- Use only genuine Elkay replacement filters to maintain certification and filtration performance
- Ensure the sensor activation area remains unobstructed for reliable bottle filler operation
- Provide adequate ventilation clearance around refrigeration components
- Secure the unit firmly to the wall structure to maintain vandal‑resistant performance
Basic Installation Overview:
- Install the in‑wall carrier securely according to manufacturer specifications
- Connect the cold water supply line and flush plumbing thoroughly
- Install the filter head and filter cartridge assembly
- Connect drain lines from both fountain basins to the building drainage system
- Mount the cooler and bottle filler assembly to the carrier
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all plumbing connections for leaks
- Test bottle filler sensor activation, cooling performance, and water flow
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official LVRCGRNTL8WSK Spec Sheet and the Installation Manual.
