Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refr...

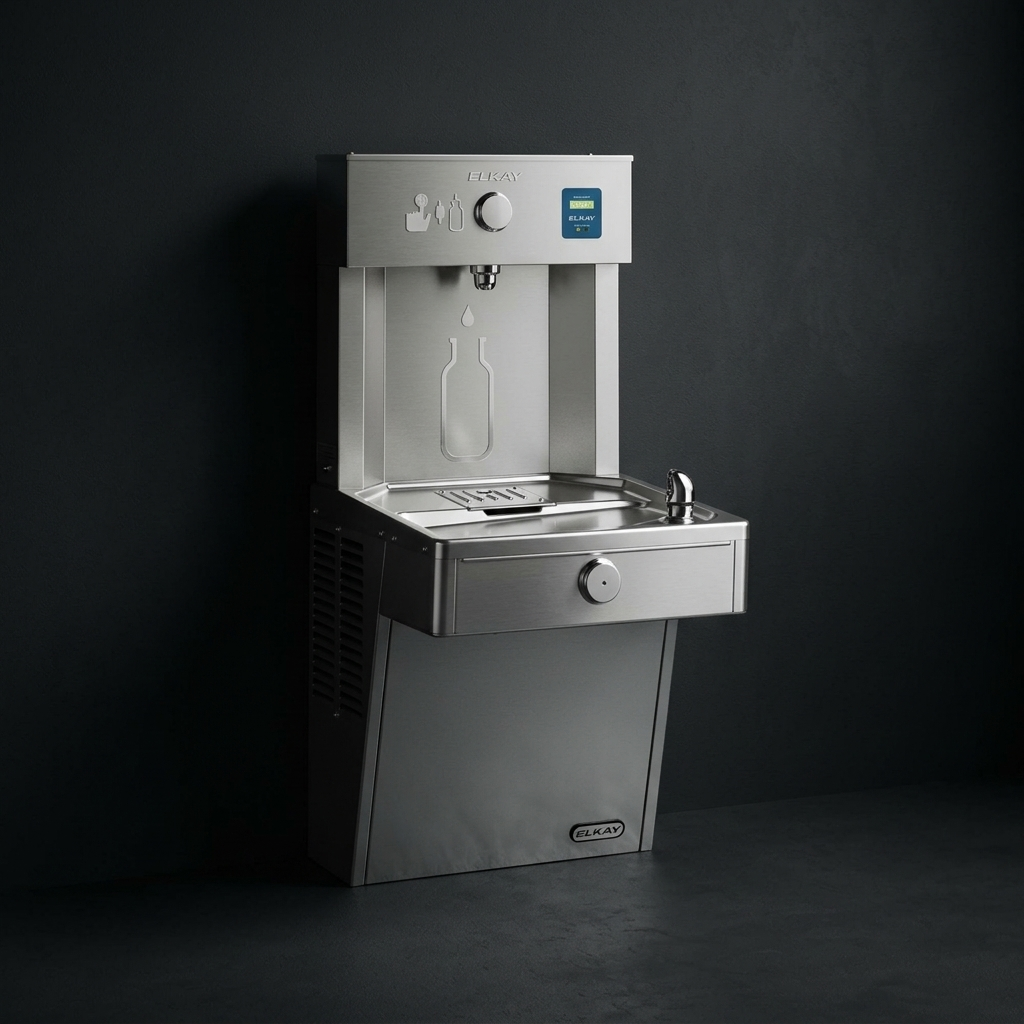

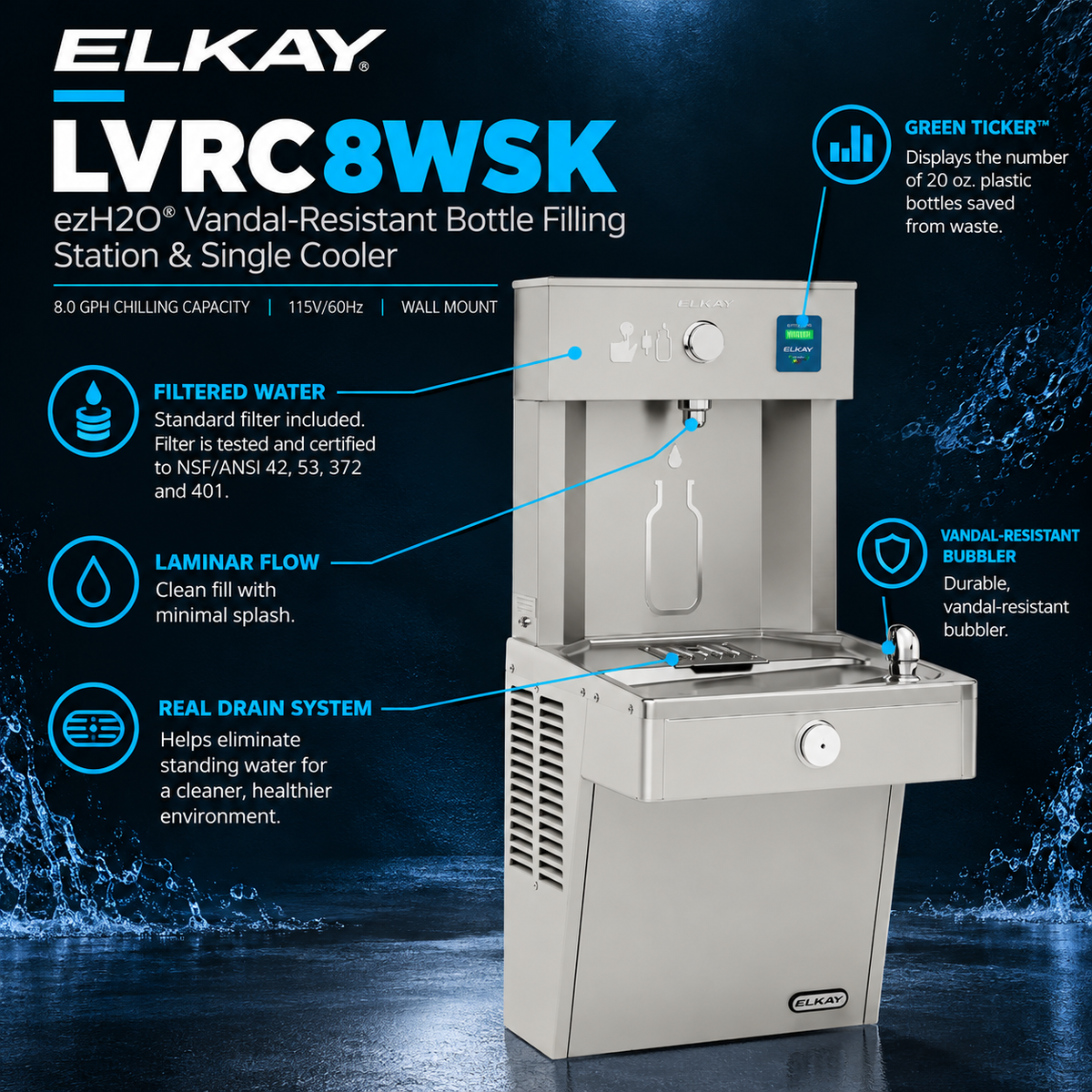

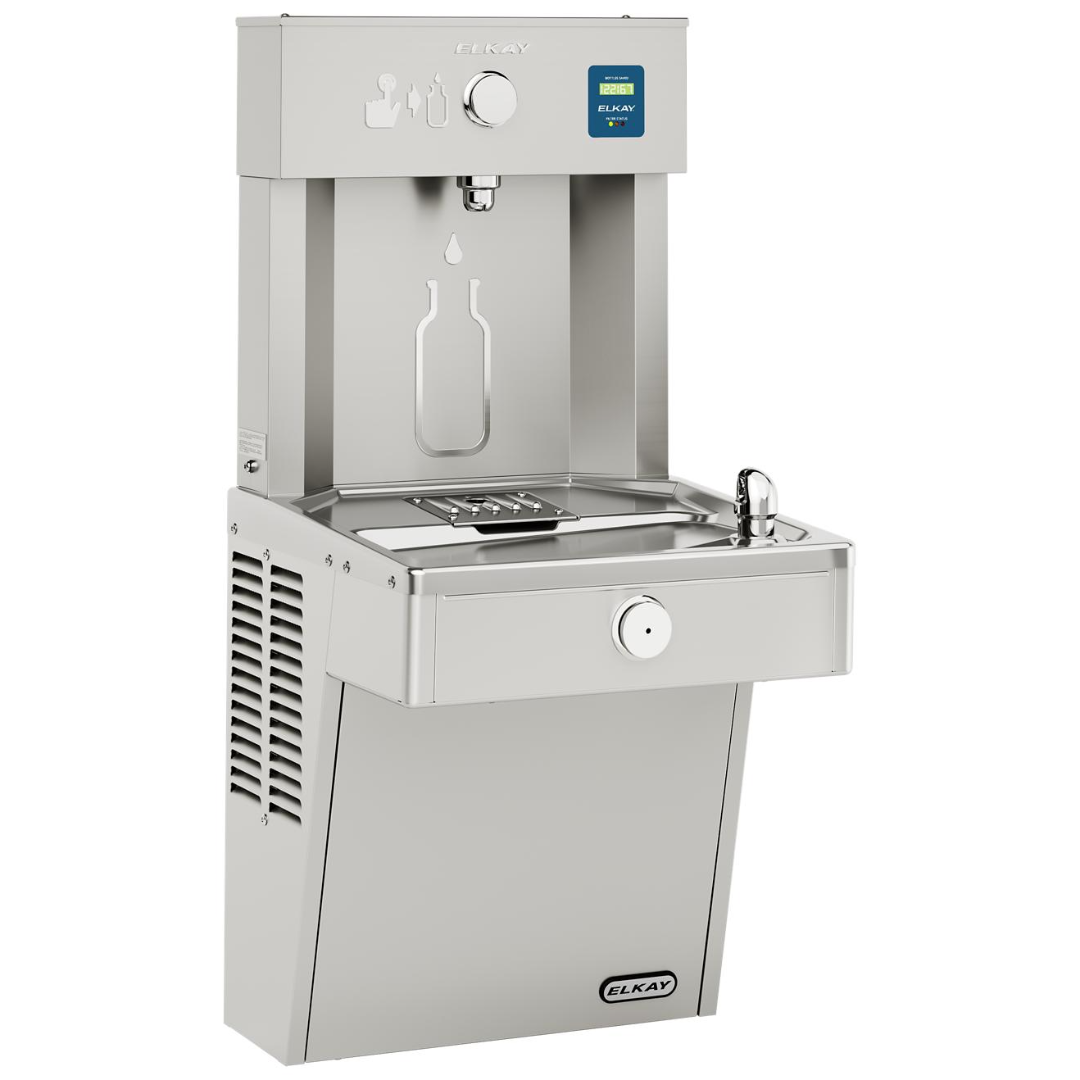

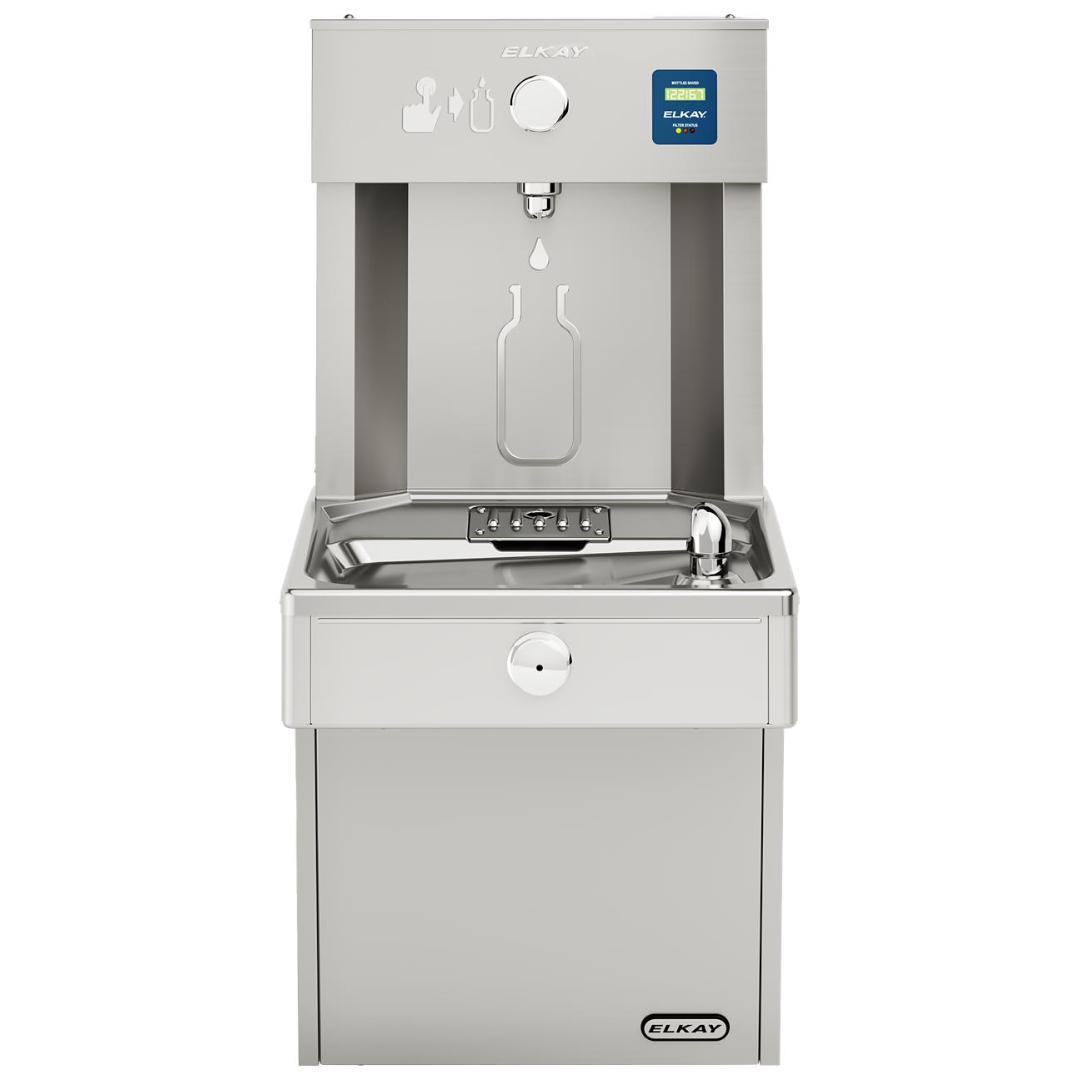

The Elkay LVRC8WSK ezH2O® Vandal-Resistant Bottle Filling Station combines a refrigerated filtered bottle filler with a vandal-resistant drinking fountain for dependable hydration in both indoor and outdoor environments. Featuring a durable stainless steel construction, integrated WaterSentry® filtration, and mechanical fountain activation backup, this unit provides chilled, cleaner drinking water while standing up to demanding public-use applications.
Key Specifications:
| Design | Vandal-Resistant Single Cooler with Integrated ezH2O® Bottle Filling Station |
| Finish | Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Plus Filter, NSF/ANSI certified for reduction of lead, microplastics, particulates, cysts, and chlorine taste & odor (3,000-gallon capacity) |
| Refrigeration | 8.0 GPH Chilling Capacity |
| Stations Served | 1 Station |
Features & Benefits:
- Vandal-Resistant Design: Reinforced drinking fountain components and bubbler help withstand heavy public use.
- Integrated Water Filtration: Standard WaterSentry® Plus filtration reduces lead, microplastics, chlorine taste and odor, cysts, and particulates.
- Mechanical Activation Backup: Drinking fountain continues supplying water even during electrical service interruptions.
- Visual Filter Monitor: LED indicator provides filter status visibility and alerts users when replacement is needed.
- Green Ticker™ Counter: Tracks the number of disposable plastic bottles diverted from landfills through refill usage.
- Indoor/Outdoor Installation: Suitable for indoor and outdoor applications when properly protected from climate conditions.
What's Included:
- LVRC8WS Vandal-Resistant Water Cooler
- LVRCWS ezH2O® Bottle Filling Station
- 51300C WaterSentry® Plus Filter
- Vandal-Resistant Bubbler
- Installation Instructions
- Ships in Multiple Boxes
FAQ
Q: Can the Elkay LVRC8WSK Be Installed Outdoors?
A: Yes. The LVRC8WSK is approved for both indoor and outdoor installations. In non-temperature-controlled environments, the unit must be adequately winterized and/or protected from extreme heat where climate conditions require.
Q: What Filter Does the Elkay LVRC8WSK Use?
A: The unit includes the 51300C WaterSentry® Plus Filter, certified to NSF/ANSI 42, 53, 372, and 401 standards with a capacity of 3,000 gallons or one year after installation.
Q: Is There a Higher-Capacity Filter Available?
A: Yes. The LVRC8WSK is compatible with the 51600C WaterSentry® Lead + Microplastics Filter, which provides a 6,000-gallon capacity and 12-month service life.
Q: What Accessories Are Available for the Elkay LVRC8WSK?
A: Compatible accessories include the 98324C Cane Apron, SSBFUP Universal Back Panel Assembly Kit, and MLP100 In-Wall Carrier.
Q: How Does the LVRC8WSK Handle Power Interruptions?
A: The mechanically activated vandal-resistant fountain continues dispensing water even if electrical service to the bottle filler is interrupted.
Q: What Certifications Does the Included Filter Meet?
A: The included WaterSentry® Plus filter is certified to NSF/ANSI 42, 53, 372, and 401 standards for reduction of lead, microplastics, cysts, particulate matter, and chlorine taste and odor.
Q: Does the LVRC8WSK Include Refrigeration?
A: Yes. The unit provides 8.0 GPH of chilled drinking water based on 80°F inlet water and 90°F ambient air temperature conditions.
Q: What Warranty Coverage Is Included?
A: The refrigeration system is covered by a 5-year limited warranty, while electrical components and the water system are covered for 12 months from installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
- Install the wall mounting plate securely to the wall at the rough‑in dimensions; ensure adequate support structure or use a fixture carrier if required.
- Mount the Elkay LVRC8WSK cooler onto the wall bracket and secure with fasteners; connect drain and water inlet per rough‑in diagram.
- Do not connect power at this stage; leave electrical supply off until water connections are complete.
- Remove the LVRC bottle filler from carton; feed the power cord and waterline through the hole on top of the cooler basin.
- Place the bottle filler onto the basin mounting bracket and gasket; tighten the two side screws provided. Install the top cover with supplied screws; do not overtighten.
- Install insulation on the waterline and connect the 3/8" waterline from the bottle filler to the tee inside the cooler.
- For filtered models, install the WaterSentry® Plus filter cartridge by inserting into the filter head and rotating clockwise until secure.
- Turn on water supply and inspect all connections for leaks; correct any leaks before proceeding.
- Restore electrical power; plug in cooler and bottle filler. Verify green LED filter status and LCD bottle counter display.
- Test dispensing by pressing the bottle filler button; purge air from the line until flow is steady.
- Reinstall lower panel on cooler; unit is now ready for use.
- For detailed steps, refer to the Elkay LVRC8WSK installation manual or contact a licensed plumber/electrician.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity (3,000–6,000 gallons depending on model).
- Reset filter monitor via program button after replacement; verify green LED illumination.
- Clean exterior surfaces with mild soap and water; avoid abrasive cleaners that may damage finish.
- Inspect bubbler stream height and adjust regulator screw as needed; recommended stream height is approximately 1" (25 mm).
- Check drain connections and drip tray regularly; clean to prevent clogs.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified Elkay service representative.
