Elkay LK4409BF | Outdoor Wall-mount Bottle Filling Station | Filter...

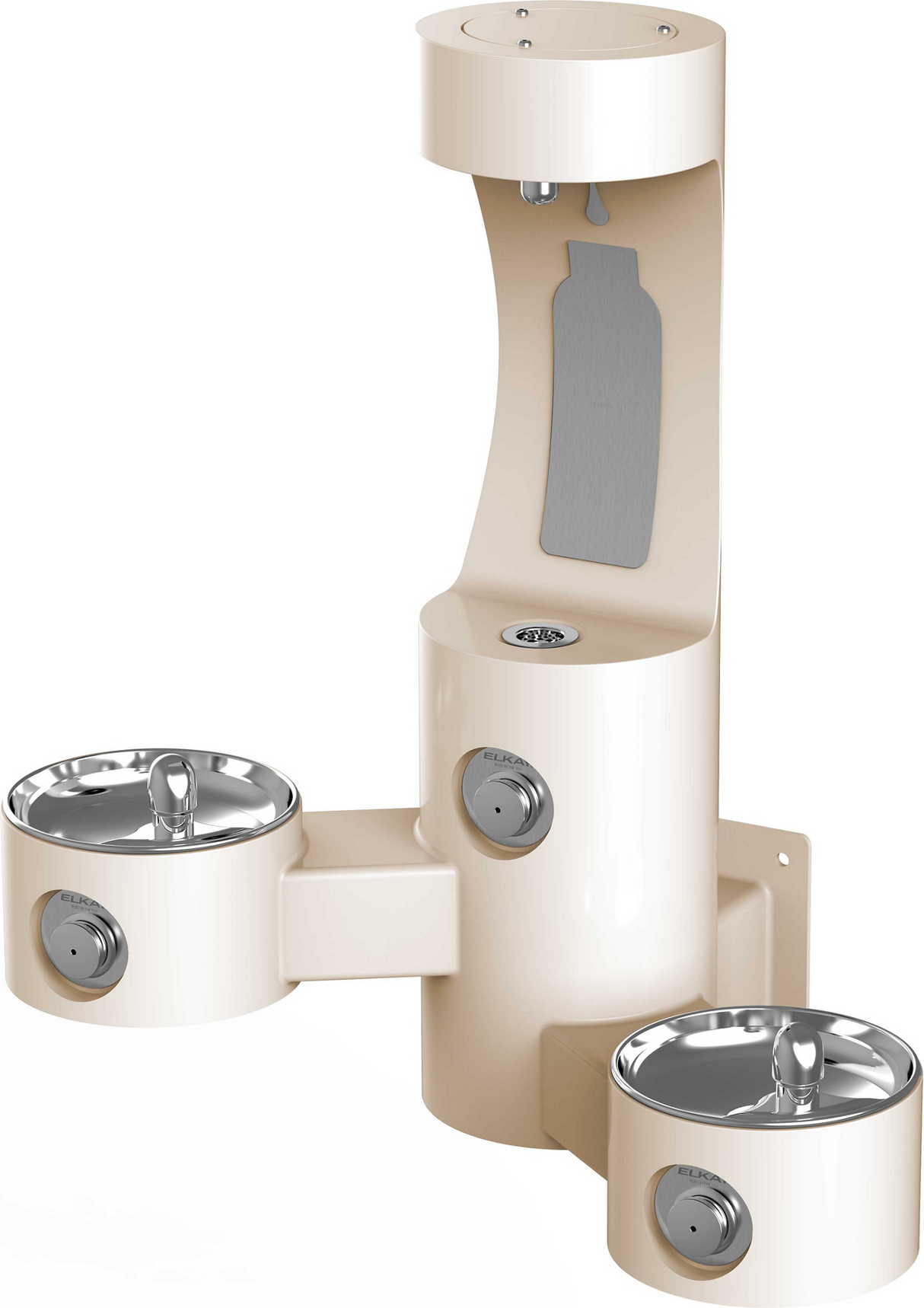

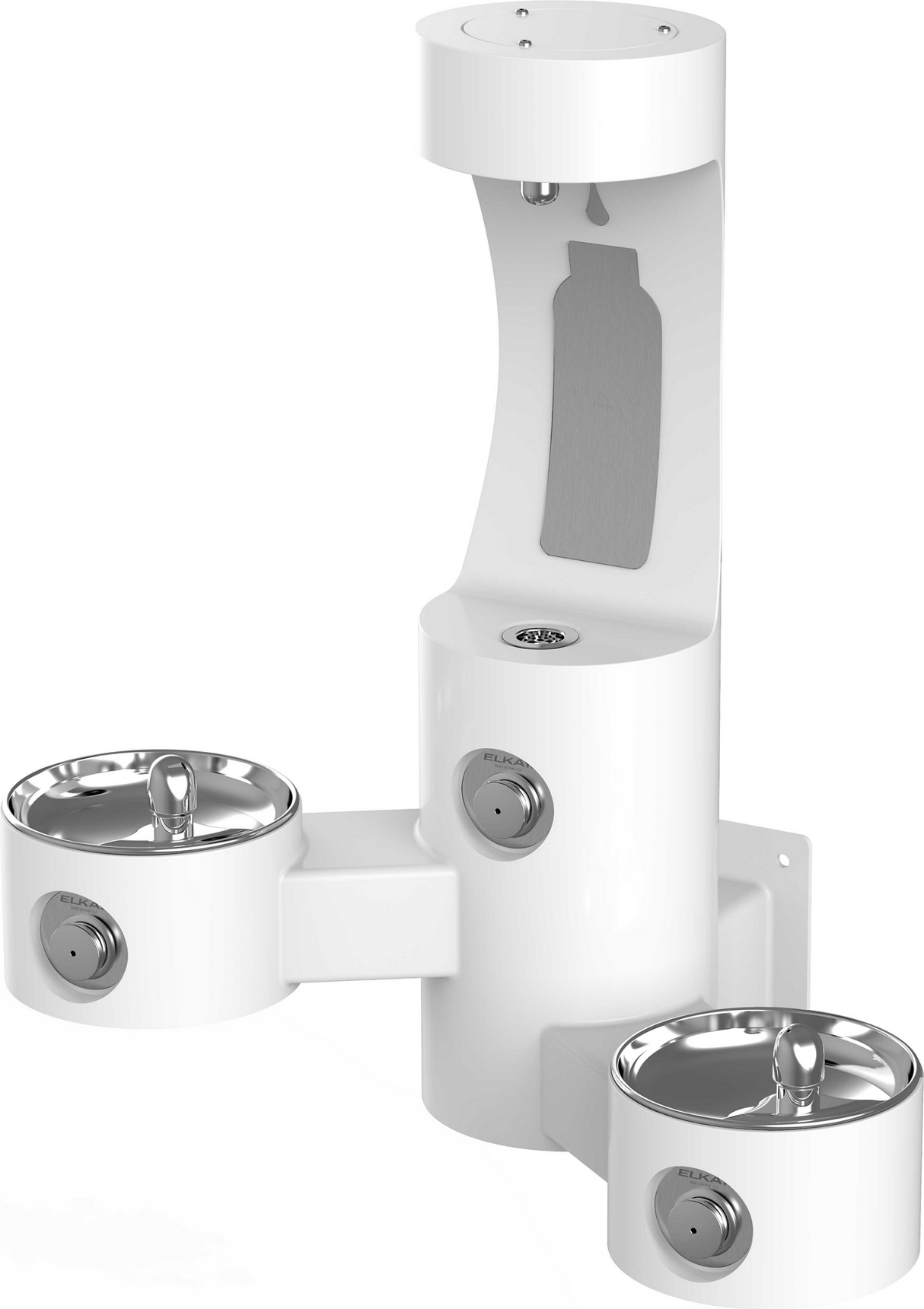

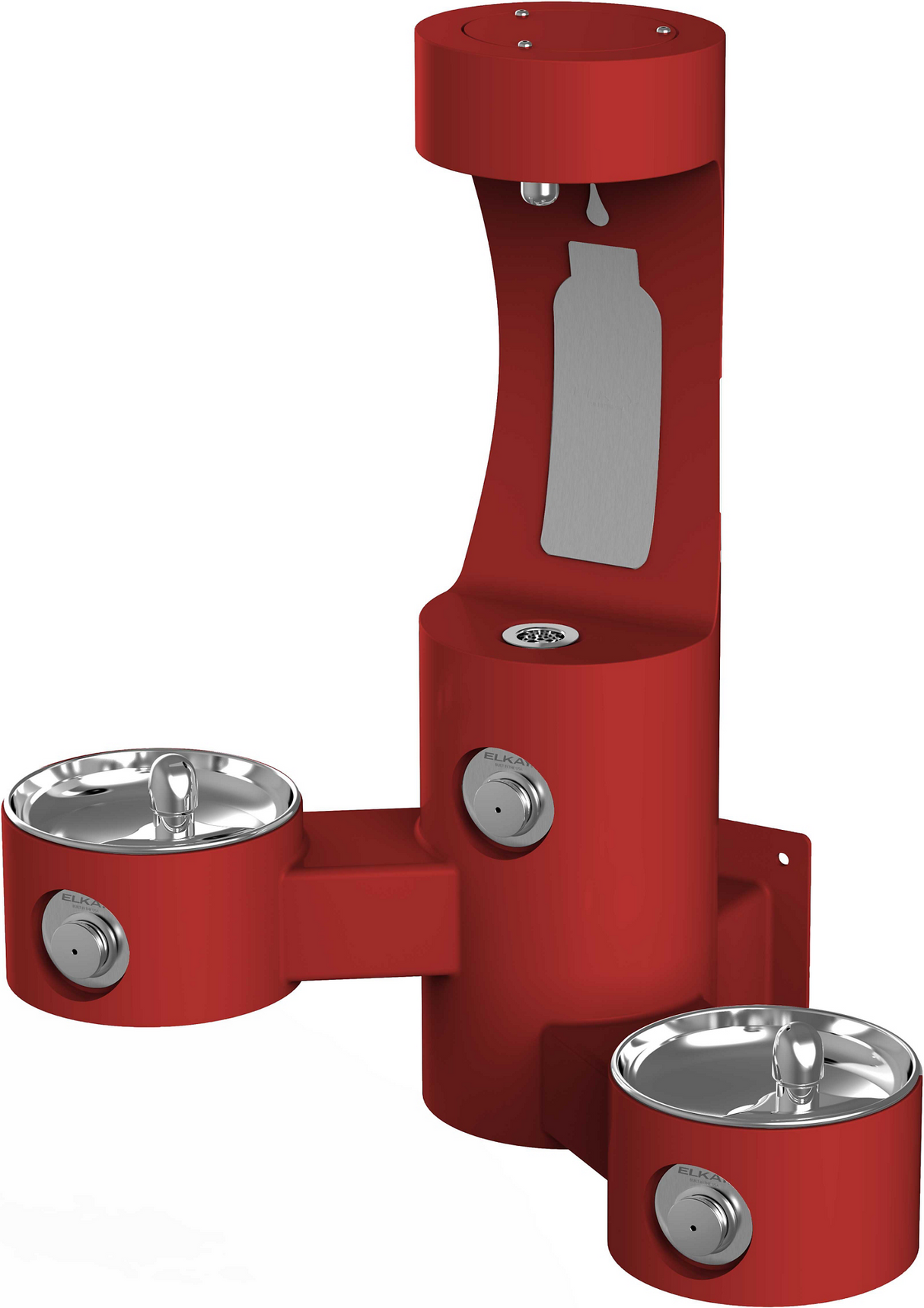

*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

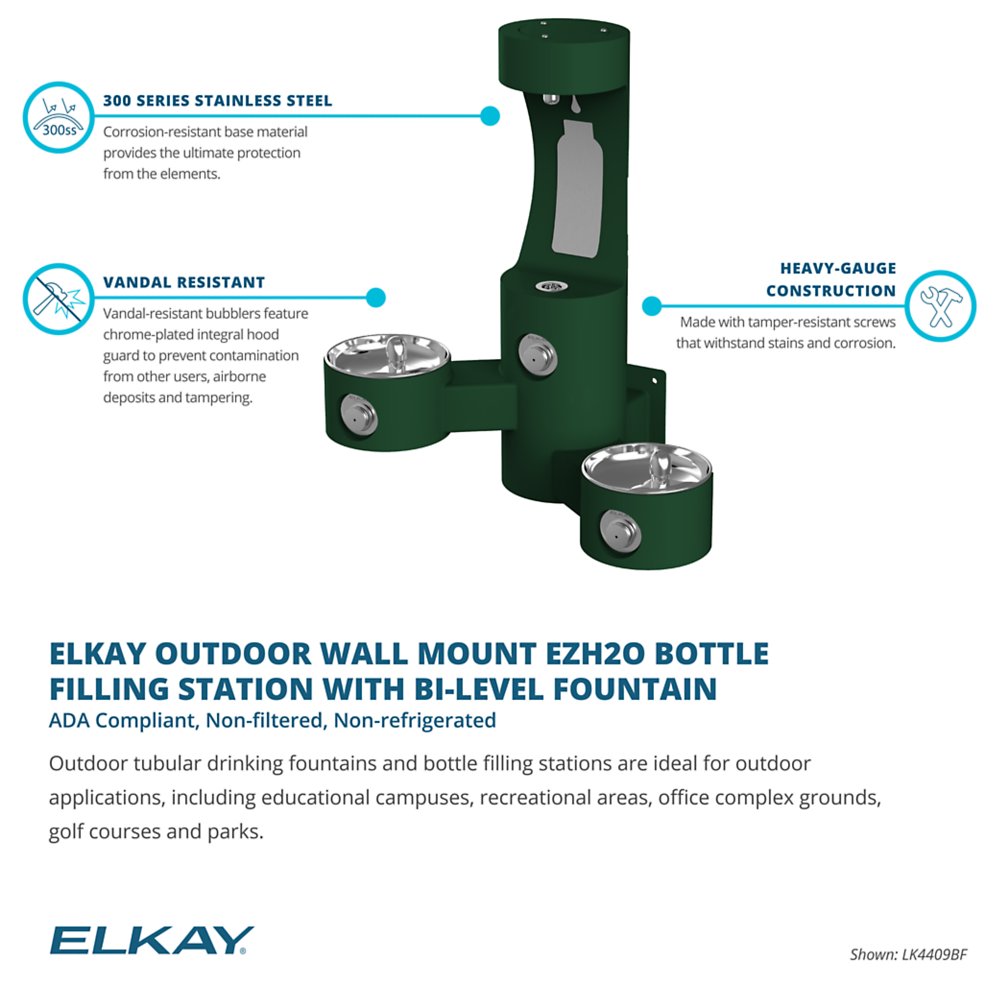

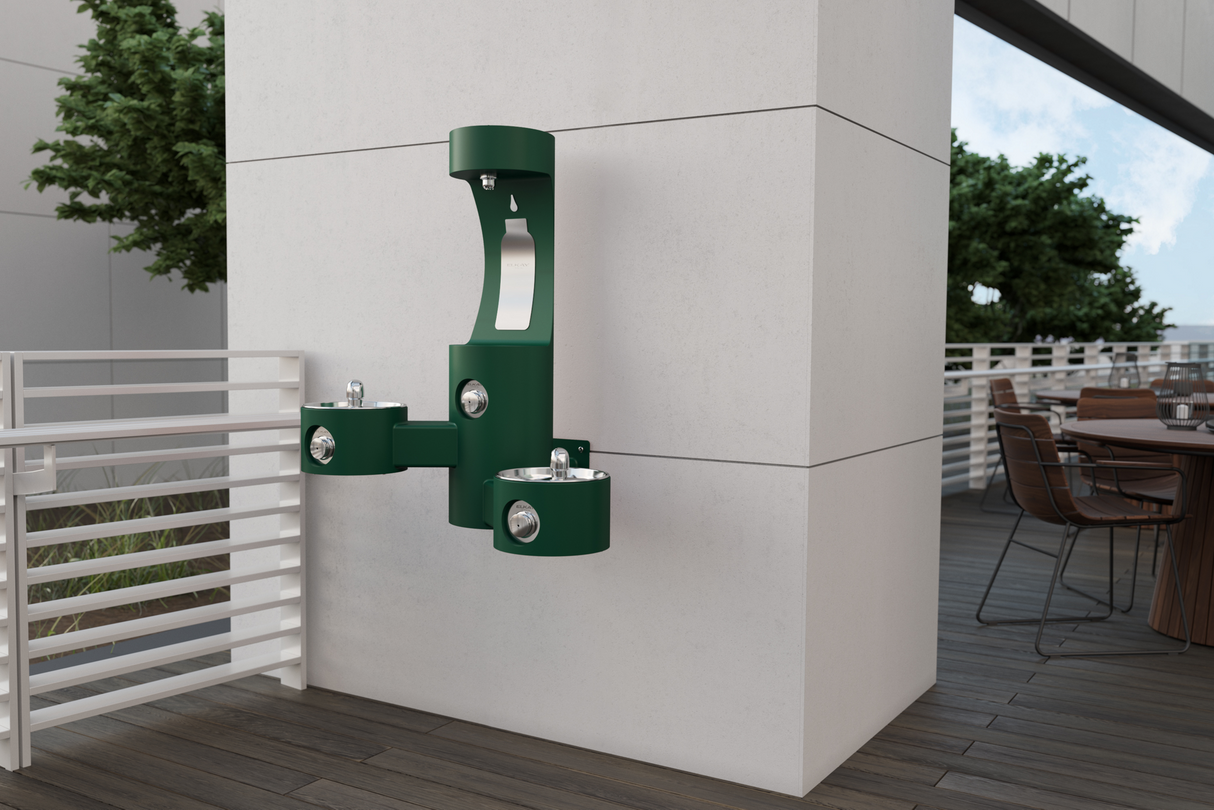

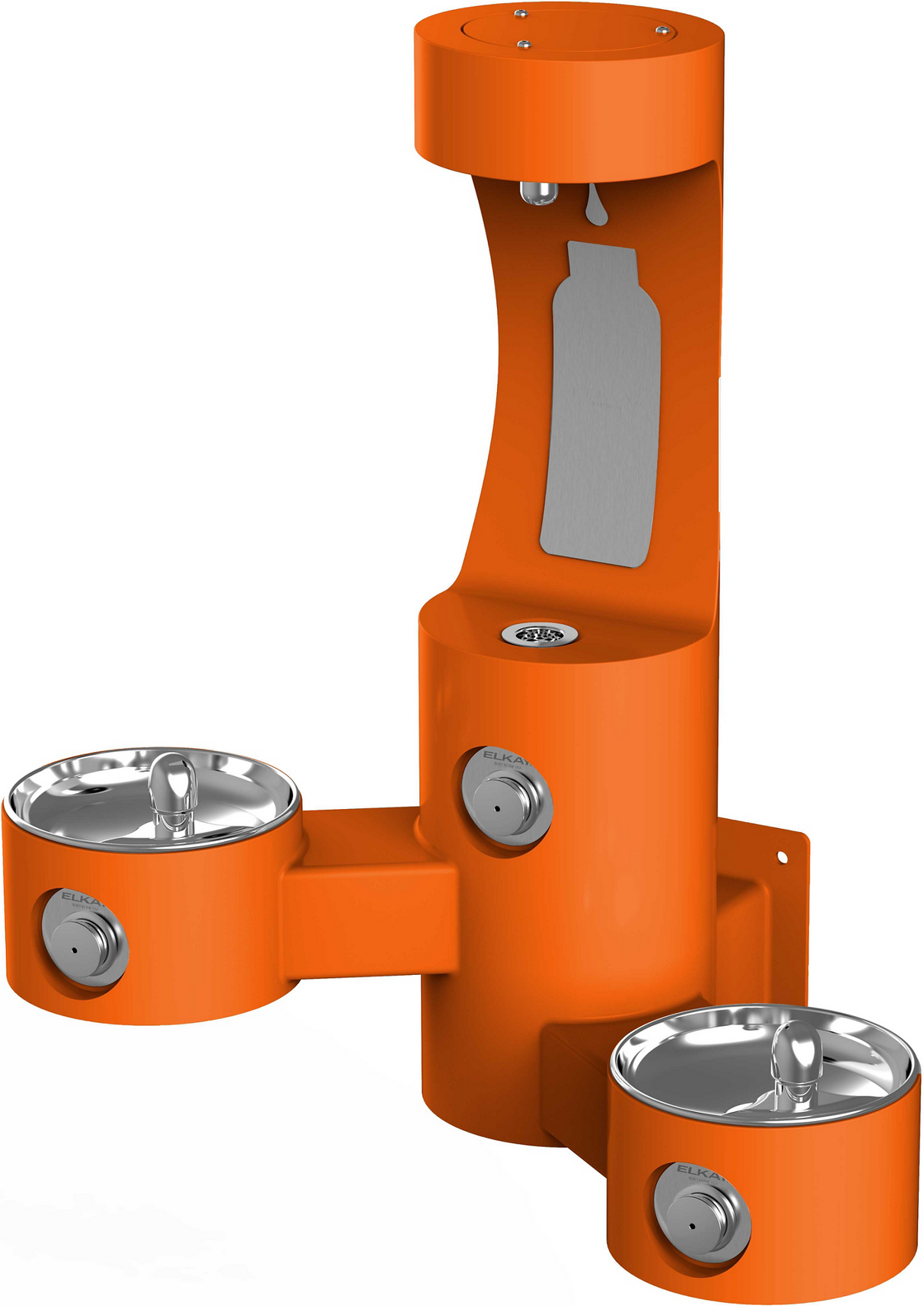

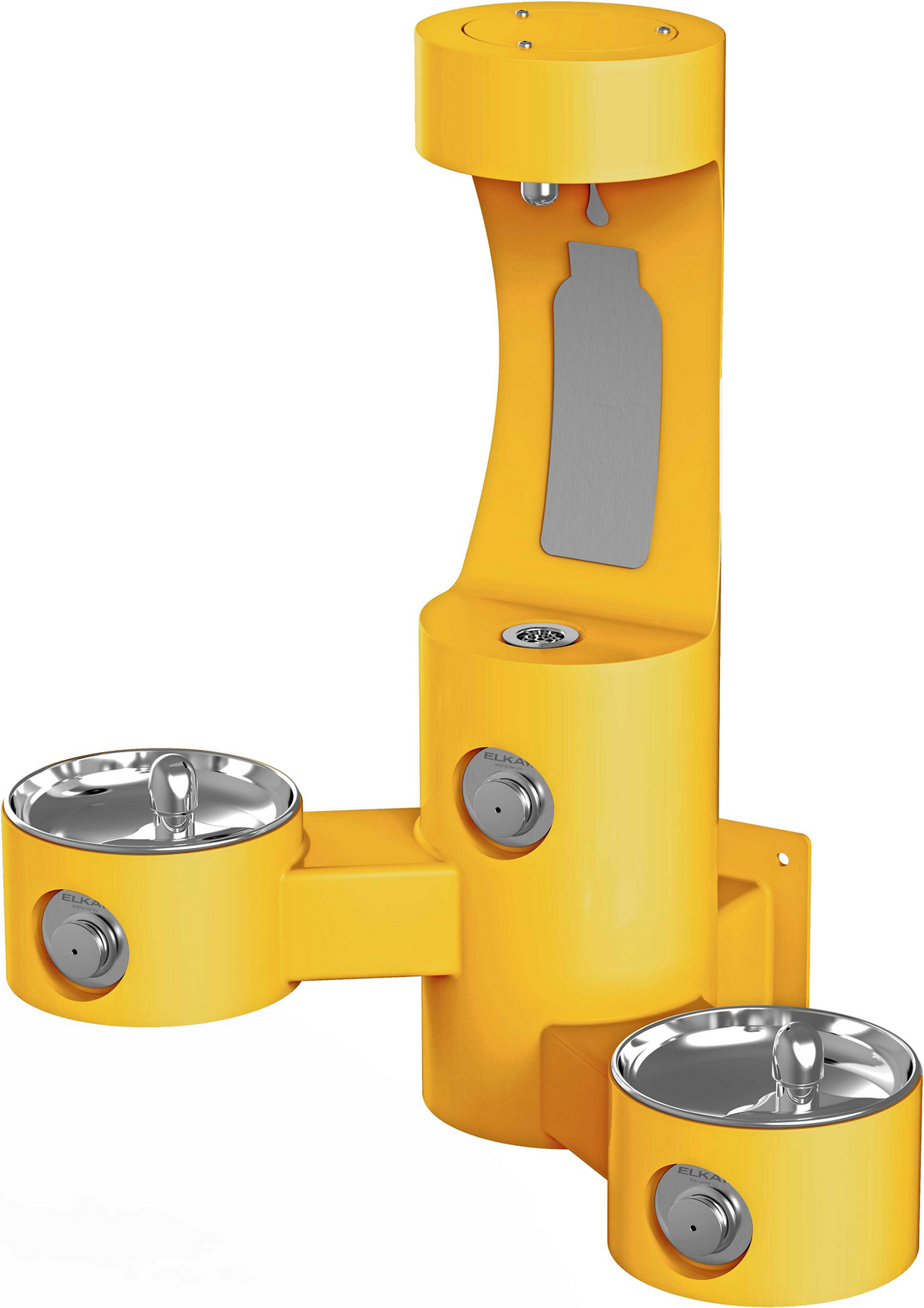

The Elkay LK4409BF is an outdoor ezH2O® Bottle Filling Station with bi-level fountains, built for wall-mount installation. This non-filtered, non-refrigerated unit combines durability, accessibility, and eco-friendliness, making it ideal for high-traffic outdoor areas.
Key Specifications:
- Construction: Heavy-duty, vandal-resistant 300 Series stainless steel
- Capacity: 3 stations – 1 bottle filler, 2 fountains (upper + lower)
- Activation: Mechanical pushbutton, no electricity required
- Dimensions: 21-1/4" L × 32-7/8" W × 38-7/16" H
- Weight: Approx. 203 lbs shipping weight
Features & Benefits:
- Outdoor-Ready: Designed to withstand year-round weather conditions
- ADA Compliant: Bi-level design ensures accessibility for all users
- Laminar Flow: Provides clean, splash-free filling
- Eco-Friendly: Encourages reusable bottles to reduce plastic waste

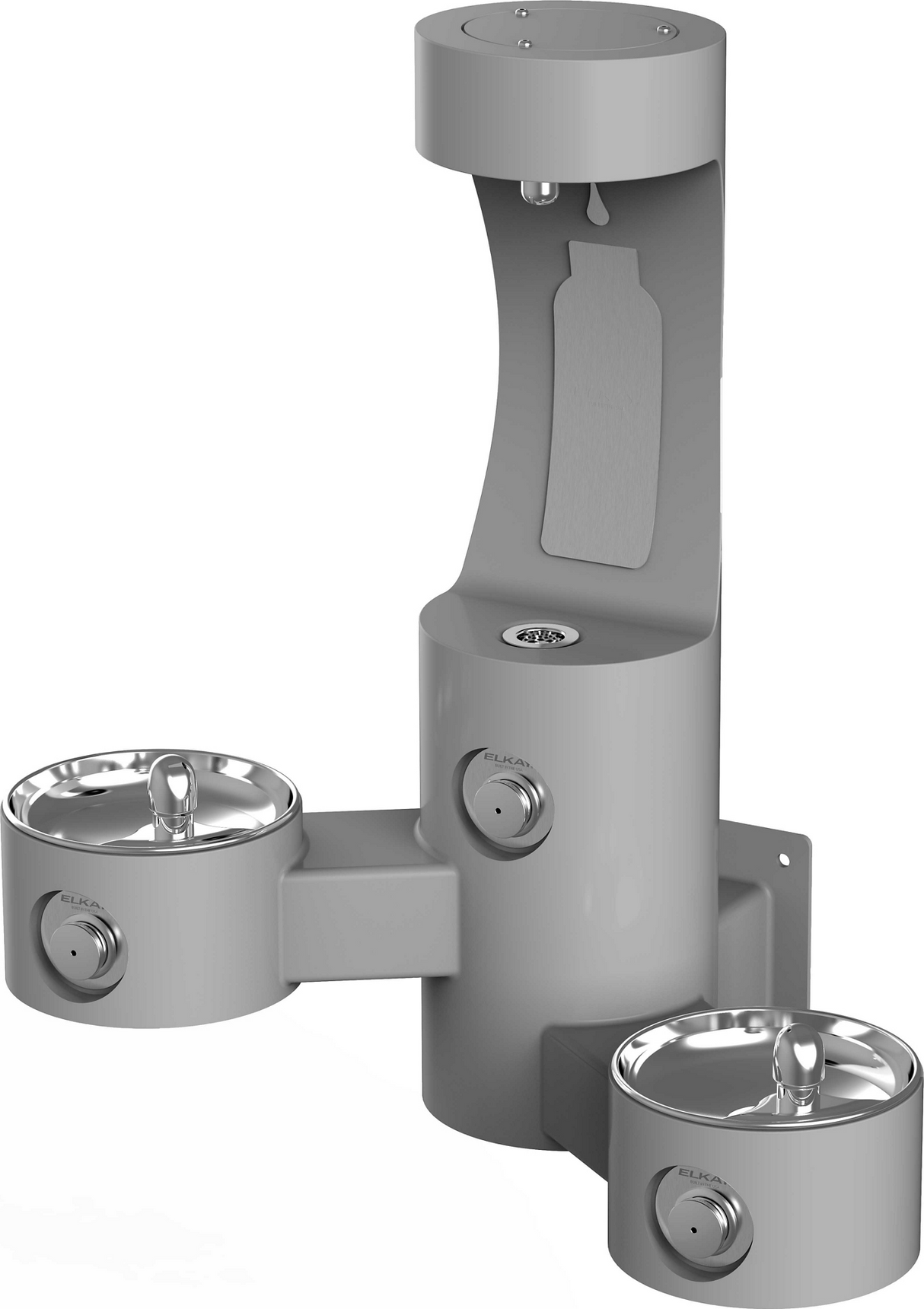

- Color Options: Black, Blue, Evergreen, and Gray
What's Included:
- LK4409BF Outdoor Bottle Filling Station with Bi-Level Fountain
- Vandal-resistant bubbler
FAQ
Q: What colors are available?
A: Standard finish is Evergreen, with a typical lead time of 10–15 business days. Black, Blue, and Gray are also available. Other colors require a minimum order of 10 units and have a lead time of ~20–30 business days.
Q: Are filtered versions available?
A: Outdoor models do not include built-in filtration. Inline filtration can be added with a separate WaterSentry® Plus Filter Kit by custom order. Contact us at support@bottlefillingstations.com or visit our Contact Us page.
Q: Are refrigerated versions available?
A: Outdoor units are non-refrigerated. A remote chiller may be connected if installed in a sheltered environment, especially useful in warmer climates.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes. Constructed with 300 Series stainless steel and powder-coat finish, they provide year-round protection with minimal maintenance.
Detailed Features & Benefits
Vandal-Resistant Design: Built with 300 Series stainless steel, the LK4409BF withstands vandalism, harsh weather, and heavy use. Mechanical activation avoids electronic vulnerabilities, reducing maintenance costs and extending service life.
Versatile Tri-Level Configuration: Includes a bottle filler plus upper and lower fountains, serving adults, children, and wheelchair users. This inclusive design reduces wait times and promotes sustainability by encouraging reusable bottles.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
