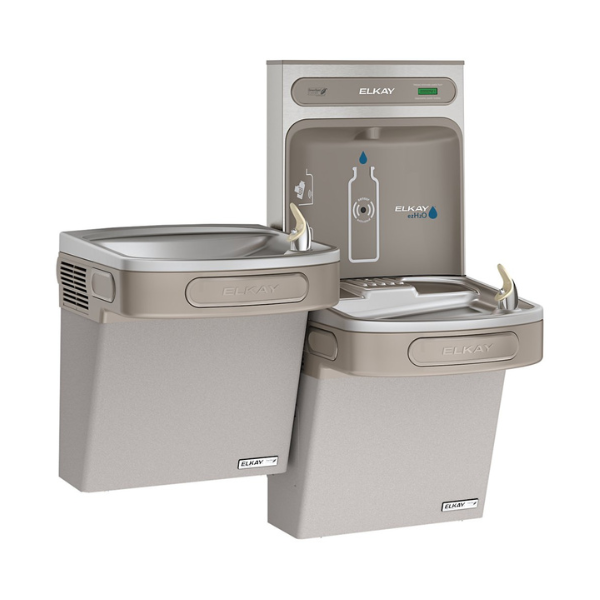

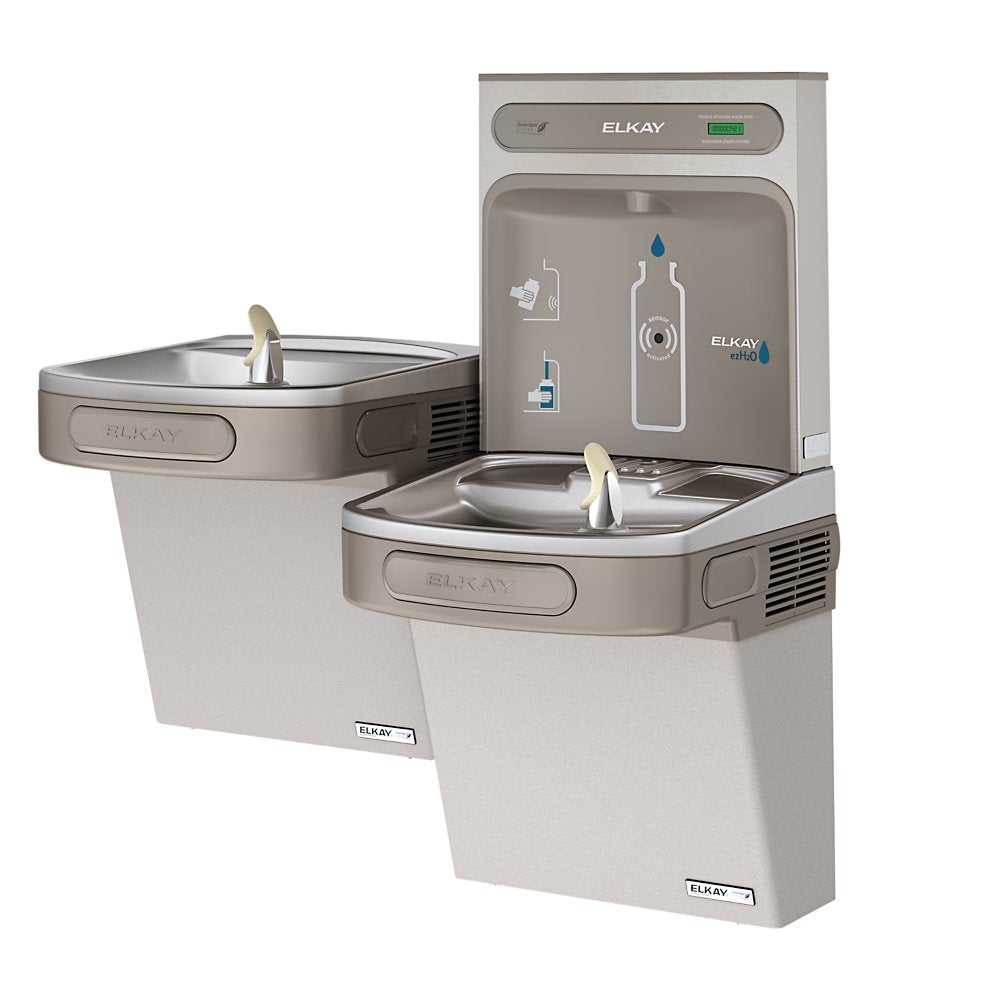

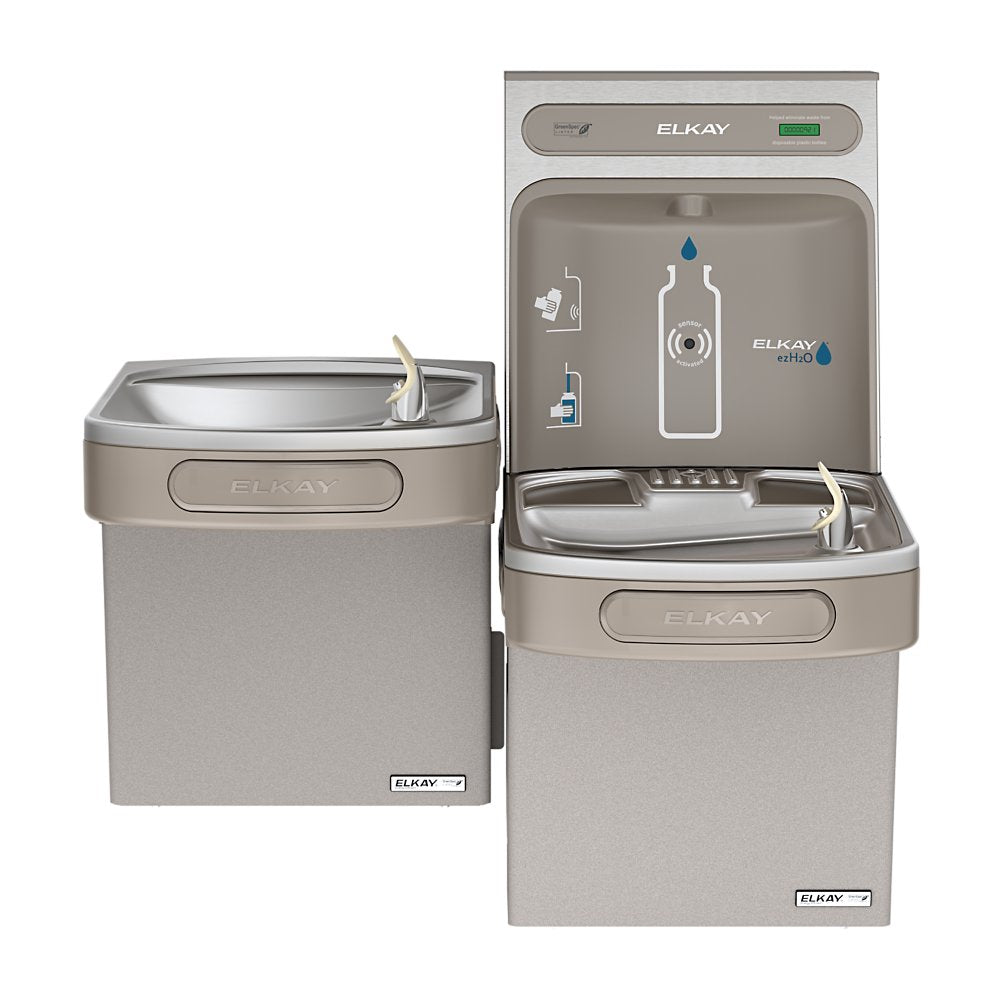

Elkay EZSTLG8WSLK | Wall-mount Versatile Bi-level Bottle Filling Station | Filterless, High-efficiency chiller, EZ-style fountains, Granite Gray
Elkay EZSTLG8WSLK | Wall-mount Versatile Bi-level Bottle Filling Station | Filterless, High-efficiency chiller, EZ-style fountains, Granite Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZSTLG8WSLK | Wall-mount Versatile Bi-level Bottle Filling St...

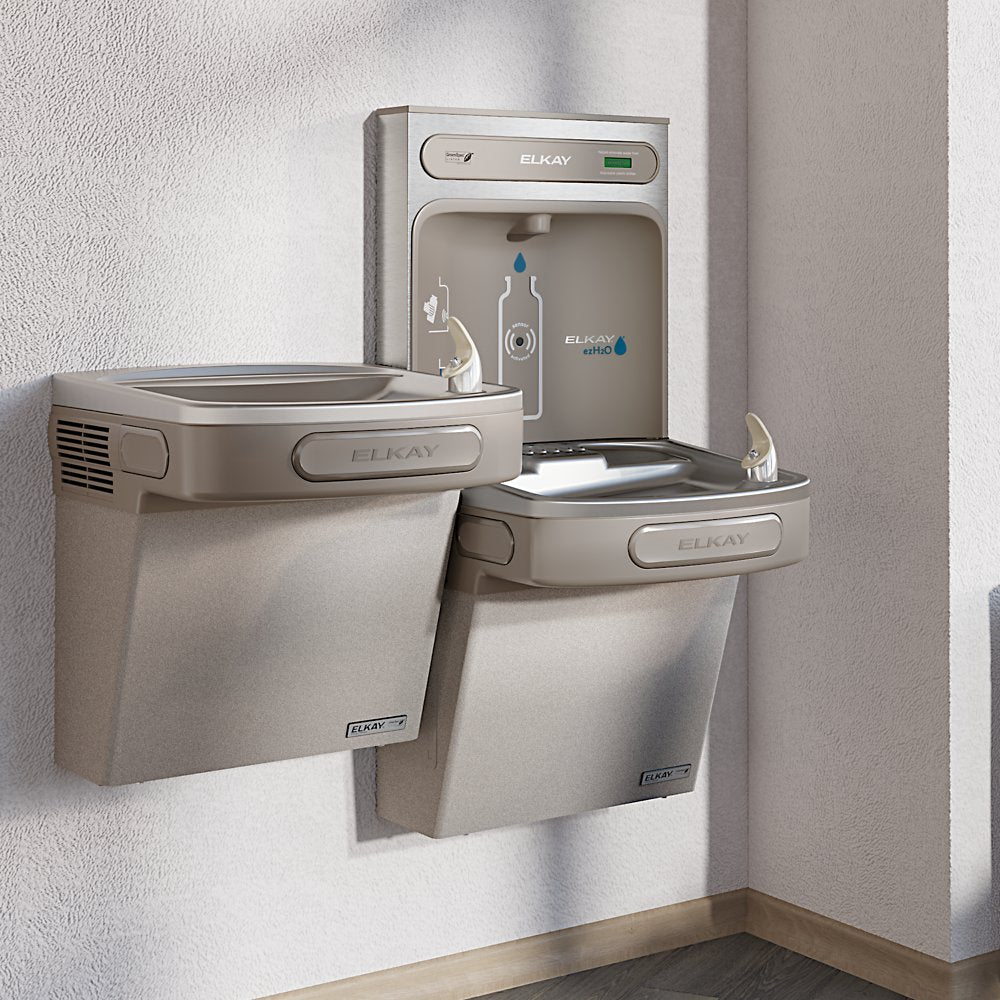

The Elkay EZSTLG8WSLK is a high-efficiency, non-filtered ezH2O® bottle filling station paired with a versatile bi-level ADA cooler. Designed for indoor wall-mount installations, this dual-station unit delivers chilled drinking water with hands-free activation and advanced features that promote hygiene, sustainability, and user comfort.
Key Specifications:
- Chilling Capacity: 8.0 GPH (based on 80°F inlet water and 90°F ambient per ASHRAE 18)
- Power: 115V / 60Hz

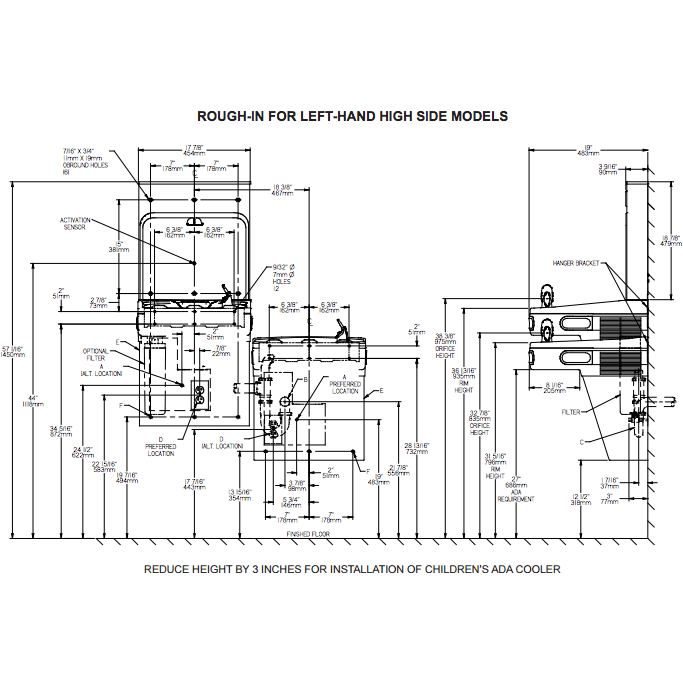

- Dimensions: 36-3/4" × 19" × 39-1/16"
- Activation: Electronic bottle filler sensor with front and side bubbler pushbars
Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 when installed per requirements
- Hands-Free Bottle Filling: Sensor-activated bottle filler with laminar flow for clean, splash-free operation
- Green Ticker™: Displays number of 20 oz. plastic bottles saved from waste
- Antimicrobial Protection: Key plastic components treated with silver ion antimicrobial agent
- Real Drain System: Eliminates standing water for improved sanitation
- Energy Efficient: High-performance compressor and insulation reduce energy consumption
What’s Included:
- EZSTLG8WSLK bi-level cooler and EZWSR bottle filler module
- Flexi-Guard® StreamSaver™ bubbler installed
- Installation instructions and documentation
FAQ
Q: Is the EZSTLG8WSLK suitable for high-traffic areas?
A: Yes. With dual stations and hands-free bottle filling, this unit is ideal for schools, offices, and public buildings where accessibility and efficiency are key.
Q: Does this model include filtration?
A: No, the EZSTLG8WSLK is a non-filtered model. Elkay offers compatible filtration kits such as the EWF3000 if filtration is desired.
Q: What type of maintenance is required?
A: Routine cleaning of the basin and bubbler, checking the bottle filler sensor, and ensuring proper drainage are recommended. If a filter kit is added, replace filters per gallon rating.
Detailed Features & Benefits
Advanced Cooling System: Hermetically-sealed reciprocating compressor with fan-cooled condenser and insulated copper tubing ensures consistent chilled water delivery while minimizing energy use.
Streamlined User Experience: The combination of hands-free bottle filling, pushbar activation, and laminar flow provides a clean, intuitive hydration experience for all users, including those with accessibility needs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
