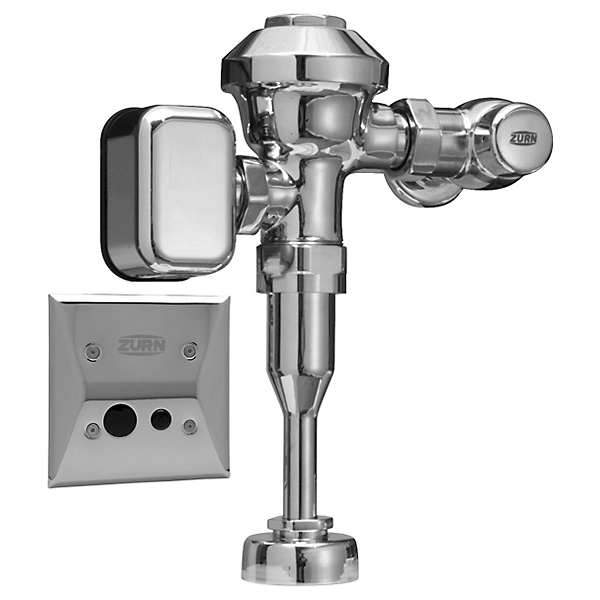

Zurn ZEMS6003PL-WS1 | Exposed Sensor Flush Valve for Urinals | 1.0 GPF
The Zurn ZEMS6003PL-WS1 Series is an exposed hardwired diaphragm-type flush valve for urinals, offering quiet operation and reliable performance.
Key Specifications:
- Flush Volume: 1.0 gpf (WS1)
- WaterSense Compliant: No
- Finish: Chrome-plated flush valve body with chrome-plated plastic cover
- Dimensions: Standard height 11 1/2" [292mm]; Optional heights 16" [406mm] or 24" [610mm]
- Activation: Automatic sensor with capacitive-sensing manual override button; diaphragm-type operation
Related Variants
| SKU | Flush Volume | Water Sense | Activation |
|---|---|---|---|
| ZEMS6003PL-WS1 | 1.0 gpf | No | Automatic Sensor |
| ZEMS6003PL-ULF | 0.125 gpf | Yes | Automatic Sensor |
| ZEMS6003PL-EWS | 0.5 gpf | Yes | Automatic Sensor |
| ZEMS6003PL-STANDARD | 1.5 gpf | No | Automatic Sensor |
Features & Benefits:
- Quiet Diaphragm Operation: Engineered with a diaphragm-type mechanism and motor actuator for whisper-quiet flushing in high-traffic commercial restrooms.
- Chloramine-Resistant Durability: Features AquaFlush TPE dual-seal diaphragm and chloramine-resistant internal seals to extend service life and reduce maintenance.
- Touchless Hygiene with Manual Override: 10-degree angled sensor provides hands-free activation while the capacitive-sensing push button offers convenient manual override.
- Robust Construction: Made from proprietary dezincification-resistant low-lead brass alloy with chrome-plated finish and high-impact polycarbonate housing for vandal resistance.
Compliance and Certifications:
- ASSE 1037
- ASME A112.1037 / CSA B125.37
- IAPMO R&T Certified
- ADA Compliant
FAQ
Q: What is the flush volume for the ZEMS6003PL-WS1 model?
A: The ZEMS6003PL-WS1 delivers a 1.0 gpf flush volume for urinal applications.
Q: Does the ZEMS6003PL-WS1 require a separate power supply?
A: Yes, this hardwired flush valve requires a P6000-HW6 7.6VDC hardwired power converter or P6900-ACA-BA plug-in power supply (sold separately).
Q: Can the sensor sensitivity be adjusted?
A: The valve features a 10-degree angled sensor optimized for reliable urinal activation and includes a capacitive-sensing manual override button for flexible operation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
