Hoshizaki  |  SKU: C-80BAJ-AD

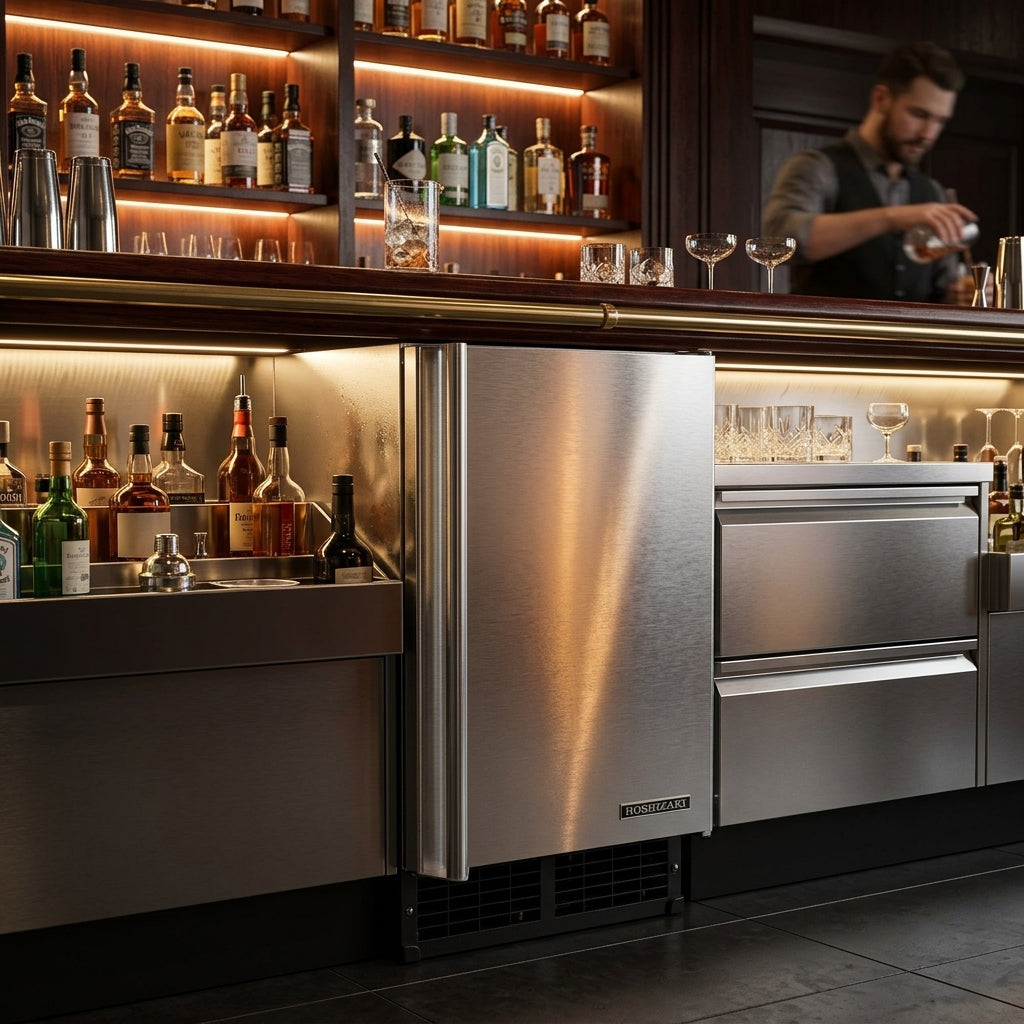

Hoshizaki C-80BAJ | Self-Contained Cubelet Icemaker, Air-cooled, 22 lbs capacity

$ 4,115.00
Shipping calculated at checkout.
ADA Compliant
Cabinet Ready

Product Care Information
Installation

This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.



Maintenance

Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.

The C-80BAJ by Hoshizaki is a high-capacity, self-contained cubelet ice machine designed for commercial use in spaces where floor area is at a premium. This versatile unit combines impressive ice production of up to 80 lbs per day with a 22 lbs built-in storage capacity, making it ideal for restaurants, bars, and healthcare facilities. Its compact undercounter design, UL approval for outdoor use, and production of easy-to-chew cubelet ice set it apart as a flexible and efficient ice solution for various environments.



Key Specifications:

  • Ice Production Capacity: Up to 80 lbs of cubelet ice production per 24 hours at 70°F air/50°F water; 45 lbs at 90°F air/70°F water.
  • Storage Capacity: Built-in storage bin with 22 lbs capacity.
  • Dimensions: Compact size of 14⅞" W x 22⅝" D x 33½" H, perfect for undercounter installation.
  • Height: Less than 34 inches (C-80BAJ, C-80BAJ-DS); ADA compliant with a height of less than 32 inches (C-80BAJ-AD, C-80BAJ-ADDS).
  • Electrical: Operates on 115V/60/1 with a maximum fuse size of 15A, drawing 4.0A under normal conditions.
  • Refrigerant: Uses R-134A with a charge amount of 3.92 oz.



Features & Benefits:

  • Space-Saving Design: Undercounter profile with front-to-back airflow allows for flexible placement in tight spaces.
  • Cubelet Ice Production: Produces small, chewable ice pieces that are ideal for healthcare settings and general beverage service.
  • Easy Maintenance: Power switch accessible without panel removal and easily disassembled water circuit for simple cleaning.
  • Versatile Installation: UL approved for outdoor use, expanding placement options to include outdoor bars and service areas.
  • Energy Efficiency: Uses 12.0 kWh per 100 lbs of ice production, balancing high output with energy conservation.



What's Included:

  • C-80BAJ Self-Contained Cubelet Ice Machine unit
  • 6 ft. power cord with NEMA 5-15 plug
  • Full-length stainless steel door handle
  • Installation and operation manual
  • Warranty documentation



FAQ



Q: What are the plumbing requirements for the C-80BAJ?

A: The C-80BAJ requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for the icemaker water supply line. For drainage, it needs a minimum 1/2" Nominal ID Hard Pipe or equivalent. The unit operates with a water pressure range of 7-113 PSIG and a water temperature range of 45°F to 90°F.

Q: Is this ice machine ADA compliant?

A: The standard C-80BAJ model is not ADA compliant as it stands 33½" tall. However, Hoshizaki offers an ADA-compliant version, the C-80BAJ-AD, which is less than 32 inches tall and meets ADA requirements.

Q: What is the warranty coverage for this ice machine?

A: Hoshizaki provides a 2-year parts and labor warranty on the entire machine. Additionally, if the optional HS-5061 Drain Pump Assembly is installed, it carries a separate 1-year parts and labor warranty. This warranty is valid in the United States, Canada, Puerto Rico, and U.S. Territories.



Detailed Features & Benefits



Cubelet Ice Production: The C-80BAJ's ability to produce cubelet ice is a standout feature that sets it apart in the market. Cubelet ice, also known as nugget ice, consists of small, chewable pieces that are softer and easier to consume than traditional cubes. This type of ice is particularly beneficial in healthcare settings, where patients may have difficulty swallowing larger ice cubes. It's also popular in beverage service, as it chills drinks quickly without excessive dilution. The machine's high production capacity of up to 80 lbs per day ensures a constant supply of this versatile ice type, meeting the demands of busy establishments while offering a premium product that enhances customer satisfaction.

Versatile Design and Installation: The C-80BAJ's compact undercounter design, measuring just 14⅞" W x 22⅝" D x 33½" H, addresses the common challenge of limited space in commercial kitchens and service areas. This slim profile, combined with its front-to-back airflow system, allows for flexible installation options, including placement against walls or alongside other equipment. The unit's UL approval for outdoor use further expands its versatility, making it suitable for outdoor bars, patios, or poolside service areas. This flexibility in placement not only maximizes space utilization but also allows businesses to optimize their service layout, potentially improving workflow and customer service efficiency. The availability of an ADA-compliant version (C-80BAJ-AD) further demonstrates Hoshizaki's commitment to inclusivity and adaptability in diverse commercial environments.



NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
